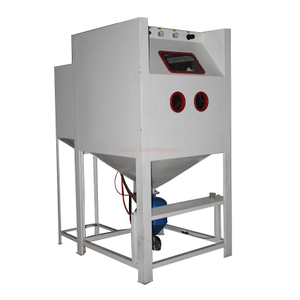

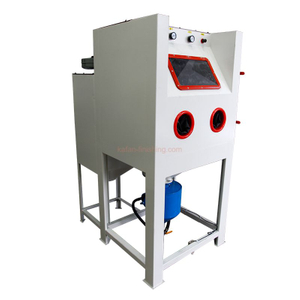

Three Station Pressure Blast Cabinet

Thre pressure blast cabinet with 3 working stations is designed for operating larger workparts. Comparing with siphon type, rressure blast cabinet delivers greater impact intensity which increases your production rate by as much as 300%.
  • KF-2810P-3

  • Kafan

  • Pressure Blast Cabinet


Double Station Pressure Sand Blast Cabinet

This pressure blast cabinet is specially designed with 3 working stations, which is required to efficiently operate larger workparts. Works by directly pushing and accelarating the medias to target surfaces through hose and nozzle,  this blaster delivers media at a much higher velocity that causes poweful cutting force.

Pressure blast cabinet is ideal for tough cleaning jobs, such as removing heavy burrs, thick oxide layers and old coats, also makes it easy to handle hard stuffs, work can be done 3-5 times faster than a suction blast cabinet

three station blast cabinetspressure blast cabinets

Pressure Blast Cabinet Features

  • Enclosed cabin design without dust leakage during blasting, cause no pollution to environment and is safe to operators.

  • Dust collection system is designed to keep dust away from the operator's window for increased visibility and accuracy when cleaning.

  • Used abrasives are collected  in the funnel that can be recycled for many times, reducing consumption and save cost.

  • Newly-developed pressure abrasive valve improves processing quality, reduces compressed air consumption.

  • Pressure type blast gun with boron carbide nozzle are extremely durable that guarantees long service life.

pressure blast cabinet

Three Station Pressure Blast Cabinet Specifications

Working Chamber Size L2800*W1000*H750mm
Body Material 2.0mm Cold-rolled Steel Plate Welded
Pressure Vessel  Diameter350mm  x Height450mm, 3pcs
Pressure Regulator 3 pcs
Blast Gun High Pressure Blast Guns, 3pcs
Blast Gun Nozzle Boron Carbide Nozzles, 10mm, 3pcs,
Dust Collector motor   1.5kw
Air Source Pressure 5-8bar (kg / square meter)
Voltage made as local.

Why choose Kafan sandblasting cabinet?

Devoted to world market for over 10 years, Kafan offer you factory-direct manufactured sand blasting machine in high quality and competitive price. With professional sales, techinical, production team, we provide blasting equipments in a variety of specifications and styles based on customers' requirements. Such as suction blast machine, pressure blast machine,portable blaster, wet blasting machine, automatic conveyor blast machine.

To pursue best performance, we use the latest technology for our blast components, our cabinets are fully welded with 2mm steel. Each component has proven reliability, we design and manufacture in-house. Each cabinet is fully equipped with high quality components that both have been designed and tested by us for optimal performance., by all of which we ensure 1 year warranty period for any quality problem. For sea shipping, we will strictly packed in film and foam first, with wooden case outside to make sure it is safe and intact to your country.
