KF-1010W
KAFAN
Wet Sand Blasting Machine
| Quantity: | |
|---|---|
Wet sand blastng machine use a high performance slurry pump agitating water and abrasive into slurry mixture, then blast the mixture onto targets attaining the purpose of removing rust, oxide layer, imperfections and other contaminants.
1. With water's lubrication the surface performs much brighter and cleaner, without abrasive impregnation.
2. Wet blasting process using fine abrasives tends to operate delicate or fragile products ideally, such as precise instruments and accessories.
3. More important, wet blasting equipment creates dustless working chamber and have a clear observation during processing.
4. Water sandblasting has a cushion effect that minimize the damage and wear of the blasting machine and parts.
5. Decrease the friction heat to prevent color changes for some special metal workpieces.
Anti-rust stainless steel body of the wet blasting equipment.

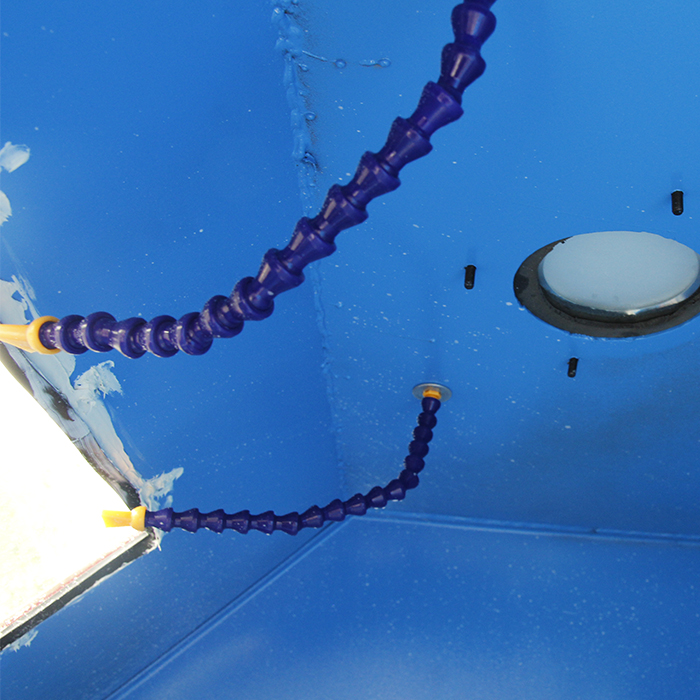

Low voltage windscreen wiper and wash facility to maintain visibility throughout

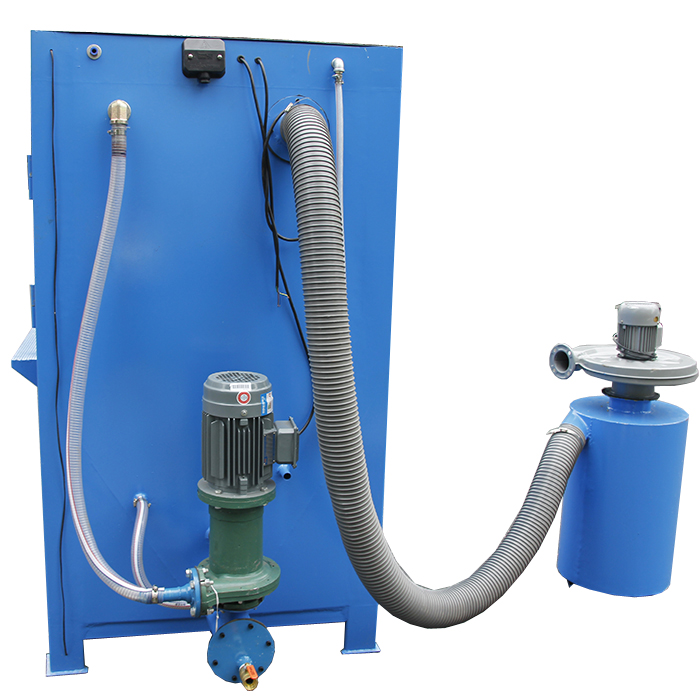

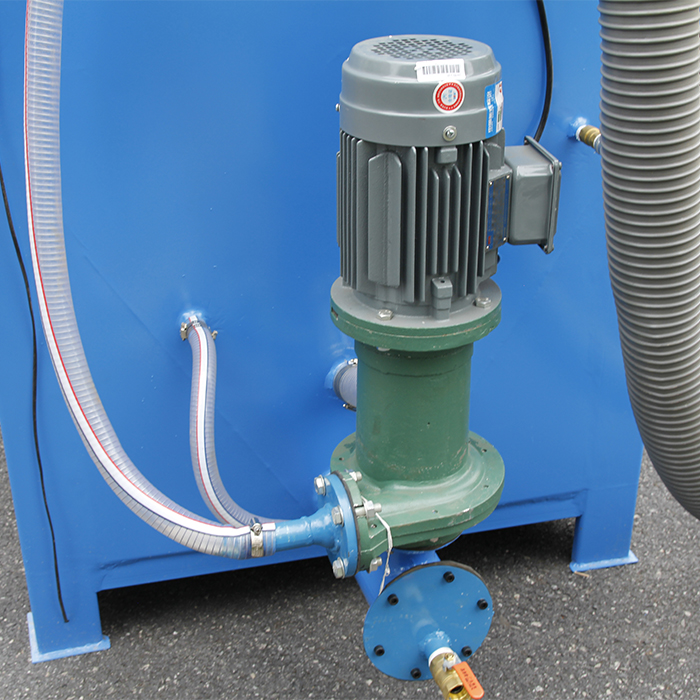

A well-sealed slurry pump agitates and delivers abrasive and water mixture for a continuous blasing process.

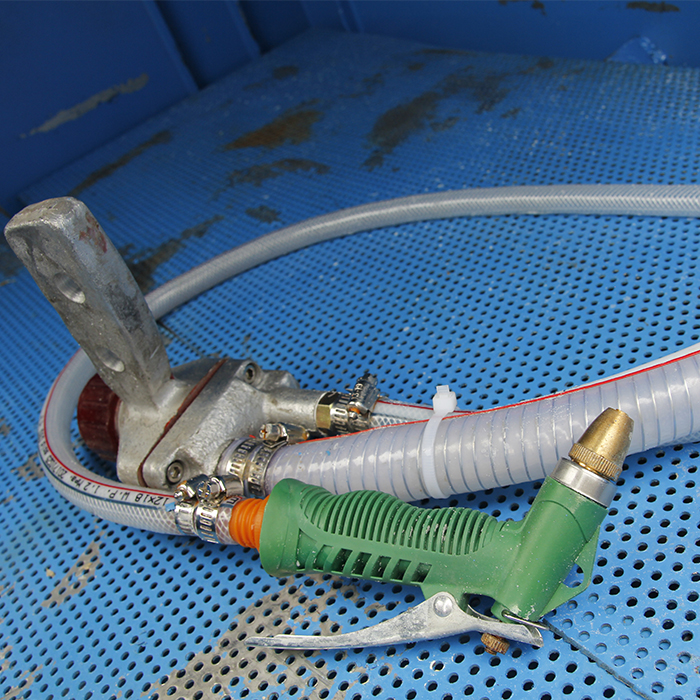

Special wet blasting gun and boron carbide nozzles for wet blasting process,
the workbench contains wear-resistant material - polyurethane for long-lasting use.
Reliable foot pedal controlls the working and ensures the safety.
Compact and simple structure makes it easy for operation and maintenance.
Right or left hand opening door is available , Accepted customized design and functions
| Model | KF-1010W |
| Outer size | L1300*W1600*H2000mm |
| Working area | L1000*W1000*H800mm |
| Loading Capacity | 50-80kgs |
| Motor | 2.2Kw |
| Air requirement | flow 0.5-1.1m^3/min |
| Light | 2*18w saving lamps |
| Blast Gun | 1 pc of wet blast gun with 1 boron cabide nozzle (8mm) |
| Air consumption for 1 gun | 0.4-0.8Mbar |
| Volume of abrasive & water | 25L |
| Feed abrasive | 4-6kg |
| Abrasive : Water | 1:3 |
| Voltage | 380V/220V 3 phase (customized) |
| Model | KF-1212W | KF-1010W | KF-9080W | KF-6868W |
| Working size | 1200*1200*800mm | 1000*1000*800mm | 900*900*800mm | 600*600*500mm |
| Weight | 350kgs | 300kgs | 280kgs | 200kgs |
| Loading Capacity | 80-120kgs | 50-80kgs | 30-50kgs | 20-30kgs |

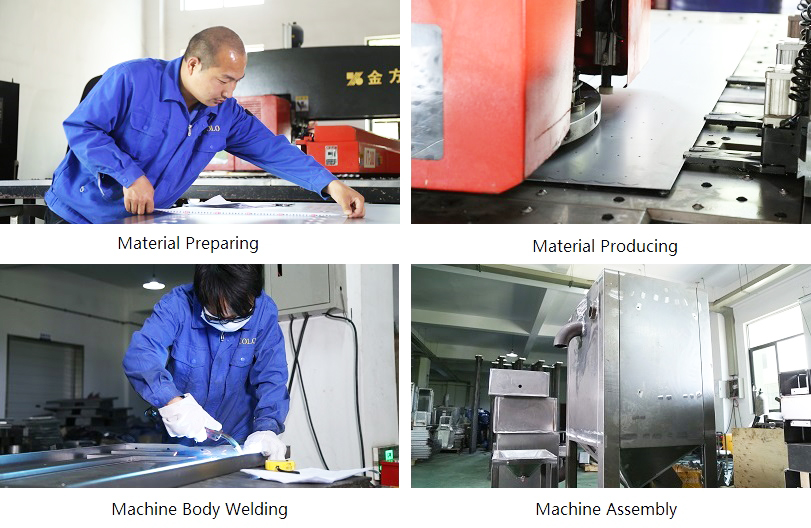

Devoted to world market for over 10 years, Kafan offer you factory-direct manufactured sand blasting machine in high quality and competitive price. With professional sales and production team, we provide blasting equipments in a variety of specifications and styles based on customers' requirements. To pursue best performance, each machine body is steel plate welded with powder coated surface, durable, wear-resistant and long lifespan, and the main components are imported, by all of which we ensure 1 year warranty period for any quality problem. For sea shipping, we will strictly packed in film and foam first, with wooden case outside to make sure it is safe and intact to your country.
