Automatic Tumble Basket Blaster for Batch Production

The tumble basket blaster saves manpower to automatically blast large volume of small parts, whose tumbling action ensures all parts and surfaces are blasted, even hard-to-reach corners and holes.
  • KF-1080ZL
  • Kafan
  • Tumble Blaster

Automatic Tumble Basket Blaster for Batch Production

The tumble basket blaster offers batch production by automatic tumbling & blasting, greatly saving manual labor and increase output. Installed with a sandblasting basket which holds large volume of small sized accessories, like screws, zipper head, electric components, plastic pieces, do the cleaning jobs with consistent quality results.

Tumble Bascket Blaster Excellent Advantages:

Not only creates less fear of collision for sensitive parts, the blast machine also ensures all parts and surfaces are blasted by the tumbling action, even hard-to-reach corners and holes. The enclosed tumble blaster provides an environmental-friendly working space and the embedded glass window facilitates operators observe the blasting process at any time.

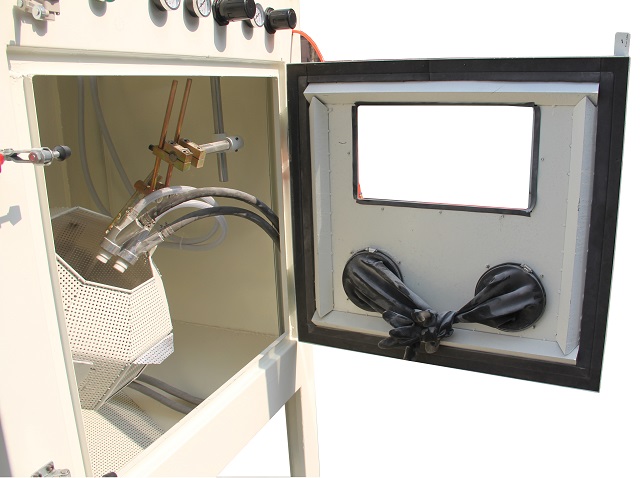

automatic tumble blasting machine for sale

How does the tumble basket blaster work?

The simple blasting system provides easy operation. Users just load workparts into the tumbling basket, close the door, set the blasting time, turn on the dust collector and start the machine, all parts will be automatically finished, entirely and evenly. After the cycle, the parts will be directly unloaded from the discharged chute. The automatic tumble blast machine obviously improve production on quantity, quality.

Automatic Tumble Basket Blaster Features

  • The tumble blasting time can is set based on quantities, size of products, also depends on the customer-requested effect.

  • The tumbling speed of basket with frequency control can meet different processing needs. It delivers reliable and smooth running.

  • The swing mechanism of auto-blasting gun and 360 degree rotating basket increases the coverage of abrasives to achieves optimal blasting effect.

  • Before order, quantity of auto blast guns, diameter of the basket can be customized according to  different products and requirements.

  • Built-in cartridge filter dust collector effectively removes dust from the cabin, keeps a clear working space, ensures the air discharged to the atmosphere is dustfree.

  • Equip durable blasting gun with 8mm boron carbide nozzle, and air bowling gun for final cleaning.The blasted abrasive can be recycled for many times

tumble blaster

Fan Motor for Dust Collector

tumble blast system

Tumble Blaster

basket tumble blasting machine

Rotary Basket and Auto Blast Gun

Tumble Basket Blast Machine Specifications

Model KF-1080ZL
Ouer Dimensions:  1200mm * 1250mm * 1800mm (L * W * H)
working cabinet size: 1000mm * 800mm * 780mm (L * W * H)
Tumble Bascket Diameter:  500mm (diameter) can be equipped with the size of the workpiece
Blasting gun specifications:  (20 * 8 * 60mm) 2pcs wear-resistant sandblasting gun
Basket Rotating Speed: 8 rev / min (can be installed frequency control)
Basket Rotating Motor:  380V / 50HZ / 400W
Dust Collector System: Pulse Jet Cartridge Filter
Dust Removal Motor:  380V / 50HZ / 550W
Gas requirements:  pressure 2-7bar (kg / cm2)
Compression flow:  1.5-2.0m3 / min
Body Plate thickness:  2- 5mm
Openning Door:  1pcs
Sandblast gloves:  1 pair
Single Loading:  1-20KG
Machine lights:  220V 13W LED explosion-proof energy-saving lamps
Total Equipment weight:  300KG
Total Equipment Diamension:  3m3
Total Equipment power:  380V / 50HZ / 1100W
