KF-1080ZL
Kafan

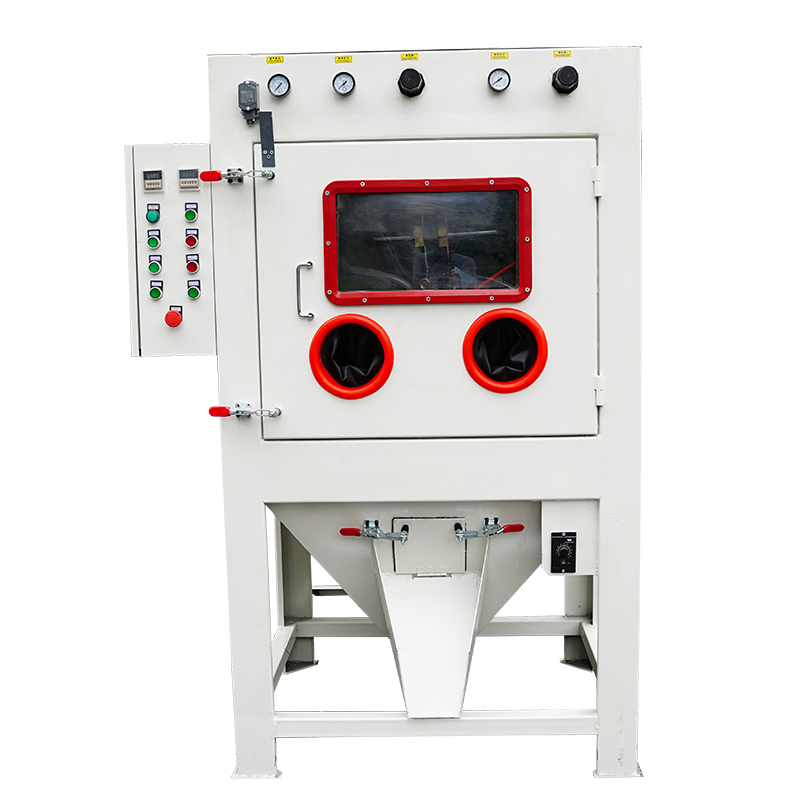

The tumble basket blaster offers batch production by automatic tumbling & blasting, greatly saving manual labor and increase output. Installed with a sandblasting basket which holds large volume of small sized accessories.
The simple blasting system provides easy operation. Users just load workparts into the tumbling basket, close the door, set the blasting time, turn on the dust collector and start the machine, all parts will be automatically finished, entirely and evenly. After the cycle, the parts will be directly unloaded from the discharged chute. The automatic tumble blast machine obviously improve production on quantity, quality.
The tumble blasting time can be set depends on the customer-requested effect.
The tumbling speed of basket with frequency control can meet different processing needs.

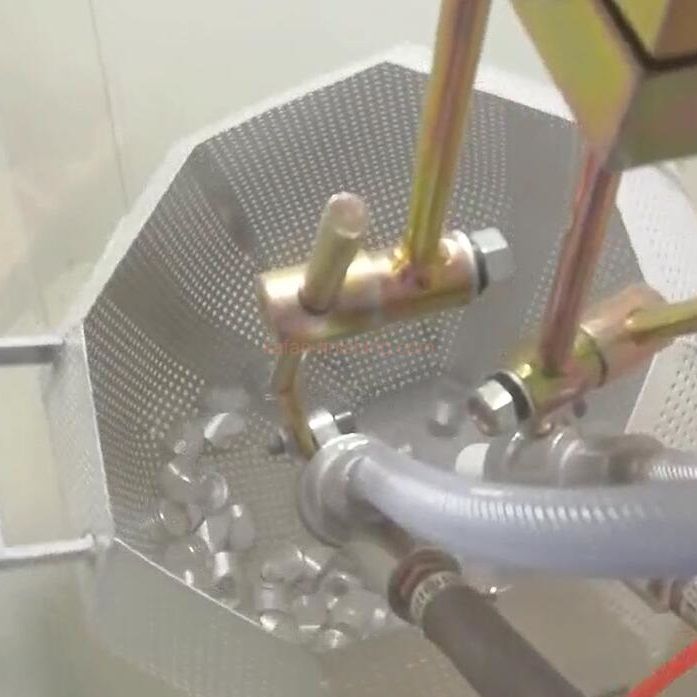

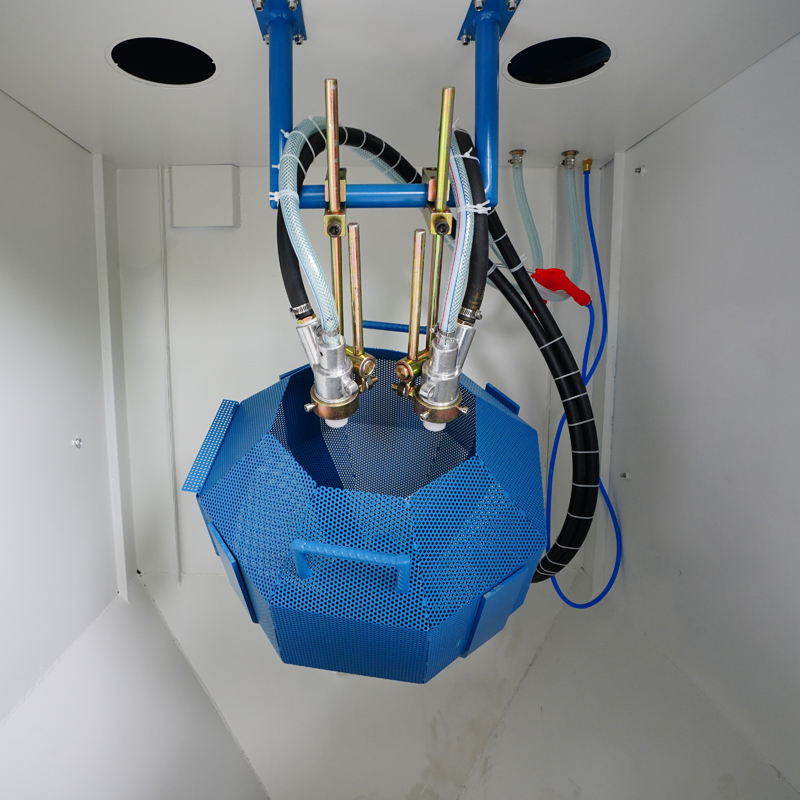

The swing mechanism of auto-blasting gun and 360 degree rotating basket increases the coverage of abrasives to achieves optimal blasting effect.
Configures durable blasting gun with boron carbide nozzle, and air bowing gun for final cleaning.

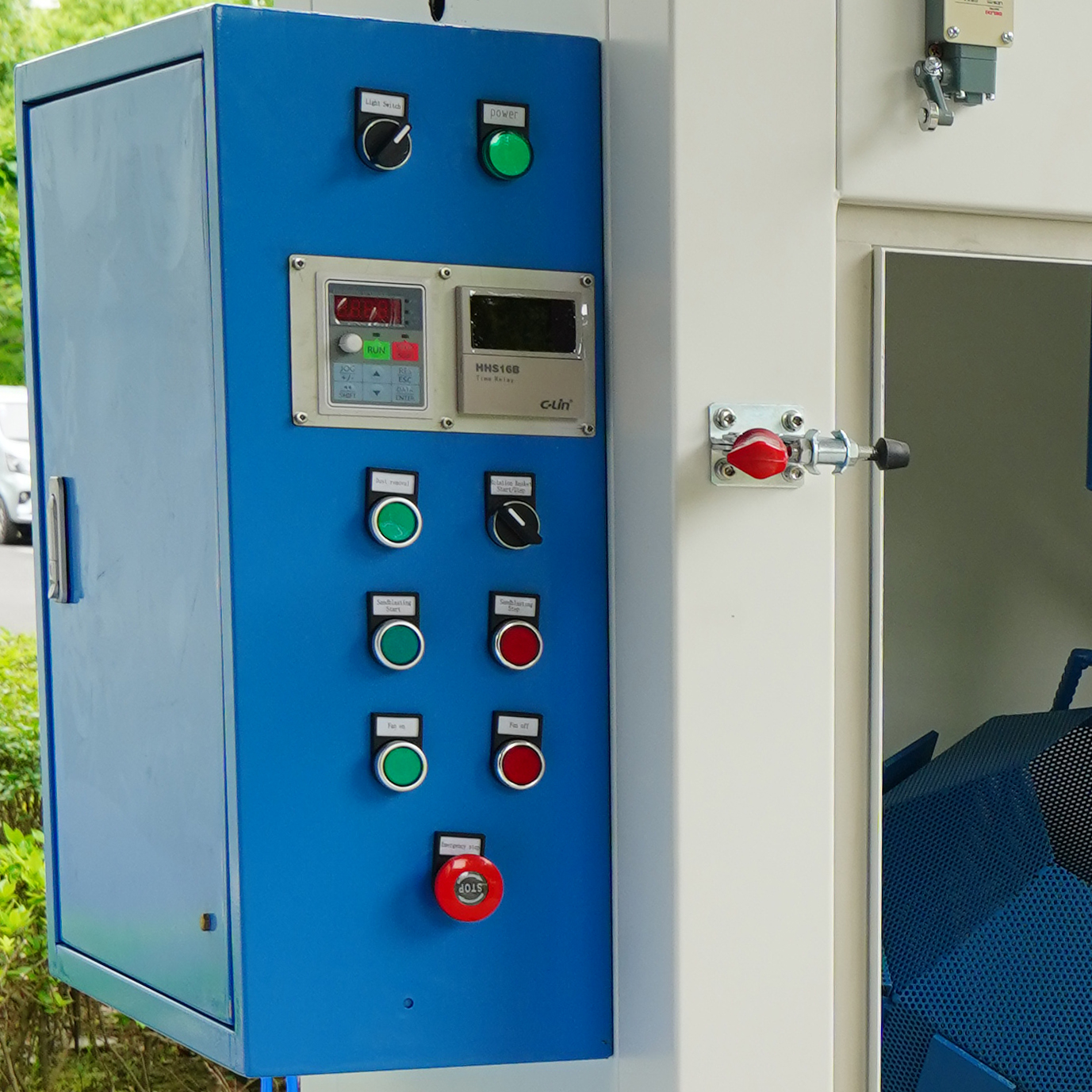

All working parameters can be set and adjust on an easy-to-use electric contron panel.

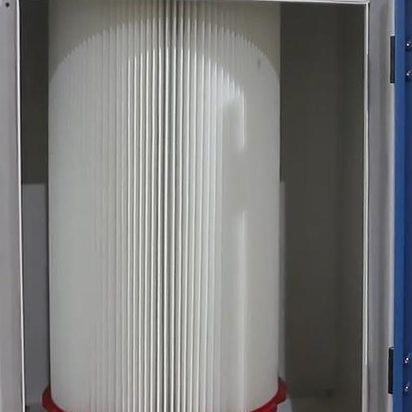

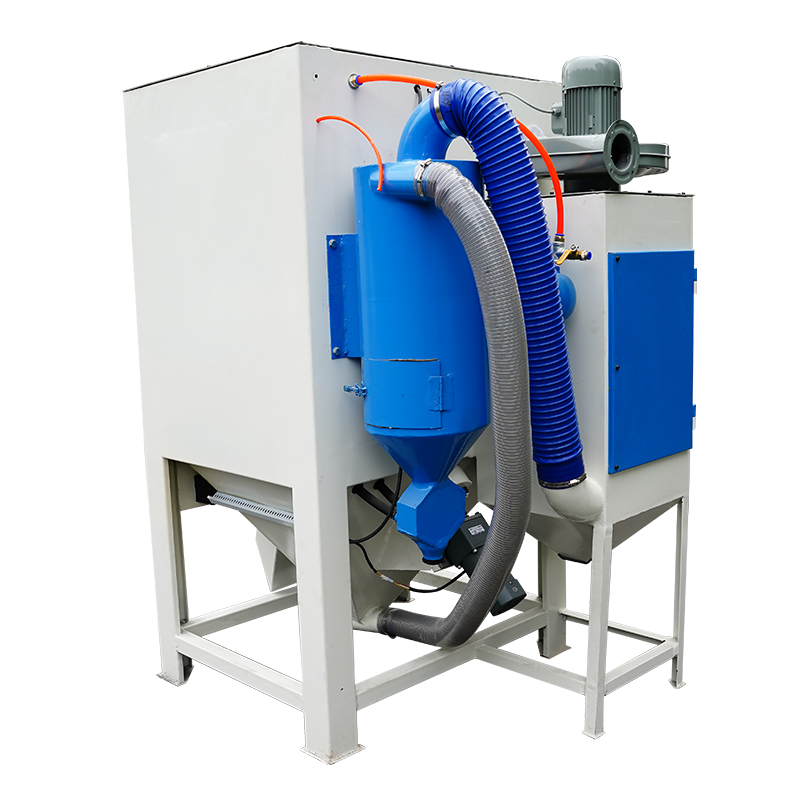

Built-in cartridge filter dust collector effectively removes dust from the cabin, keeps a clear working space, ensures the air discharged to the atmosphere is dustfree.
| Model | KF-1080ZL |
| Ouer Dimensions: | 1200mm * 1250mm * 1800mm (L * W * H) |
| working cabinet size: | 1000mm * 800mm * 780mm (L * W * H) |
| Tumble Bascket Diameter: | 500mm (diameter) can be equipped with the size of the workpiece |
| Blasting gun specifications: | (20 * 8 * 60mm) 2pcs wear-resistant sandblasting gun |
| Basket Rotating Speed: | 8 rev / min (can be installed frequency control) |
| Basket Rotating Motor: | 380V / 50HZ / 400W |
| Dust Collector System: | Pulse Jet Cartridge Filter |
| Dust Removal Motor: | 380V / 50HZ / 550W |
| Gas requirements: | pressure 2-7bar (kg / cm2) |
| Compression flow: | 1.5-2.0m3 / min |
| Body Plate thickness: | 2- 5mm |
| Openning Door: | 1pcs |
| Sandblast gloves: | 1 pair |
| Single Loading: | 1-20KG |
| Machine lights: | 220V 13W LED explosion-proof energy-saving lamps |
| Total Equipment weight: | 300KG |
| Total Equipment Diamension: | 3m3 |
| Total Equipment power: | 380V / 50HZ / 1100W |
The tumble sand blaster is ideal for processing small accessories like screws, zipper head, electric components, plastic pieces, do the cleaning jobs with consistent quality results. Not only creates less fear of collision for sensitive parts, the blast machine also ensures all parts and surfaces are blasted by the tumbling action, even hard-to-reach corners and holes.
The tumble basket blaster offers batch production by automatic tumbling & blasting, greatly saving manual labor and increase output. Installed with a sandblasting basket which holds large volume of small sized accessories.
The simple blasting system provides easy operation. Users just load workparts into the tumbling basket, close the door, set the blasting time, turn on the dust collector and start the machine, all parts will be automatically finished, entirely and evenly. After the cycle, the parts will be directly unloaded from the discharged chute. The automatic tumble blast machine obviously improve production on quantity, quality.
The tumble blasting time can be set depends on the customer-requested effect.
The tumbling speed of basket with frequency control can meet different processing needs.
The swing mechanism of auto-blasting gun and 360 degree rotating basket increases the coverage of abrasives to achieves optimal blasting effect.
Configures durable blasting gun with boron carbide nozzle, and air bowing gun for final cleaning.
All working parameters can be set and adjust on an easy-to-use electric contron panel.
Built-in cartridge filter dust collector effectively removes dust from the cabin, keeps a clear working space, ensures the air discharged to the atmosphere is dustfree.
| Model | KF-1080ZL |
| Ouer Dimensions: | 1200mm * 1250mm * 1800mm (L * W * H) |
| working cabinet size: | 1000mm * 800mm * 780mm (L * W * H) |
| Tumble Bascket Diameter: | 500mm (diameter) can be equipped with the size of the workpiece |
| Blasting gun specifications: | (20 * 8 * 60mm) 2pcs wear-resistant sandblasting gun |
| Basket Rotating Speed: | 8 rev / min (can be installed frequency control) |
| Basket Rotating Motor: | 380V / 50HZ / 400W |
| Dust Collector System: | Pulse Jet Cartridge Filter |
| Dust Removal Motor: | 380V / 50HZ / 550W |
| Gas requirements: | pressure 2-7bar (kg / cm2) |
| Compression flow: | 1.5-2.0m3 / min |
| Body Plate thickness: | 2- 5mm |
| Openning Door: | 1pcs |
| Sandblast gloves: | 1 pair |
| Single Loading: | 1-20KG |
| Machine lights: | 220V 13W LED explosion-proof energy-saving lamps |
| Total Equipment weight: | 300KG |
| Total Equipment Diamension: | 3m3 |
| Total Equipment power: | 380V / 50HZ / 1100W |
The tumble sand blaster is ideal for processing small accessories like screws, zipper head, electric components, plastic pieces, do the cleaning jobs with consistent quality results. Not only creates less fear of collision for sensitive parts, the blast machine also ensures all parts and surfaces are blasted by the tumbling action, even hard-to-reach corners and holes.
