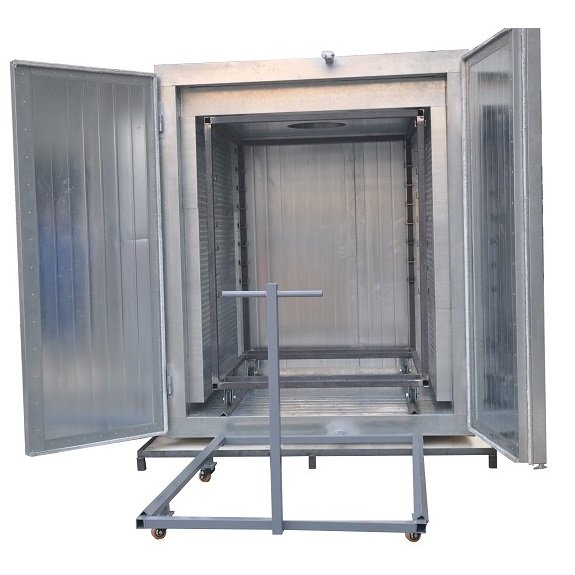

COLO-1864
HICOLO
Configurations and Features
Ideal for small and medium workparts, such as alloy wheels, automotive parts, machinery parts , etc.
The working size 1.6x1.4x1.8m meets most applications, suitable for batch curing jobs.
Constructed with high efficiency heating elements, rapidly raise to required temperature.
A circulation fan ensures uniform hot airflow inside oven for quality curing results.
100mm thickness Rock Wool Board is inserted between galvanized steel inner walll and durable steel skin, always maintains high temperature.
PLC control system provides high precision heating process, easy to set parameters.
Designed with trolley system (internal and external) to help load the parts, as wel as prevents comtamination.
The powder coating oven is wholely shipped, customer can directly use after receive it.
| Model | COLO-1864 Electric Powder Coating Oven |
| Worksize dimensions | 1600width x 1800 height x 1400 depth |
| Overall dimensions | 1900 width x 2200 height x 1700 depth |
| Power supply | Electric/ 18kw |
| Voltage/Frequency | 380V/220v(50-60hz) |
| Warm-up time | 15-30 min. (180° C) |
| Temperature stability | < ± 3-5°C |
| Temperature max. | 250° C |
| Ventilation performance | 805-1677m3/h |
| Motor power | 0.75kw |
| Circulation/ Air flow | Vertical ,Variable through holes on the walls |
| Transportation | Trolley |
| Warranty | 12 months |
