Automatic Sandblasting Machine

Ideal for large-volume and consistent quality applications, Whatever your process objectives are, Kafan could offer automatic sandblasting machines to achieve the highest surface preparation standards. and maximize the production efficiency.

Belt conveyor allows a batch of workparts continuously pass thru the processing chamber for automatic sandblasting, which achieves efficient working with reduced time and labor. The workpieces’ traveling speed and exposure to the blast stream can be adjusted to accommodate various surface preparation applications.

Applications: for high-volume production of parts in flat shapes, such as, metal shells, aluminium plates, pipes, frames, etc

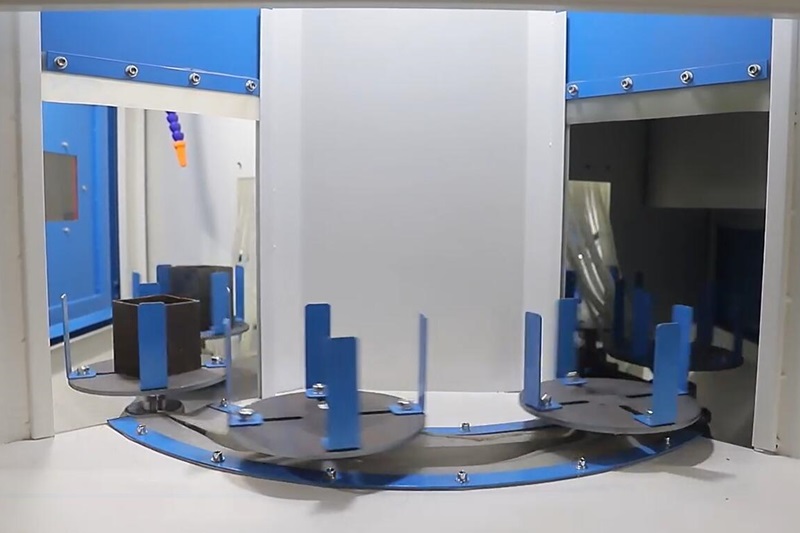

Designed with multi-independently turntables fitted on an rotary indexing table, parts loaded in the small turntables gets uniform and full coverage of blast stream from a group of automatic guns. It is Ideal for complex parts with hard-to-reach blind spots in continuous application cycles.

Applications: Batch processing of round disc, cylinder or polygon shaped product, such as glass & metal lampshade, non-stick pan, baking pan, stainless steel wash basin, wine bottle, etc.

As a group of automatic guns blasting and swinging, the working table rotates automatically at the same time, thus all surfaces and corners of the object can be cleaned thoroughly and evenly. The blast guns and rotary table can be set for both manual or automatic operation.

Applications: It is designed to process three-dimensional objects in complex shapes for one piece each time, such as wheels, moulds, castings, etc

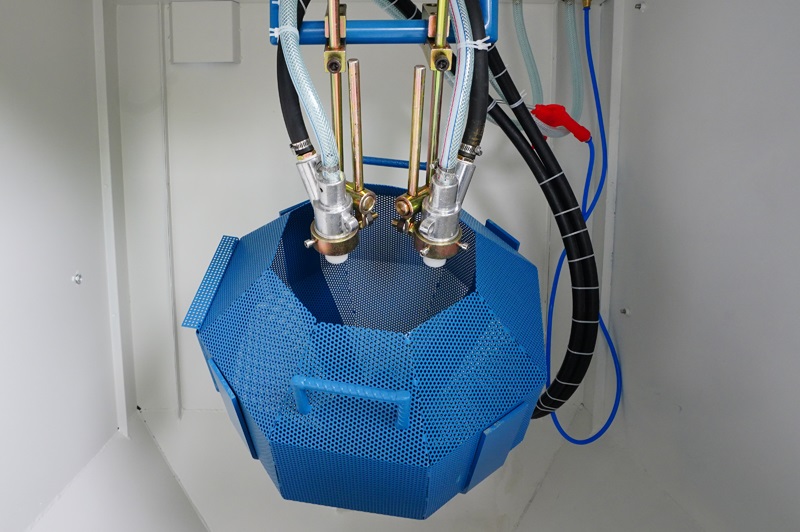

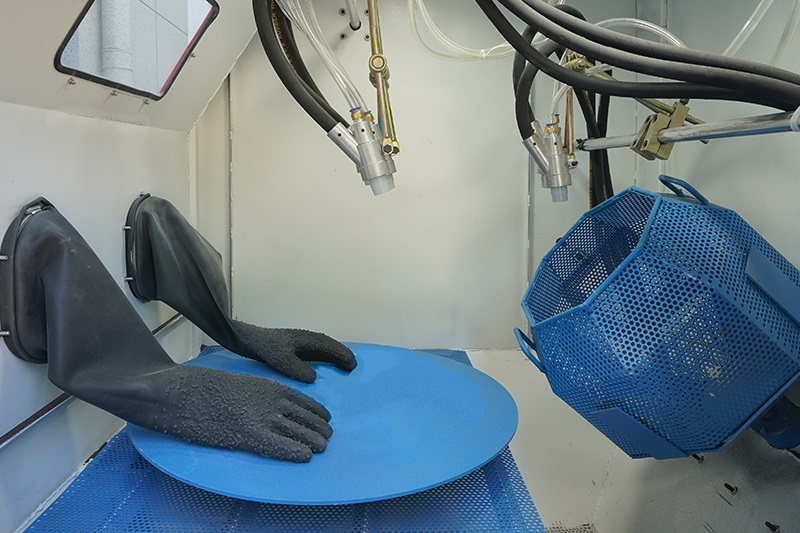

The tumble sandblasting machine mounted with a baseket which will holds a certain quanty of small parts for surface finishing purpose. The blasting guns can be set with automatic or manual operation for multi purposes. Automatic tumbling and blasting actions ensures excellent uniformity and quality consistency.

Applications: This tumble blaster is quite ideal for processing high volume of small parts such as zipper head, screws, small hardwares, gears, saw blades and circular shafts, etc.

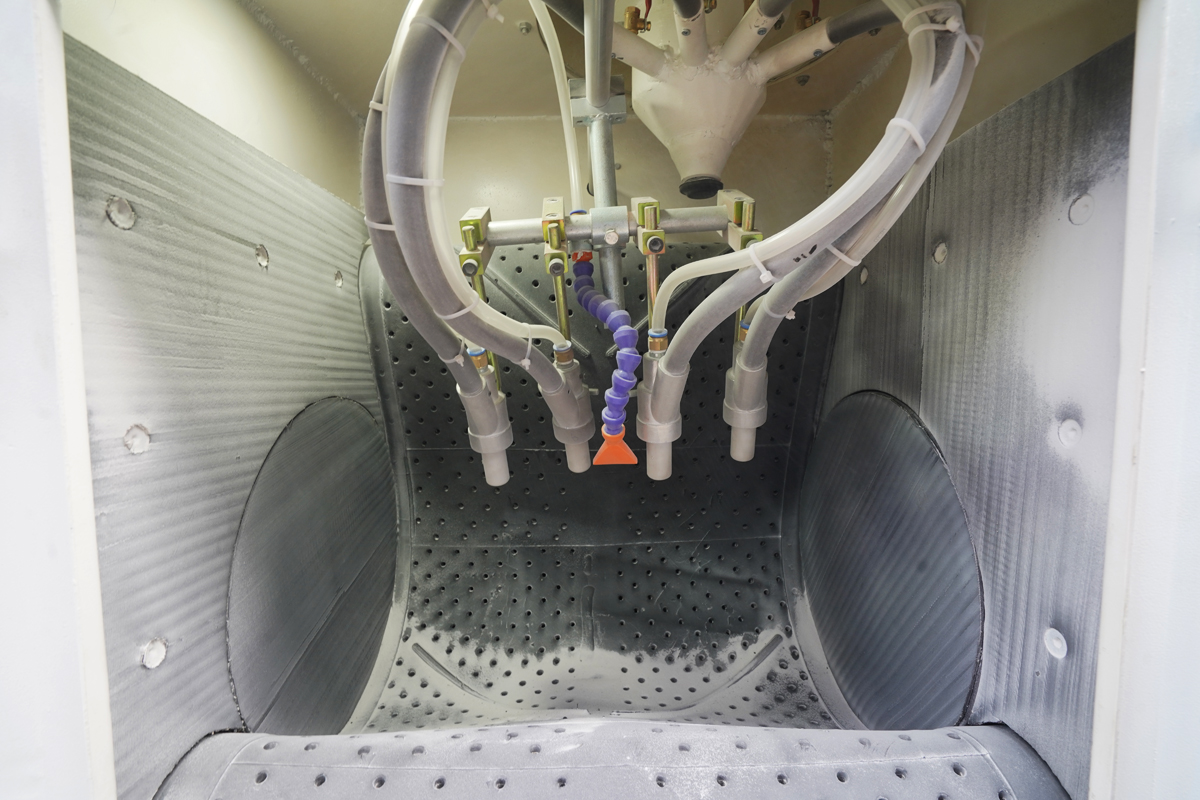

In the tumble belt blasting machine, parts tumble on a thick, perforated rubber belt, a group of blast guns uniformly blast medias to all exposed surfaces to deliver a consistent finish automatically. Nozzles are mounted on an oscillating blast gun to ensure maximum coverage of all parts

Applications: is suited for surface treatment of small and medium sized parts in batches, as well as relatively heavy, complex-shaped parts that would be hard to handle in a traditional blasting cabinet.

• Speeds up production time and increases throughput.
• Lower production costs and minimized downtimes
• Reduced manual labour costs and employee fatigue over repetitive tasks
• Consistent quality and predictable results

• Fully automated process assisted by PLC and interfaced by touching screen.
• Blasting media is continuously separated and recycled by standard cyclone device.
• Efficient dust control by high-precision filter cartridge dust collectors.
• Blasting guns are composed of durable and longlife boron carbide nozzles
