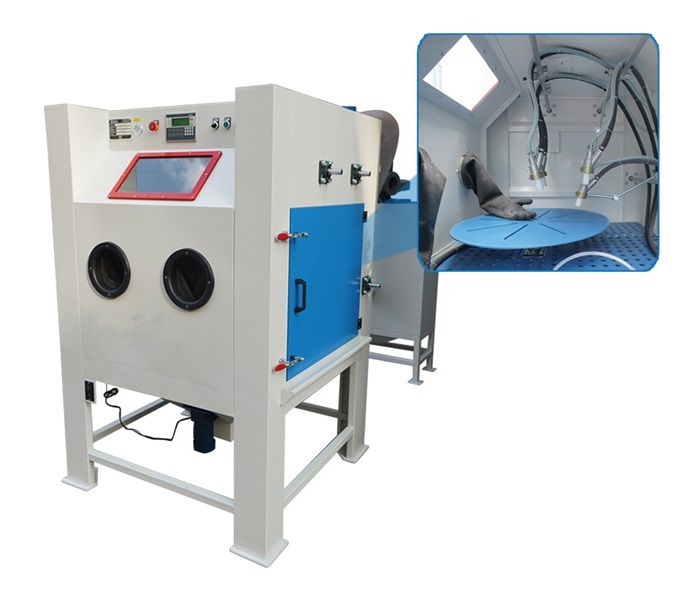

KF-1212A-4A (4guns)
Kafan

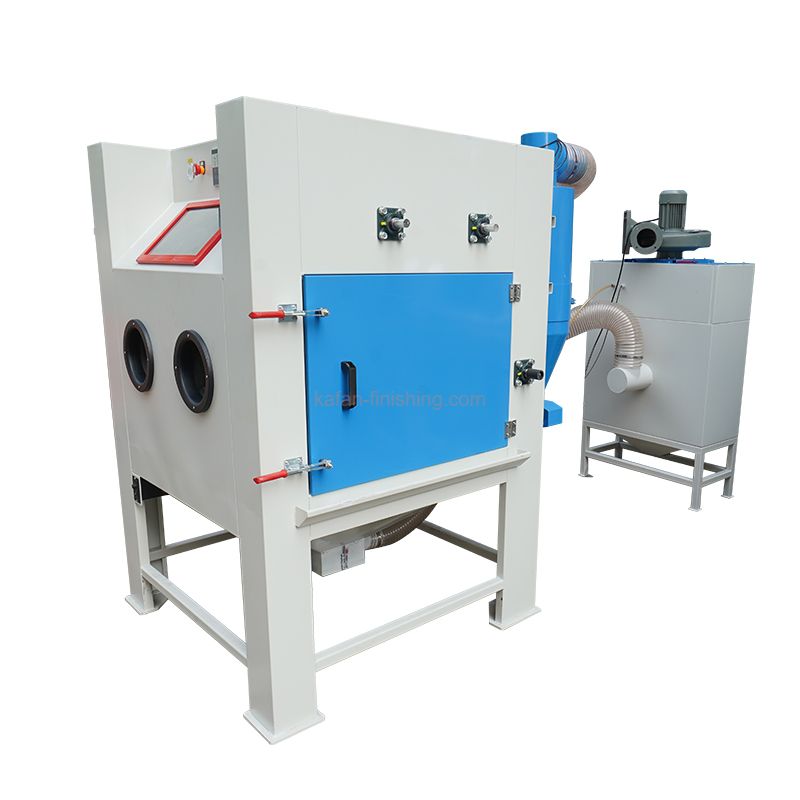

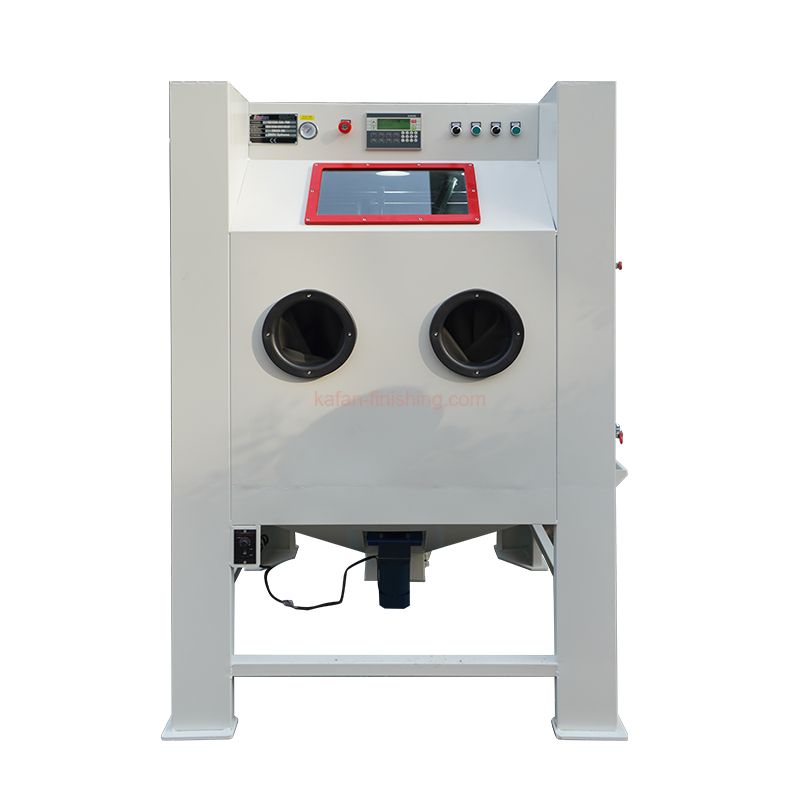

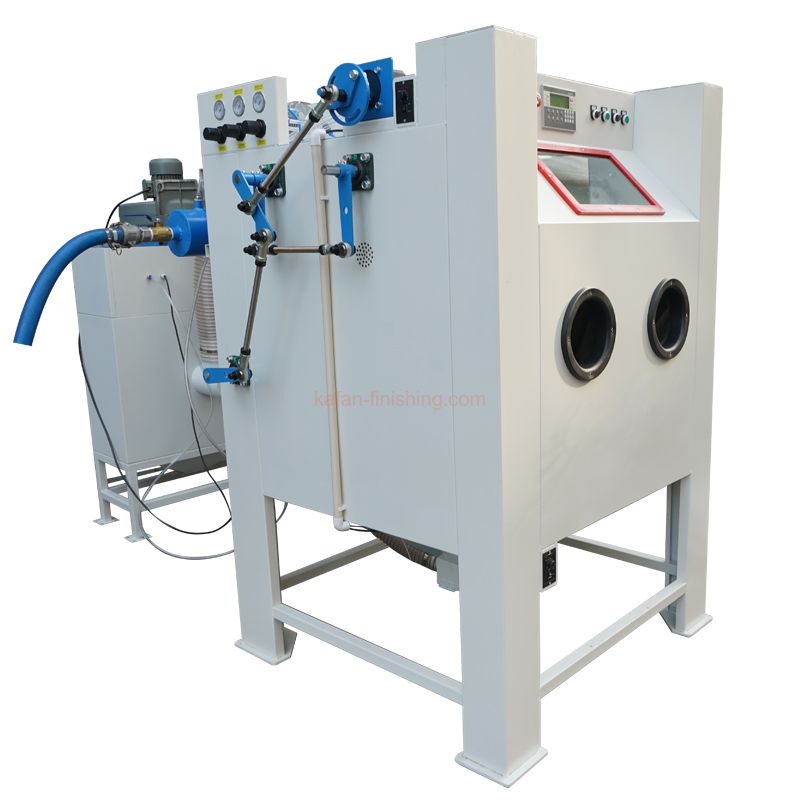

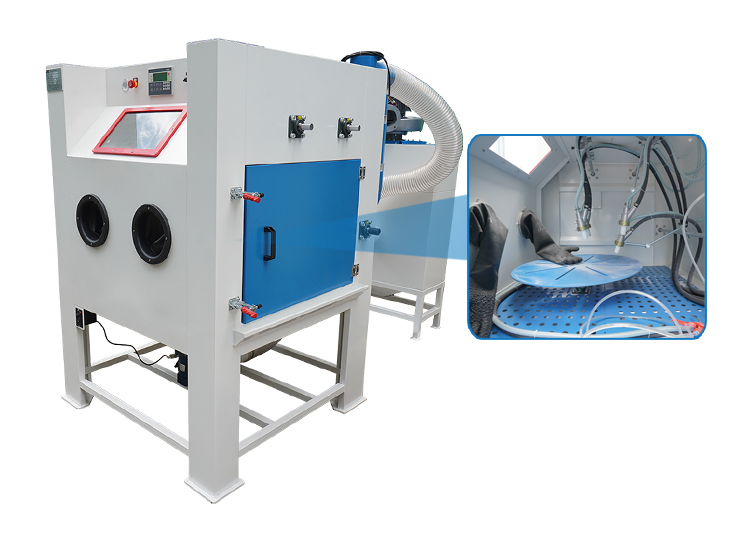

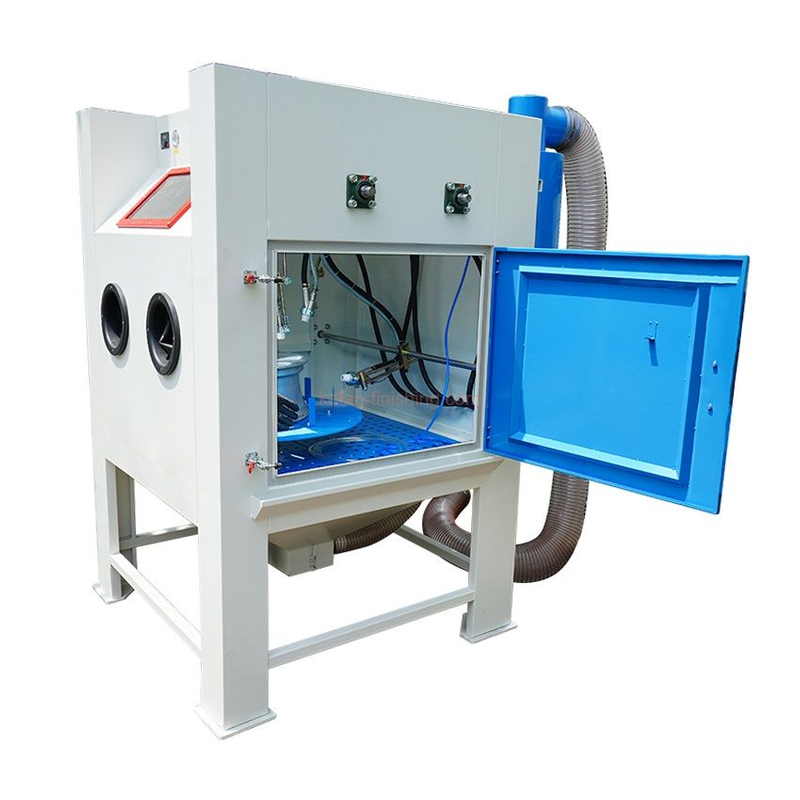

This automatic sandblasting cabinet designed with a turntable achieves high processing efficiency and great labor saving. As a group of auto guns blasting and swinging, the turntable rotates automatically at the same time, thus all surfaces and corners of the object can be cleaned thoroughly and evenly.
This automatic blasting cabinet developed by KAFAN incorporating many years' experience of customers' practice, specially suitable for wheel finish, such as stripping old paints and roughing an adhesive surface before powder coating. It requires 20 minutes by using white corundum

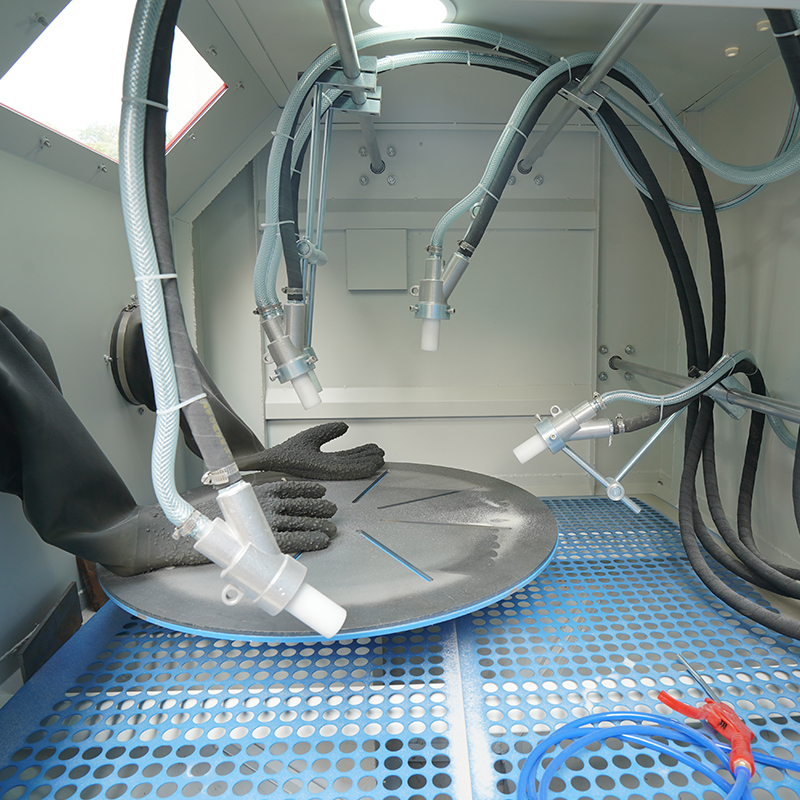

Manual & Automatic Blast Guns
Configured with 4 pcs of automatic blast guns and 1 piece of manual gun, the automatic blast guns can be adjusted for fixing blasting or oscillating blasting.
The work of each blast gun is individually controlled via PLC. You can choose the optimal setting to meet your surface finishing needs. A manual blast gun helps for more precise repair blasting.

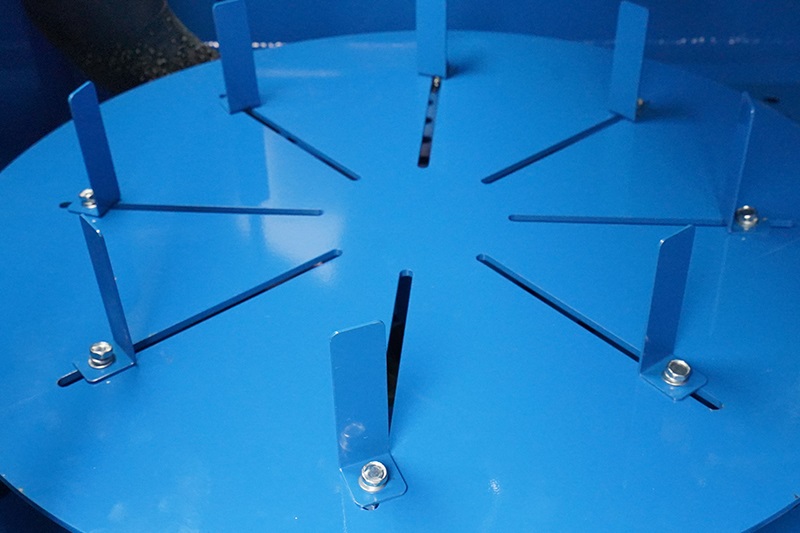

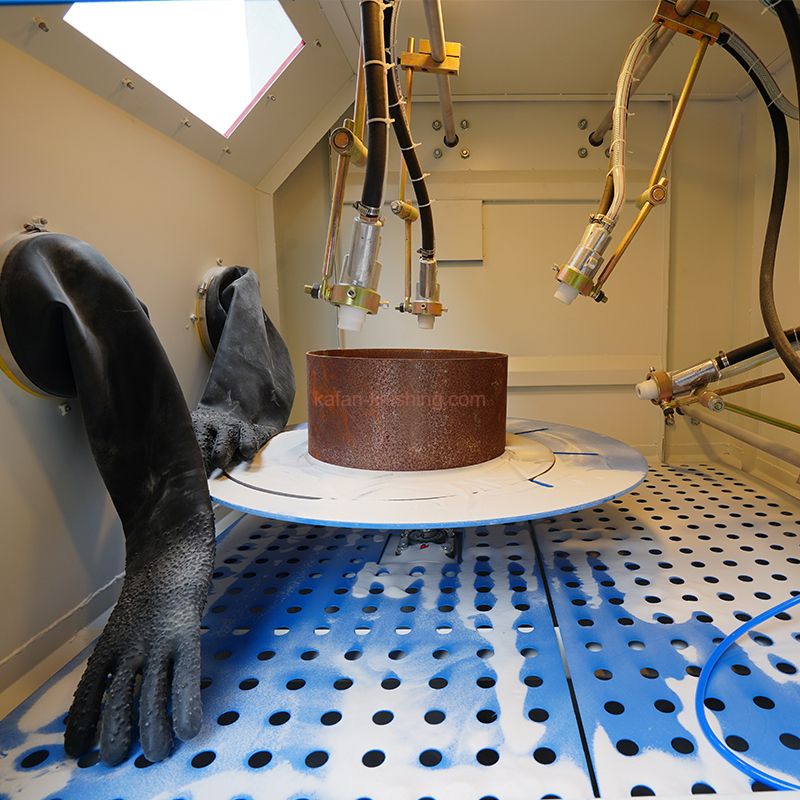

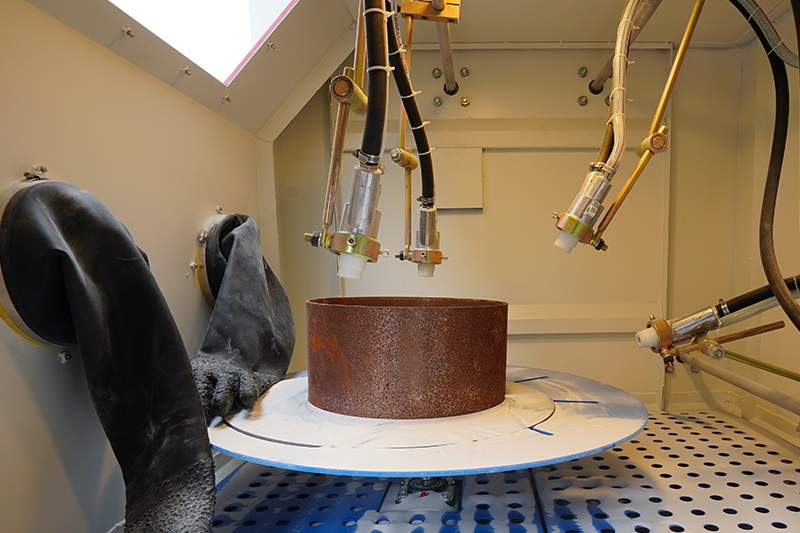

Automatic Turntable
The heavy-duty turntable is ideal for loading big and irregularly shaped workpieces, also can be fitted with fixture for handling small and light workparts.
The turntable can be set to automatic rotating working along with automatic guns for increased efficiency and uniformity. While it also can be set for manual operation for more precise cleaning jobs.
PLC Control
Through the PLC advanced system, you can easily control the work of each blasting gun, blasting time, turntable rotating, dust collector working. To achieve a fully automatic process, you can preset all working parameters on the panel, once the preset time has arrived, the machine will stop working immediately.
Cyclone Separator
The automatic blast machine can be optionally equipped with a cyclone device, which is used to separate ultrafine abrasives from dust, increasing the recycling rate of pure abrasives.

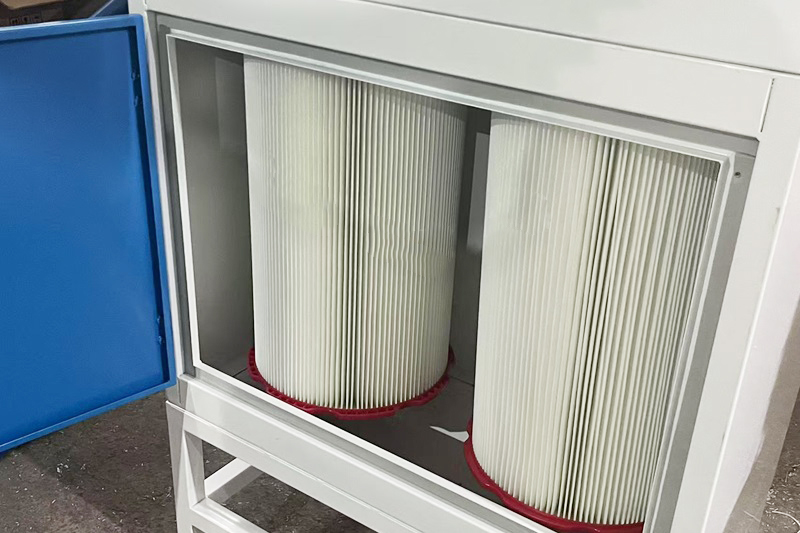

Filter Dust Collector
Each of our sandblasting cabinet is designed with a dust removing system, including a piece of cartridge filter and a set of fan motor. The high-precision filter is made of 100% polyester to absorb even micro dust particulates, which ensures vented airflow back to the workshop is dustfree .
Automatic Turntable Sandblasting Cabinet Specifications
Model: | KF-1212-4A |
Working chamber dimension(L*W*H): | 1200mm*1200mm*850mm |
Power supply： | 220V, 50HZ (voltage can be customized as local) |
Machine light power： | 220V, LED* 2 |
Compressed air source： | 5-7bar(kg/㎡) |
Air flow： | 0.8-3m3/min dry and clean compressed air |
Separator air volume： | 8.5m3/min |
Dust removal method | Cartridge Filter Type |
Blasting Gun Qty | 4 pcs |
Blasting Nozzle | Boron Carbide |
1. Full automatic operation reduces labor cost while ensures efficiency and quality consistency, offering flexiblility with advanced PLC Control.
2. Each cabin style blast machine is configured with filter cartridge dust collector, effectively remove dust from the working chamber, ensure only the clean air is vented to the workshop.
3. Our popular automatic blast machines are widely needed as we sold for many years with proved quality and performance.
5. Allows customers posting their samples for testing with our automatic sandblasting machines, we have a variety of standard automatic sandblasters suits for different finishing applications.
6. Each blast system is built in-house at our 4000m^2 production base, for necessary quality-control and cost-control.
