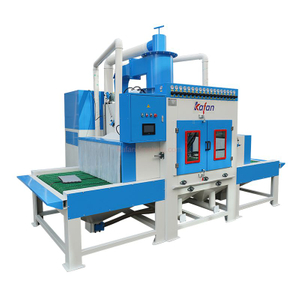

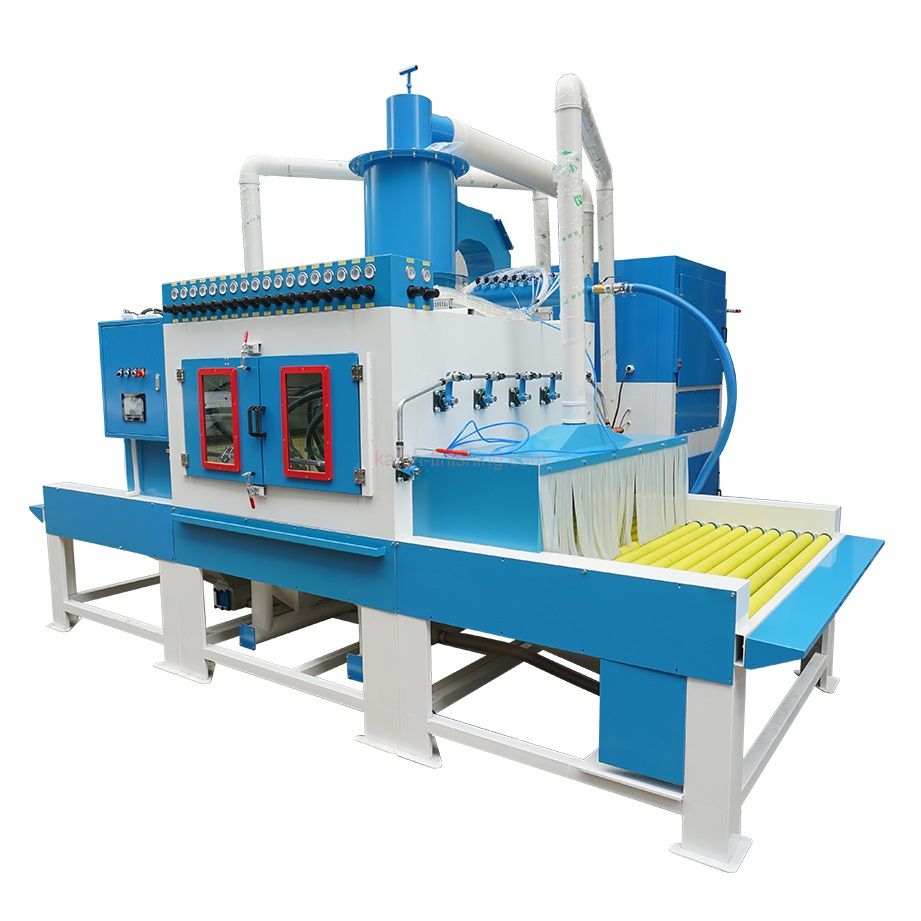

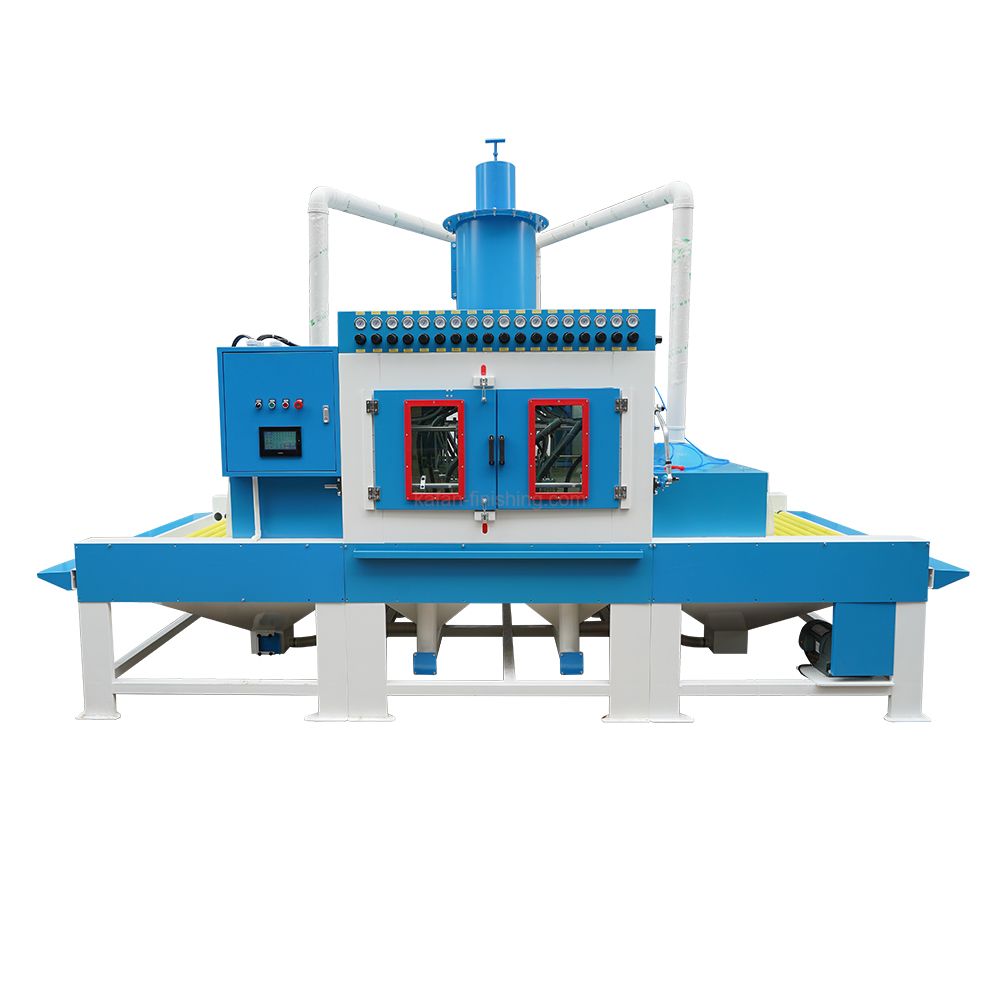

Roller Conveyor Blast Machine, Automatic Sandblasting System for Heavy Parts
The roller conveyor type sand blasting system is suitable for surface cleaning of long or heavy structural parts, profiles, pipes, beams, achieving high efficiency. Heavy-duty roller conveyors help to move those parts to the blasting station for cleaning, rust-removing or paint removing.
How roller conveyor automatic sand blasting system works?
During the cleaning process, the electrically controlled roller conveys the steel parts into the blast working room, and all sides of its body are hit and cleaned by abrasives flow from different coordinate positions, making the oxide scale, rust layer and its dirt quickly fall off, and the surface of the workparts has a certain smooth surface and hardness, which improves the adhesion of the paint film, and improves the internal quality of the steel, and prolongs its service life.
Automatic Roller Conveyor Sand Blasting System Features:

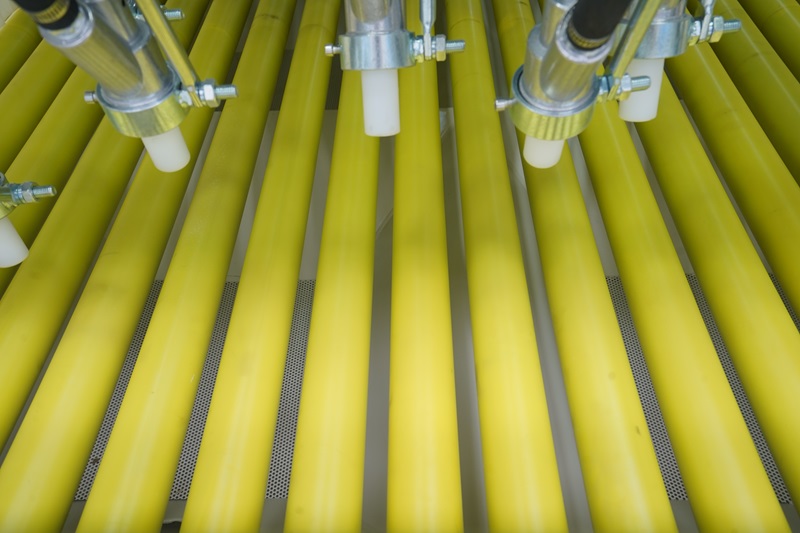

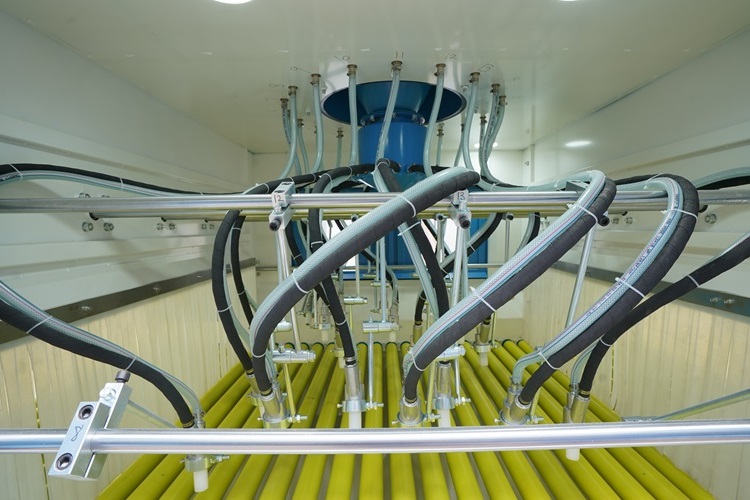

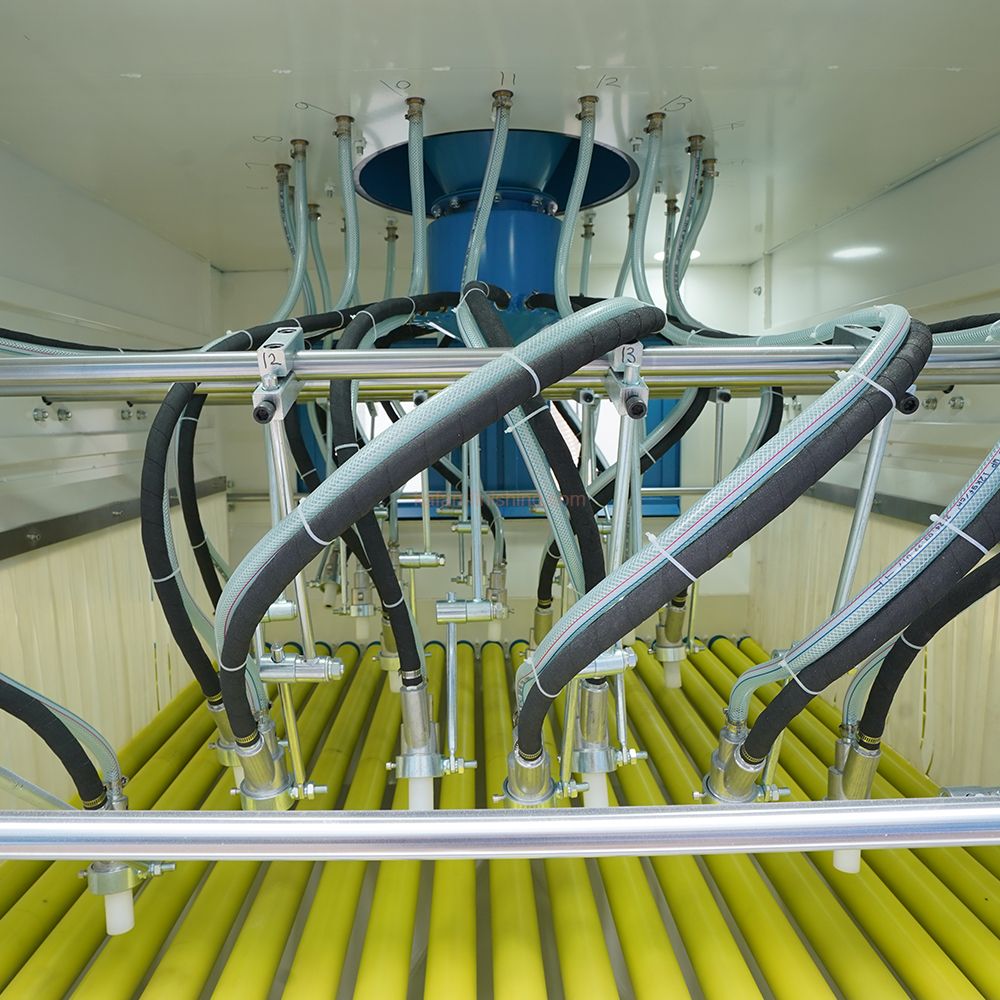

Automatic Blast Guns
Workparts are conveyed to the sandblasting area where they are processed by a group of automatic guns. Each blast gun is individually controlled for working by demands. Depending on the parts' shapes and dimensions, the automatic guns can be set for fixed blasting or oscillating blasting with adjustable angles.

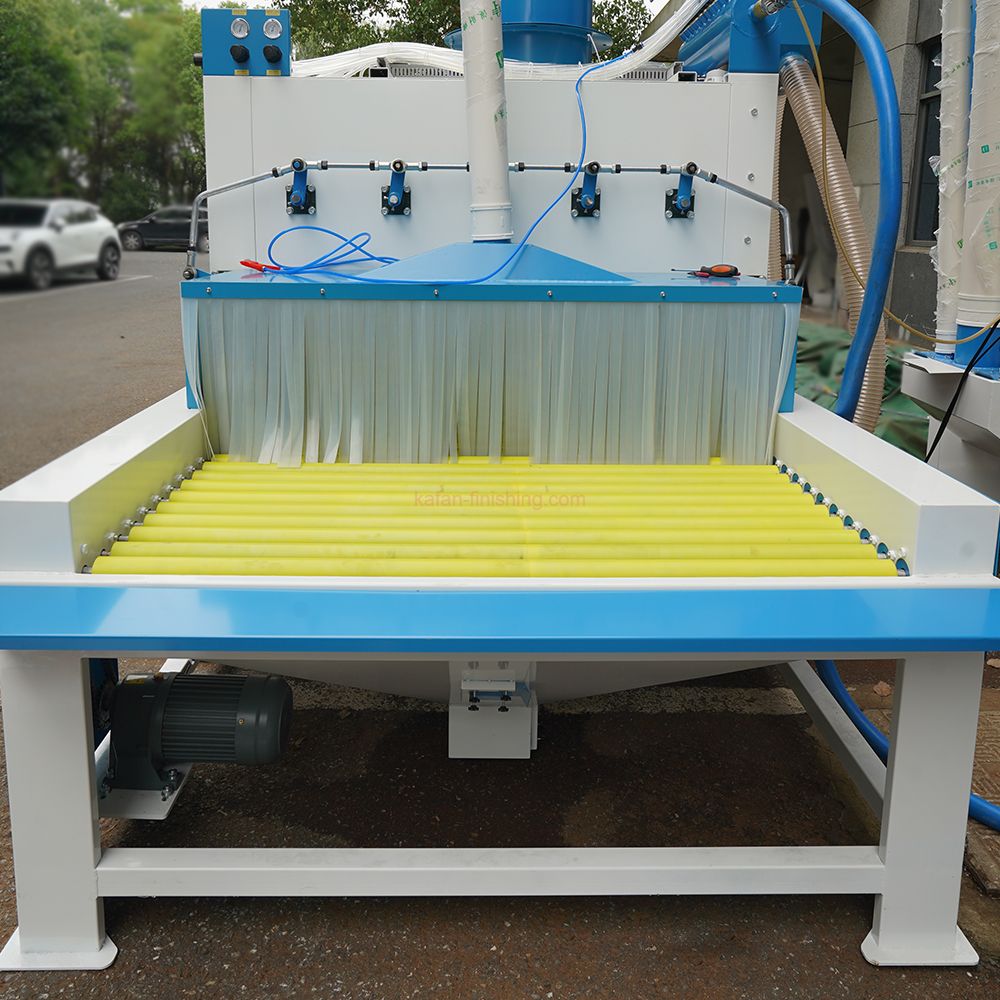

Roller Conveyor
The conveyor motor is controlled by frequency converter, whose speed can be steplessly regulated by inverter within the range of 0 ~ 5m/min. The stainless steel roller type conveyor is specially designed for loading and moving heavy workparts, such as steel beams, tubes, pipes, etc. It is wear-resistant and corrosion resistant.
PLC Control with Touching Screen
The sandblaster applies advanced PLC electric control system, with a high degree of flexibility and stability. The touching screen offers user-friendly interface to manage the blasting and the dust removing process. High automation guarantees the balanced uniform blasting effect, as well as safe production

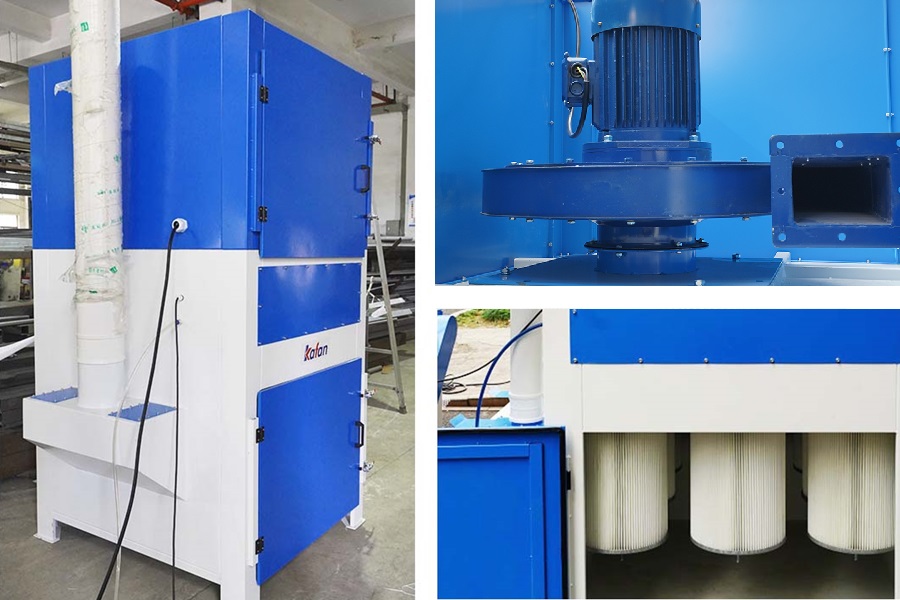

Dust Removing & Media Recycling

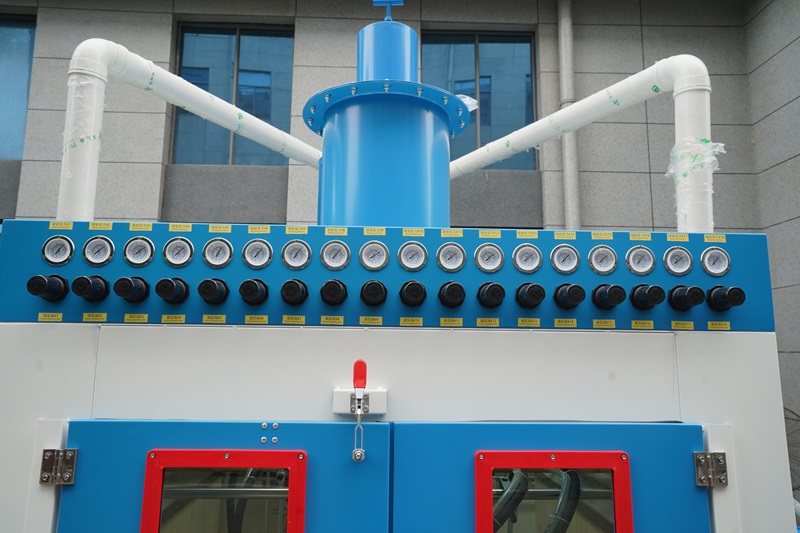

Designed with cyclone separator for effectively separation of abrasives from dusts. Along with an independent cartridge filter dust removal system with excellent effect of dust extraction and ventilation, Blast-removed dust particles are exhausted to the dust collector while blast media is collected at the bottom of the cabinet, then returned to the storage hopper for further use.
Roller Comveyor Automatic Sand Blasting System Specifications
| Model | KF-4622-28A |
| Working Cabinet Size | L1500 * W2180 * H1000 mm |
| Pass Thru Size | W1900*H300mm, |
| Overall Size | L4640 * W2200 * H2034mm
|
Total Power
| 7.8kw |
| Dust Collector Fan Motor | 7.5kw |
| Loading of Conveyor | 500kgs |
| Conveyor Speed | 0-5m/min, adjustable |
| Drive of Conveyor | 0.4kw speed adjustable |
| Gun Clamp | Automatic swing,
speed adjustable
Power 400W |
| Blast Gun QTY | 28pcs |
| Blast Nozzle | Durable boron cabide material |
| Compressed air Requirements | 35CFM/Per Gun 3-8bar(kg/cm2) |
| Body Material | Cold rolled steel plate |
*The dimension and blast gun quality and other parameters can be customized as requests.
Why Choose Kafan Automatic Sandblasting Systems?
1. High productivity and automation, reduced labor and time.
2. Batch processing increase quality consistency, avoids the uneven blasting effect, chromatic aberration and quality problem.
3. The blasting machine can be designed according to workparts of different sizes, different shapes and different finishing requirements.
4. Each sandblaster is made of durable steel materials with coated surface, and built with quality imported components, which maximize working performance.
