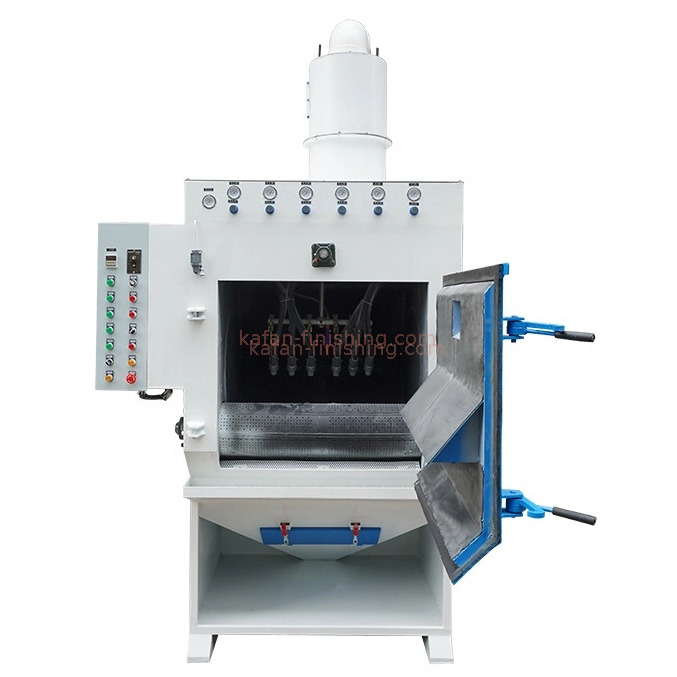

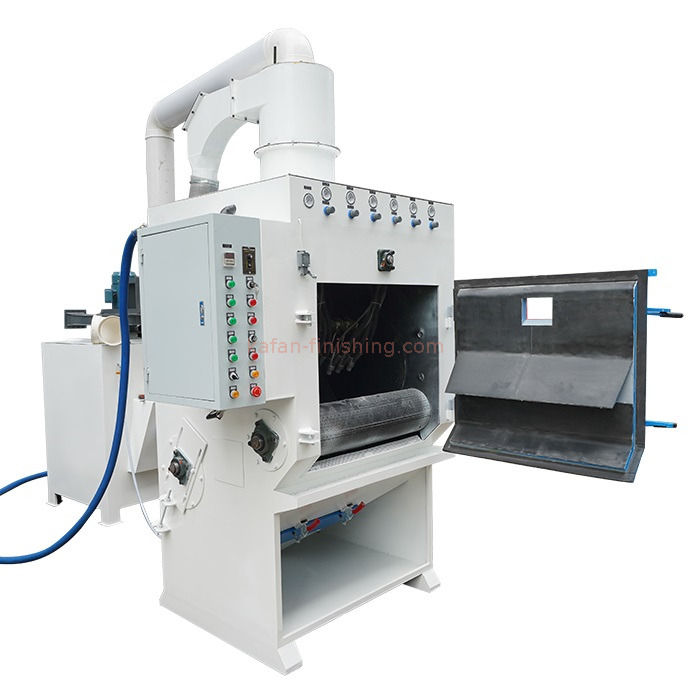

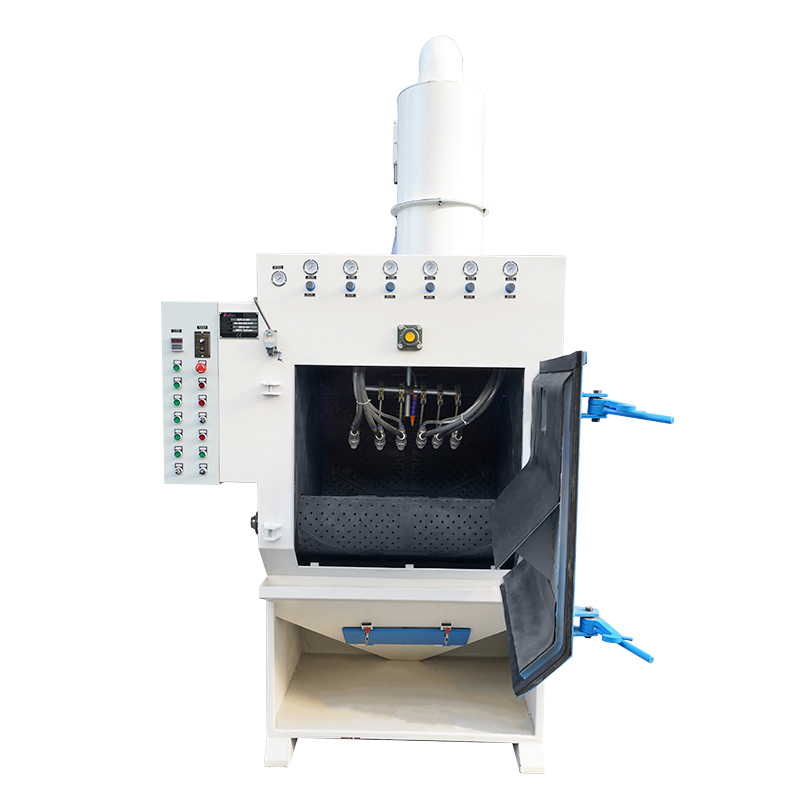

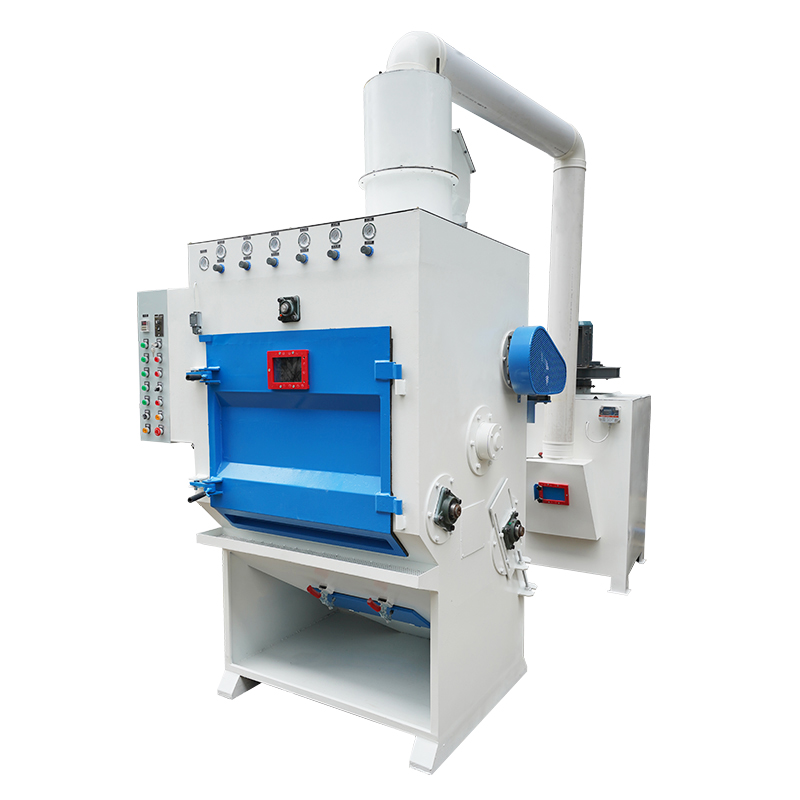

Tumble Belt Blasting Machine, Automatic Tumble Sandblaster

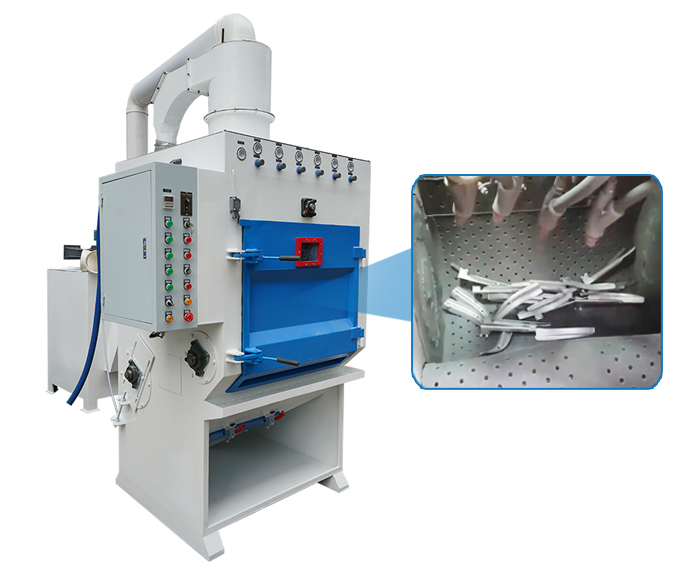

This automatic sandblaster allows batch of parts tumbling on the rubber belt while a group of blast guns uniformly blasting medias to exposed surfaces to deliver a consistent finish automatically. Our innovative tumble belt blasting machine designed cyclone and filter dust collector provides an environmental-friendly working space.
Why Choose a Tumble Belt Blasting Machine
It is a fully automatic sandblaster with unmanned operation. Just requiring a worker simply loads parts on the rubber belt and sets the timer, then returns later to unload perfectly cleaned or finished parts.
The oscillating action of the blast guns ensures all parts and surfaces are thoroughly cleaned by the tumbling action, even hard-to-reach corners and holes.
Tumble belt blasting machines are highly-efficient batch surface treatment equipment, which are best suited for small or medium dimensional that are not easily broken or tangled.
Tumble Belt Automatic Sandblaster Configurations

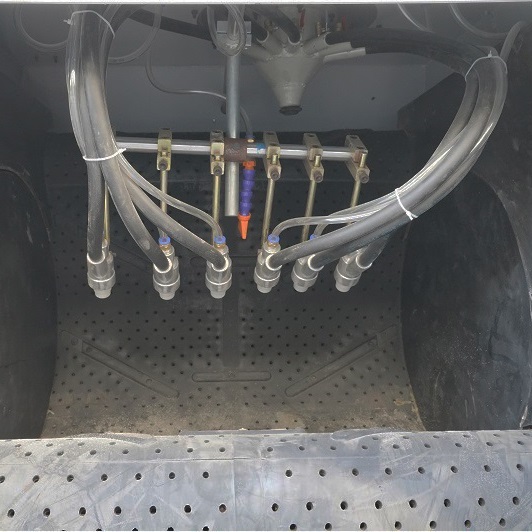

Tumle Blast Working Cabin
Thick, perforated rubber belt with a loading capacity of 200kgs.
Automatic guns can be set for fixed blasting or oscillated blasting. They are composed of boron carbide nozzles, which is the most durable materials in the market.
The blast guns quanity, tumble belt, all can be tailored to the customers specifications to address all process constraints and for optimal results and productivity.

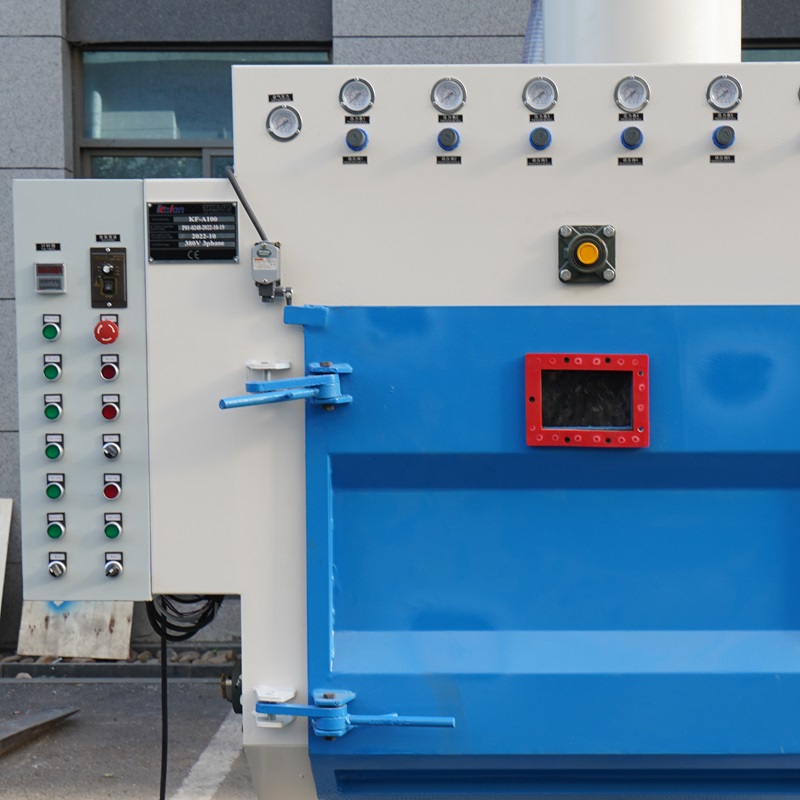

Pneumatic & Electric Control
It is an easy system to control the working of each blast guns by buttoms at the side cabinet, as well as adjust belt tumbling speed, set blasting cycle time and start/stop dust collector,
The air pressure of each blast gun can be independently regulated by pressure valves at the front of the machine.

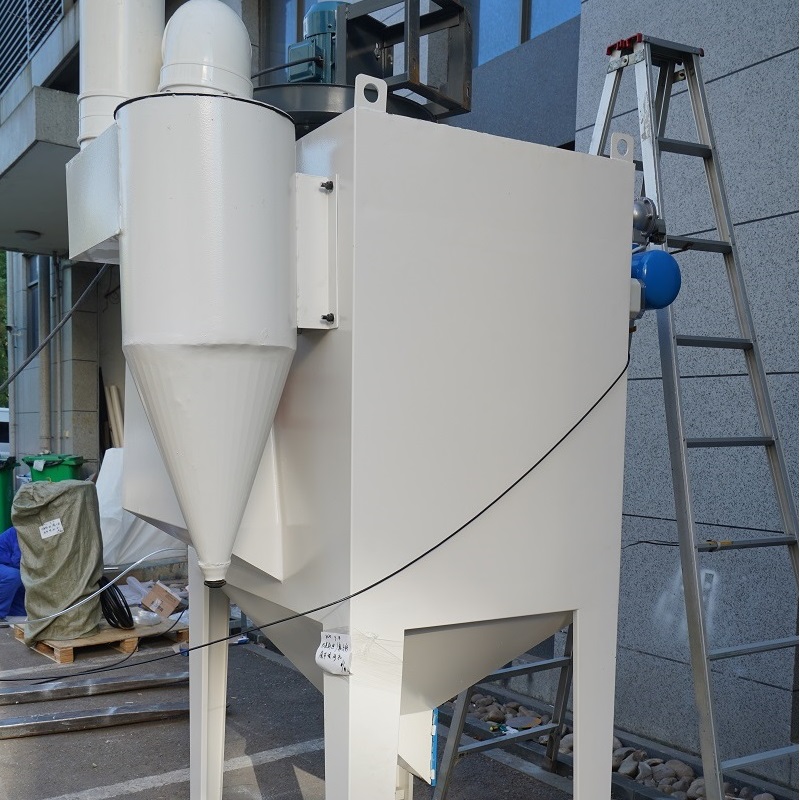

Media Recycling and Dust Collecting
Configured a pulse filter cartridge for dust removal system, features high removal efficiency and requires easy installation and maintenance.
The automatic blast machine can be optionally equipped with a cyclone device before filter collector, which is used to separate ultrafine abrasives from dust, increasing the recycling rate of pure abrasives.
Tumble Belt Blasting Machine Specifications
Model:
| KF-A100
|
Working cabinet: | L900*W600*H600 (mm) |
Cabinet outsize: | L1160*W1000*H2800 (mm) |
Dust collector dimensions: | L1200*W900*H2140 (mm) |
Productivity:
| 0.5-1.0 T/H |
Load capacity: | ≤200KGS |
Rolling motor power:
| 1.5KW |
Dust collection motor power:
| 3.0KW |
Automatic blasting gun: | 6pcs Aluminium alloy blasting guns, with 4pcs boron carbide nozzles, dia 8mm. |
Voltage: | 380V 50HZ (can be custom-made) |

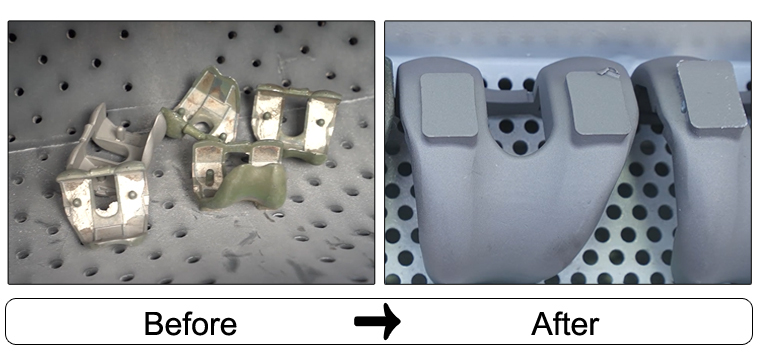

Tumble Belt Automatic Sandblaster Applications
These types of workpieces fully utilize the continuous, automatic, and batch processing advantages of the tumble sandblasting machines.
1. Small stamped parts, die-cast parts
Screws, nuts, bolts, washers, springs, small hardware, small automotive parts, electronic components, zinc/aluminum die-cast parts, etc.
Reasons: Small size, light weight, and able to tumble at the belt ensures that all surfaces are evenly blasted.
2. Relatively Round or Cylindrical Parts that can tumble and not fragile
Small or medium sized barrels, golf club heads, valve parts, gears, cutting tools (such as drill bits, milling cutters), etc.
Reason: The relatively round or cylinderical shape with a certain of hardness that prevents them from intertwining, jamming or snagging during tumbling, ensuring thorough sandblasting without blind spots.
3. Parts requiring removal of surface oxide scale, burrs, and rust
Heat-treated parts (oxide scale removal), machined parts (burr removal), forgings, and castings (rust removal).
Reason: Tumble sandblasting machines provide uniform impact force, efficiently cleaning these unwanted layers.
