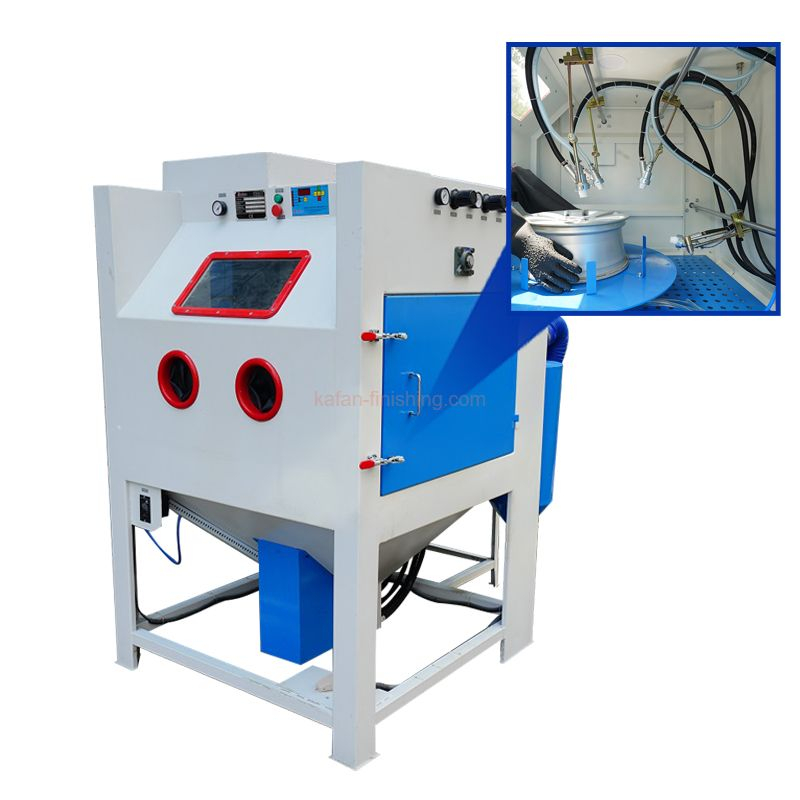

Alloy Wheel Sandblasting Machine, Automatic Sand Blasting Cabinet

Automatic rotary table sandblasting machine is your best choice for allloy wheel finish with high efficiency and excellent quality.
  • KF-1212A-4A

  • Kafan


Alloy Wheel Sandblasting Machine, Automatic Sand Blasting Cabinet

This sandblasting machine is extremely popular for wheel finish among worldwide customers, as the full automatic operation reduces time and labor while ensures efficiency, quality consistency, and flexiblility

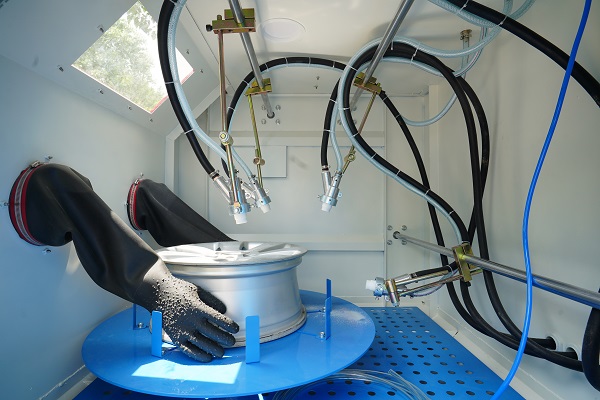

The 360 degree turntable rotates automatically while auto guns swinging and blasting that ensures all surfaces and corners can be cleaned uniformly.

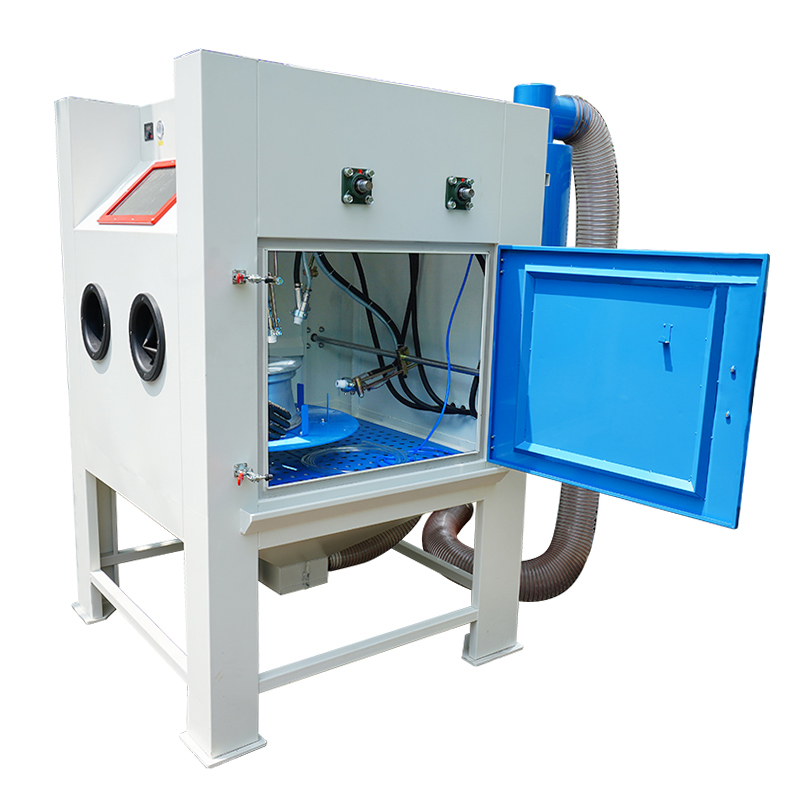

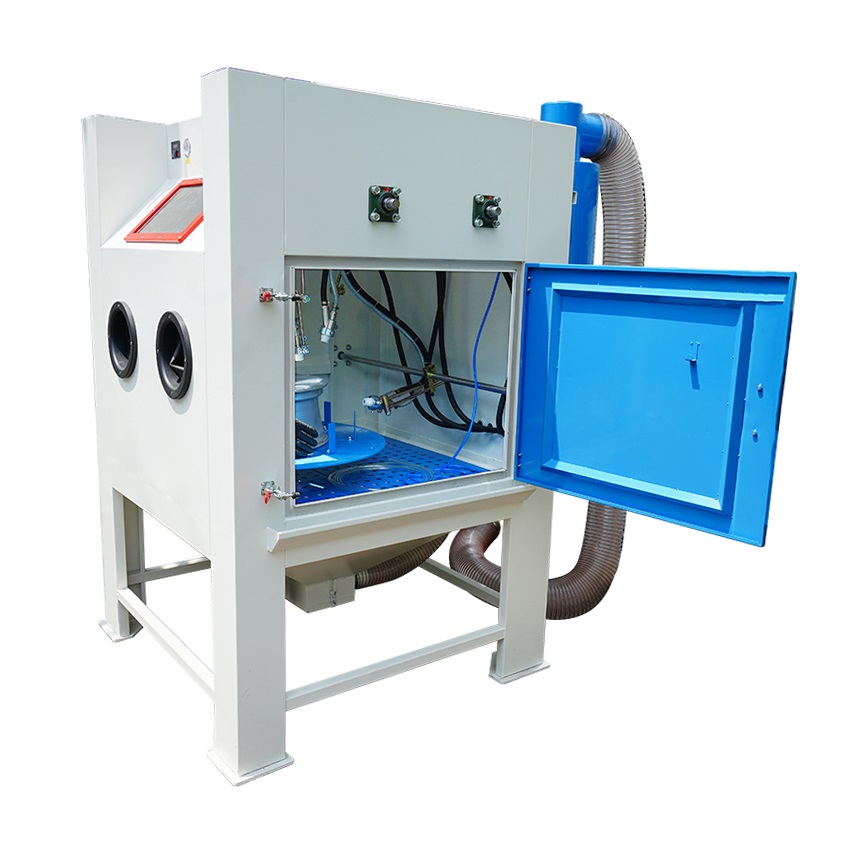

Alloy Wheel Sandblasting Machine     Automatic Sand Blasting Cabinet

Alloy Wheel Sandblasting Machine Excellent Features

  • Configured with 4pcs automatic blast guns and 1 manual gun to meet your various needs.

  • Heavy-duty turntable is ideal to load alloy wheels or other big heavy objects, can be set manual or automatic rotating.

  • Blasting time can be set as required, the machine will automatically stop when time arrives.

  • The used abrasives is delivered to the bottom funnel, then sucked to the blast gun for recycling of abrasive that saves cost a lot.

Automatic Wheel Sandblasting Cabinet Features

automatic sandblasting guns

Manual & Automatic Blast Guns

Configured with 4 pcs of automatic blast guns and 1 piece of manual gun, the automatic blast guns can be adjusted for fixing blasting or oscillating blasting.

The work of each blast gun is individually controlled via PLC. You can choose the optimal setting to meet your surface finishing needs. A manual blast gun helps for more precise repair blasting.

automatic turntable

Automatic Heavy-duty Turntable

The heavy-duty turntable is ideal for loading big and irregular shaped workpieces, also can be fitted with fixture for handling small and light workparts.

The turntable can be set to automatic rotating working along with automatic guns for increased efficiency and uniformity. While it also can be set for manual operation for more precise cleaning jobs.

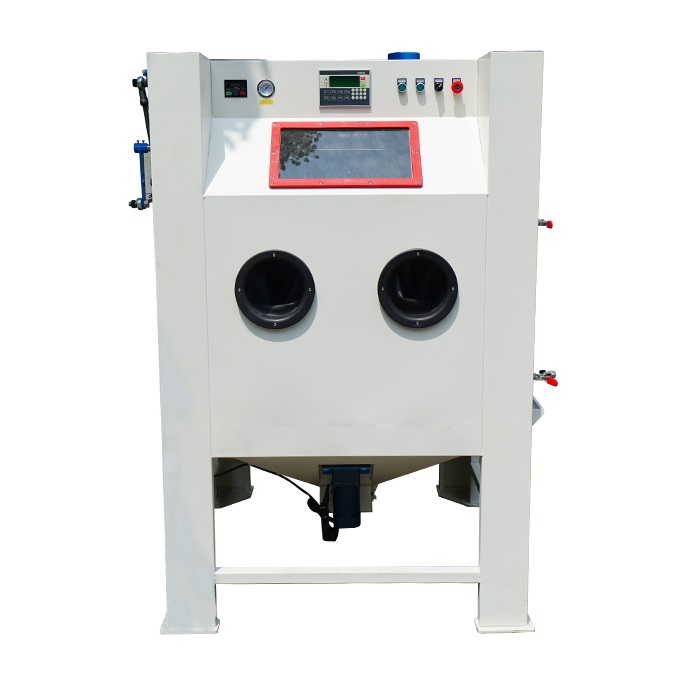

Easy-to-use PLC Control

Through the PLC advanced system, you can easily control the work of each blasting gun, blasting time, turntable rotating, dust collector working. To achieve a fully automatic process, you can preset all working parameters on the panel, once the preset time has arrived, the machine will stop working immediately.

sandblasting cyclone

Cyclone Separator

The automatic blast machine can be optionally equipped with a cyclone device, which is used to separate ultrafine abrasives from dust, increasing the recycling rate of pure abrasives.

sandblasting dust collector

Cartridge Filter Dust Collector

Each of our sandblasting cabinet is designed with a dust removing system, including a piece of cartridge filter and a set of fan motor. The high-precision filter is made of 100% polyester to absorb even micro dust particulates, which ensures vented airflow back to the workshop is dustfree.

Specifications of Automatic Wheel Sandblasting Machine



Working chamber dimension(L*W*H):


Power supply:

220V, 50HZ (voltage can be customized as local)

Machine light power:

220V, LED* 2

Compressed air source:


Air flow:

0.8-3m3/min dry and clean compressed air

Separator air volume:


Dust removal method

Cartridge Filter Type

Blasting Gun Qty

4 pcs

Blasting Nozzle

Boron Carbide

FAQ for Alloy Wheel Sandblasting Machine

1) What's the purpose of an automatic sandblasting machine for alloy wheel?

Remove rusts, old paints, scratches, creates an ahesive rough surface for better painting or powder coating.

2) Why an automatic sandblaster is more popular rather than a manual machine?

A specially designed wheel blast cabinet incorperates a turntable, and a group of blast guns. The guns automatically oscillates and blasts, while the turntable automatically rotates, which ensures the abrasive flow fully covers the wheels to clean. It is a great saving of labor ans time, and an excellent unifromity.

3) How long does it take to blast a wheel by automatic sandblaster

About 10 minutes or longer, depends on actual condition.

4) What kinds of abrasives to sandblasting an alloy wheel?

Mostly use white corundum, or brown corundum

5) What capacity of air compressor for the automatic wheel blaster is required?

If the automatic wheel blast machine is configured with about 4 pcs guns, each gun requires 5.5KW-7.5KW(Air flow 1m^3/min), then 4pcs gun blaster requires at least an compressor of 22KW.
