KF-1212FTA
Kafan

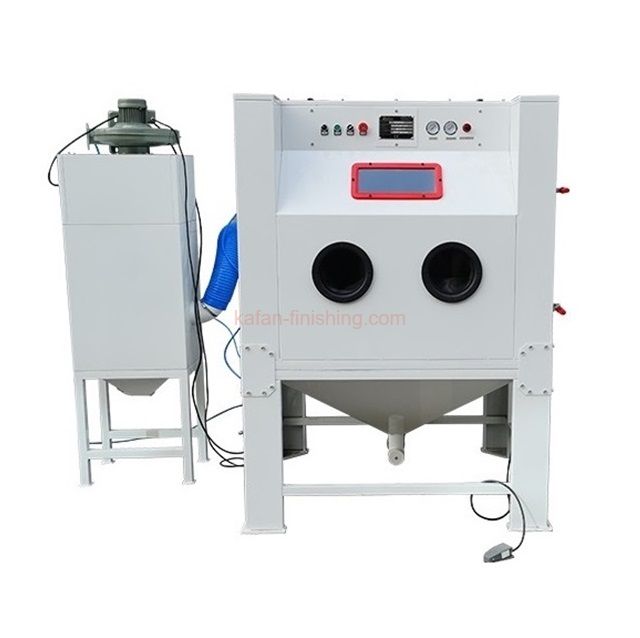

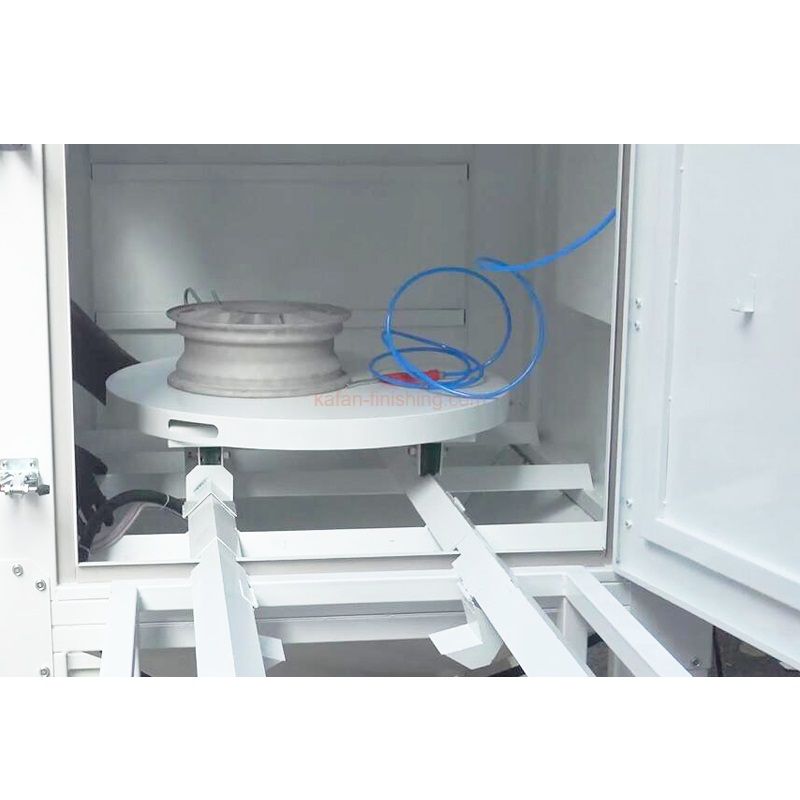

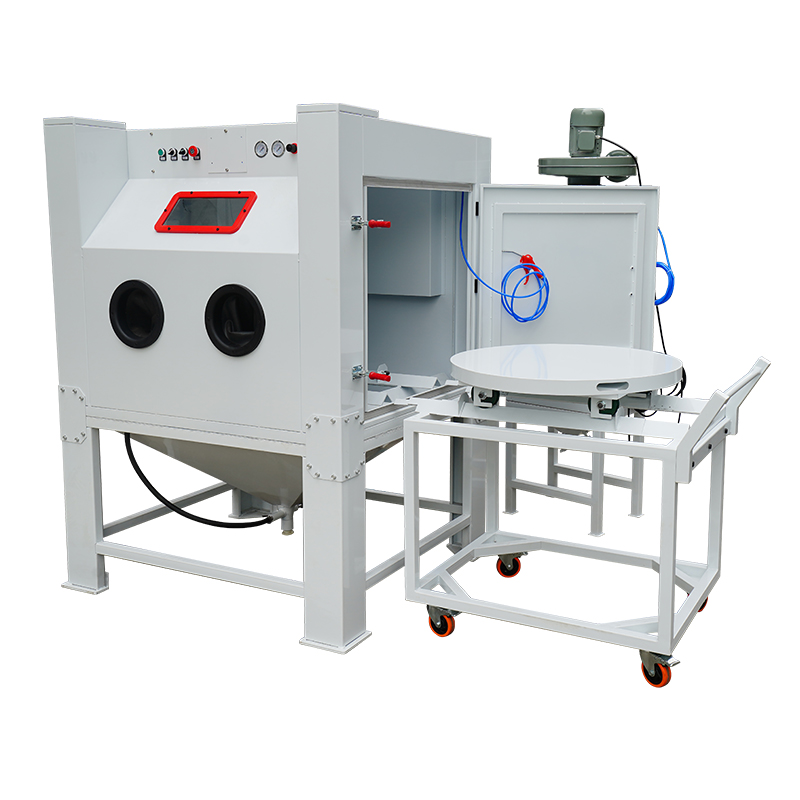

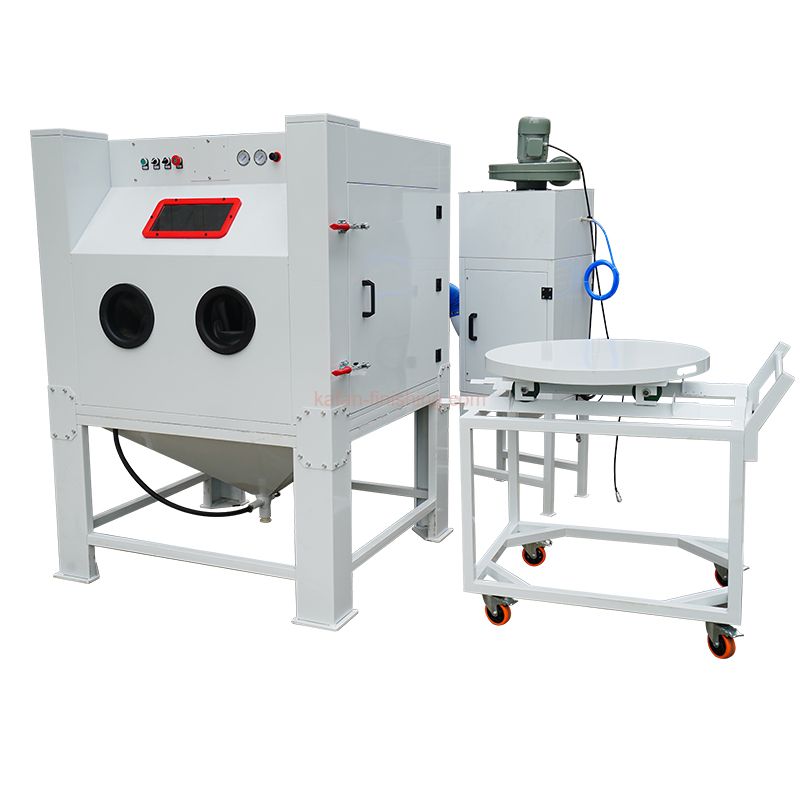

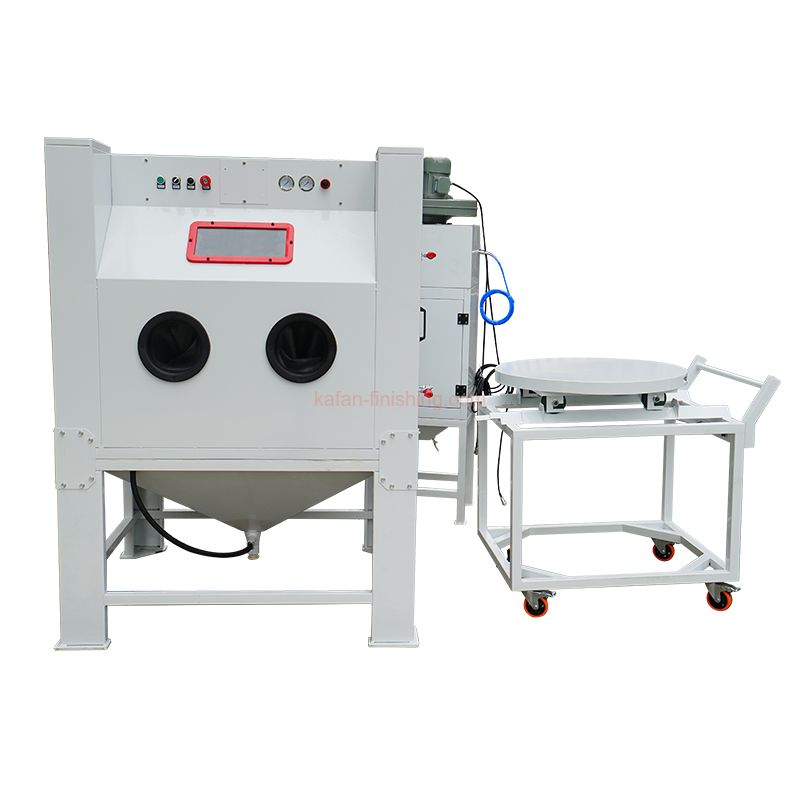

The manual sandblasting cabinet with turntable and loading cart is specially designed for an easy operation of heavy objects, such as alloy wheels. The turntable provides 360 degree rotating action manually, which greatly reduce the efforts to directly move the wheels. The cart is ideal to push the wheel from outside to inside at ease.
During operation, the used abrasives are delivered to the funnel, then sucked to the blast gun for continuous utilization, such recycling of abrasive saves cost a lot.

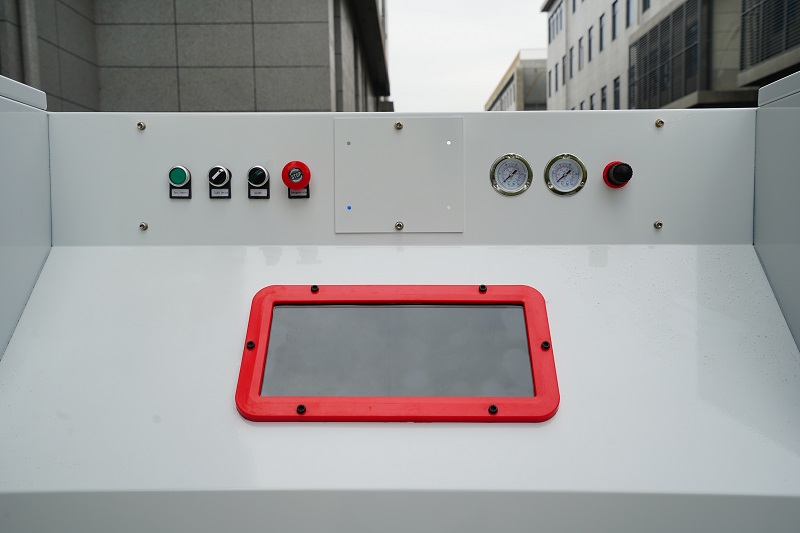

With simple pressure regulation systems, power on/off buttons, dust removing on/off switches.

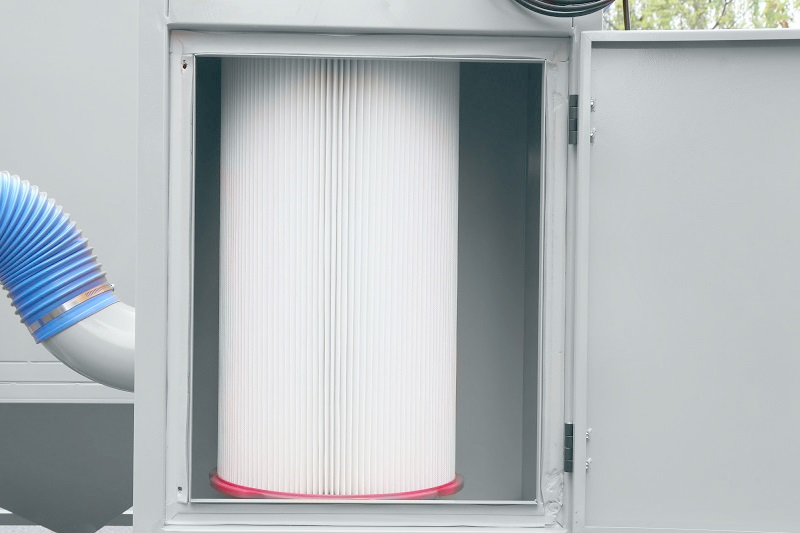

For dust collector, there is an high-precision filter cartridge made of 100% polyester to absorb even micro dust particulates, which ensures vented airflow back to the workshop is dustfree.

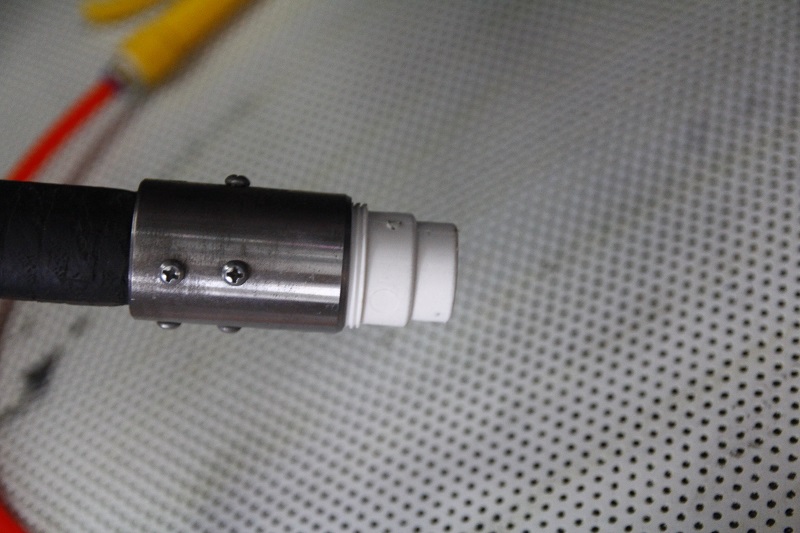

Configures a long life aluminum alloy casting blast gun with durable boron carbide nozzle, as well as a pair of wear-resistent gloves.

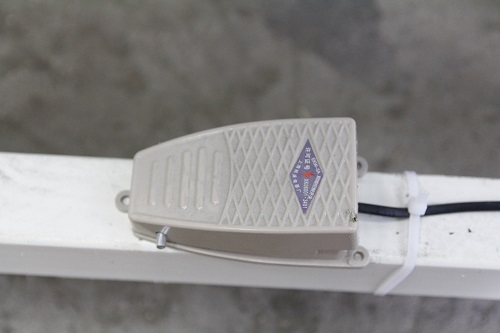

Foot pedal switch to control the work of blasting gun, which reduces the user's fatigue, facilitates the operation and ensures the safety

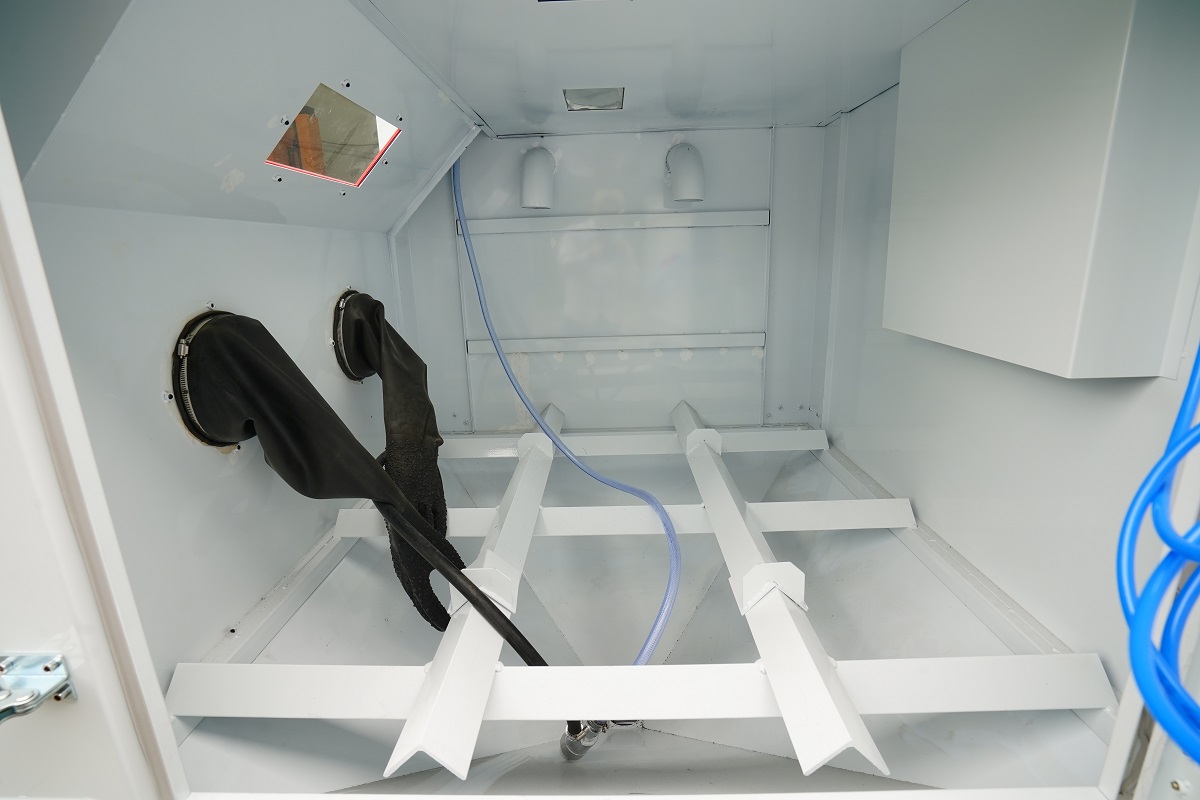

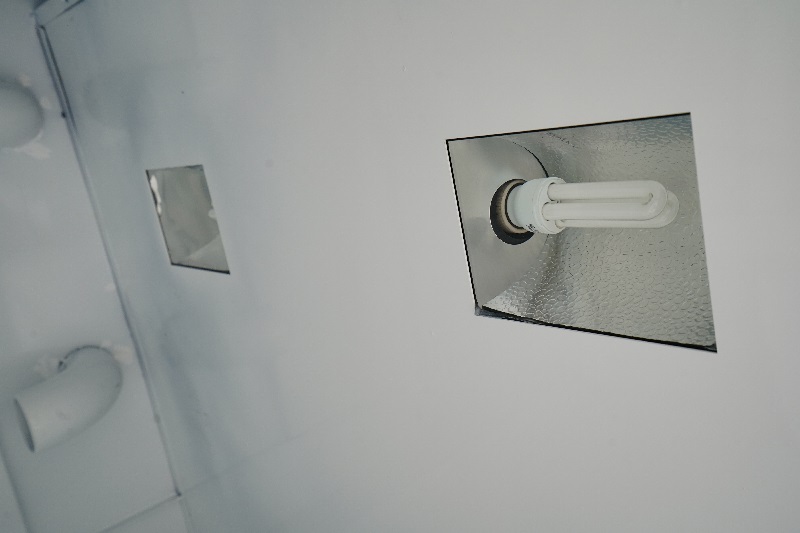

Built with 2pcs energy-saving lights creates clear working sight for a precise job.
The whole blast cabinet is welded by 2mm steel-plated with coated surface, durable and anti-rust.
| Model | KF-1212FTA |
Overall Dimension | Length1200 * Width1680 * Height1840mm |
Work Chamber | Length1200 * Width1200 * Height800mm |
| Turntable | Diameter 800mm |
| Loading | Max. 200kgs |
Door Size | W830xH770mm |
Power Supply | 110V/220V, 50-60Hz (customized) |
| Motor Power | 0.75kw |
| Lighting | 18w Fluorescent |
| Blasting Gun | 1 piece with boron carbide nozzle |
| Compressed Air | 5-8 bar(kg/cm2) |
| Flow | 0.5-1.2m3/min |
An alloy wheel sandblasting cabinet is a specialized finishing equipment used for surface cleaning, paint stripping, corrosion removing, deburring, smoothing, refinishing, and restoring alloy wheels, especially before powder coating process.
It is commonly used in automotive repair shops, wheel refurbishment centers, and manufacturing facilities. It offers a efficient, precise, and safe to ensure high-quality results and extending the life of the wheels.
