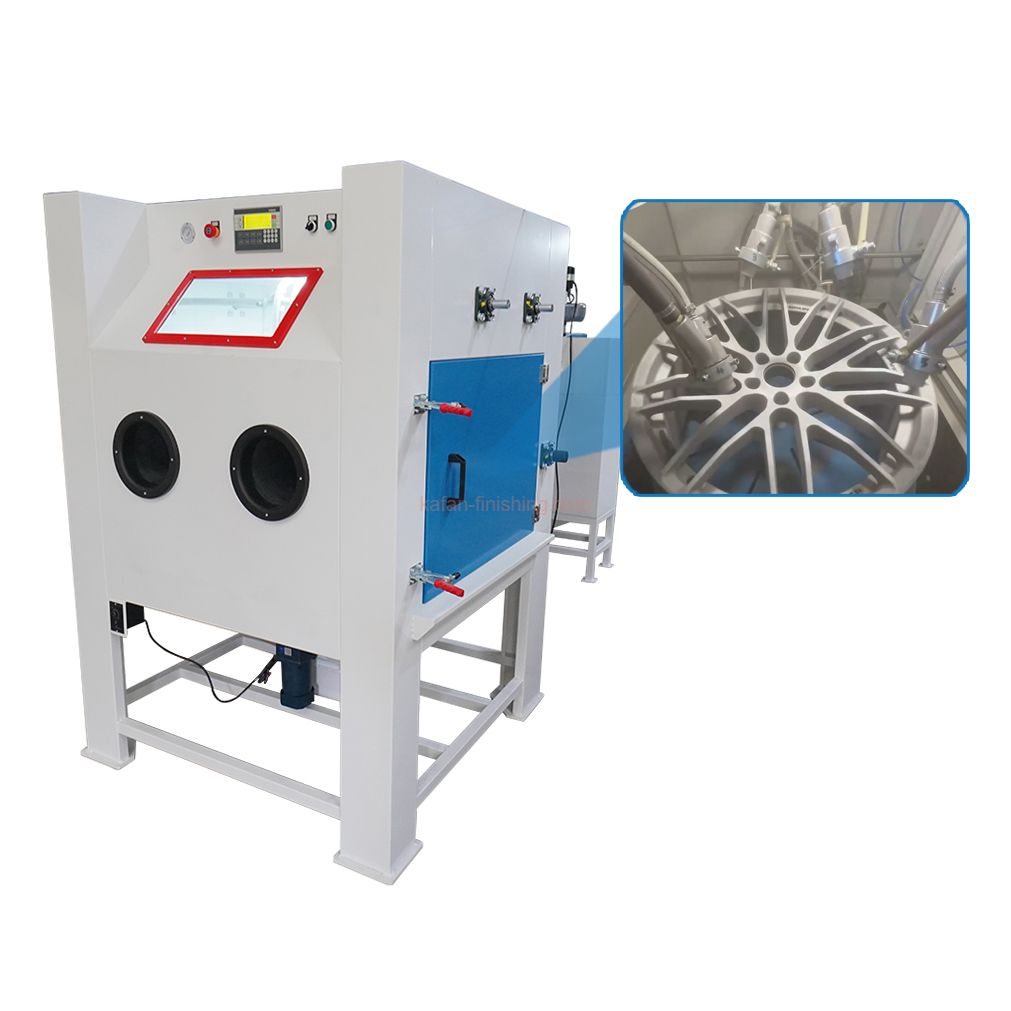

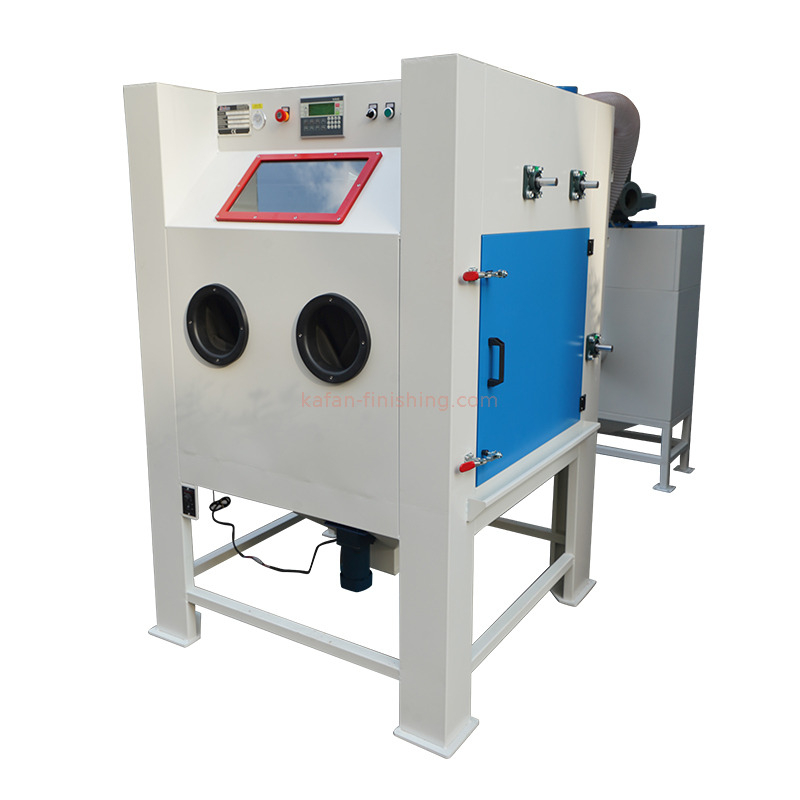

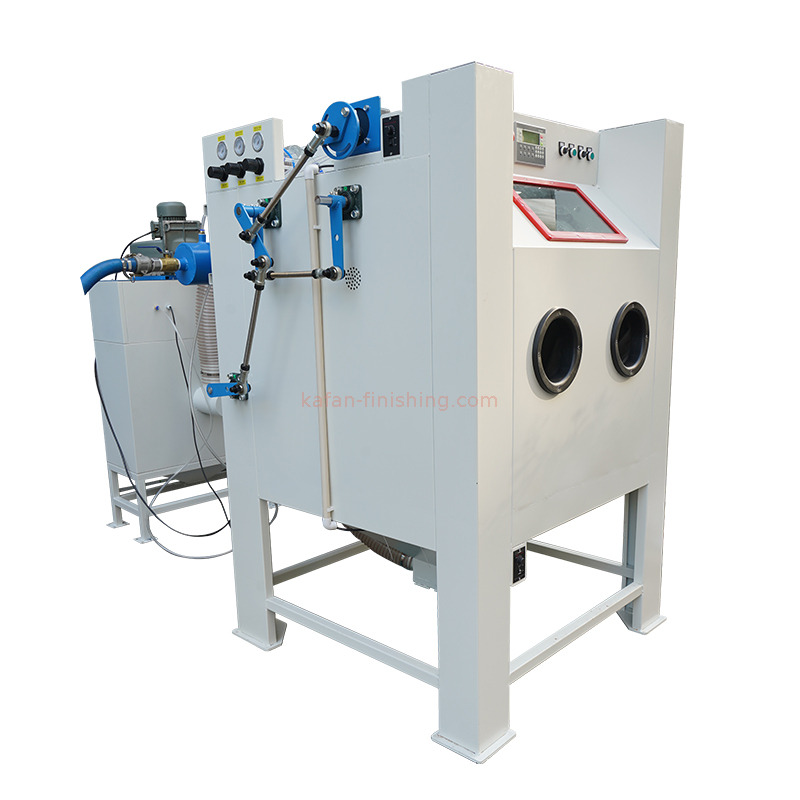

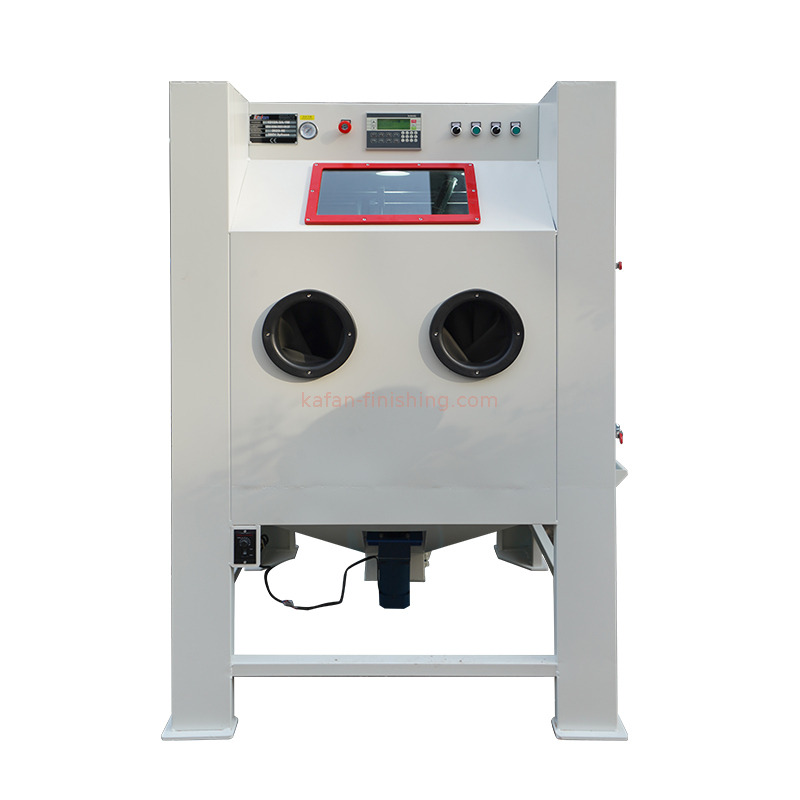

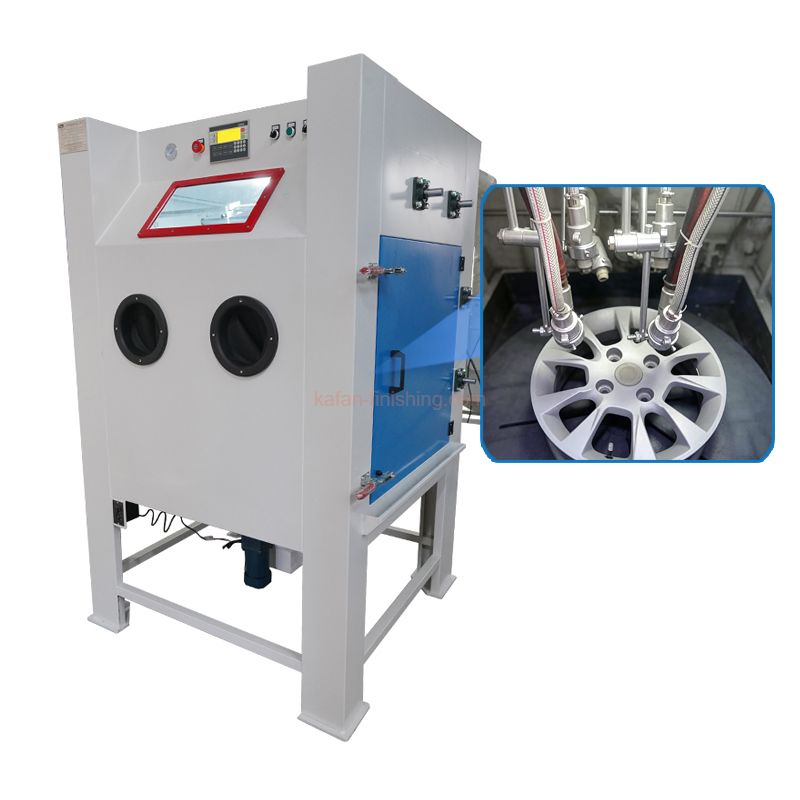

Automatic Sandblasting Cabinet for Wheels
This automatic sandblasting cabinet is engineered to revolutionize your surface preparation for both painted, rusted or diamond-cut wheels, ensuring flawless results every time.
It incorperates an automatic turntable as well as automatic oscillating guns that ensures all surfaces and corners to be cleaned uniformly. As it is a full automatic operation, it not only reduces time and labor but also ensures productivity, and quality consistency.

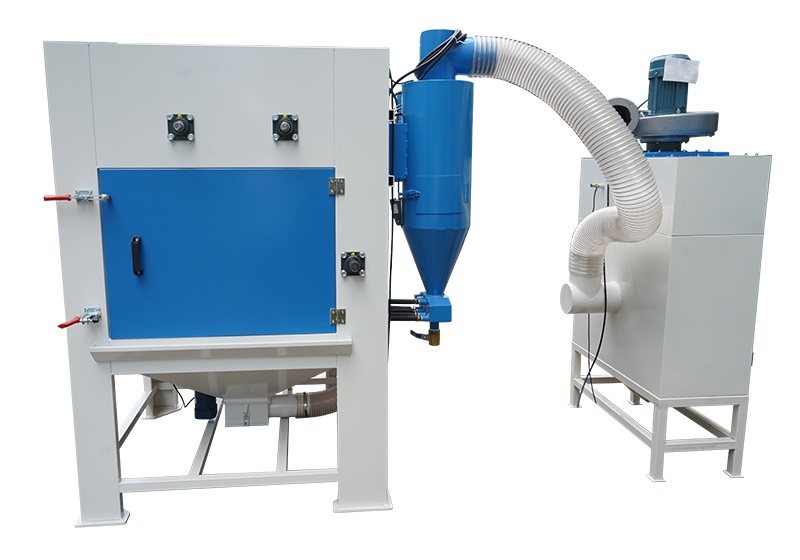

Automatic Sandblasting Cabinet with Dust Removing and Media Recycling System
This compact, effective, safe machine is the ideal solution for high requirement alloy wheel blasting, the equipped cyclone seperator and filter cartridge dust collector offering you a user-friendly and environmantal-protective job experience.
The blasted abrasives seperated from dusts will be delivered to the bottom funnel, and sucked to the blast gun for recycling.

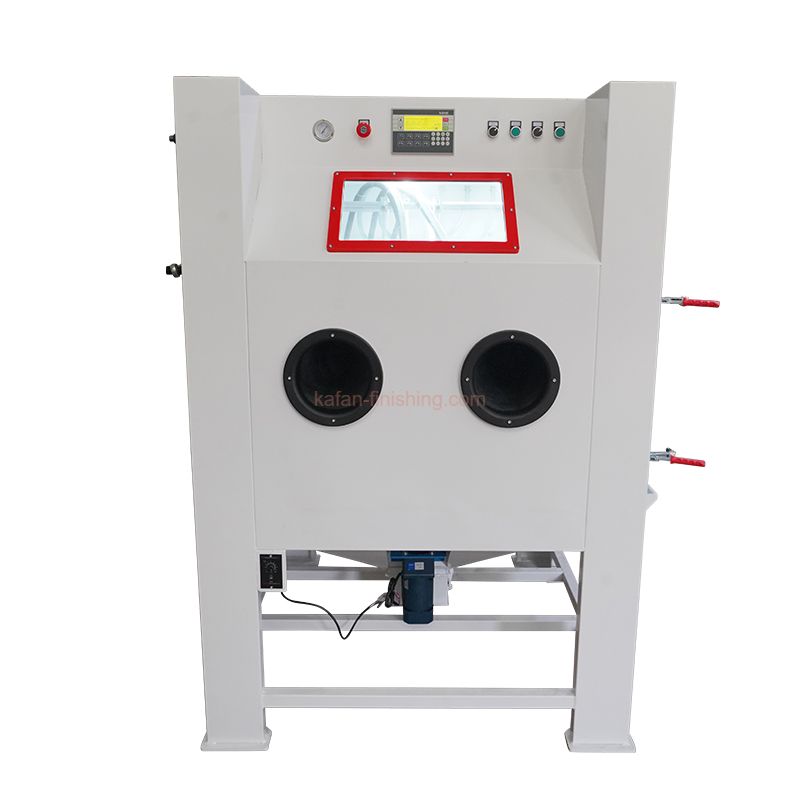

Alloy Wheel Automatic Sandblasting Cabinet Application
The automatic blast cabinet is ideally used in automotive repair shops, wheel refurbishment centers, and manufacturing facilities, offering an efficient, precise, and safe process for increasing surface adhesion, rust-removing or old paint stripping, etc.

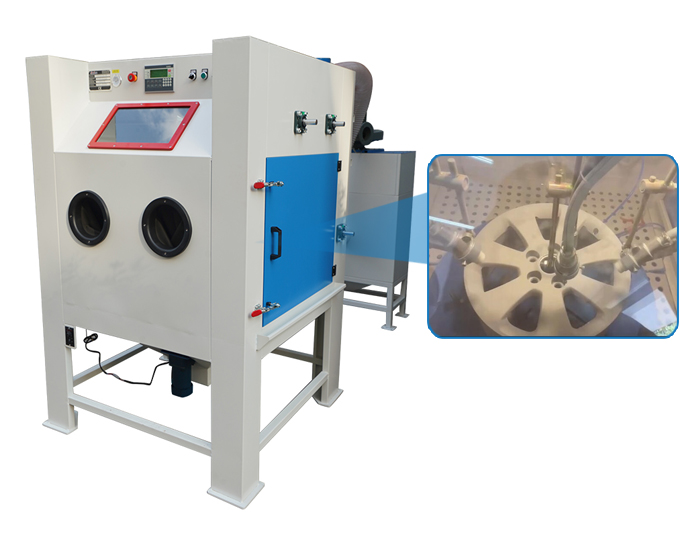

Automatic Wheel Sandblasting Cabinet Configurations

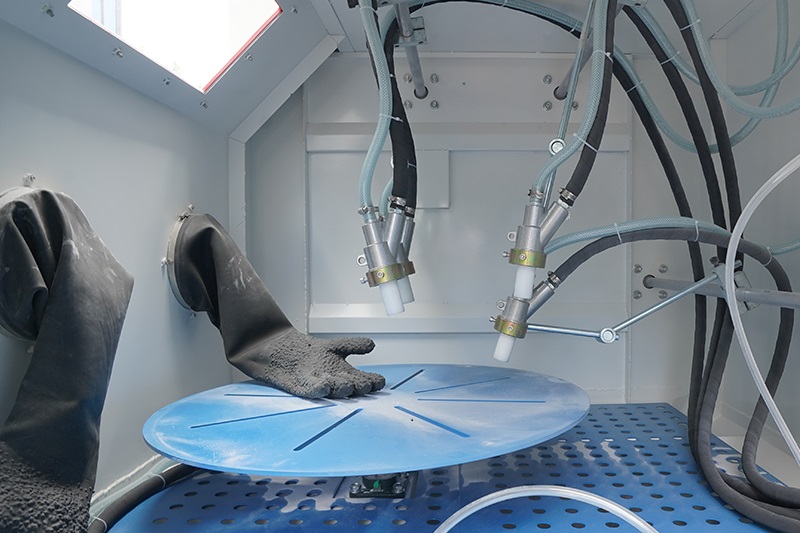

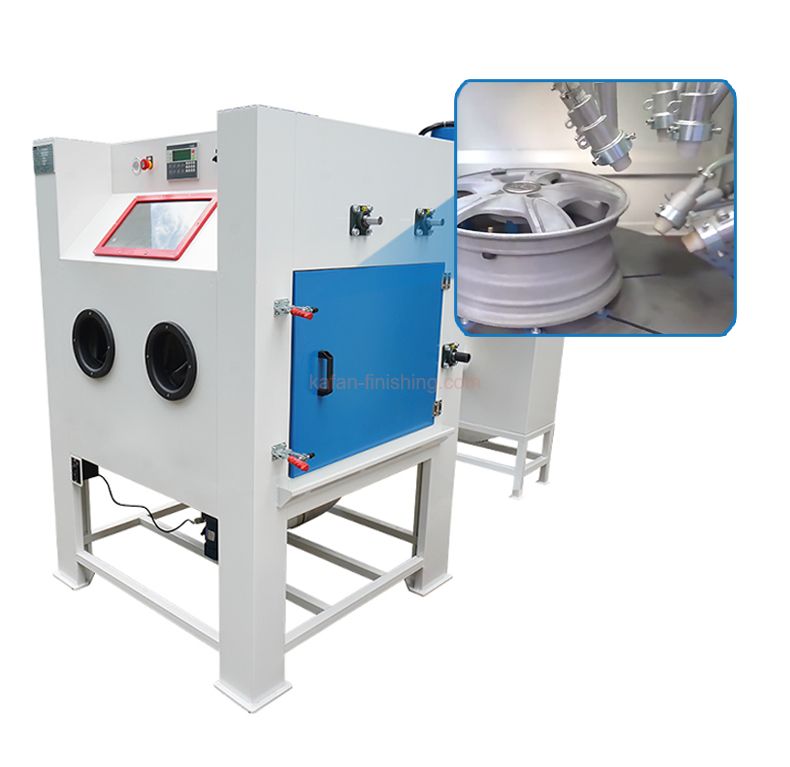

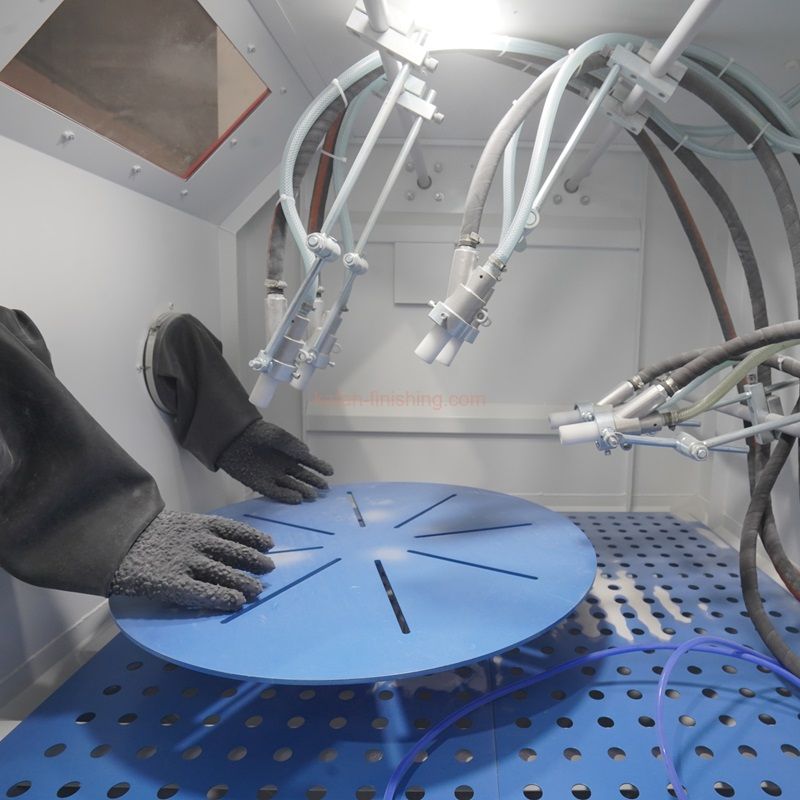

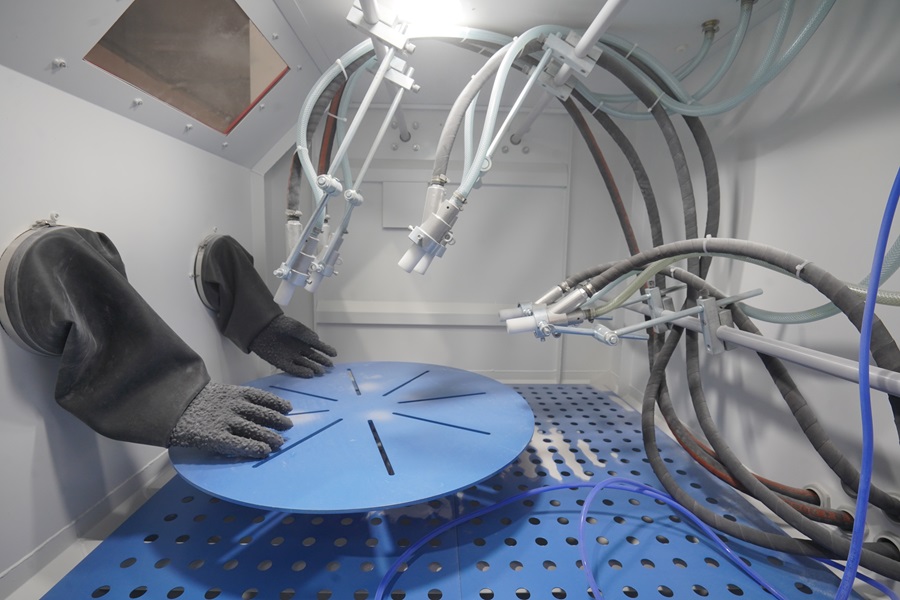

6 Automatic Blast Guns + 1 Manual Gun
Configured with 6 pcs of automatic blast guns and 1 piece of manual gun for after checking, the automatic blast guns can be set for fixing blasting or oscillating blasting with adjustable angles. You can choose the optimal setting to meet your surface finishing needs. A manual blast gun helps for more precise repair blasting.

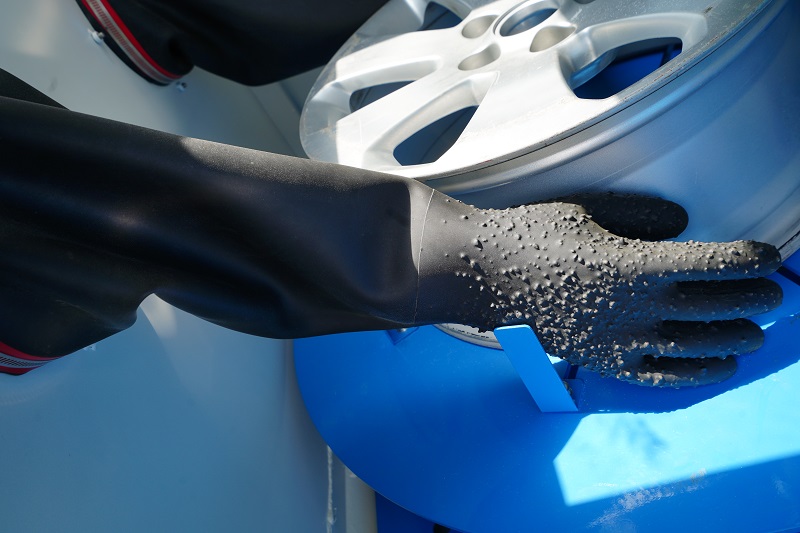

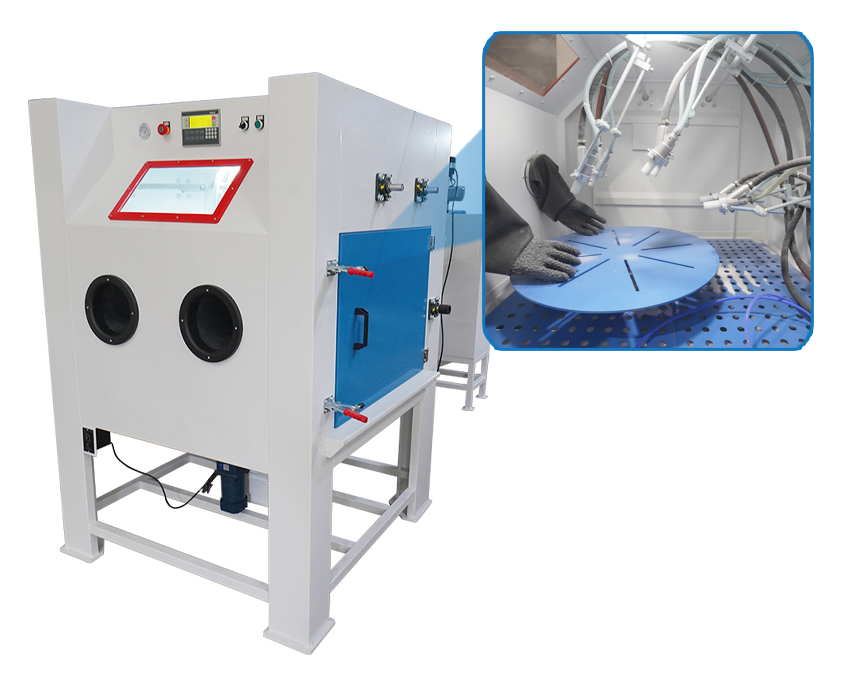

Automatic Turntable

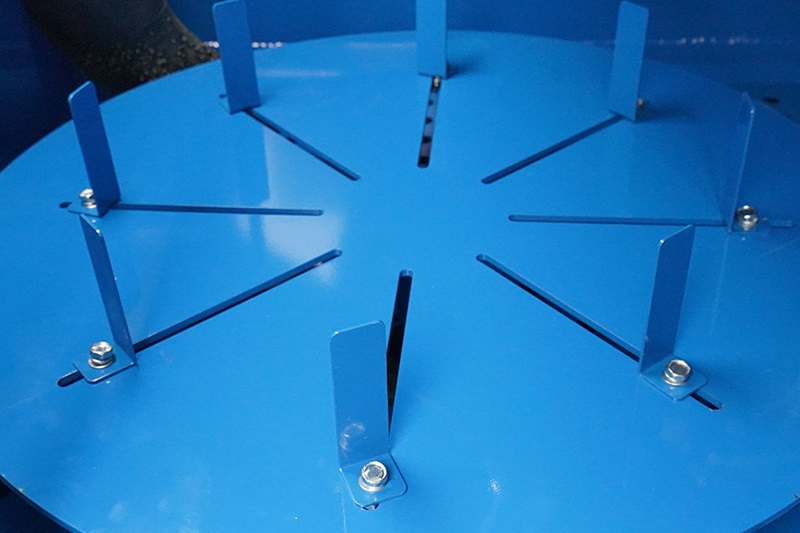

The heavy-duty turntable is ideal for loading big and irregular shaped workpieces, with fixtures to fit different diameter wheels
The turntable can be set to automatic rotating working along with automatic guns for increased efficiency and uniformity. While it also can be set for manual rotating with the work of manual gun for hand cleaning jobs.

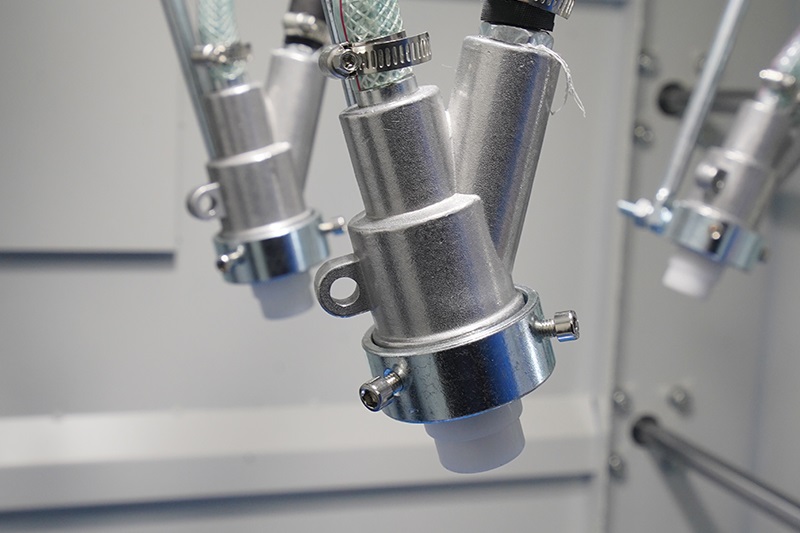

Blast Guns & Nozzles
The work of each blast gun is individually controlled via PLC.
The air pressure of each blast gun is also individually regulated by valves.
Our blast gun holder are made of high quality aluminium alloy, and nozzles are made of boron carbide which is the most durable material in the market.
Easy-to-use PLC Control
Through the PLC advanced system, you can easily control the work of each blasting gun, turntable rotating, dust collector working, set blasting time, etc. To achieve a fully automatic process, you can preset all working parameters on the panel, once the preset time has arrived, the machine will stop working immediately.

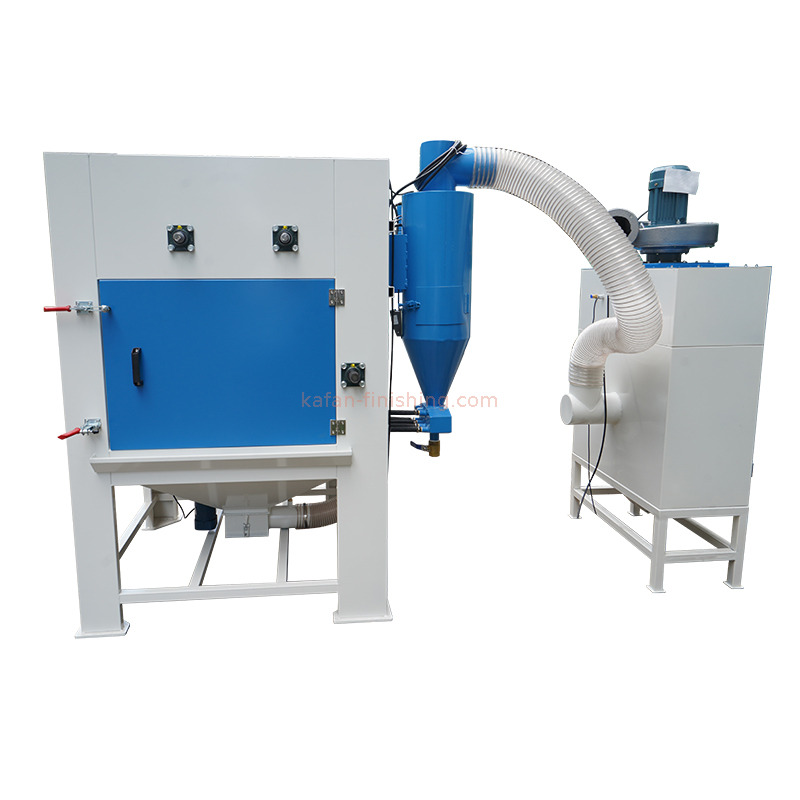

Cyclone Separator
The automatic blast machine can be optionally equipped with a cyclone device, which is used to separate ultrafine abrasives from dust, increasing the recycling rate of pure abrasives.

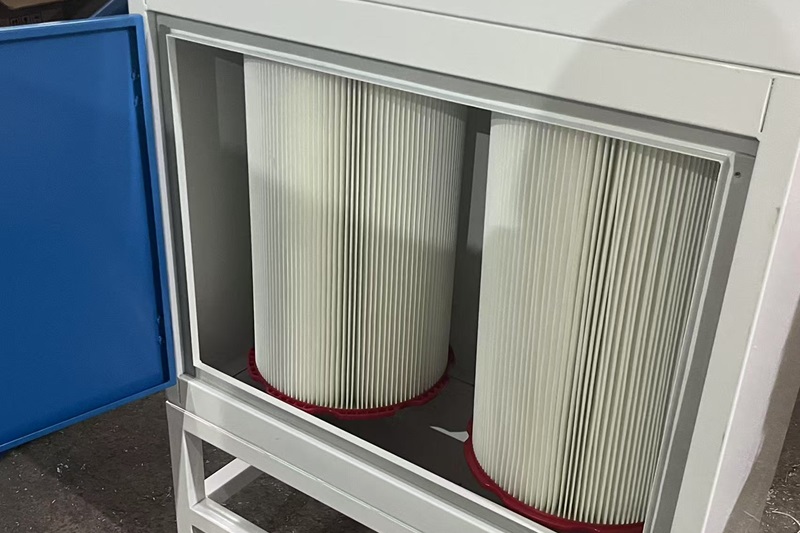

Cartridge Filter Dust Collector
This sandblasting cabinet is designed with a dust removing system, including 2 piece of cartridge filter and a set of fan motor. The high-precision filter is made of 100% polyester to absorb even micro dust particulates, which ensures vented airflow back to the workshop is dustfree.
Specifications of Automatic Wheel Sandblasting Cabinet
Model: | KF-1212-6A |
Working chamber dimension(L*W*H): | 1200mm*1200mm*850mm |
Power supply： | 220V, 50HZ (voltage can be customized as local) |
Machine light power： | 220V, LED* 2 |
Compressed air source： | 5-7bar(kg/) |
Air flow： | 0.8-3m3/min dry and clean compressed air |
Separator air volume： | 8.5m3/min |
Dust removal method | Cartridge Filter Type |
Blasting Gun Qty | 6 pcs auto guns, 1 pc manual gun |
Blasting Nozzle | Boron Carbide |
FAQ for Automatic Wheel Sandblasting Cabinet
1) What's the purpose of an automatic sandblasting machine for alloy wheel?
Remove rusts, old paints, scratches, creates an ahesive rough surface for better painting or powder coating.
2) Why an automatic sandblaster is more popular rather than a manual machine?
A specially designed wheel blast cabinet incorperates a turntable, and a group of blast guns. The guns automatically oscillates and blasts, while the turntable automatically rotates, which ensures the abrasive flow fully covers the wheels to clean. It is a great saving of labor ans time, and an excellent unifromity.
3) How long does it take to blast a wheel by automatic sandblaster
About 10-15 minutes, depends on actual condition.
4) What kinds of abrasives to sandblasting an alloy wheel?
Mostly use white corundum, or brown corundum
5) What capacity of air compressor for the automatic wheel blaster is required?
If the automatic wheel blast machine is configured with at least 4 pcs guns, each gun requires 5.5KW-7.5KW(Air flow 1m^3/min), then 4pcs gun blaster requires at least an compressor of 22KW.
