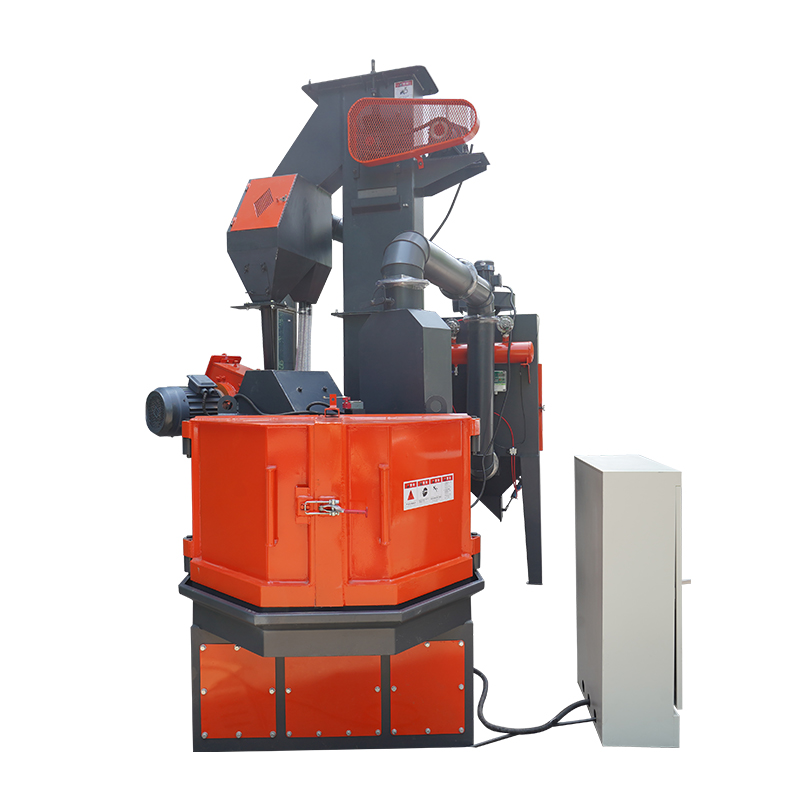

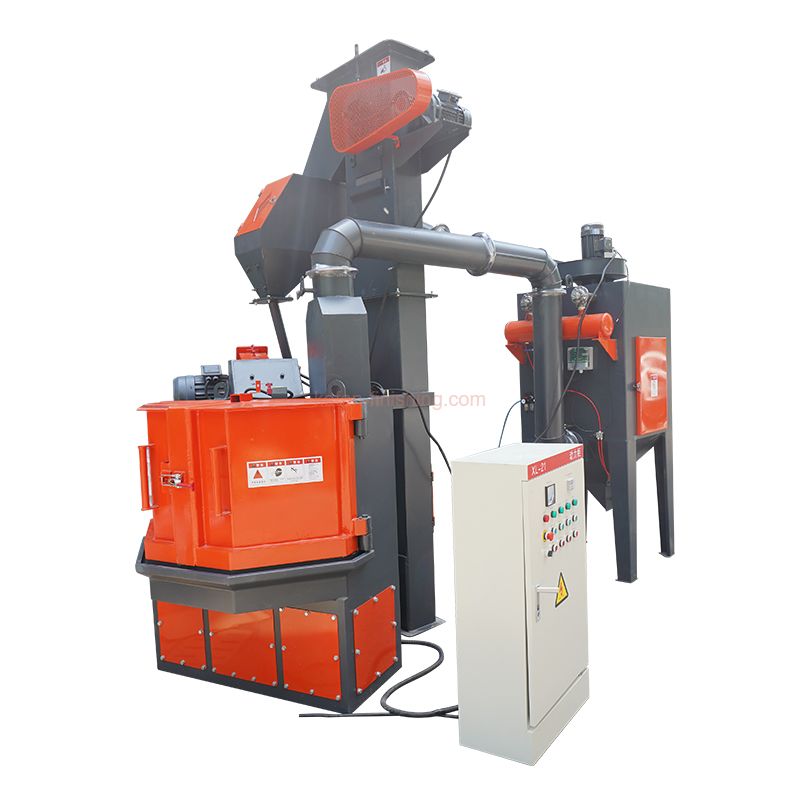

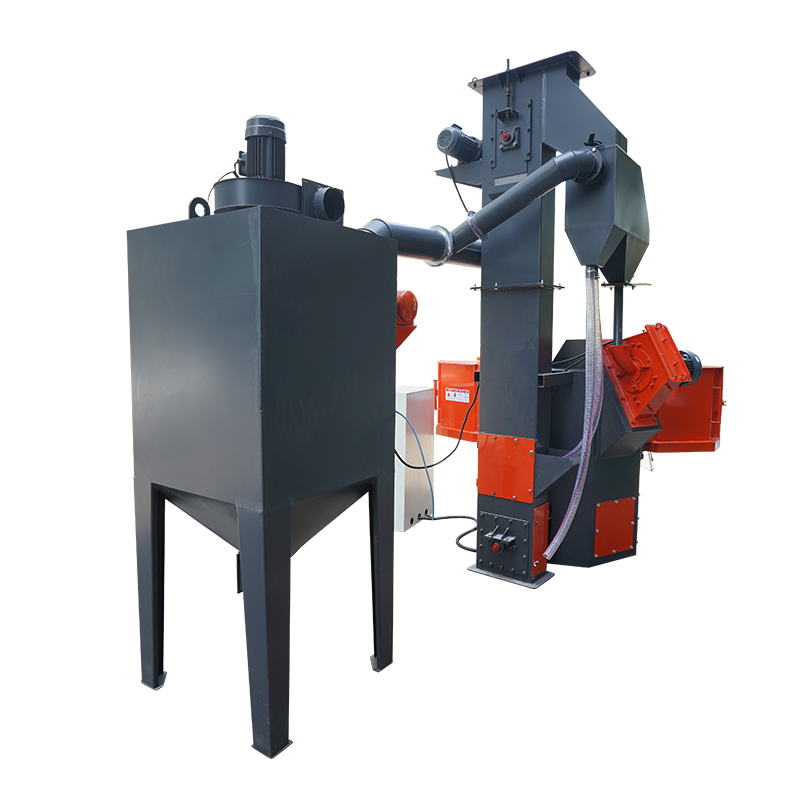

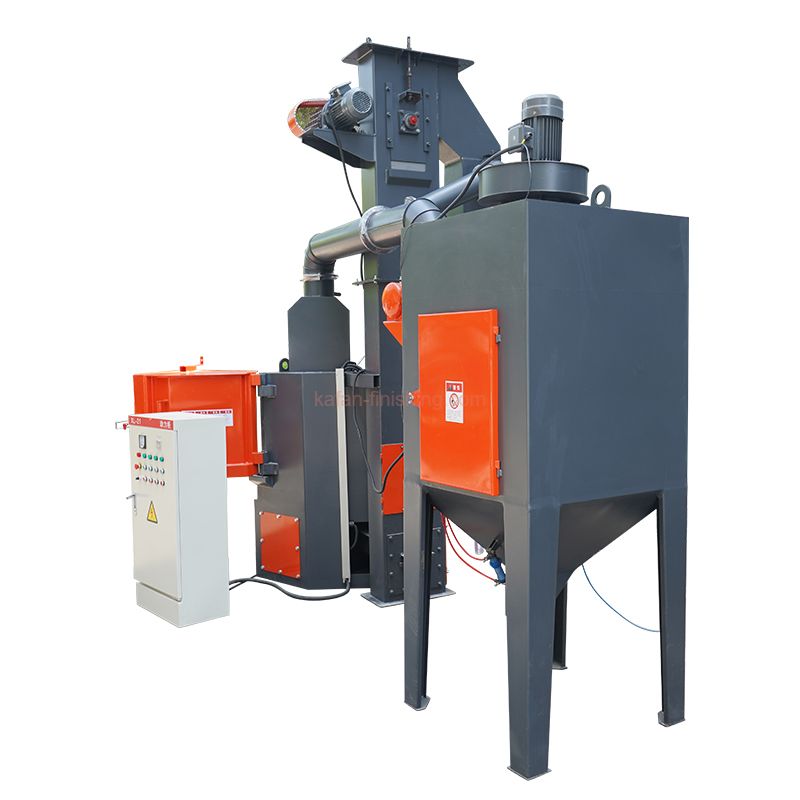

Rotary Table Shot Blasting Machine

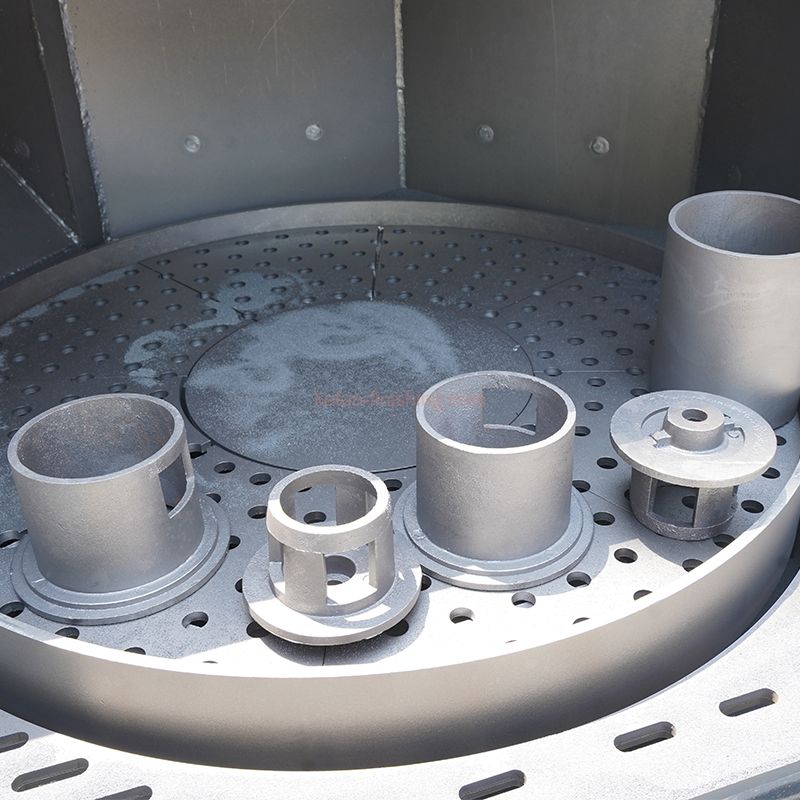

This shot blasting machine designed a rotary table inside the blasting area which is efficient for batch processing industrial workpieces varying in dimensions and shapes, such as castings, forgings, pressed parts, parts made of steel or non-ferrous metals, and ensures uniform cleaning coverage even for complex or multi-sided parts that.
A fully automatic blasting sytem for customers who require effective, reliable, repeatable blast finishing with minimal manual intervention
How Rotary Table Shot Blasting Machine Works
The rotating worktable that carries components through a sealed blast chamber, where media shots are propelled in high-speed by centrifugal blast wheels, those shots will hit the surface of workpiece to achieve the purpose of cleaning. This high efficiency blasting machine is widely used in automotive, foundry, aerospace, and heavy engineering industries for batch-type cleaning applications..
Rotary Table Shot Blast Machine Configurations & Features

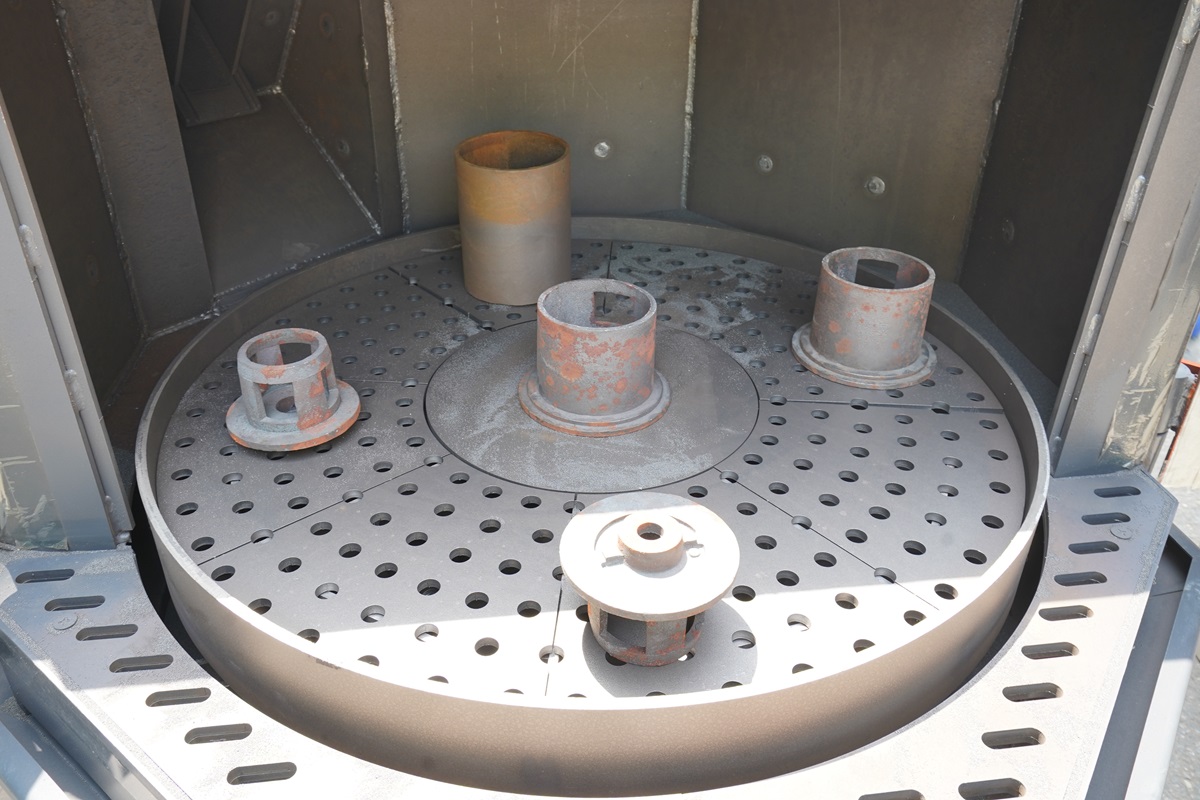

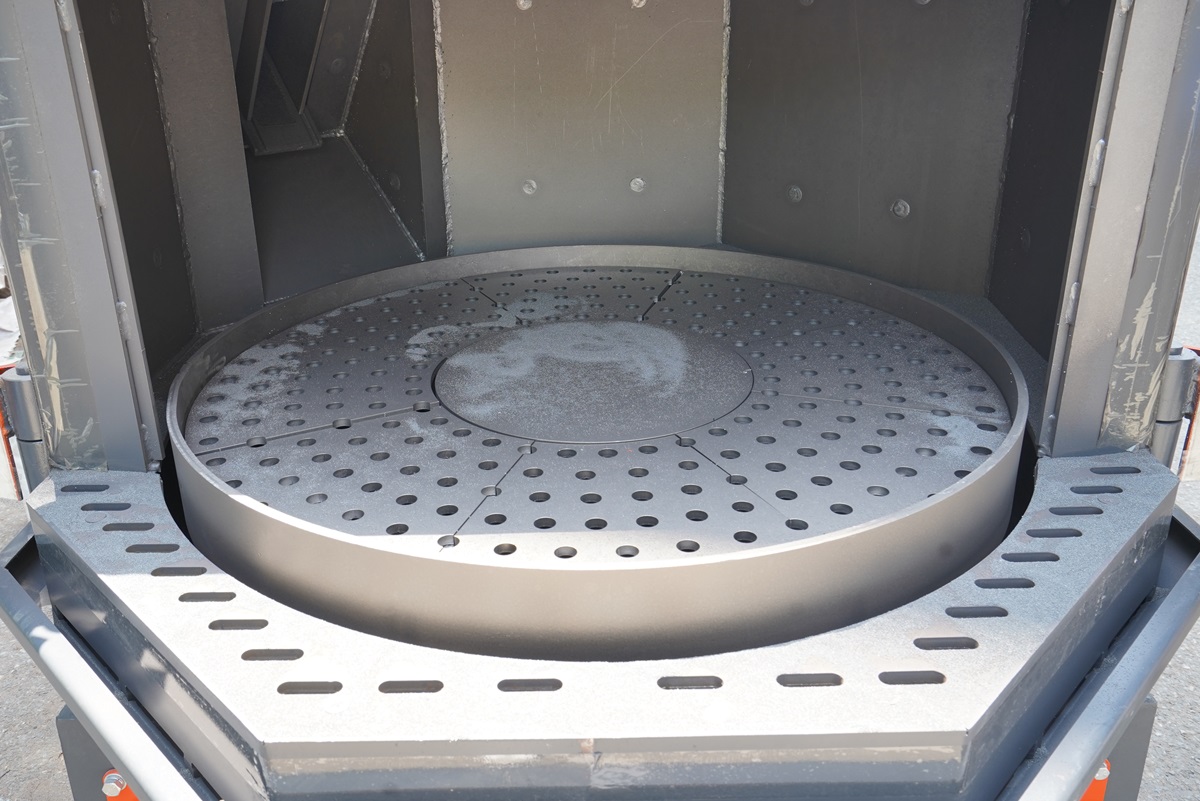

Shot Blasting Rotary Table

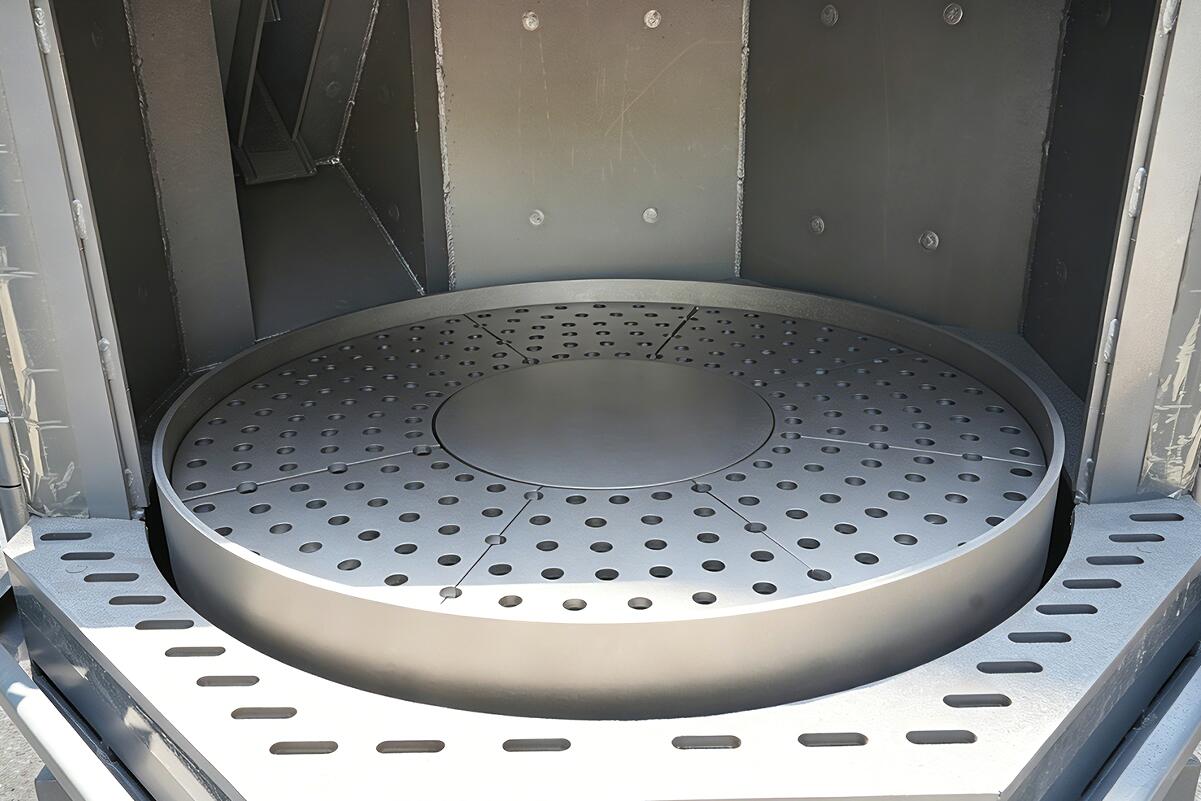

The rotary is made of flat steel welded into a mesh disc, covered with a rubber plate with holes. which allows blasting media to fall through and reduce the wear from shot peening.
The rotating table is electrically driven by sprocket, and motorized with adjustment speed for optimal exposure to the blast stream.

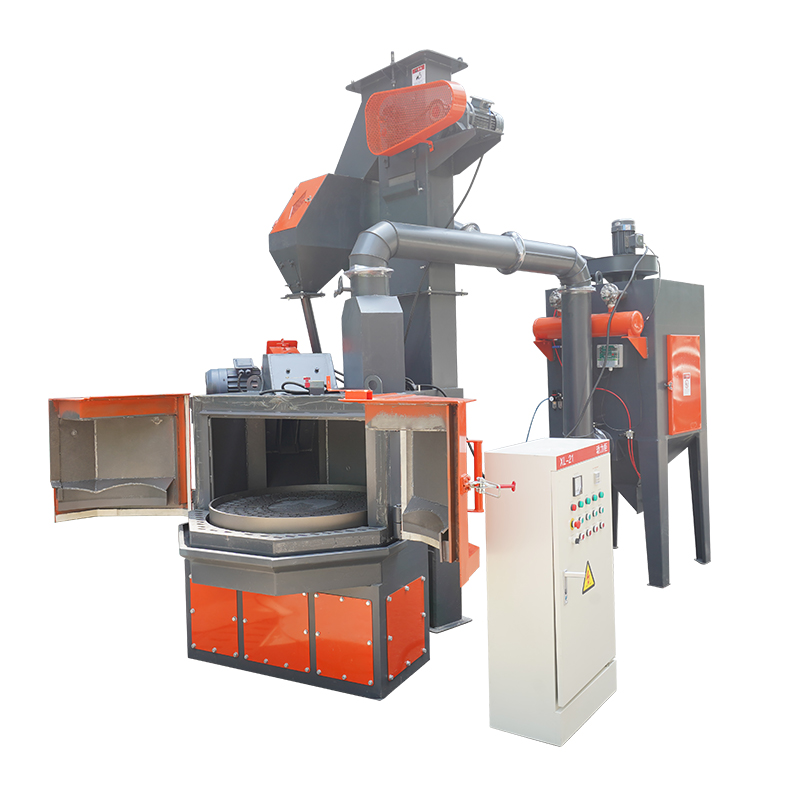

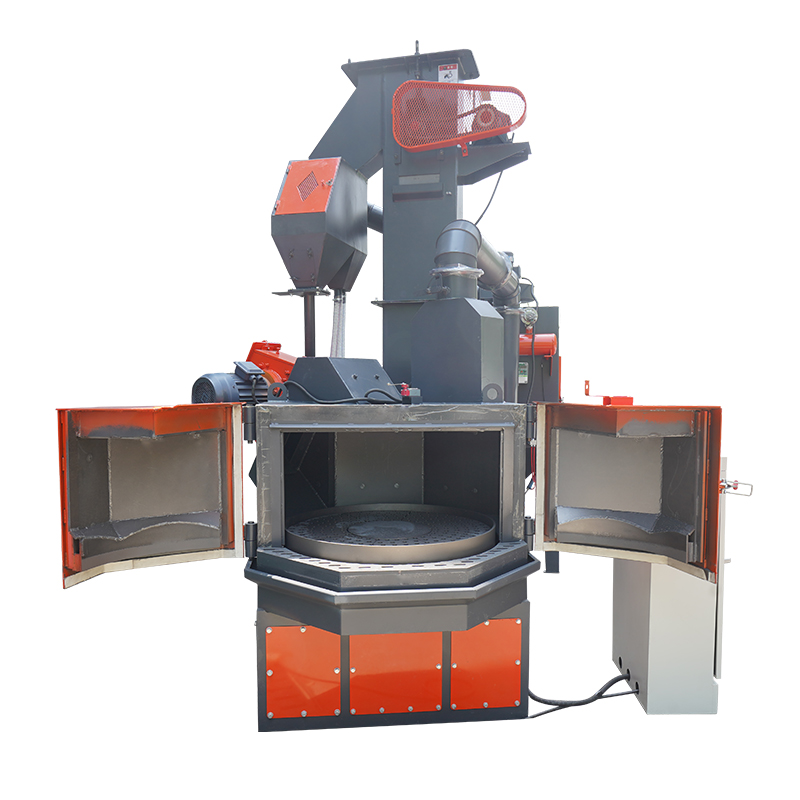

Durable Blast Cabinet with Wide Opening Doors
Designed with a pair of front-opening doors in wide opening and good sealing when closed, as well as a pneumatically top-opening door.
The inner wall of the doors are guarded with wear-resistant rubber, and a baffle set in the middle of the front opening doors to prevent shots flying out of the chamber. fast and simple loading/unloading.
Blast wheels and blasting chamber inner walls are protected by wear-resistant shields for extremely long service life.

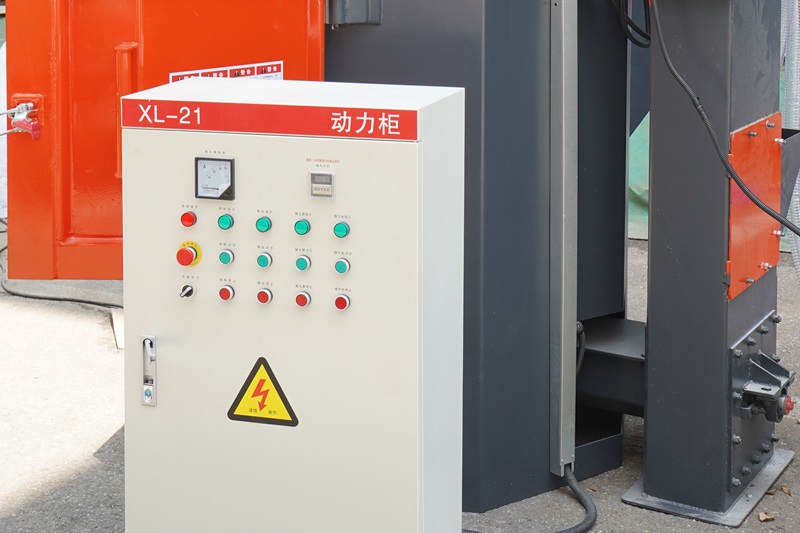

Electric Control Cabinet
Configures an independent electric control cabinet that integrates all functions you need for convenient operation
Offering reliable and safe control of automatic start-up of the blast wheels, working time counter, media lifting, filter dust collecting and other basic features.
Media Reclaiming System with Bucket Elevator
After use, residual abrasive media falls down the bottom of the blasting chamber, where it is conveyed by screw conveyors and a bucket elevator to an automatic media cleaner.
The abrasive reclaimer provides continuous handling and recycling of abrasive media based on particle size in order to maintain optimal and consistent quality blasting.
An indepedent cartridge filter dust collector effectively removes dust from blasting chamber and ensures only dustfree air vented back to the workshop
Kafan Rotary Table Shot Blasting Machine Beneifts
Heavy-Duty Construction: Built with wear-resistant manganese or chrome alloy liners inside the blast chamber, extending machine life even under high-intensity abrasive impact.
Low Maintenance Design: Easy-access doors, removable wear plates, and centralized lubrication points simplify routine inspections and wear-part replacement.
Environmentally Safe Operation: Sealed blast chamber with integrated dust collection system ensures minimal dust leakage, meeting workplace safety and environmental standards.
Versatile Workpiece Handling: Can accommodate parts ranging from small castings to large, heavy components (e.g., engine blocks, turbine housings, welded fabrications) without complex fixturing.
Uniform Blast Coverage: The rotating motion combined with adjustable wheel angles ensures all exposed surfaces — including recesses and edges — are uniformly treated.
Rotary Table Shot Blasting Machine Specifications
|
| Model | Q3512
|
1 | Turntable | Diameter | 1200mm |
Height | 585mm |
Rev | 3.7r/min |
Max. Loading | 400kg |
Motor Power | 1.5kw |
2 | Workparts | Max. Size Allowed | 600*250*250mm |
3 | Blast Wheel | Q034ZZ | 7.5kw |
Qty | 1 |
Impeller Diameter | Ф420 |
Impeller Rev | 2460r/min |
Blasting Abrasive Flow | 120kg/min |
4 | First Time Abrasive | 400kg |
5 | Elevator | Lifting Capacity | 15t/h |
Power | 1.5kw |
6 | Separator | Separation Capacity | 15t/h |
Wind Speed | 4-5m/s |
7 | Ventilation | Blast Chamber | 1800m3/h |
Separator | 1000m3/h |
Fan Power | 3kw |
Vibration Power | 0.37kw |
8 | Total Power | 13.87kw |
9 | Overall Diameter | 1500*3450*3780mm |
