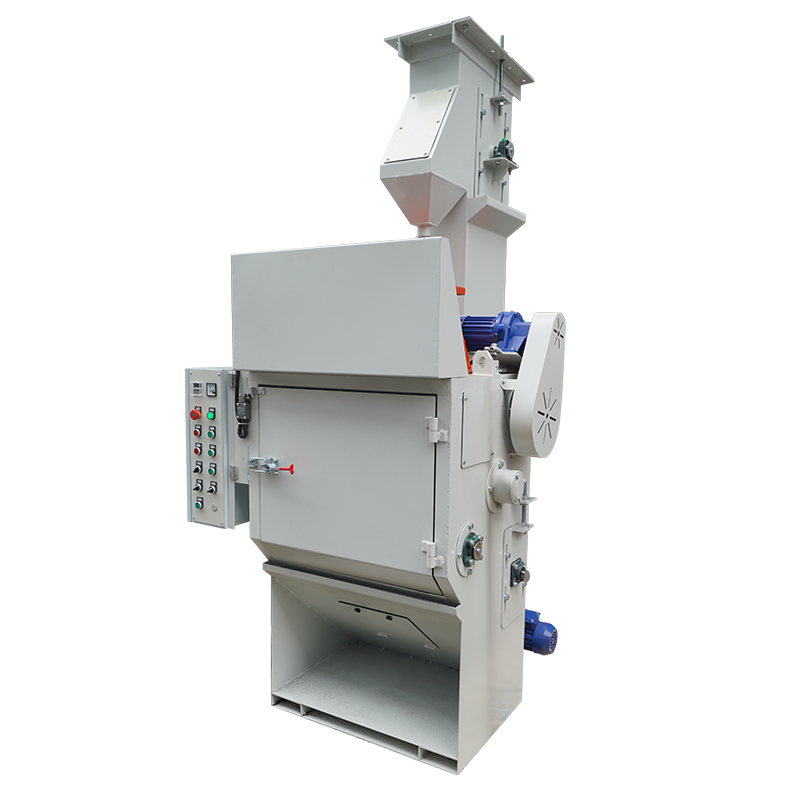

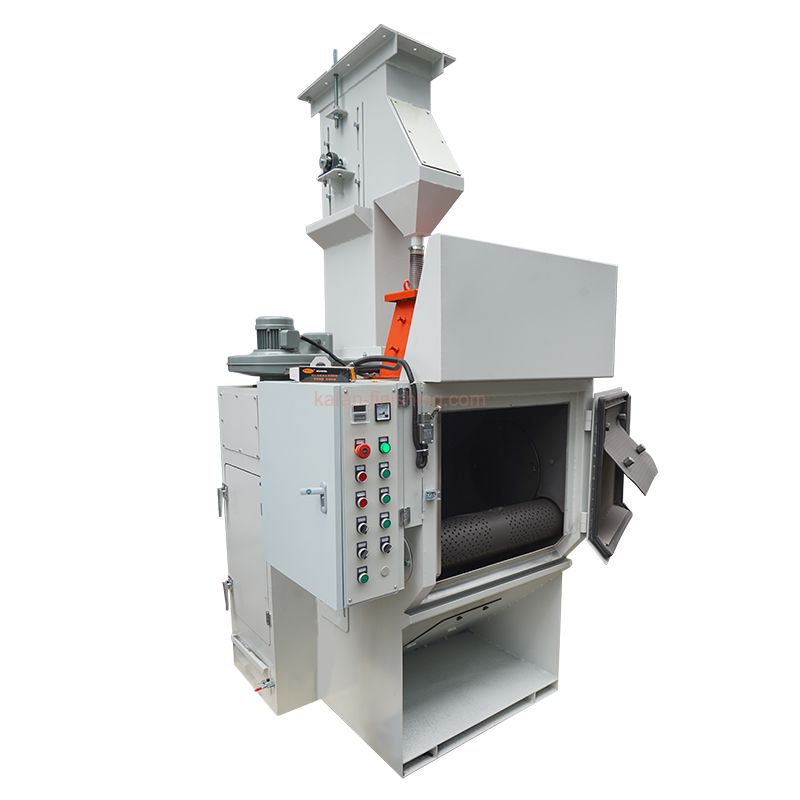

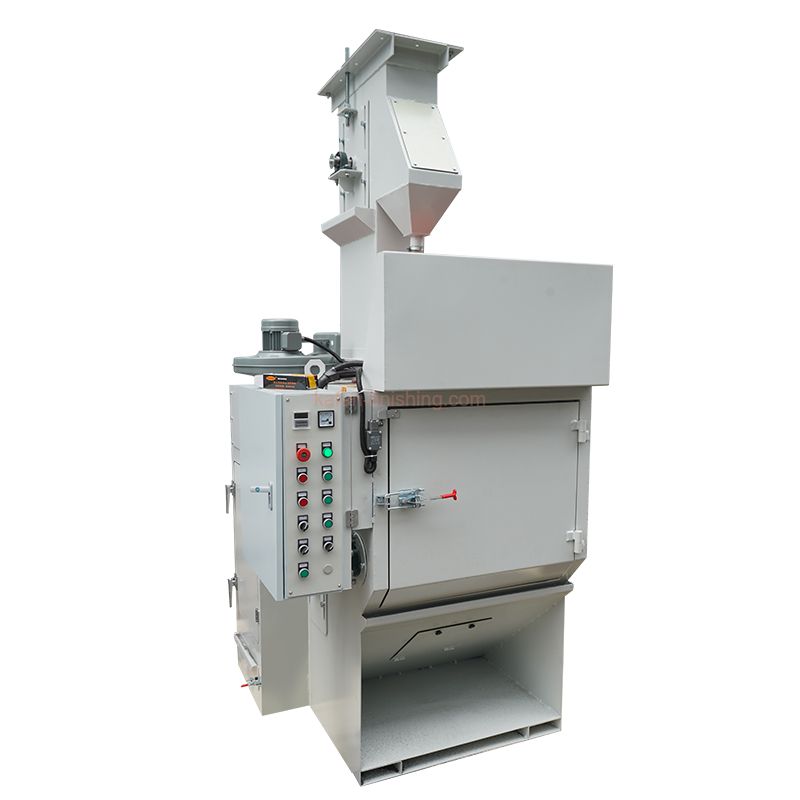

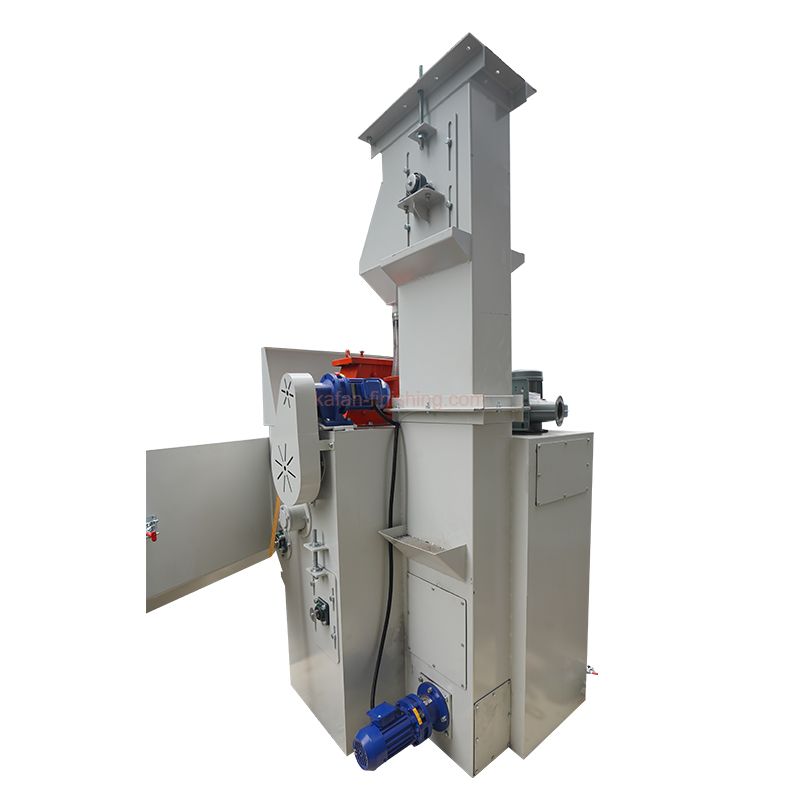

Tumble Blaster, Tumble Shot Blasting Machine
In the tumble shot blaster, the endless steel belt keeps parts gently tumbling as they are exposed to shot streams on all surfaces, steel shots are continuously thrown in high flow by a high speed rotating impeller.
Comparing with pneumatic tumble sandblaster, this shot blaster projectile throwing driven by a reliable electric motor which processes parts with extremely higher efficiency.

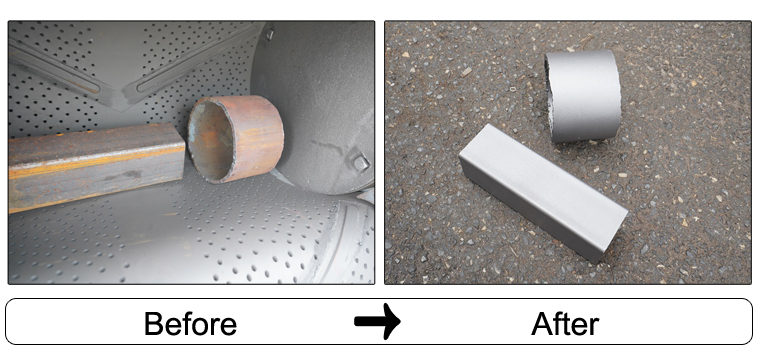

Tumble Shot Blasting Machine Application
Tumble shot blaster is powered by electromechanical not by compressed air, it works through a high-speed rotating impeller to throw out steel shots in high speed and high flow, thus creates more forceful impact to surface.

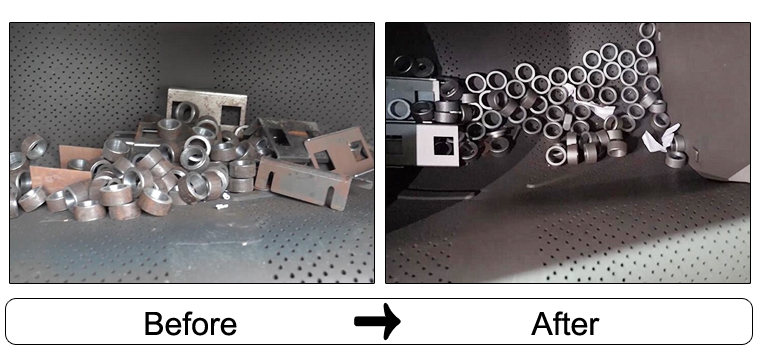

Shot blasting performs extraordinary effective for oxide removal, core removal, rounding and other cleaning purposes from such as forged, cast, pressed, heat treated components that can be finished to the highest standard.
The tumble belt blast machine allows processing small parts in batches or big sized objects in cylindrical shape.
Tumble Shot Blasting Machine Features

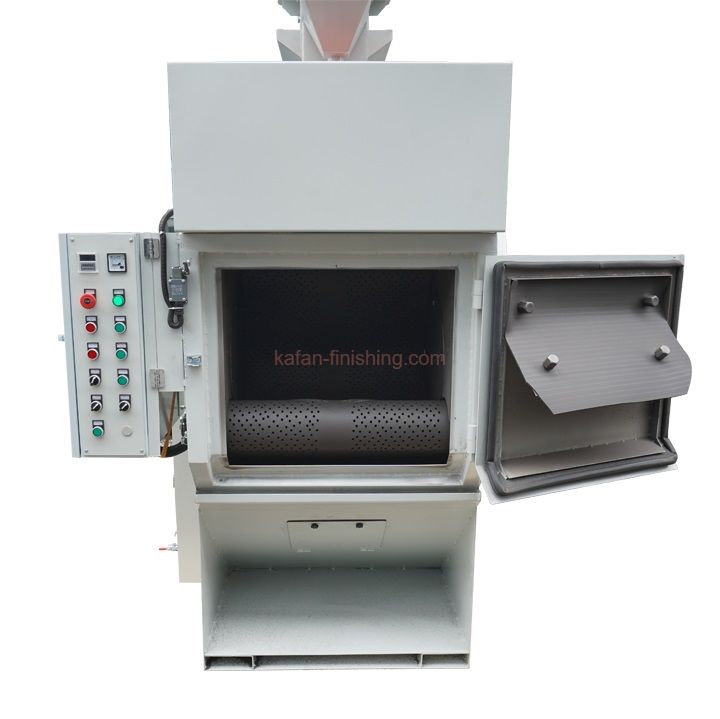

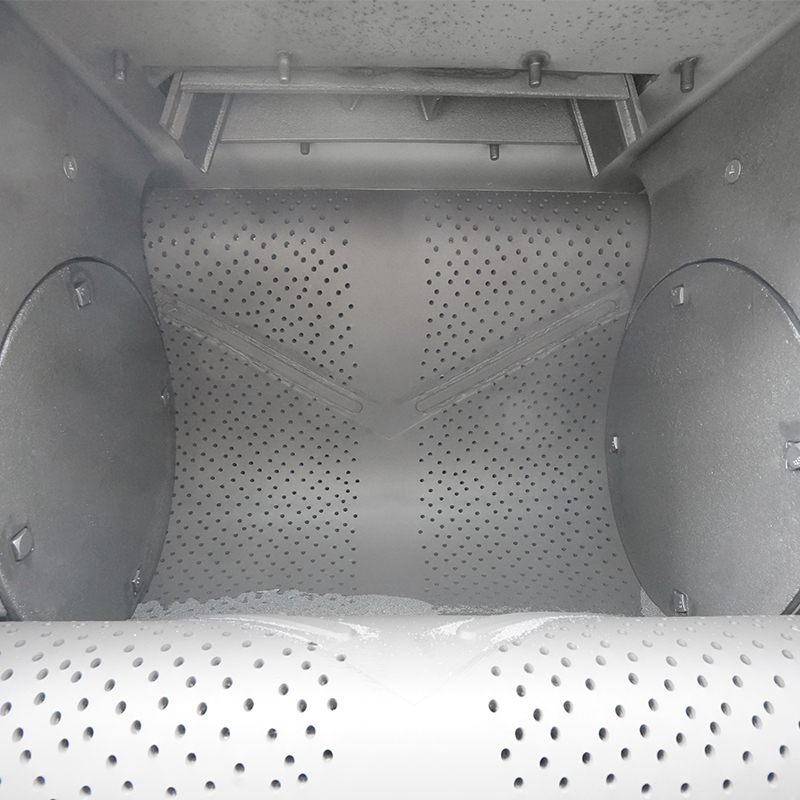

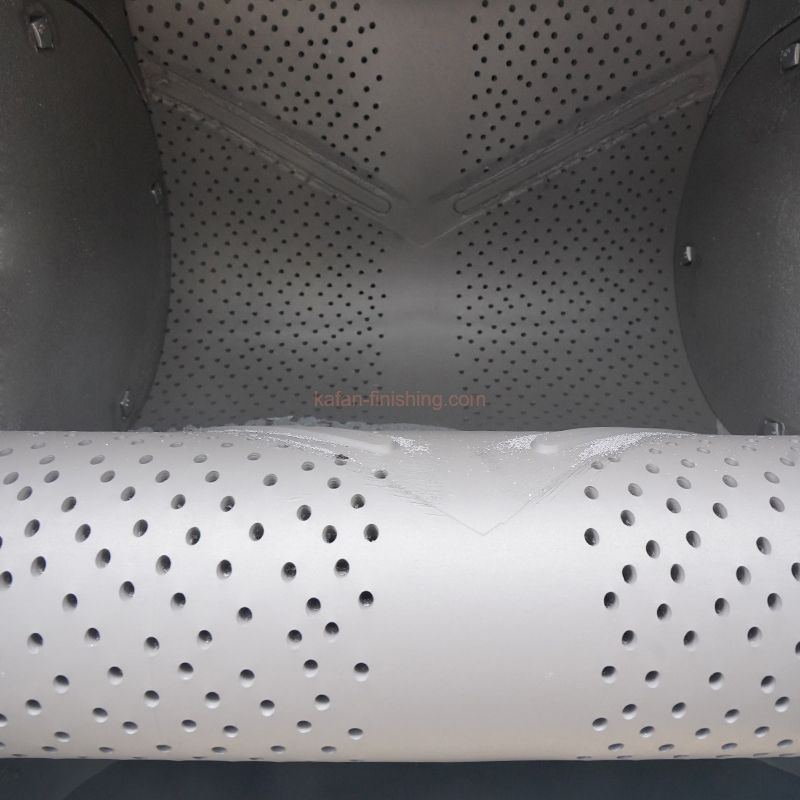

Perforated steel tumbling belt
The shot blasting chamber is steel and plate riveted welding structure and laid with alloy guard plates, all peform wear-resistant, impact-resistant and long lifespan.
The thick, perforated, durable belt ensures reliable tumbling of high volume workparts.

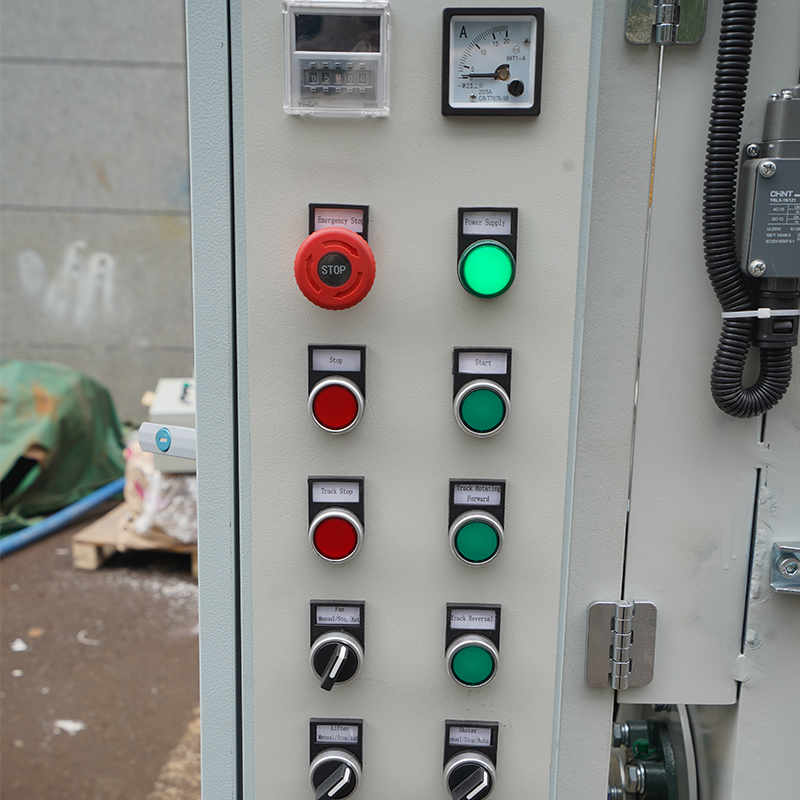

Electric control cabinet An electric controller for easily monitor the blast process, and equipped with safety protection devices to ensure safe and effective work.

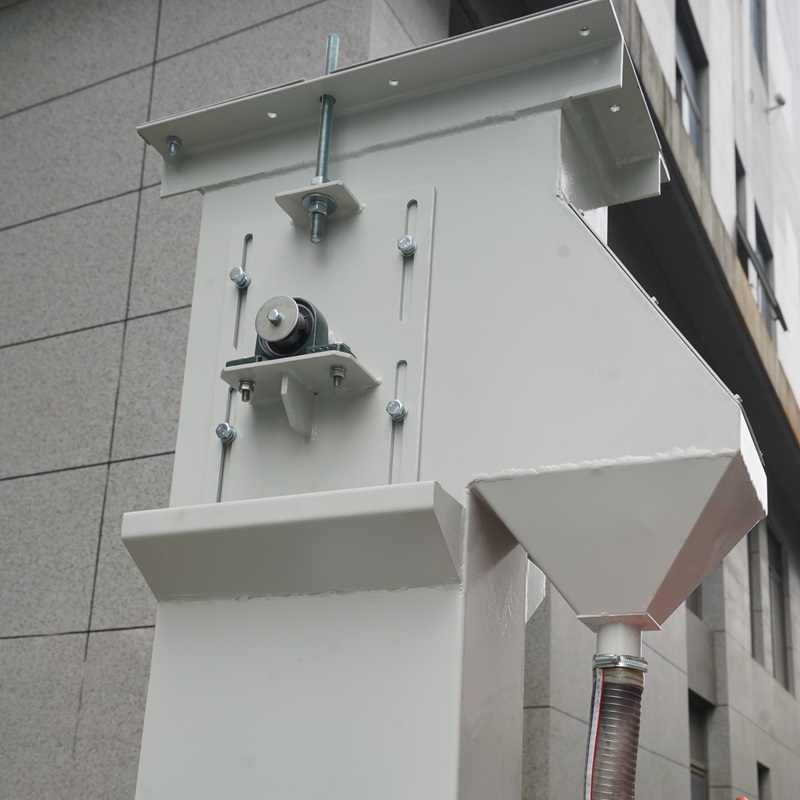

Media lifting elevator Designed with media lifting elevator, the heavy blasting media such as steel shots after using can be lifted and delivered back to the system by the elevator.
Filter Dust Collector Configured a pulse filter cartridge for dust removal system, features high removal efficiency and requires easy installation and maintenance;
Tumble Shot Blasting Machine Specifications
| Model | KF-S4065 |
Cabinet worksize: | Diameter 400mm * Length 650mm |
| Overall diamension | 1300*1600*2500mm |
Impeller type:
| Double-disc
|
Impeller head power: | 4.0KW |
Belt drive motor: | 0.75KW |
Dust removal system fan motor: | 1.5KW |
Shot lifting system: | 0.75KW |
| Abrasive Flow Rate | 60kg/min |
| The diameter of holes in the tumble belt | 3mm |
