Tumble Basket Blast Cabinet, Automatic Sandblasting Cabinet

Tumble Basket Blaster, Automatic Tumble Blaster

Tumble Basket Blast Cabinet, Automatic Sandblasting Cabinet

- Saves manpower to automatically blast large volume of small parts,
- Tumbling action ensures all parts and surfaces are blasted, even hard-to-reach corners and holes.
- Suitable for small light accessories like screws, zipper head, electric components, plastic pieces
- Batch production delivers uniformity and consistency.
- Budget-saving, space-saving, environmental-friendly

Model:
KF-1080ZL
Brand:
Kafan

Availability:



Inquire Add to Basket

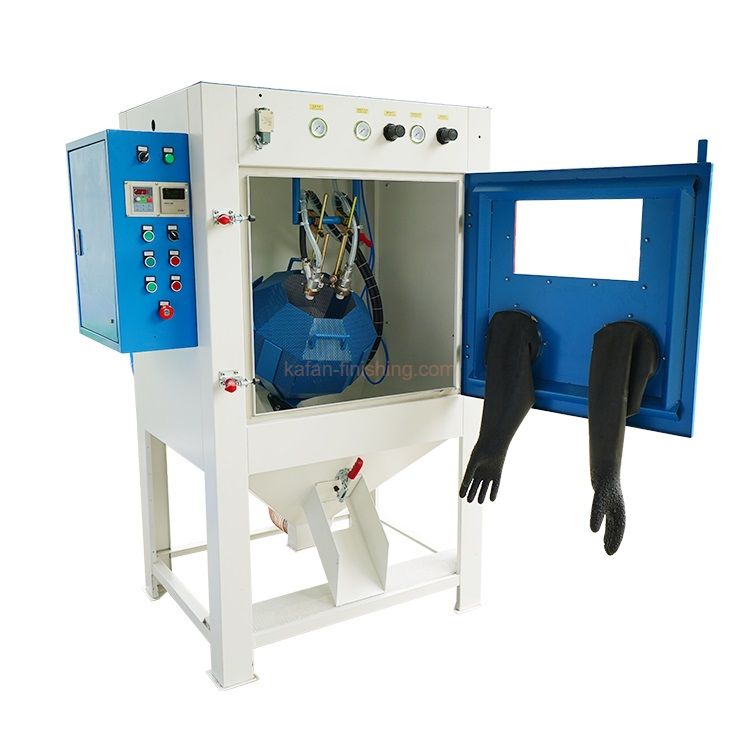

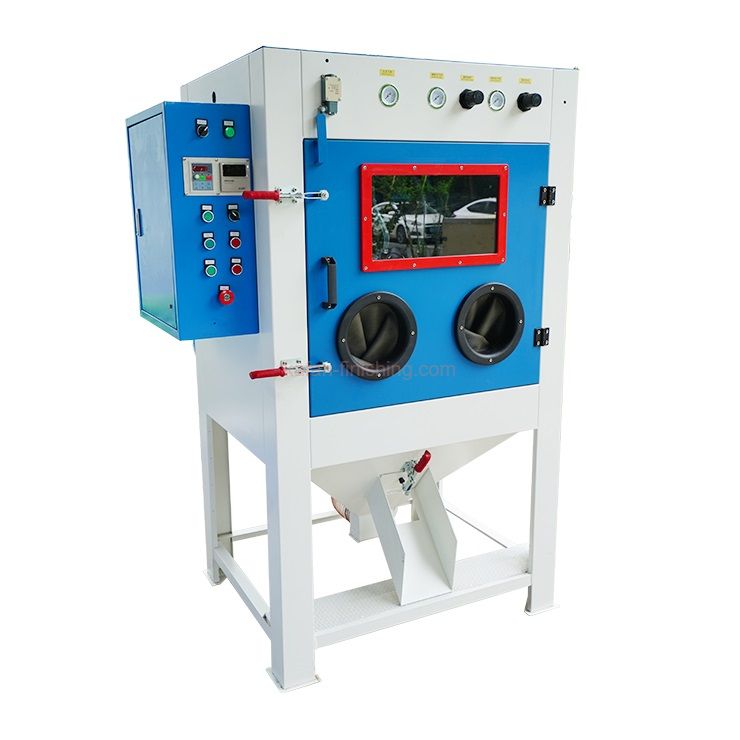

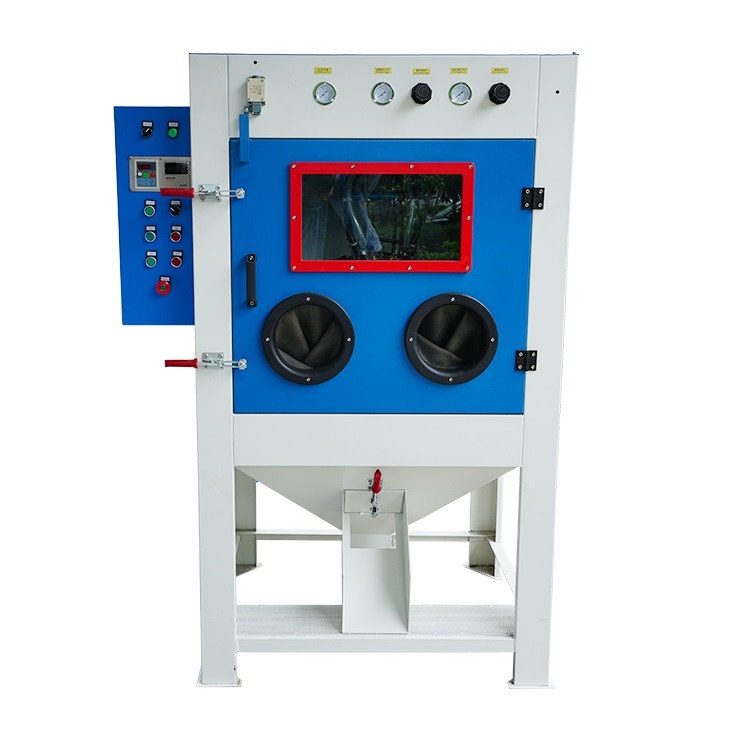

Automatic Tumble Basket Blast Cabinet

The tumble basket blast cabinet offers batch production by automatic tumbling & blasting, greatly saving manual labor and increase output. Installed with a sandblasting basket which holds large volume of small sized accessories.

The enclosed blast cabinet with cyclone and filter dust collector provides an environmental-friendly working space, the embedded glass window facilitates operators observe the blasting process at any time.

Before order, quantity of auto blast guns, diameter of the basket can be customized according to different products and requirements.

How the tumble basket blast cabinet works?

The simple blasting system provides easy operation. Users just load workparts into the tumbling basket, close the door, set the blasting time, turn on the dust collector and start the machine, all parts will be automatically finished, entirely and evenly.

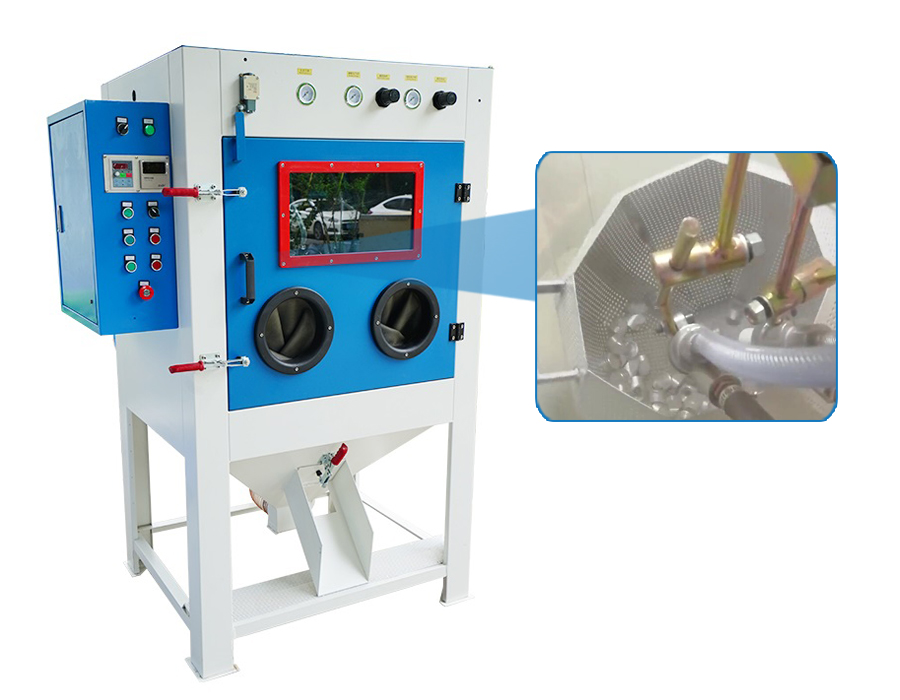

The swing mechanism of auto-blasting gun and 360 degree rotating basket increases the coverage of abrasives to achieves optimal blasting effect. This tumble blast machine obviously improves production on quantity, quality.

Automatic Tumble Basket Blast Cabinet Configurations

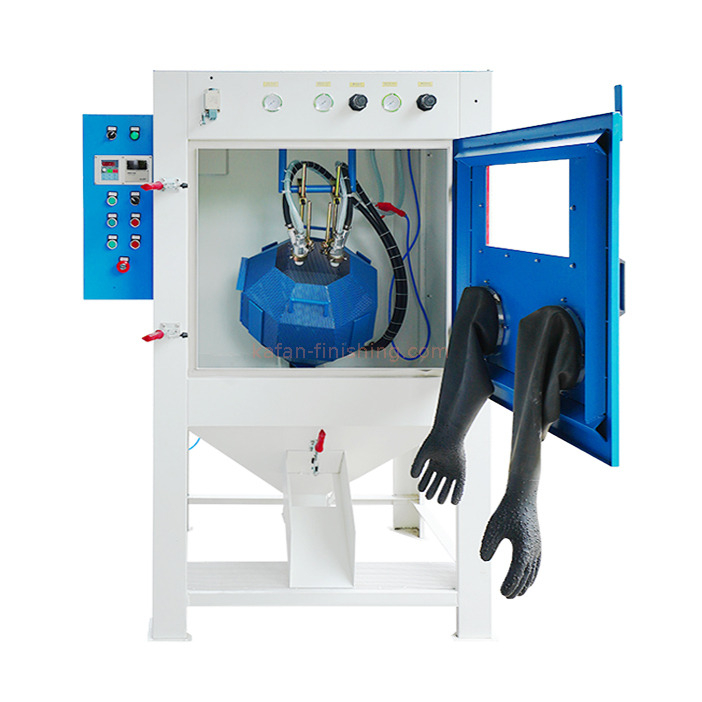

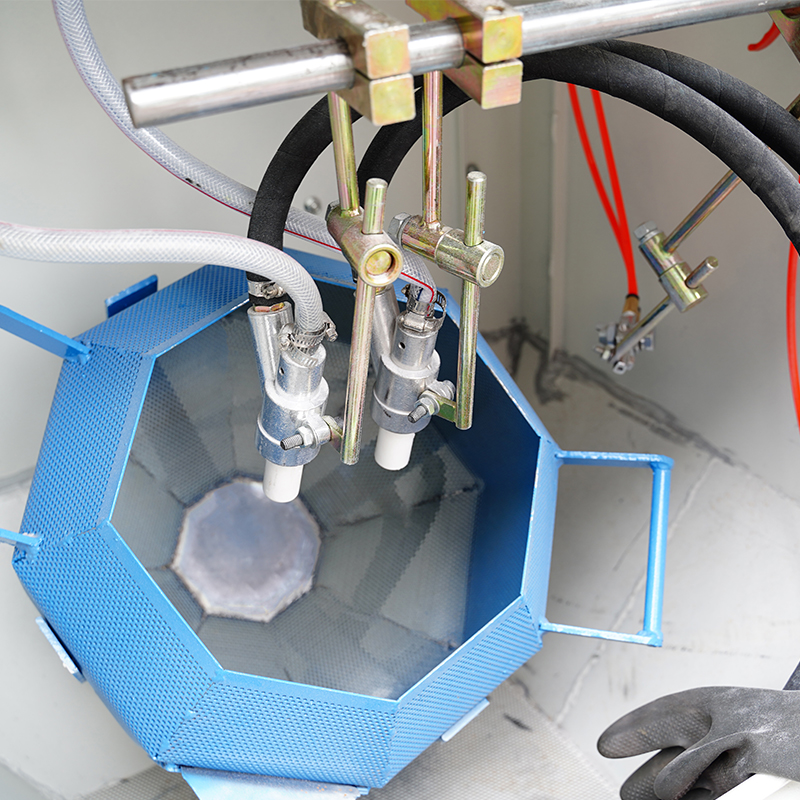

Tumle Blasting Work Cabin

Aautomatic tumbling basket for entire workpiece sandblasting, the tumbling speed of the basket with frequency control can meet different processing needs.

Each blast gun is individually controlled thus to select single gun or multi-gun working according to the quanlity of parts.

The blast gun can be set automatic or manual blasting for multi purposes

The diameter of the basket, the quantity of blasting guns can be customized according to user requirements.

Pneumatic & Electric Control

It is an easy system to control the working of each blast guns by buttoms at the side cabinet, as well as start/stop dust collector, and achieve one-buttom switch manual operation to automatic.

The tumble blasting time can be set based on quantities, size of products, also depends on the customer-requested effect.

The air pressure of each blast gun is regulated by pressure valves at the front of the machine.

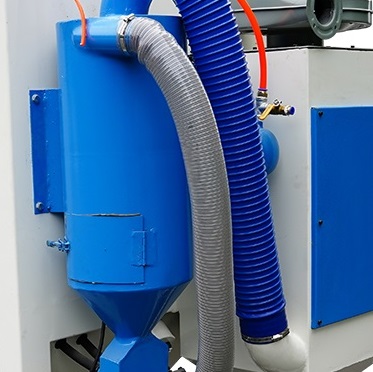

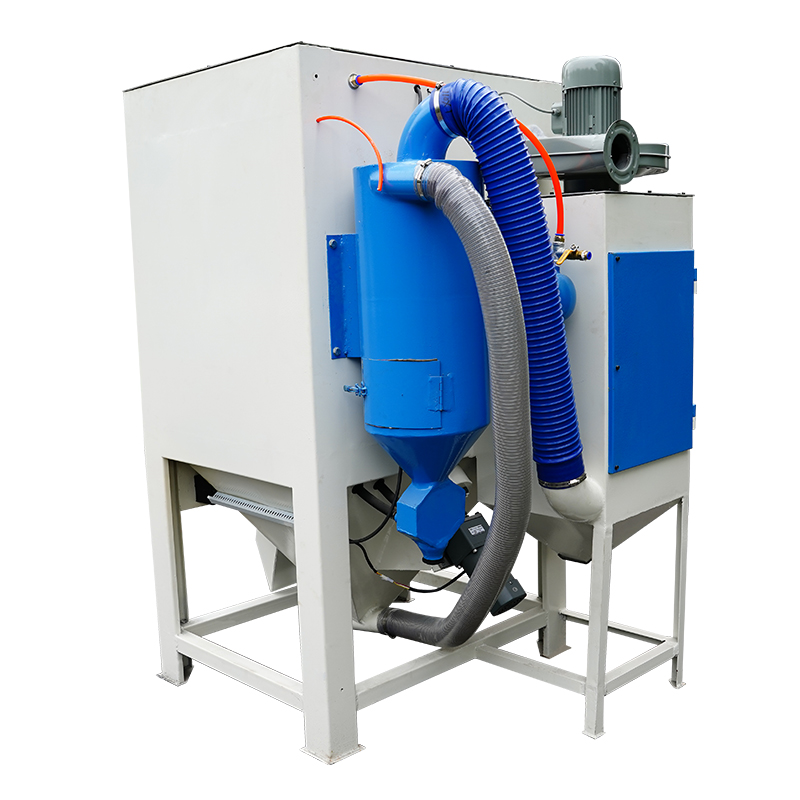

Media Recycling and Dust Collecting

Each of our sandblasting cabinet is designed with a dust removing system, including a piece of cartridge filter and a set of fan motor. which effectively removes dust from the cabin, keeps a clear working space, ensures the air discharged to the atmosphere is dustfree.

It can be optionally equipped with a cyclone device, which is used to separate ultrafine abrasives from dust, increasing the recycling rate of pure abrasives.

Tumble Basket Sand Blast Cabinet Specifications

Model	KF-1080ZL
Ouer Dimensions:	1200mm * 1250mm * 1800mm (L * W * H)
working cabinet size:	1000mm * 800mm * 780mm (L * W * H)
Tumble Bascket Diameter:	500mm (diameter) can be equipped with the size of the workpiece
Blasting gun specifications:	(20 * 8 * 60mm) 2pcs wear-resistant sandblasting gun
Basket Rotating Speed:	8 rev / min (can be installed frequency control)
Basket Rotating Motor:	380V / 50HZ / 400W
Dust Collector System:	Pulse Jet Cartridge Filter
Dust Removal Motor:	380V / 50HZ / 550W
Gas requirements:	pressure 2-7bar (kg / cm2)
Compression flow:	1.5-2.0m3 / min
Body Plate thickness:	2- 5mm
Openning Door:	1pcs
Sandblast gloves:	1 pair
Single Loading:	1-20KG
Machine lights:	220V 13W LED explosion-proof energy-saving lamps
Total Equipment weight:	300KG
Total Equipment Diamension:	3m3
Total Equipment power:	380V / 50HZ / 1100W

Tumble Basket Blast Cabinet Excellent Advantages:

The tumble sandblaster is ideal for processing small accessories like screws, zipper head, electric components, plastic pieces, do the cleaning jobs with consistent quality results. Not only creates less fear of collision for sensitive parts, the blast machine also ensures all parts and surfaces are blasted by the tumbling action, even hard-to-reach corners and holes.

tumble blaster application
