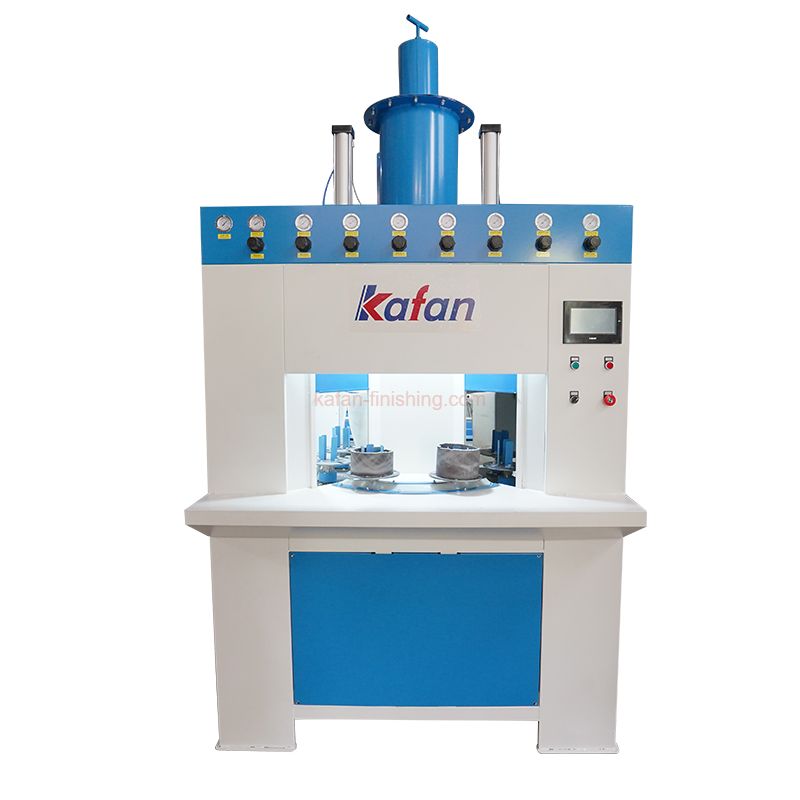

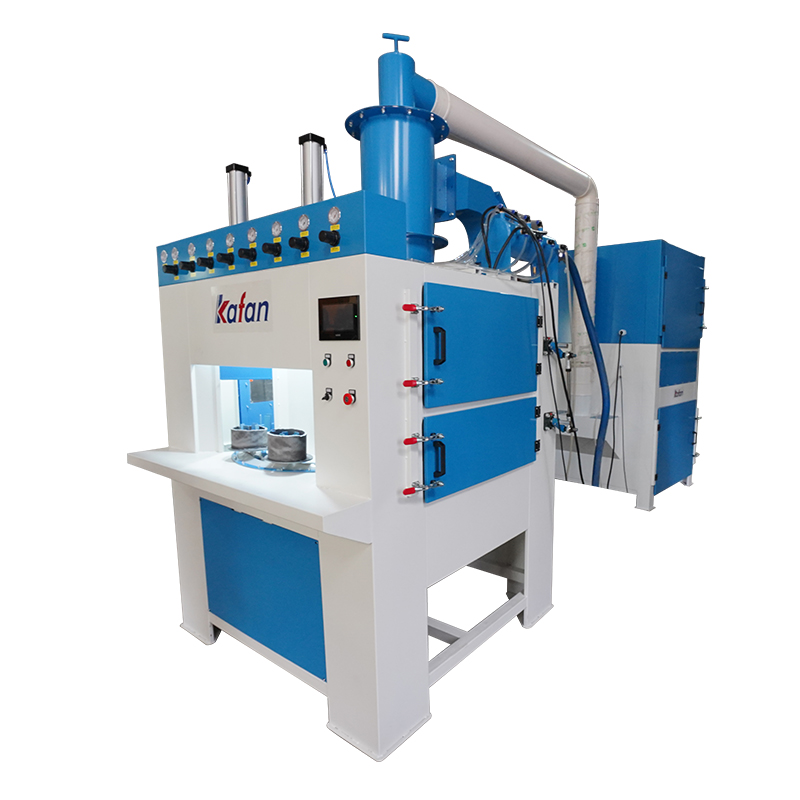

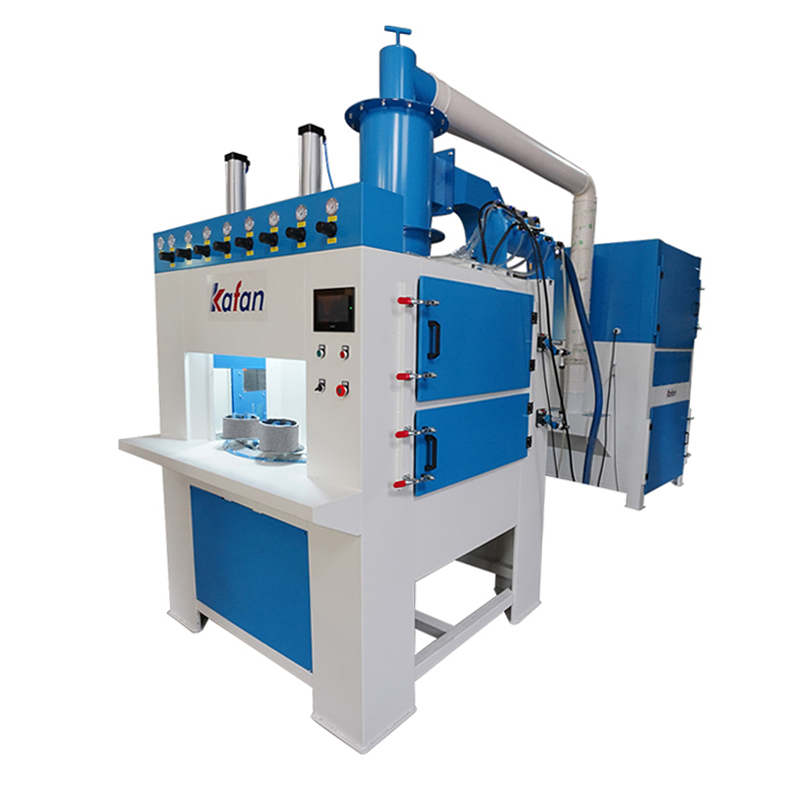

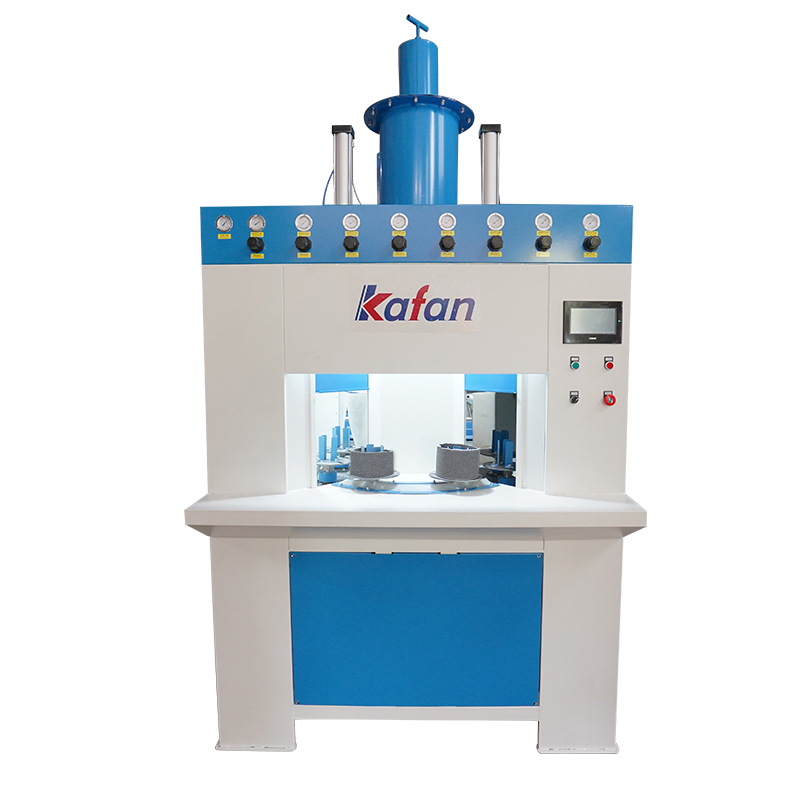

Rotary Indexing Table Automated Sandblasting Machine for Batch Production
The rotary indexing automated sandblasting machine is configured with multi-independently rotating work stations on an indexing table, both rotating in 360 degree simultaneously.
The fitted workparts get uniform abrasive flow by a group of automatic oscillating guns inside the blasting cabin. The automatic blasting system achieves batch productions with consistent processing quality.
Machine size, working station quantities, blast guns, all can be customized.
How Rotary Indexing Automatic Sandblasting Machine Works?

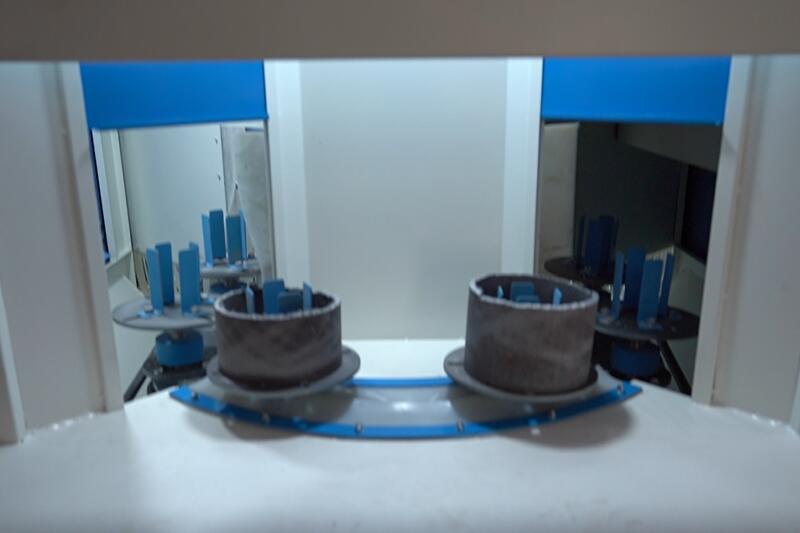

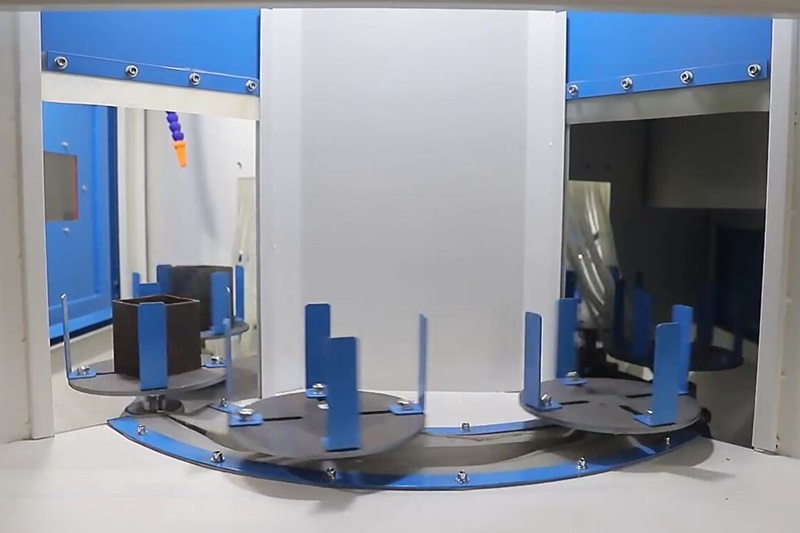

There are several small turntable evenly spaced on the indexing table, each small turntable is a working platform which will be clipped with one piece of workparts. Multiple platfrom ensures high productivity and efficiency.
After operators clip the parts in the small turntables, the large table intermittently drives them presenting workparts in front of blast gun for automatic processing, and automatic guns make fixed blasting or oscillating blasting to make a high quality finish.
Rotary Indexing Automatic Sandblasting Machine Features:

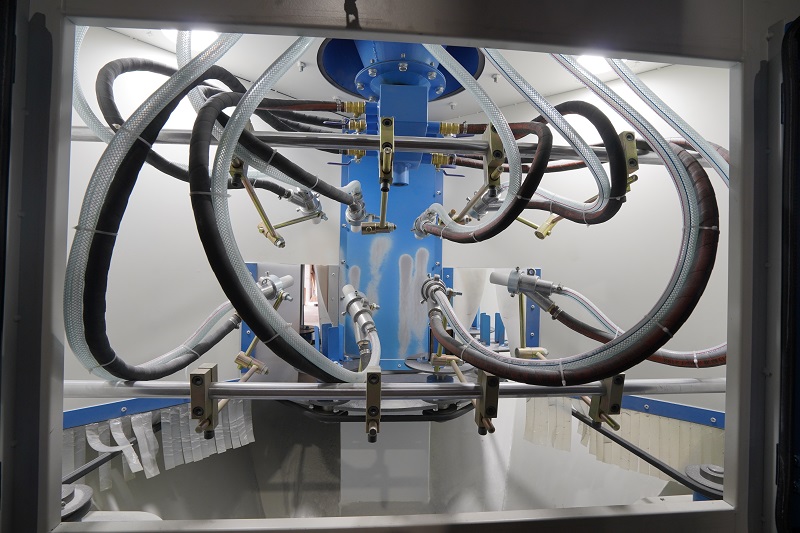

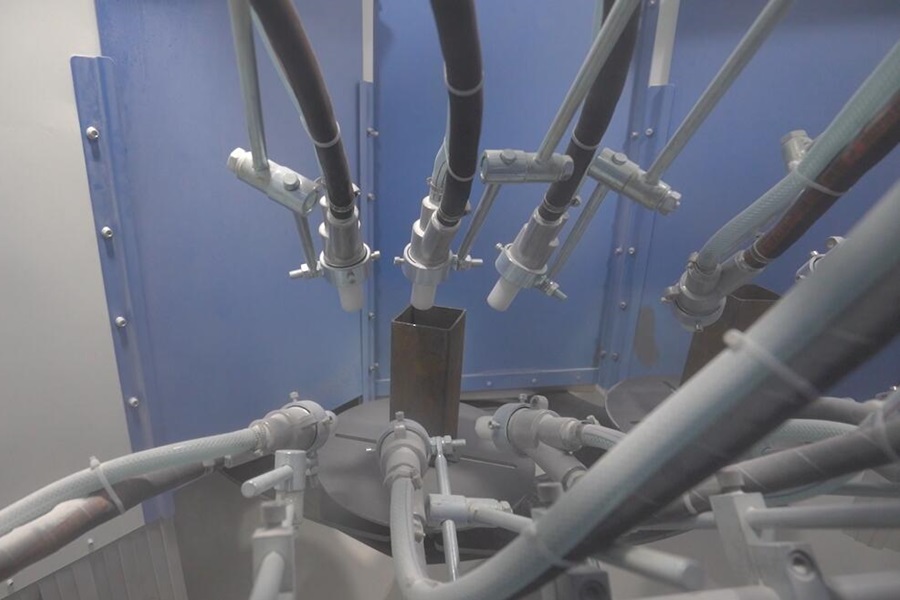

Automatic Blast Guns
Workparts are rotated to the blasting area where they are processed by automatic guns.
Each blast gun is individually controlled for working by demands. Depending on the parts shapes and dimensions, the blast guns can be set for fixed blasting or oscillating blasting with adjustable angles.

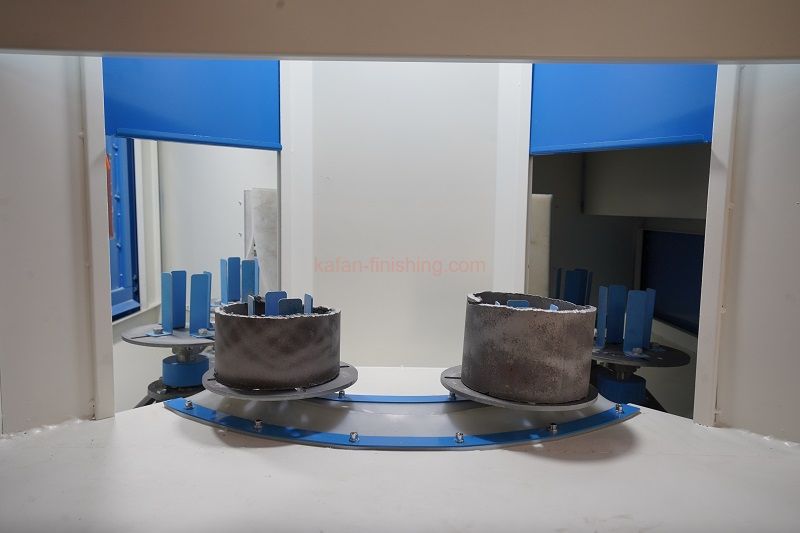

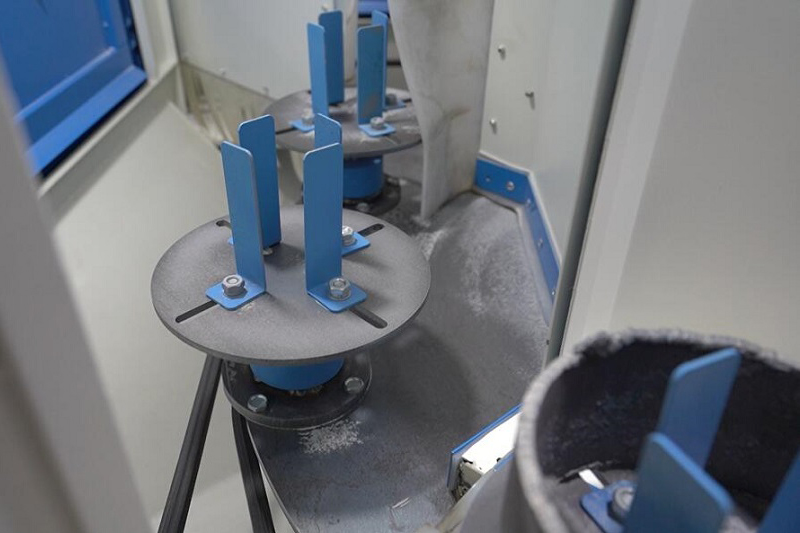

Multiple Working Platforms - Small Turntables
Small working turntables are evenly spaced presenting workparts in front of blast gun for automatic processing. They are driven through independent motors, stepless speed regulation by converter.

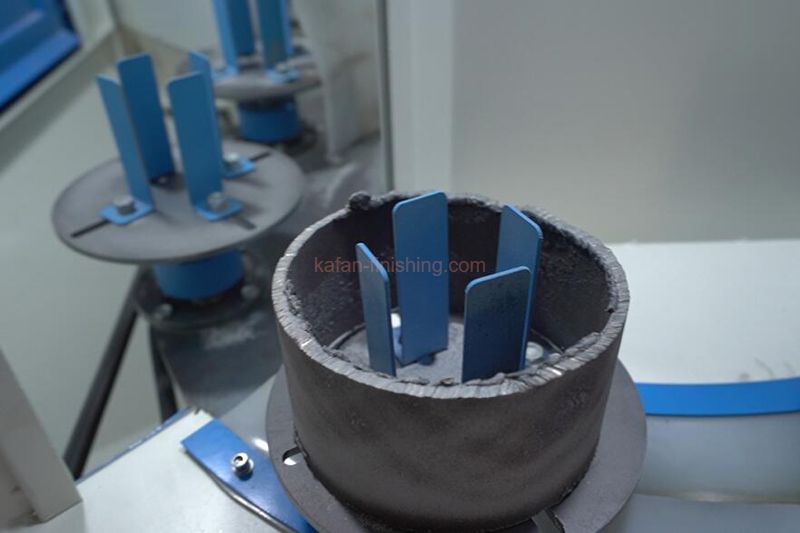

Specially fixtures on the turntable can be customized for quick and solid clipping to improve efficiency.

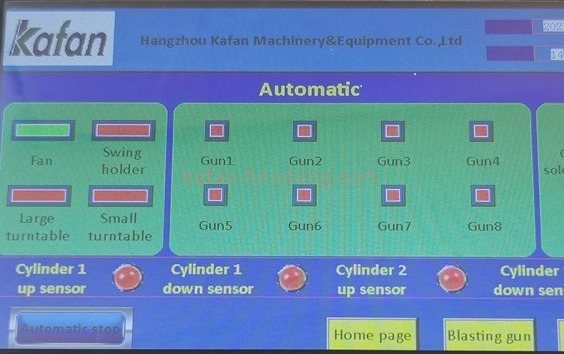

PLC Control with Touching Screen
High automation and accuracy task controlled by PLC system, guarantee the balanced uniform blasting effect, as well as safe production.
The touching screen offers user-friendly interface to manage the blast working, such as adjust the rotating speed, set blast time, control each blast gun and set the dust collector.
Dust Removing & Media Recycling
Designed with cyclone separator for effectively separation of abrasives from dusts. Along with an independent cartridge filter dust removal system with excellent effect of dust extraction and ventilation.
Blast-removed dust particles are exhausted to the dust collector while blast media is collected at the bottom of the cabinet, then returned to the storage hopper for further use.
Rotatry Indexing Automatic Sandblasting Machine Technical Parameters:
| Model: | KF-1618-12A |
| Overall Dimension | 1600x1800x2300mm |
| Dust Collector Size | 1200x1200x1700mm |
| Index Turntable Size | Dia 1000mm |
| Drive Motor Power | 1.1kw |
| Qty of Small Turntables | 8pcs |
| Drive Motor Power | 0.75kw |
| Max. Size of Parts Allowed | Dia 350mm x Height 400mm |
| Qty of Blast Guns | 12 pcs |
| Blast Gun Nozzle | Durable Boron Carbide |
| Power Supply | 380V/220V As required |
| Separator Power | 5.5kw |
| Compressed Air Source | 8-12 bar |

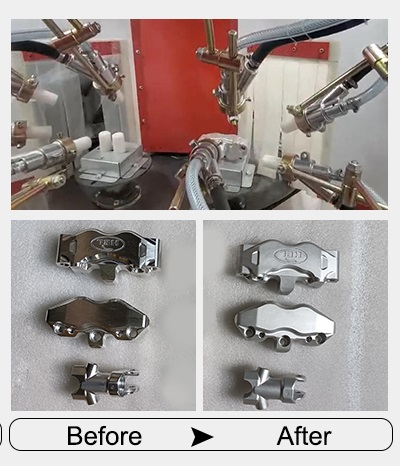

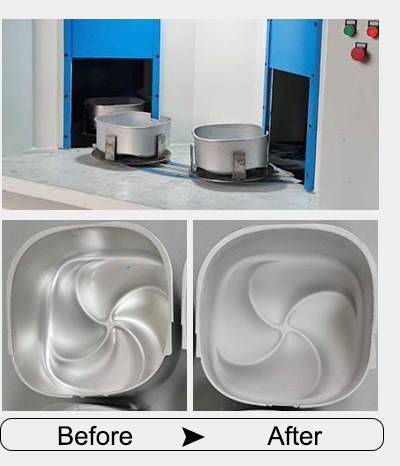

Rotatory Indexing Automatic Sandblasting Machine Application
The automatic sandblasting machine is ideal for batch processing of irregular shaped parts, especially for cylindrical objects, such as non-stick pan, rice cooker, glass & metal lampshade,baking pan, stainless steel wash basin, wine bottle, glass cup, motorcycle or auto parts, etc. The sandblasting machine effectively remove rust, or roughs surfaces in great uniformity.
