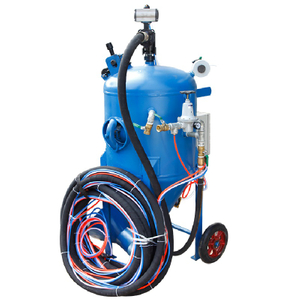

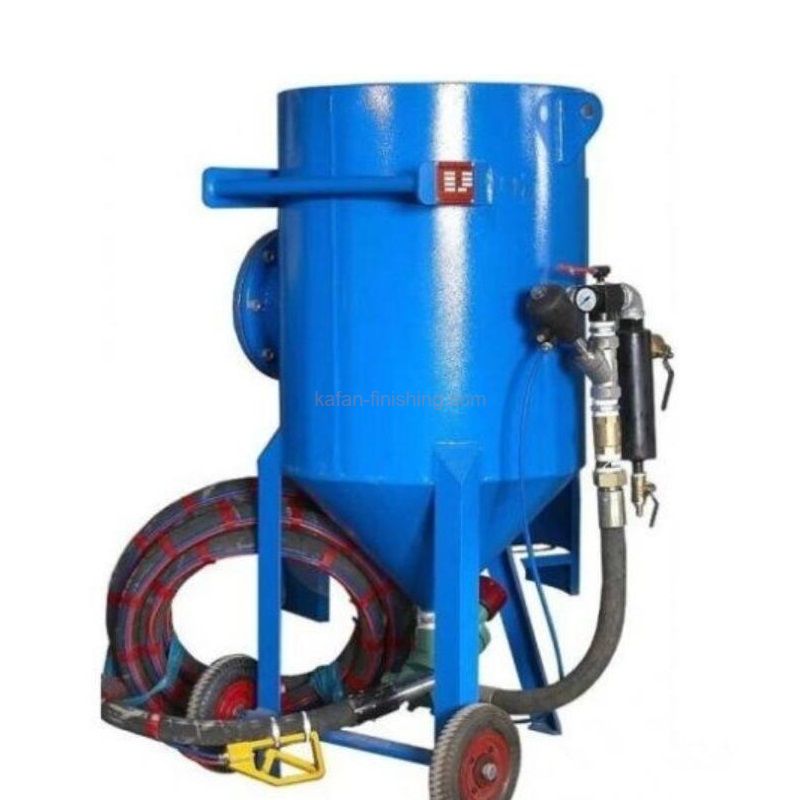

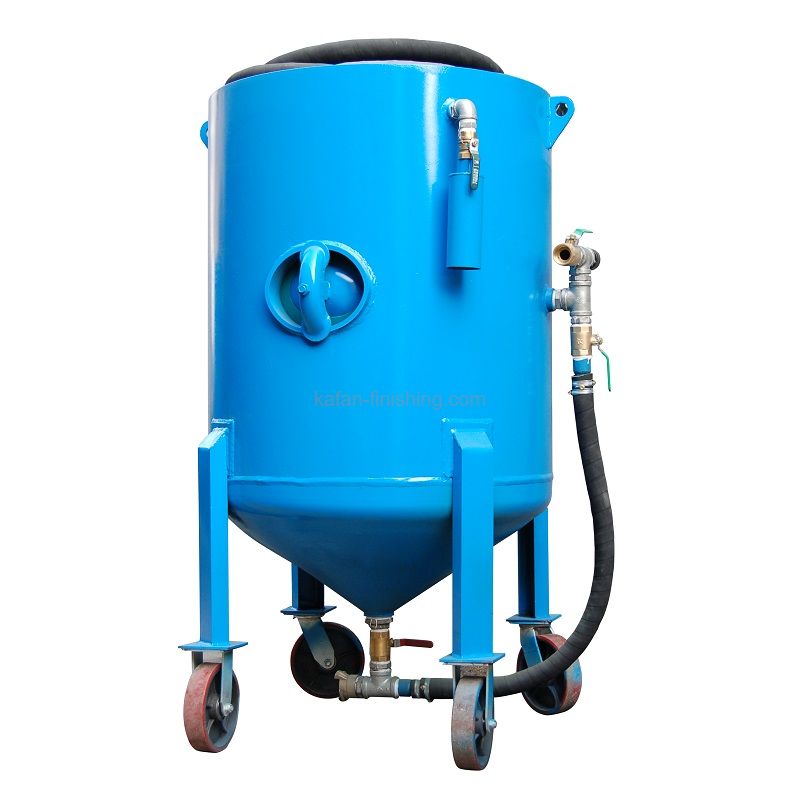

300 Litre Portable Pressure Sand Blasting Machine
The portable sandblasting machine with wheels supports outside large jobs while does not need any movement of the workparts, the blasting pot could contain big volume of abrasives that meets the demands to blast continuously, the designed of pressurized system is to effectively do any hard surface treatment.
Portable Sand Blasting Machine Features
Advanced imported abrasive controlling valve, air pressure valve and pneumatic switch compose the reliable blasting system
The abrasive flow could be easily controlled by regulators, not only saving the abrasive but also reaching high sandblasting effect
Portable blasting machine is delivered with a durable blasting gun and a 8mm large boron carbide nozzle, along with 5m high wear-resistant blasting hose.
Can choose manual control or pneumatic control of blast work, also can choose single gun or double guns blasting.
The sandblasting pot body is made of 8 mm cold-rolled welded steel with powder coated surface, meet the outside environment.
Highly efficient oil moisture filter to prevent the entry of moisture and oil from the compressor air into the blasting pot
CE certificated sandblasting machine, simple structure, easy maintenance, safe and reliable operation.
Portable Sand Blasting Machine Applications
Pressure sand blasting pot is perfect for finishing oversized products or on-site projects like steel structure, pipelines, oild tanks, fitness amusement equipment, boats, bridges, machinery, water conservancy projects, port construction, etc. Application jobs such as rust-removing, old material refurbishment, cleaning contaminates.
Specifications of CL-108P 300litre Portable Sandblasting Machine
| Model | CL-108P |
| Volume | 300L |
| Abrasive Loading Qty(Steel Grit) | 1125kgs |
| Abrasive Loading Qty(Emery) | 384kgs |
| Pot Diameter | 600mm |
| Pot Height | 1350mm |
| Wall Thickness | 8mm |
| Working Time | 25minutes |
| Color | Blue standard, can be customized according to request. |
| Control | Pneumatic control/Manual control |
| Rust removing efficiency | 15-35m2 / h |
| Air consumption: | single gun ≥ 3.0 m3 / min |
| Air supply pressure: | 0.6-0.7Mpa |
Standard Models of Blasting Pot for Choice
Model | Volume (L) | Abrasive Loading Qty(kgs) | Pot SIze (mm) | Working time(minutes) |
Steel Grit | Emery | Diameter | Height | Wall Thickness |
CL-105P-M CL-105P-PC | 150L | 563 | 192 | 400 | 1200 | 4.00 | 12 |
CL-106P-M CL-106P-PC | 200L | 750 | 256 | 500 | 1200 | 5.00 | 18 |
CL-108P-M CL-108P-PC | 300L | 1125 | 384 | 600 | 1350 | 6.00 | 25 |
CL-109P-PC CL-109P-PC-2 | 600L | 2250 | 768 | 800 | 1550 | 8.00 | 45 |
CL-110P-PC CL--110P-PC-2 | 1000L | 3750 | 1280 | 1000 | 1860 | 8.00 | 60 |
CL-120P-PC CL--120P-PC-2 | 1200L | 4500 | 1536 | 1200 | 1880 | 8.00 | 70 |
CL-130P-PC CL--130P-PC-2 | 1600L | 6000 | 2048 | 1200 | 2030 | 8.00 | 98 |
CL-150P-PC CL--150P-PC-2 | 2000L | 7500 | 2560 | 1500 | 2200 | 10.00 | 120 |
CL-180P-PC CL--180P-PC-2 | 2500L | 9375 | 3200 | 2000 | 2300 | 12.00 | 160 |
CL-220P-PC CL--220P-PC-2 | 3000L | 11250 | 3840 | 2000 | 3000 | 12.00 | 200 |
Note: CL-105P-M, means manual control, CL-105P-PC means pneumatic control. CL-109P-PC-2 means 2 pcs of blasting gun working.
The complete sandblasting system includes
the blast pot, blast hose, nozzle(hole size 8mm & 10mm & 12mm can be choosen according to the request), couplings, nozzle holder, moisture separator, remote control, helmet kacket suits, and others but excludes compressed air and abrasives
Applicable blasting abrasives:
Suitable for 10-80 # (2.0--0.1mm) steel grit, steel balls, corundum, emery and other low consumption material, can also use quartz sand, copper ore, sand and other abrasives.
Why Choose Kafan Sand Blasting Machine?
All sandblasting machines are made in house by rich experienced production team of Kafan, we can directly control the cost and quality. To pursue best performance, each sandblasting machine body is steel plate welded with coated surface, durable, wear-resistant and long lifespan, and the main components are imported, by all of which we ensure 1 year warranty period for any quality problem.

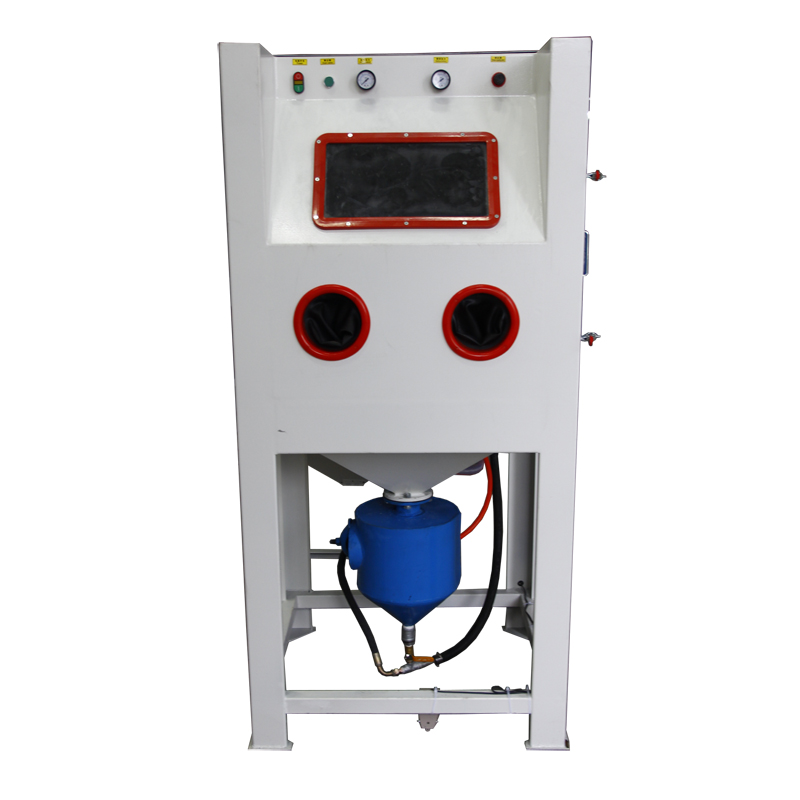

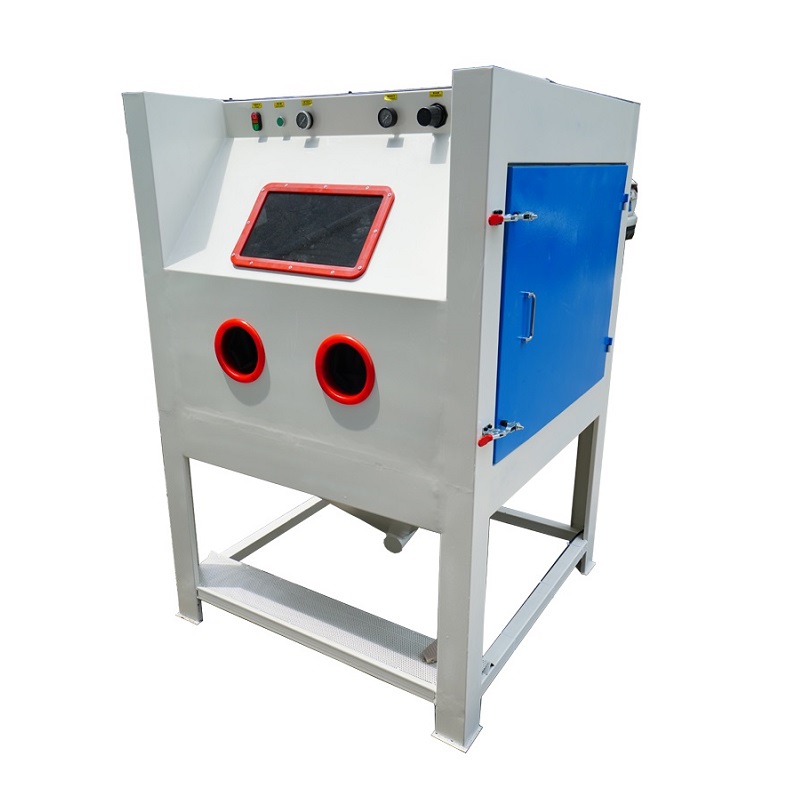

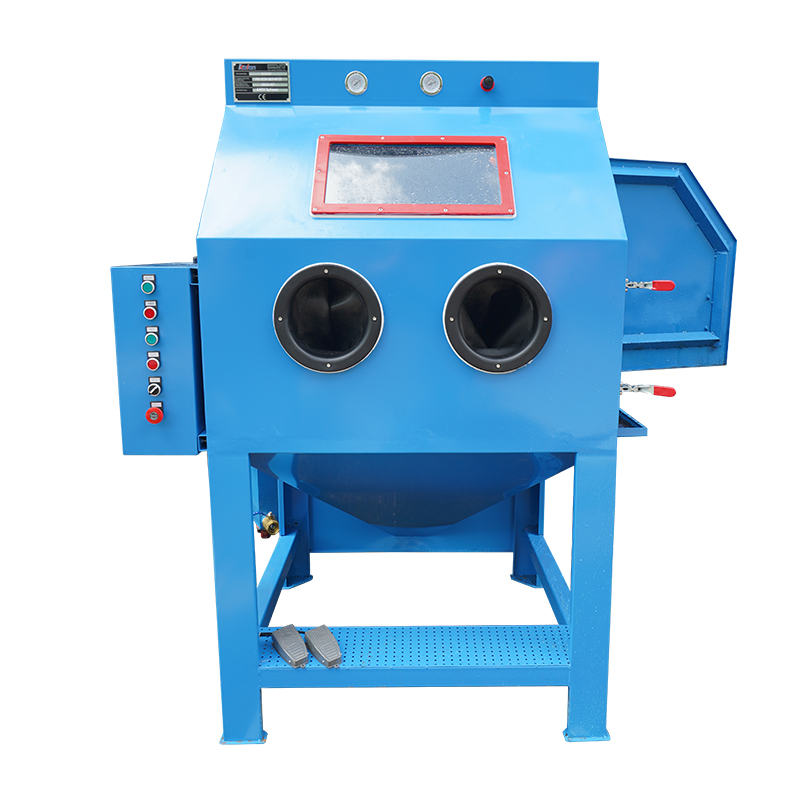

For different application, we supply sandblasting machine with a variety of styles and specifications, such as suction blast cabinet for gentle cleaning, wet sandblasting machine for dust control, pressure sandblasting machine for hard finish jobs.
