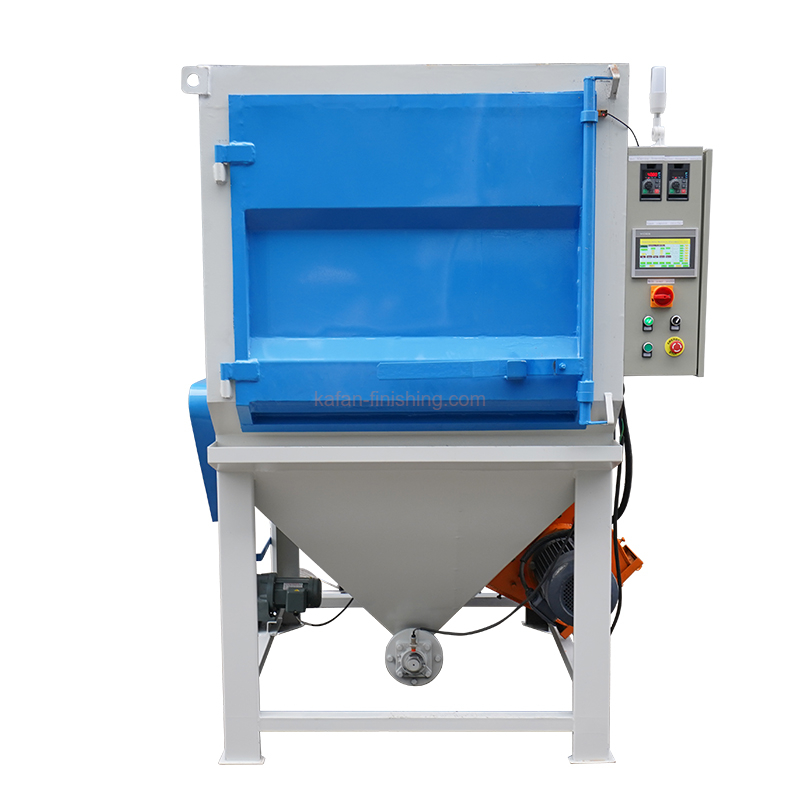

Alloy Wheel Shot Blasting Machine

- Special design for wheel or rim shot blasting.
- Blasting one piece rim each time.
- Full cover one wheel, don't need to turn over the wheel
- Airless shot blasting to save power
- Compact design for saving space


Alloy Wheel Shot Blasting Machine

The shot blasting machine is an automated labour saving system which significantly simplifies the blasting process for wheel cleaning and finishing. Shot blasting machine gives an alloy wheel rim surface a roughness for good adhesion that will get perfect powder coat application.

wheel shot blasting machine
alloy wheel shot blasting machine

How does wheel shot blasting machine work?

Shot blasting machine is powered by electromechanical not by compressed air, it works through a high-speed rotating impeller to throw out steel shots in high speed and high flow, thus creates more forceful impact to surface. The turbines located at appropriate angles blasts steel shots and cleans part surfaces.

The alloy wheel is placed in the chamber where the process is fully automatic and can be controlled by a timer. Each finishing circle allows one piece alloy wheel blasted but only takes 1-3 minutes.

Alloy Wheel Shot Blasting Machine Components

wheel shot blasting

Shot Blasting Chamber

The specially designed shot blasting chamber for holding alloy wheel consists of protetive bracket,  and 2 rollers for continuous wheel rolling, ensures thorough cleaning and cleaning.

Roller Drive Power:400w

shot blasting Impeller

Impeller head: 1set

The head is designed for complete shot blasting of the wheel to be cleaned, and minimize the empty throw of the steel shot on the basis of covering all the wheels to be cleaned.

Impeller head drive power: 7.5KW (Frequency adjustable)

shot blasting machine elevator

Elevator: 1set

The elevator works through a belt. There is a hopper fixed on the conveyor belt scraping the wasted blasting shots at the bottom of the elevator, then feeds the shots to the top driven by the elevator motor. Finally under the centrifugal gravity the shots drops to the separator. There is an access door on the elevator cover for easy maintenance and replacing wearing parts.

Elevator Power: 1.5kw

shot blasting machine dust collector

Filter Dust Collector: 1 Set

It uses new advanced filter material. The dust can not penetrate into the interior of the filter material, it has the characteristics of low resistance and easy cleaning, and its filtration precision reaches 5μm. Dust removal efficiency is up to 99.5%.

Air flow:6800m3/h

Fan motor power:2.2KW

shot blasting machine PLC

PLC Electric Control: 1Set

Electric control system is convenient for debugging. The operator can start each functional component in sequence, or jog the individual functional components out of order to test the performance and operation status.

Alloy Wheel Shot Blasting Machine Specifications

Working Chamber Size L1300*W1300*H780mm
Footprint Size L1720*W3658*H2265mm
Suitable wheel size: Diameter700mm * Thickness500mm (Or smaller)
Control System PLC
Rotating Speed of Rollers:  Adjustable
Shot Blasting Speed
Dust Collector Type: Anti-flame filters
Power Supply:

Impeller head power:

Fan motor power: 2.2KW
Roller Drive Power 400W
Elevator system power: 1.5KW

Alloy Wheel Shot Blasting Machine Applications

The alloy wheel shot blasting machine is the initial choice for wheel rim surface finishing, especially for stripping old paints or removing corrosion, rust, scale, you'll fastly get a original alloy wheel but with a certain roughness, a necessary preparing for subsequent painting or powder coating process,

alloy wheel shot blasting machine applic

FAQ on wheel shot blasting machine

1.Does it shot blast 1 piece of wheel at a time?

Yeah, it processes one wheel each time and cover all the surface. The wheel doesn't need to be turned over.

If you would like to do more wheels each time. Bigger size wheel shot blasting machine can be made.

2. How long does it take to shot blast 1 wheel?

It takes about 1-3 minutes to finish shot blasting one wheel. Its efficiency is relatively high.

3. What is the power source of the wheel shot blaster?

It's airless and powered by electricity, thus doesn't need to work with air compressor.

After connecting with electric power source, it begins to work, whose total power is about 13KW.

4.How long does the dust collector need to be replaced?

It depends. As usual, 6-9months around.
