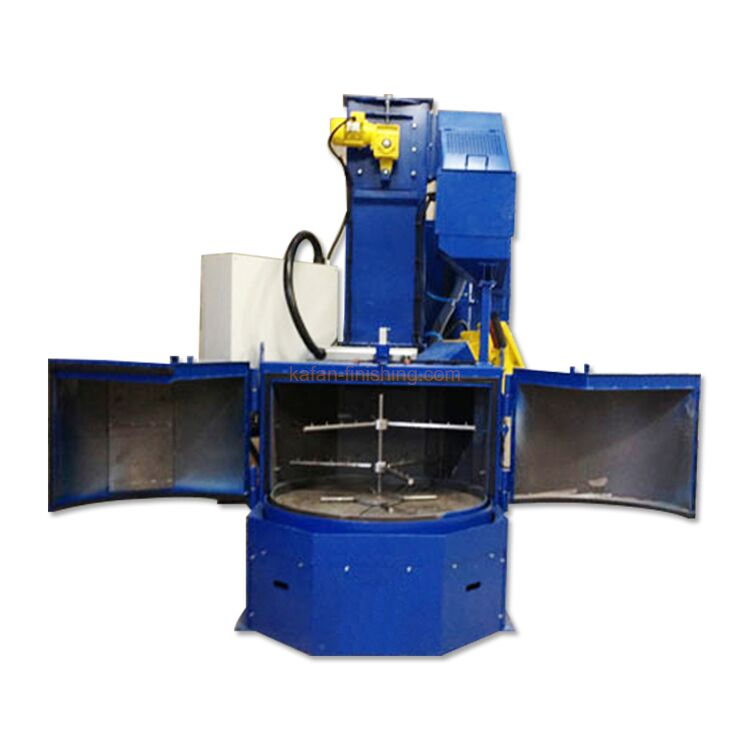

Rotary Table Shot Blast Machine for Sale

Rotary table shot blast machine designed a table inside the blasting area and wide-opening doors, which is efficient for batch cleaning and peening of industrial workpiece varying in small dimensions and shapes, such as castings, forgings, pressed parts, parts made of steel or non-ferrous metals.
Availability:
Quantity:
  • KF-Q3512
  • Kafan

Rotary Table Shot Blast Machine Configurations & Features

Wide Opening Doors

Designed with a pair of front-opening doors in good sealing, as well as a pneumatically top-opening door. The inner wall of the doors are guarded with wear-resistant rubber, and a baffle set in the middle of the front opening doors to prevent shots flying out of the chamber. fast and simple loading/unloading.


Turntable

The turntable is made of flat steel welded into a mesh disc, covered with a rubber plate with holes. which allows blasting media to fall through and reduce the wear from shot peening. The rotating table is electrically driven

by sprocket, and motorized with adjustment speed for optimal exposure to the blast stream.


Blast Wheel

The blast wheel is composed of impeller, blade, control cage, and other main parts. The working principle is that impeller rotates at high speed and throwing the entering shots from the control cage, accelerated by the blades, the shots will hit the surface of workpiece to achieve the purpose of cleaning.

Kafan Blast Wheel makes it one of the most advanced, durable, and versatile shot blasting wheels available in the market. With high impact shot blasting it provides shorter processing time and up to 70% energy savings.


Abrasive Media Reclaiming System

After use, residual abrasive media falls down the bottom of the blasting chamber, where it is conveyed by screw conveyors and a bucket elevator to an automatic media cleaner.

The abrasive reclaimer provides continuous handling and recycling of abrasive media based on particle size in order to maintain optimal and consistent quality blasting.


Other Standard Configurations

All shot blasters are equipped with filter dust collector,  PLC, display, timer, automatic start-up of the blast wheels, working-hours counter, and other basic features. Blast wheels and blasting chamber inner walls are protected by wear-resistant shields for extremely long service life.


Rotary Table Shot Blast Machine Specifications



Model

Q3512

1

Tunrtable

Diameter

1200mm

Height

585mm

Rev

3.7r/min

Max. Loading

400kg

Motor Power

1.5kw

2

Workparts

Max. Size Allowed

600*250*250mm

3

Blast Wheel

Q034ZZ

7.5kw

Qty

1

Impeller Diameter

Ф420

Impeller Rev

2460r/min

Blasting Abrasive Flow

120kg/min

4

First Time Abrasive

400kg

5

Elevator

Lifting Capacity

15t/h

Power

1.5kw

6

Separator

Separation Capacity

15t/h

Wind Speed

4-5m/s

7

Ventilation

Blast Chamber

1800m3/h

Separator

1000m3/h

Fan Power

3kw

Vibration Power

0.37kw

8

Total Power

13.87kw

9

Overall Diameter

1500*3450*3780mm

rotary table (1)
rotary table (2)
rotary table (3)
