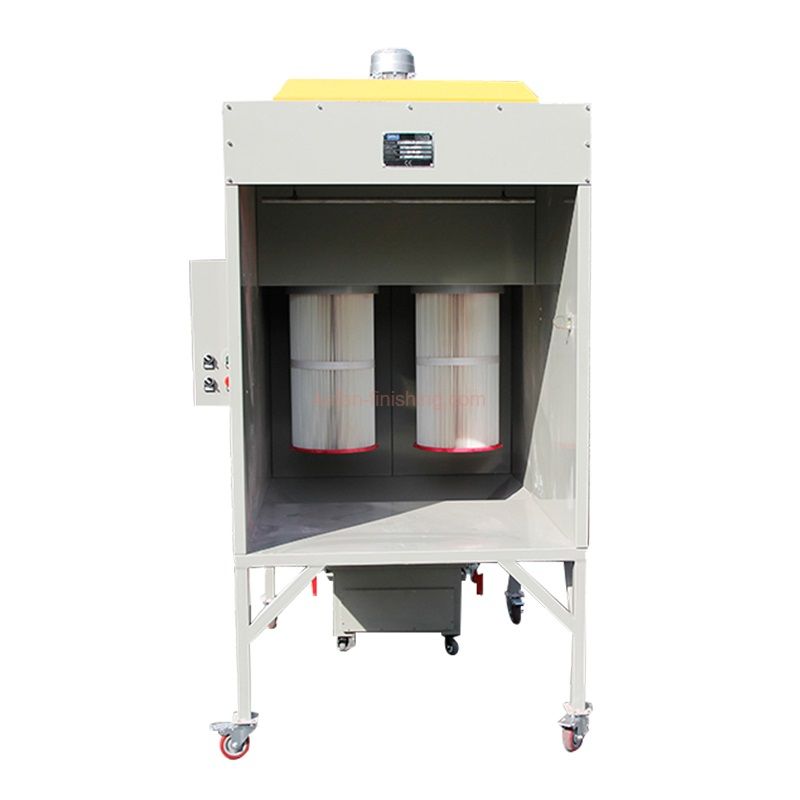

KF-0811 Cartridge Filter Powder Coating Booth
high performance KF-0811 powder booth , which works by collecting oversprayed powders through 2pcs cartridge filters that ensures safe and clean environment.
The released powders from filters are collected in a bottom container for easy recycling
Space-saving and cost-saving spray booth requires easy operation and less maintenance,
Suitable for small to medium sized metal parts, such as alloy wheels, vehicle parts and accessories
Allows frequent color changes due to the quick-release type filters.

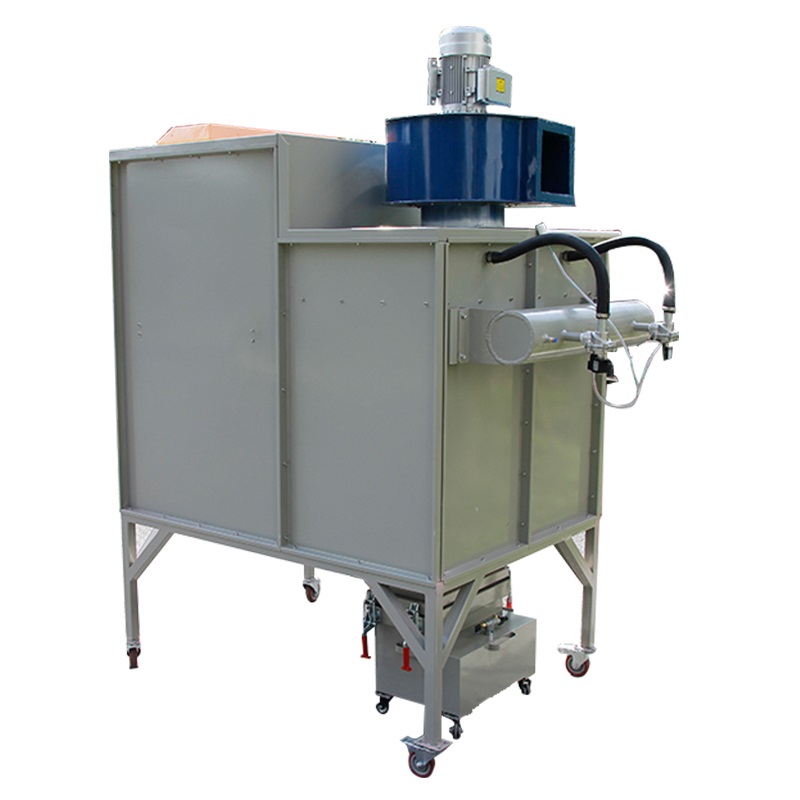

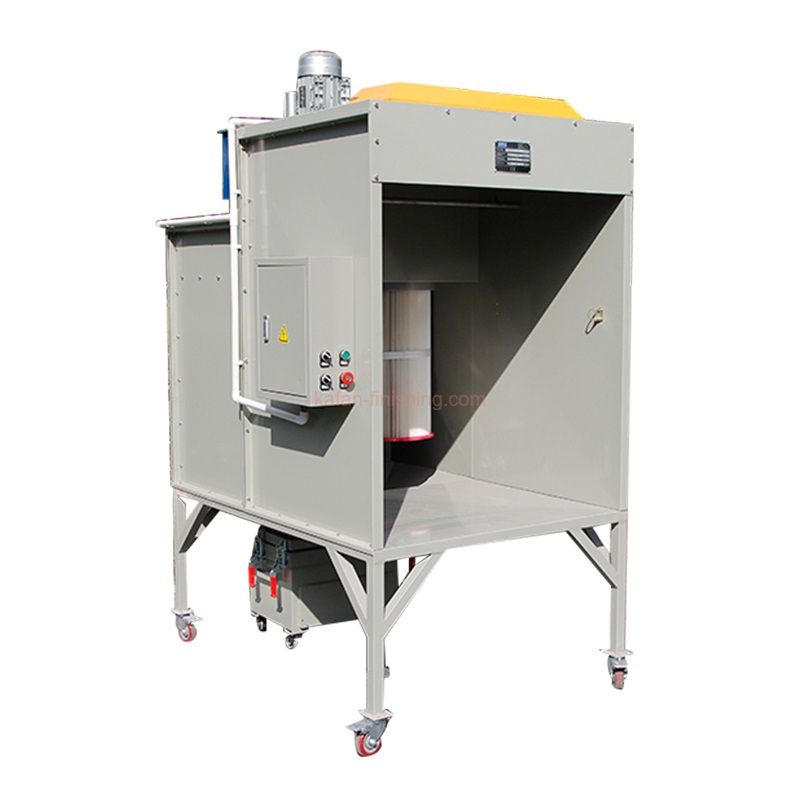

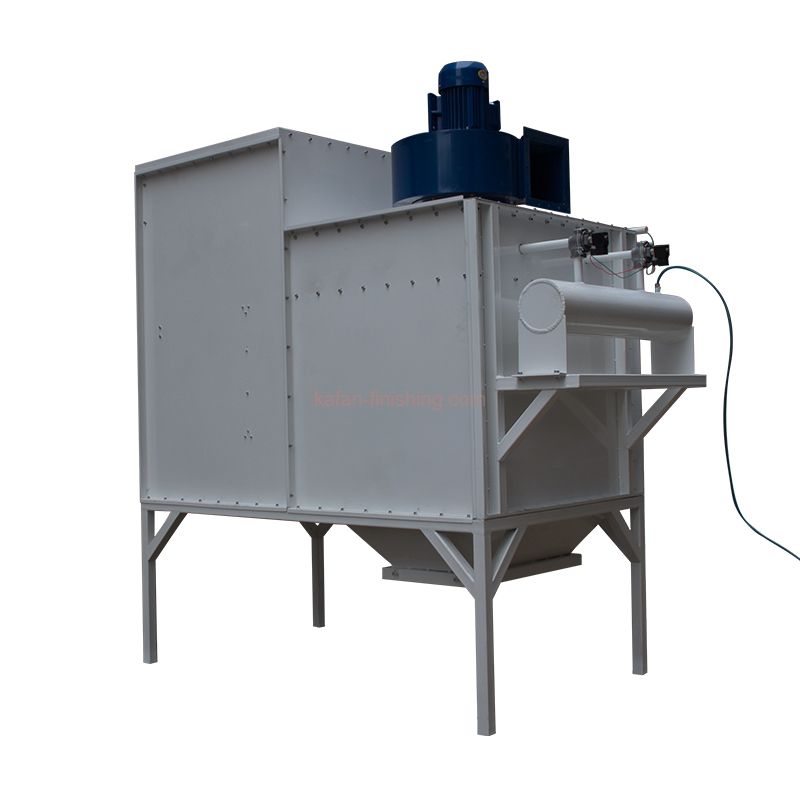

Cartridge Filter Powder Coating Recovery Booth

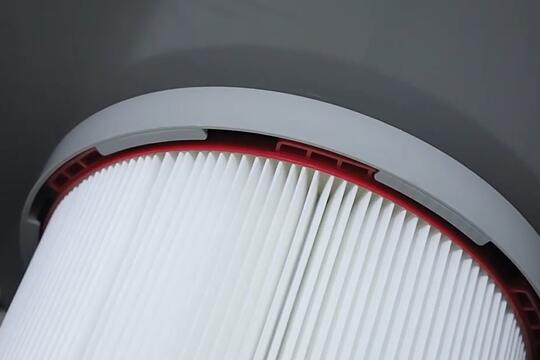

Quick-coupling Filters
Uses high precision filters made from 100% polyester, effectively capature even 0.1 micron superfine powder particles,
The filters are quick-coupling type, easy to dischage & replace by hand without any tools, suitable for fast color change.

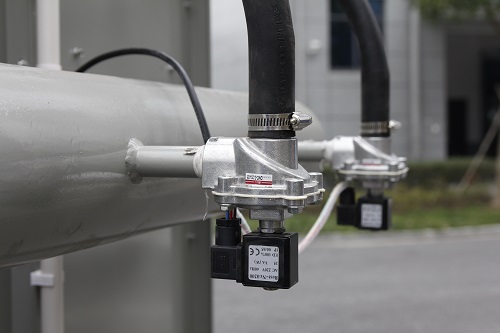

Filter Cleaning Valves
Filter cleaning is achieved by pulse-jets controlled through soleniod valves, ensures consistent airflow and extends filter life. Each soleniod valve control each filter cartridge.

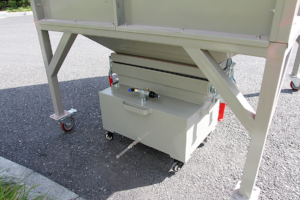

Powder Collecting Hopper
After booth cleaning, the accumulated powders in the filter will be discharged into a collecting hopper beneath the unit which can be rolled away for emptying and re-using. It simplifies the reclaim operation and increases the powder p

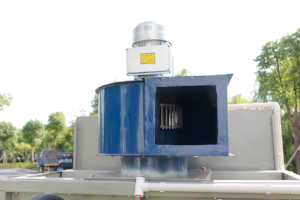

1.5kw Circulation Fan
1.5kw powerful circulation fan with 4000Nm3/h extraction volume control air uniformly through all the spray booth and recirculating back into the workshop free of particle.
KF-0811 Powder Coating Recovery Booth Specifications
Operating Dimension | 1000width * 800depth * 1000Height (mm) |
Overall Dimension | 1300width * 1900depth * 2100Height (mm) |
Power supply | Electric |
Nominal power | 1.5kw |
Voltage | 380V/220V Customized |
Frequency | 50-60Hz |
Filters | Polyester |
Filters count | 2 (325*600mm) |
Filters hang type | easy for change |
Filter cleaning system | Pneumatic |
Air consumption | 4000m3/h |
Warranty | 12 months |
