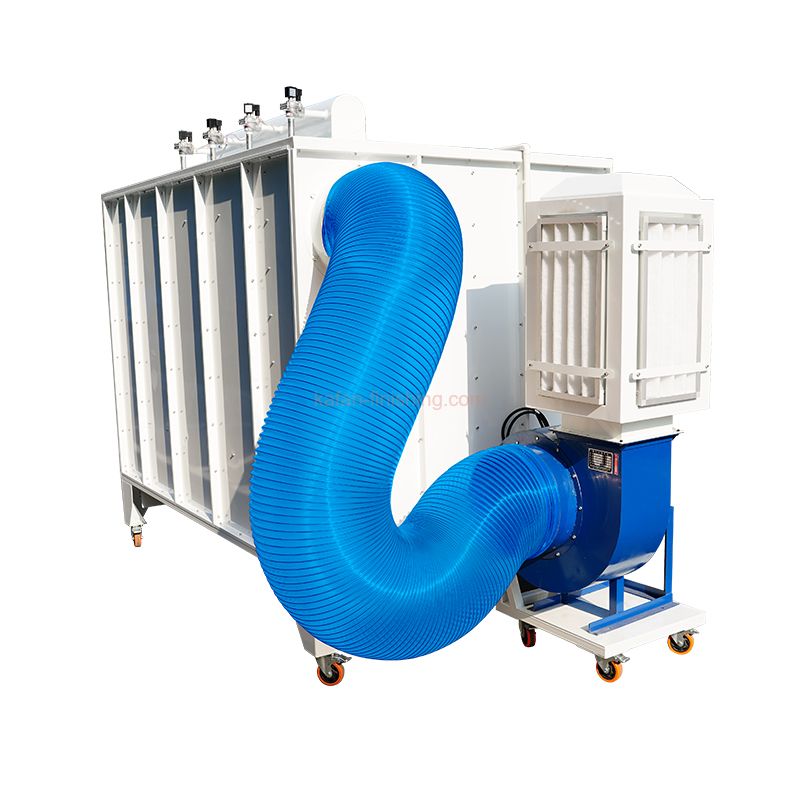

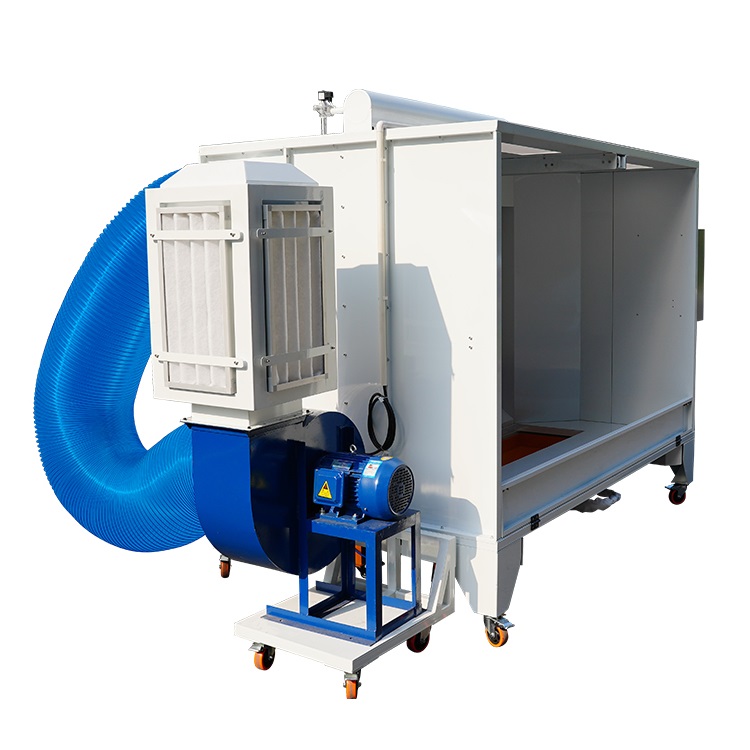

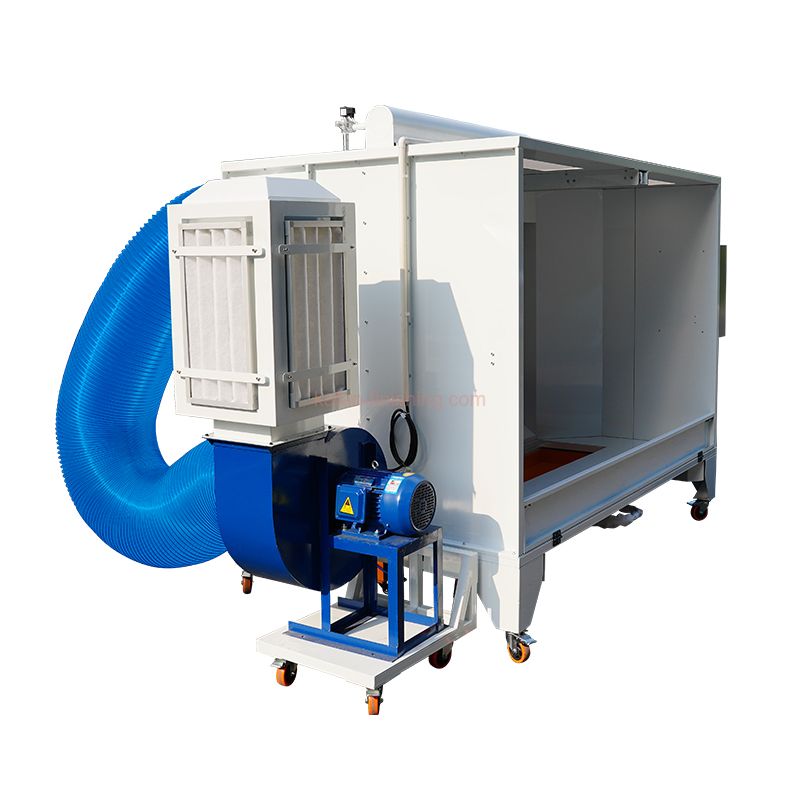

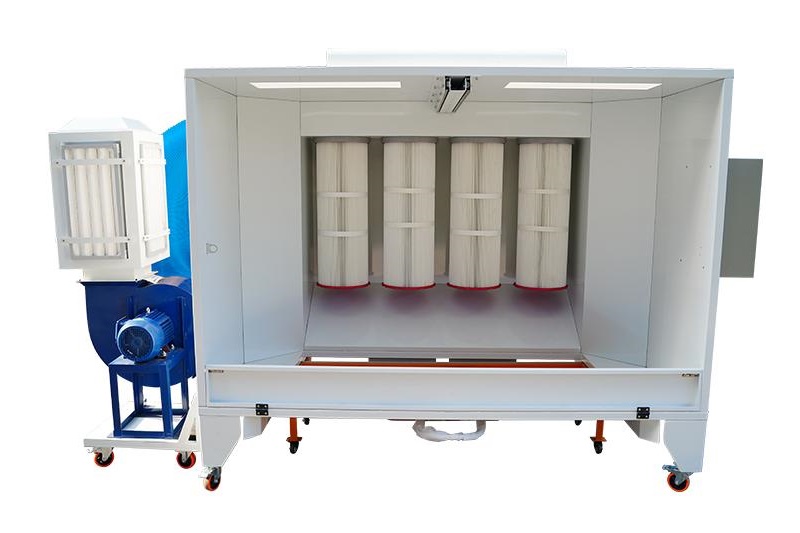

Dustfree Powder Coating Booth, Advanced Filtration Powder Spray Booth

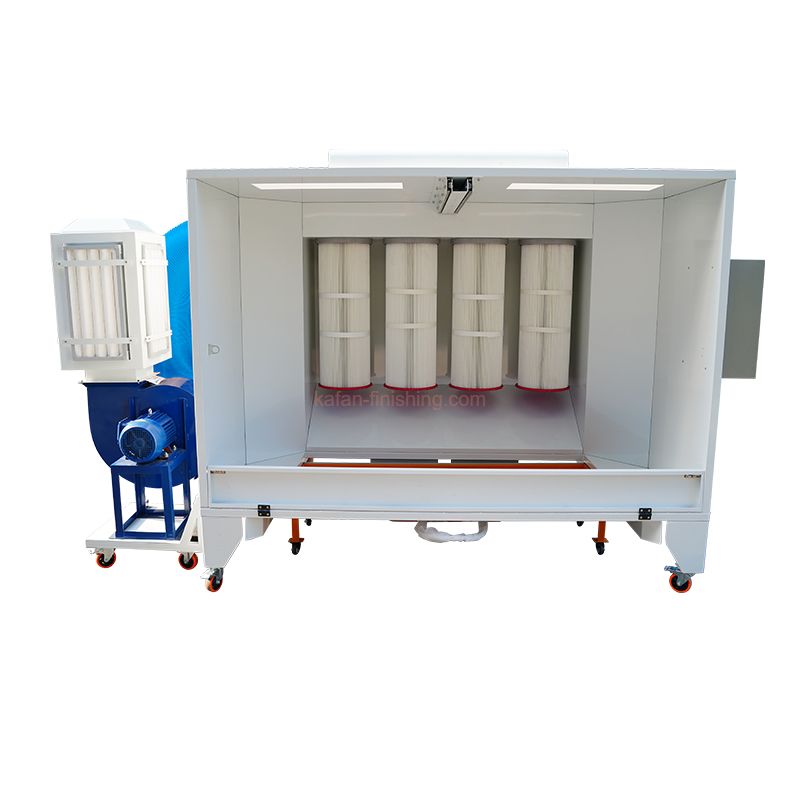

4pcs Cartridge Filters

Uses high precision filters made from 100% polyester, effectively capature even 0.1 micron superfine powder particles,  whose cleaning is achieved by automatic pulse-jetting system controlled through soleniod valves, ensures consistent airflow and extends filter life,

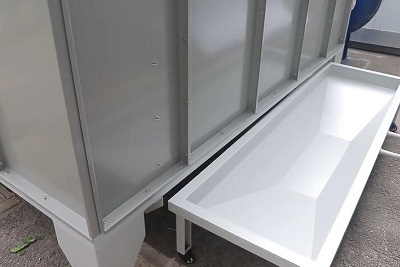

Powder Collecting Hopper

After booth cleaning, the accumulated powders in the filter will be discharged into a collecting hopper beneath the unit which can be rolled away for emptying and re-using. It simplifies the reclaim operation and increases the powder purity.

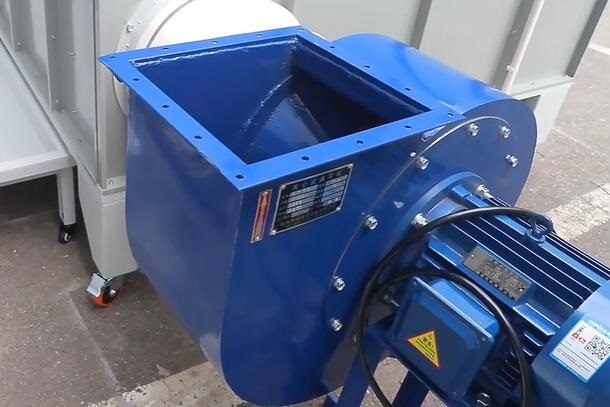

Air Circulation Fan

Air flow is pulled in through the open front, across the painter and parts being sprayed, and then exhausted outside through the filter

4 kw fan with 6600Nm3/h extraction volume control air uniformly through all the booth and recirculating back into the facility free of particle.

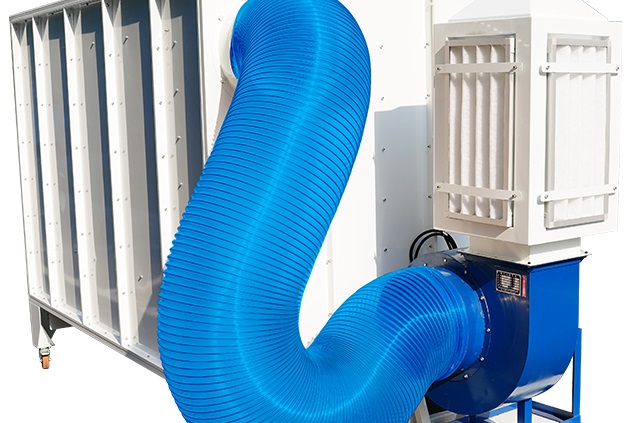

Final Stage Fan Filter

Connect with the Air fan to prevent ultrafine powder entering to the workshop air, ensures extremely dustfree of vented air. This fan filter creates a clean and healthy workshop.
This filter for 4KW air Fan. Size : 450mm x 450mm x 789mm

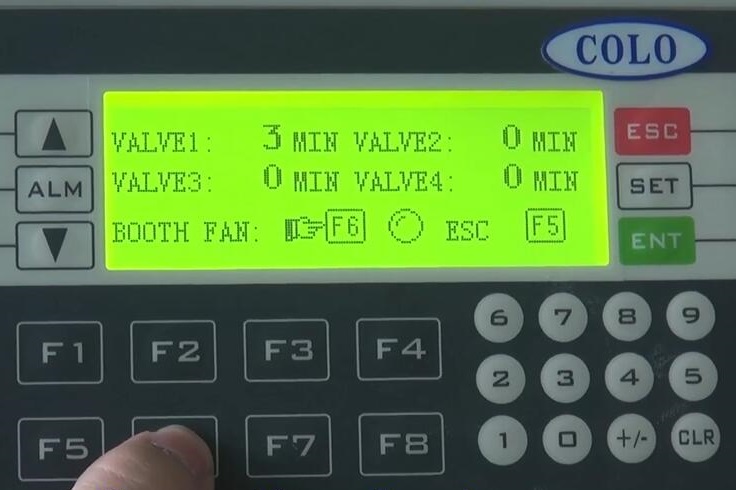

PLC Control

An easy-to-use PLC panel offers all functions and advantages you need. It controls the fan motor stop and start, sets the pulse-jet parameters to clean the filter, lifts the bottom powder collector hopper, etc.
