COLO-191S-V
box feed powder coating gun
COLO-191S-V is an advanced model, can easily and precisely control all pneumatic and electrostatic datas, male good powder coating quality. Suitable for both beginners and experienced users.
Box feed type models specially designed for customers who has many powder colors, you can directly put the origial powder box on the frame, it is quick for color change.
1) Advanced technology, digital display and presice data adjusting, high powder transfer efficiency.
2) 0-100kv voltage adjustable, outstanding for even most complicated work-pieces and good corner penetration.
3) Three pre-setting modes for beginners, flat parts-coating, corner-coating, re-coating.
4) Allows advanced users create and store 20 kinds of personalized applications programs.
1) Ergonomic design, lightweight design to reduce operator's fatigue
2) Built-in100kv high voltage cascade ensures powerful coating and long lasting jobs.

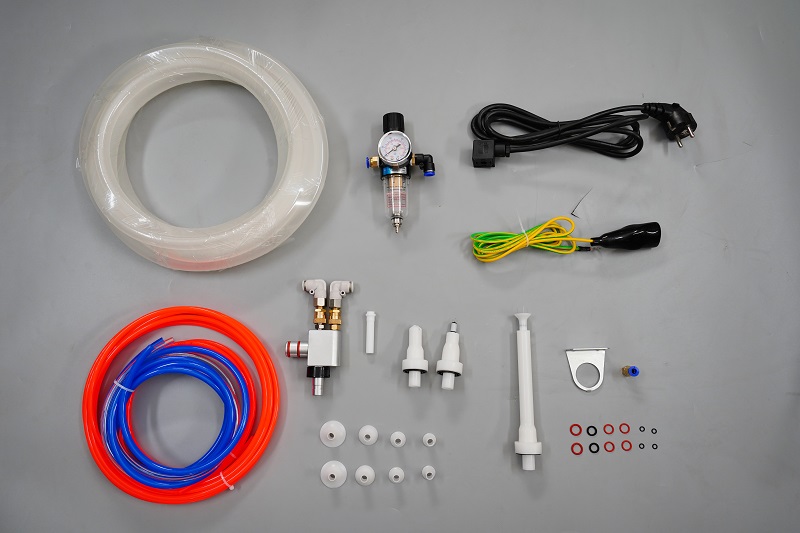

3) Delivered with flat and round spray nozzles for different shape parts.
4) In the back cover there is remote control of powder feeding adjusting and selection of programs.
Electrical Data
| MODEL | COLO-191S-B |
| Gun Weight | 500G |
| Rated output voltage | 24VDC |
| Input voltage | -200KV |
| Maximum output current | 180Ua(max) |
| Maximum output voltage | 0-100K(adjustable) |
Pneumatic data
| Maximum powder injection | 600g/min |
| Polarity | negative |
| Maximum input-air pressure | 10kg/cm |
| Optimum input-air pressure | 6kg/cm |
| Optimum input-air pressure | 4kg/cm |
| Maximum water vapor content or compressed air | 1.4g/N m3 |
| Maximum oil vapor content of compressed air | 0.1ppm |
| Maximum compressed-air consumption | 13.2 m3/h |
| Temperature range in use | -10 ºC+50 ºC |
