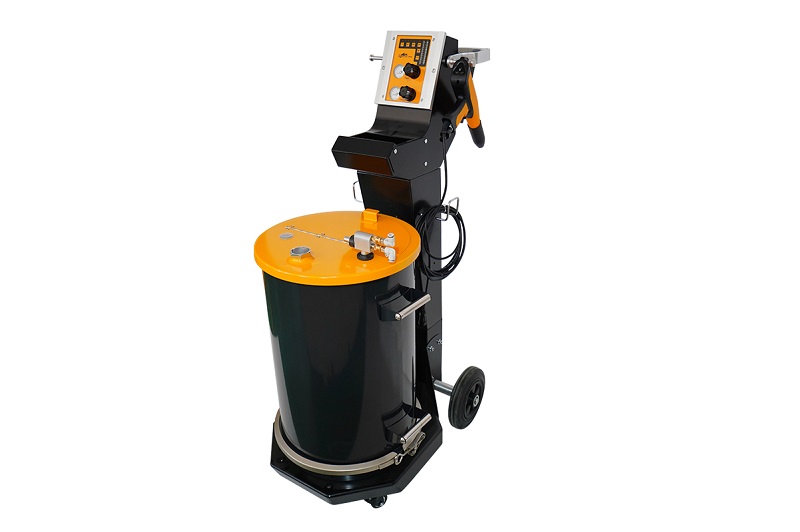

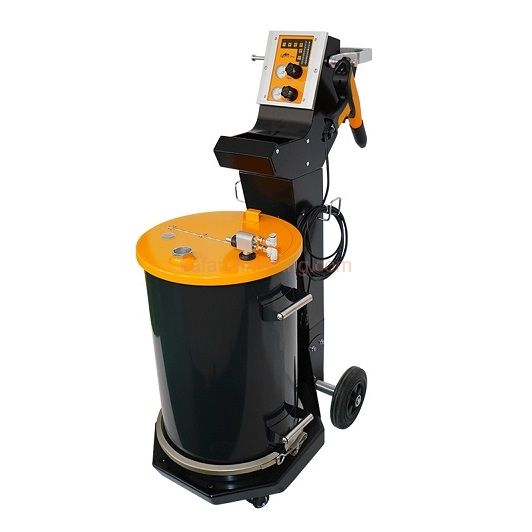

KF-K1 Hopper Feed Powder Coating Gun Equipment
Designed with user-friendly inteliigent controller and 100kv electrostatic spray gun, the K1 powder coating equipment is easy and efficient for coating any shape of metal workparts with excellent finishing quality. Hopper feed type is the perfect choice for those large, single-color powder coating jobs.
KF-K1 Intelligent Controller Features
1. 0-100kv voltage adjustable by keyboards, easily set values and read on digital display. Powder conveying and atomization air pressure values are regulated by valves and shows on guage.
2. For beginners there are one-touch intelligent buttons that stands for three pre-sets application programs, providing quick operation to get the best coating result for different shaped workpieces:
Flat coating: ideal for flat shape workpieces.
Corner coating: ideal for complex shape parts with deep corners.
Recoating: ideal for repairing coating.
100kv Powder Spray Gun
100 kV spray gun maximizes powder charging capacity, and always maintains highest transfer efficiency even after long time use, most powders are attracted to the metal parts with least material waste.
The 500g lightweight and ergonomic design enables you to do jobs at ease. We use high quality engineering materials for less wear and longer life.
Comes with full array of nozzle assortment for optimal effect , including flat spray nozzles, round spray nozzles with a series of deflectors, as well as extension nozzles for better penetration of corners.

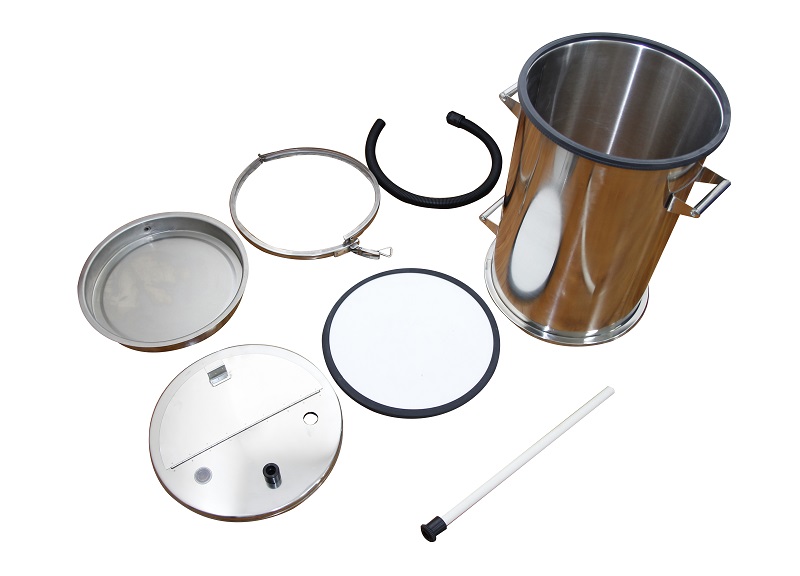

Easy Cleaning Fluidizing Hopper
Size: D36xH62cm, allows holding 60-70lbs powders, suited for normal or big scale powder coating production
The powder hopper can be detached with separating pieces for easily thorough cleaning. incorperates a fluidized plate on the base allows powders easily to be conveyed from the hopper to the gun with a high degree of uniformity and consistency.
The well-sealed hopper avoids any affact of contaminants or damp. fluidization breaks up accumulation, removing absorbed moisture, and improving the powder output cloud and the finish result

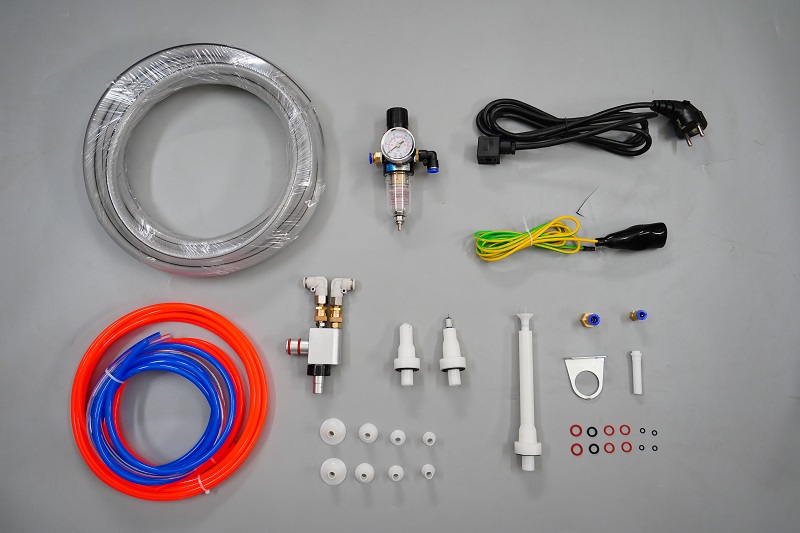

KF-K1 Powder Coating Equipment Parts
All the parts for the KF-X1 powder coating system is best configuration.
The grounded anti-static powder hose smoothly convey the powders from the hopper to the gun without any accumulation.
Powder injector enables easily assembling to the machine only by manual, and gives uniform powder output for higher coating quality.
Comes with full array of nozzle assortment to optimize your spraying effect, including flat nozzle, round spray nozzles with different size deflectors, and extension nozzles are easy to penetrate into deep corners.
KF-K1 Powder Coating Equipment Technical Data
| Model | KF-K1 |
| Power range | 220/110V 1 Phase (customized as local) |
| Frequency | 50HZ |
| Temperature range in use | -10 ℃+50 ℃ |
| Powder Gun |
| Gun weight: | 500G |
| Rated output voltage | 24VDC |
| Maximum output current | 180Ua(max) |
| Maximum output voltage | 0-100KV ( adjustable) |
| Polarity | negative (-) |
| Pneumatic data |
| Maximum input-air pressure | 10kg/cm |
| Optimum input-air pressure | 6kg/cm |
| Minimum input-air pressure | 4kg/cm |
| Maximum water vapor content or compressed air | 1.4g/N m3 |
| Maximum oil vapor content of compressed air | 0.1ppm |
| Maximum compressed-air consumption | 13.2 m3/h |
