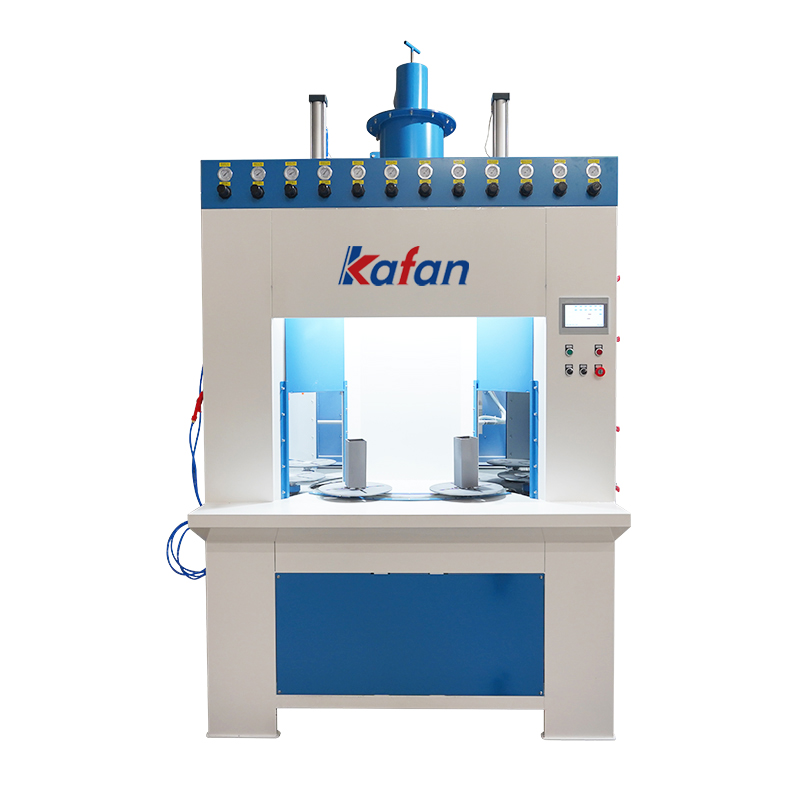

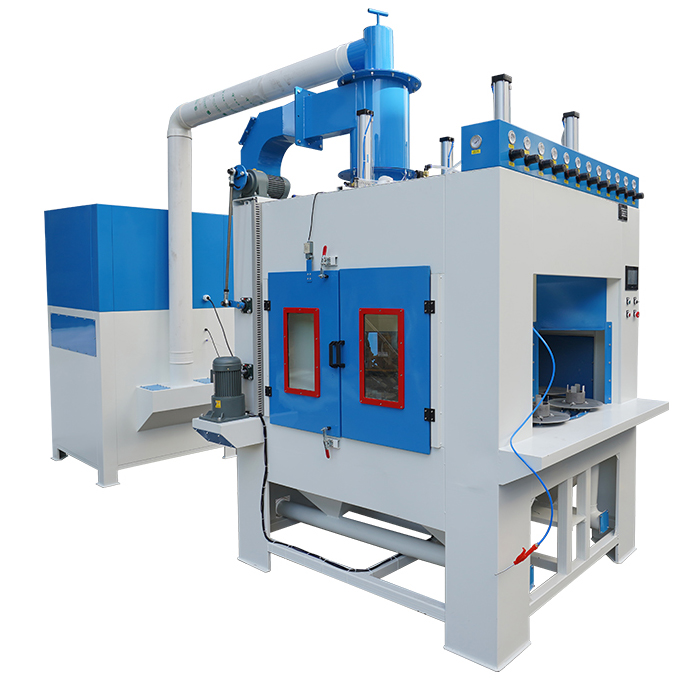

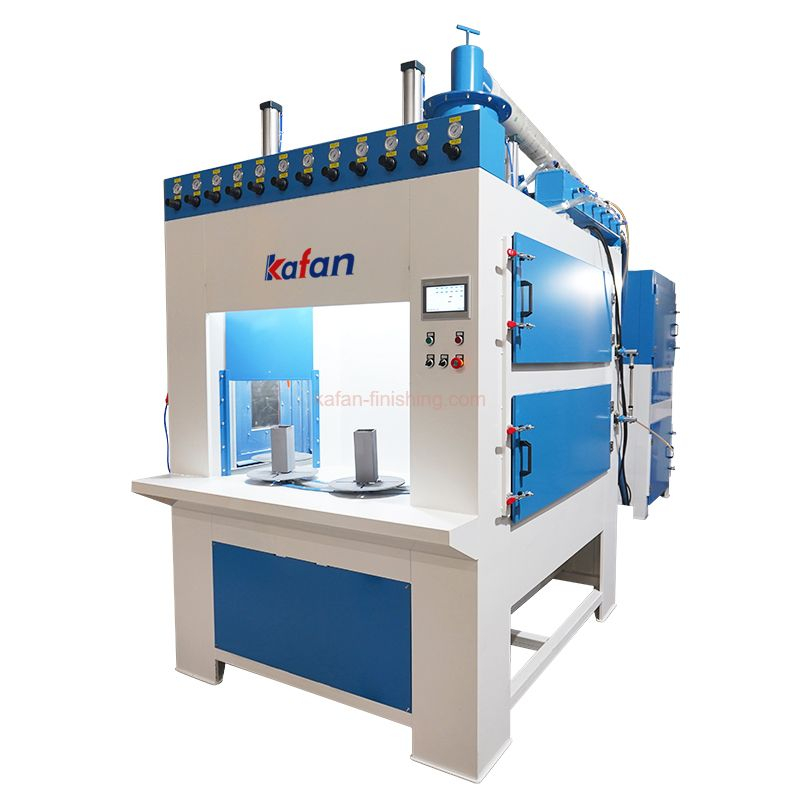

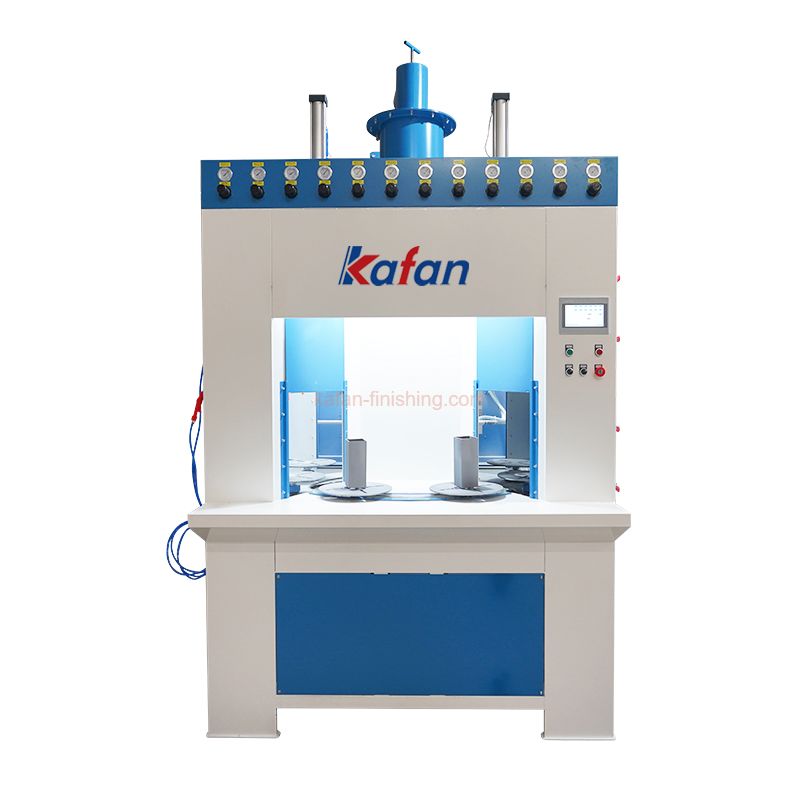

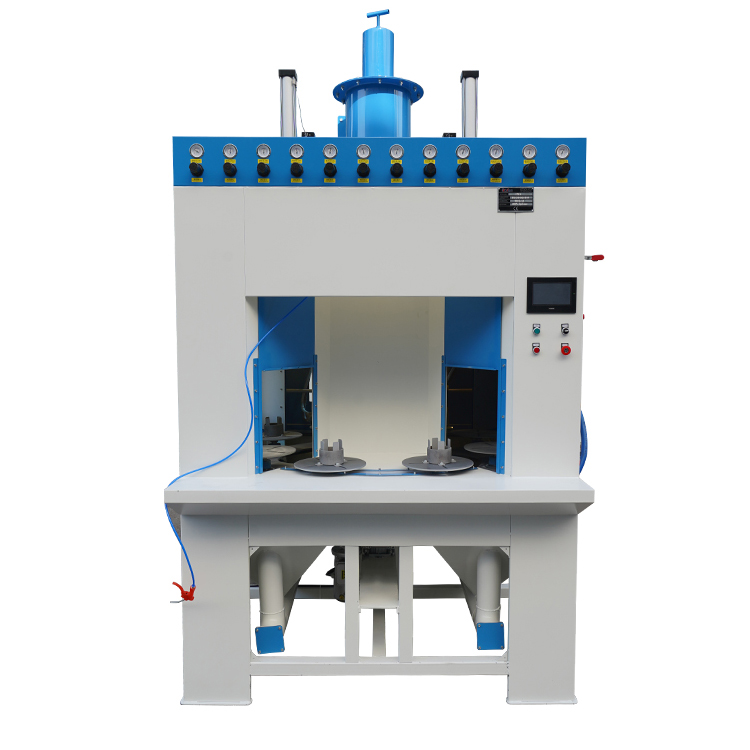

Intermittent Rotating Automatic Batch Sandblasting Machine

This automatic sandblasting machine is designed with multiple small turntables evenly distributed on an intermittent rotating table. Inside the closed cabinet there are group of automatic guns sweeping workparts for cleaning.

As each workpart is independently clamped on a turntable and got full coverage of abrasive flow, it is ideal for batch processing of medium sized cylindrical or complex shaped products

This automatic blasting system only requires one operator stand at the front opening station to load and unload the products

Automatic Blast Guns

Small turntables fixed with workparts are rotated to the blasting area where they are processed by a group of automatic guns.

Depending on the parts shapes and dimensions, the blast guns can be set for fixed blasting or oscillating blasting with adjustable angles and speed.

Blasting time, blasting distance between parts and gun also can be adjusted to optimize processing.

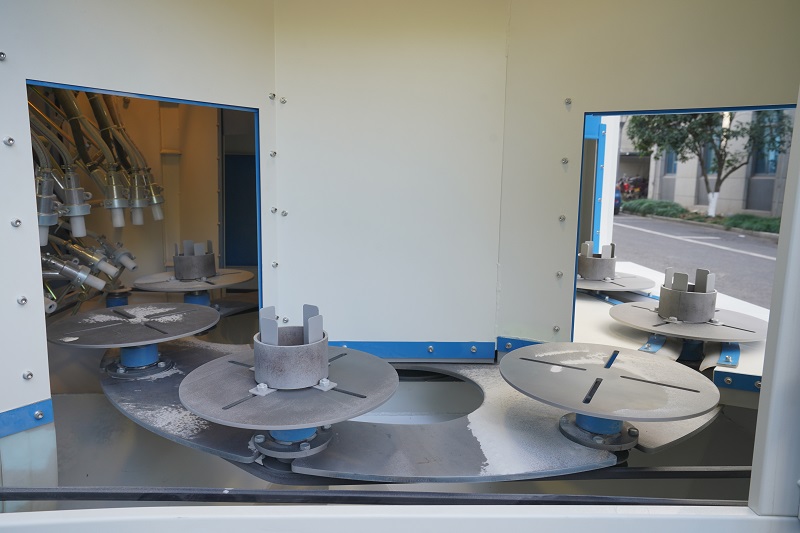

Multiple Working Platforms - Small Turntables

Small working turntables are evenly spaced in the big index table, They will be presented in front of automatic blast guns. They are driven through independent motors, stepless speed regulation by converter.

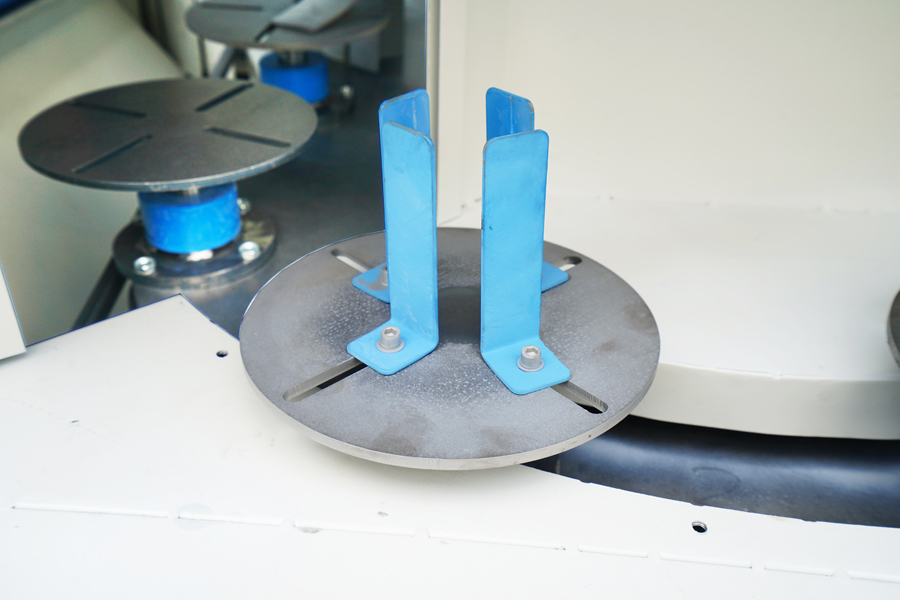

Specially fixtures on the turntable can be customized for quick and solid clipping to improve efficiency.

PLC Control with Touching Screen

High automation and accuracy task controlled by PLC system, guarantee the balanced uniform blasting effect, as well as safe production.

The touching screen offers user-friendly interface to manage the blast working, such as adjust the rotating speed, set blast time, control each blast gun and set the dust collector.

Dust Removing & Media Recycling

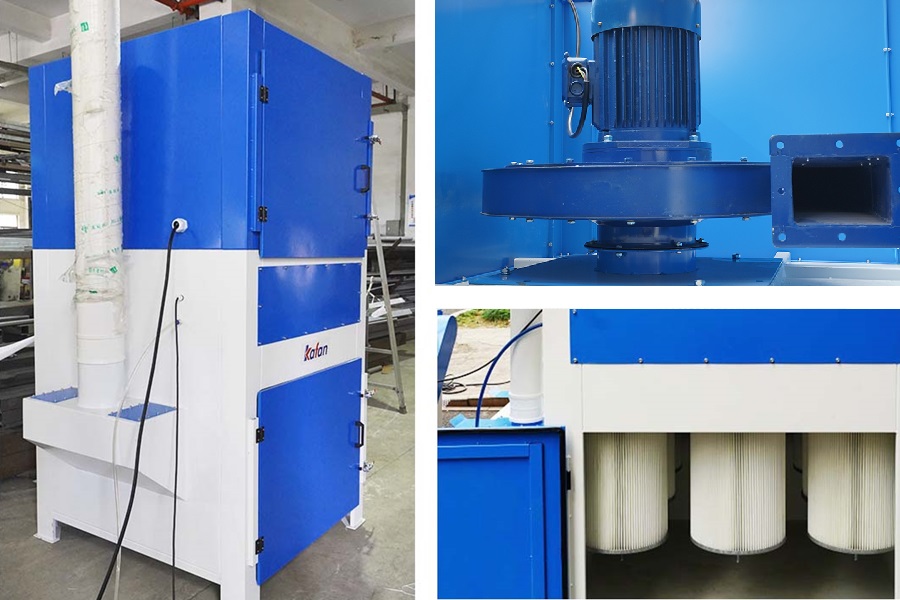

Designed with cyclone separator for effectively separation of abrasives from dusts. Along with an independent cartridge filter dust removal system with excellent effect of dust extraction and ventilation.

Blast-removed dust particles are exhausted to the dust collector while blast media is collected at the funnel of the cabinet, then returned to the storage hopper for further use.
