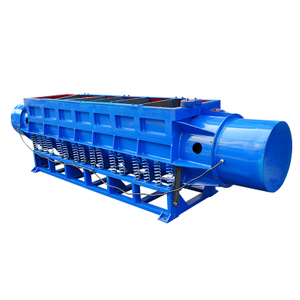

Large Vibratory Tumbling Polishing Machine

Ideally suited for the larger or long length components in high efficiency. After processing by this vibratory finishing machine, the workparts not only maintain the original shape accuracy, but also get high smoothness and brightness.
Availability:
Quantity:
  • KF-700
  • Kafan

Large Vibratory Tumbling Polishing Machine

The vibratory trough finishing machine is applicable to the deburring, de-rusting, cleaning, and polishing of various metal, non-metal parts.

1. The obvious advantage of the vibratory tube is for finishing large workpieces in high productivity while vibratory bowl can not achieve.

2. The vibratory tub can be divided into several smaller compartments to meet the demands of using different abrasives to operate different workpieces, also avoid them colliding with each other.

vibratory trough finishing machine

Vibratory Tumbling Polishing Machine Features

1. At the finishing process the shape and size accuracy of the original parts will not be damaged, which can greatly improve the surface roughness of the parts.

2. Achieve semi-automatic by electric control system, sampling parts at any time during the processing of surface finishing.

3. With high wear-resistant polyurethane lined in the vibratory container to increase the service life of more than 5 times as well as avoiding collisions on the wall and and reduce the noise.

4. Installed high-performance three-phase vibration motor, adjustable amplitude range of 0.3-10mm.

5. The size of vibratory tub can be customized according to the requirements, the number of partitions in the tube can also be provided as request.

6.Provide customers free sampling of their workpieced to determine a reasonable cost-effective polishing process


Vibratory Tumbling Polishing Machine Specifications

Model

KF-700
Capacity
700L
Working Space Size
L900 * W920 * H800 mm
Outer Size

L2350 * W1250 * H1450 mm

Weight
1000kgs
Power 3kw (double)
PU thickness
20-27mm


Vibratory Trough Finishing Machine Standard Models

Model

Capacity
(L)

Working space(mm)
L*W*H=A*C*B

Outer Size(mm)
L*W*H(mm)

Weight
(kg)

Power(Kw)

PU thickness
(mm)

KF-150

150

640*450*450

700*500*1000

200

0.55

15-20

KF-200

200

1000*380*450

2100*480*750

350

1.1(double)

15-20

KF-350

350

1300*500*500

2400*600*800

480

1.5(double)

20-27

KF-370

370

1000*550*650

2100*750*750

480

1.5(double)

20-27

KF-450

450

1650*500*550

2800*650*850

700

2.2(double)

20-27

KF-600

600

920*850*750

2370*1180*1400

900

3(double)

20-27

KF-700

700

900*920*800

2350*1250*1450

1000

3(double)

20-27

*Vibratory tube finishing machine in different specifications for choice


tube vibrator.jpg
