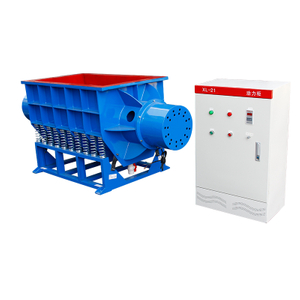

1000L Vibratory Tub Polishing Machine

Ideally suited for the larger or long length components in high efficiency. The vibratory trough finishing machine is applicable to the deburring, de-rusting, cleaning, and polishing of various metal, non-metal parts.
Availability:
Quantity:
  • KF-1000L
  • Kafan

1000L Vibratory Tub Polishing Machine

The vibratory tub can be divided into several smaller compartments to meet the demands of using different abrasives to operate different workpieces.The divider plates can be removed for finishing large or long length workpieces in high productivity while vibratory bowl can not achieve.

tube vibratory polishing machine (2)

Vibratory Tub Polishing Machine Features

1. The divided chambers is especially suited for delicated materials that avoids them colliding with each other.

2. Achieve automatic operation by electric control system, including timer, frequency adjustable, start and stop functions.

3. With high wear-resistant polyurethane lined in the vibratory container to increase the service life of more than 5 times as well as avoiding collisions on the wall and and reduce the noise.

4. Installed high-performance three-phase vibration motor, adjustable amplitude range of 0.3-10mm.

5. The size of vibratory tub can be customized according to the requirements, the number of partitions in the tube can also be provided as request.


Vibratory Tumbling Polishing Machine Specifications

Model

KF-1000L
Capacity
1000L
Working Space Size
L2600 * W600 * H700 mm
Outer Size
L4100 * W1000 * H1300 mm
Divider Plates 5 pcs
Weight
1000kgs
Power 5.5kw (double)
Voltage 220V 3 phase 60hz
PU thickness
20-27mm
Control Electric


Vibratory Trough Finishing Machine Standard Models

Model

Capacity
(L)

Working space(mm)
L*W*H=A*C*B

Outer Size(mm)
L*W*H(mm)

Weight
(kg)

Power(Kw)

PU thickness
(mm)

KF-150

150

640*450*450

700*500*1000

200

0.55

15-20

KF-200

200

1000*380*450

2100*480*750

350

1.1(double)

15-20

KF-350

350

1300*500*500

2400*600*800

480

1.5(double)

20-27

KF-370

370

1000*550*650

2100*750*750

480

1.5(double)

20-27

KF-450

450

1650*500*550

2800*650*850

700

2.2(double)

20-27

KF-600

600

920*850*750

2370*1180*1400

900

3(double)

20-27

KF-700

700

900*920*800

2350*1250*1450

1000

3(double)

20-27

*Vibratory tube finishing machine in different specifications for choice
