Pressure Blast Cleaning Cabinet for Wheel

This pressure blast cabinets incorporate a turntable and a cart that helps to handle alloy wheels with minimal force, Direct pressure clean cabinet has stronger cutting force that greattly increase working efficiency.

Quantity:
  • CL-1010PC
  • Kafan
  • Pressure Sand Blast Cabinet

Pressure Blast Cleaning Cabinet for Wheel

Pressure blast cabinet is ideal for jobs which require stronger cutting force, such as decorating hard stuff, stripping thick oxide layers or old coatings. Direct pressure media blasting works 3-5 times faster than general siphon blasting, it is ideally effective for touch cleaning or large-scale surface treatment

direct pressure blast cabinet

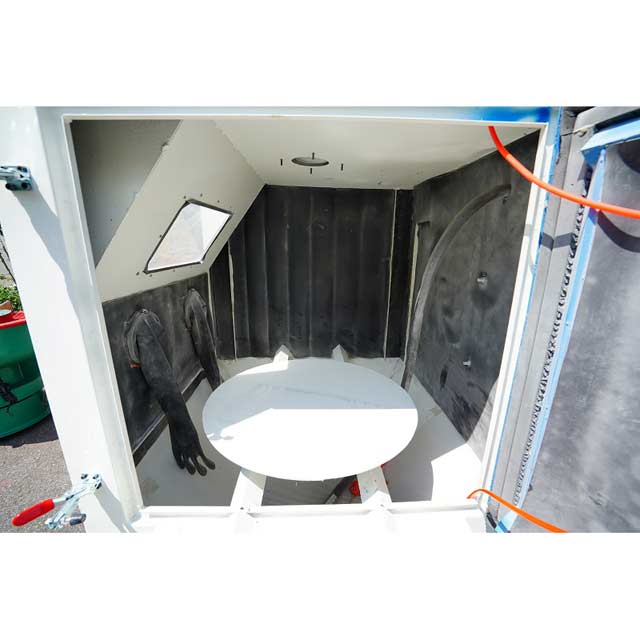

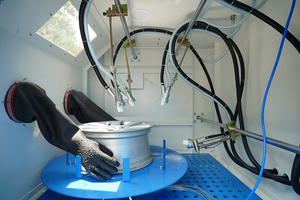

This pressure blast cabinets incorporate a turntable that helps to handle heavy objects, such as alloy wheels, Users work with a manual blast gun at the same time rotate the turntable, thus all sides and corners can be efficiently treated.  A loading cart is used to roll the tooling in and out with minimal force. he size of turntable can be made as actual needs.


MLF03049


Direct pressure blast cabinets utilize a pressure pot to accelerate media from the abrasive tank delivered to the hose and nozzle, this direct pressure blasting method provides much stronger blasting force. Our pressure blast cabinet has a standard cartridge filter unit to remove dust caused during cleaning process, as well as an optional cyclone separator which allows the recycling of ultrafine medias.

pressure blast cabinet for sale

CL-1010PC Direct Pressure Cabinet Cabinet Specifications

Model CL-1010PC
Outer Size length1450*Width1000*Height2050mm
Working Cabinet Size length1000*Width1000*Height800mm
Loading Capacity 80-100kg
Dust Removal Cartridge filter dust collector
Lighting LED 18W lamp, 1 pc
Spray Gun High pressure type, 1pc, with Boron Carbide Nozzle
Shell 2mm cold-rolled welded steel plate
Pressure Gauge 2 pcs
Regulator 1 pc
Dust Valve 1 pc


Hot Sale Standard Models of Diect Pressure Blast Cabinet


Model Working Cabinet Size Loading Capacity
CL-9080PC L900*W800*H800mm 80-100kgs
CL-1010PC L1000*W1000*H800mm 80-100kgs
CL-1212PC L1200*W1200*H800mm 100-120kgs





Why choose Kafan sand blast cabinet?

Devoted to world market for over 10 years, Kafan offer you factory-direct manufactured sand blasting machine in high quality and competitive price. With professional sales, techinical, production team, we provide blasting equipments in a variety of specifications and styles based on customers' requirements. Such as suction blast machine, pressure blast machine,portable blaster, wet blasting machine, automatic conveyor blast machine.


To pursue best performance, we use the latest technology for our blast components, our cabinets are fully welded with 2mm steel. Each component has proven reliability, we design and manufacture in-house. Each cabinet is fully equipped with high quality components that both have been designed and tested by us for optimal performance., by all of which we ensure 1 year warranty period for any quality problem. For sea shipping, we will strictly packed in film and foam first, with wooden case outside to make sure it is safe and intact to your country.

equipment production

kafan blasting equipment

Located in Hangzhou, China, we we own a manufacturing base of 3600 square meter, around 100 employees and 24 sets production equipment, dividing into technical department, sales department, after-sale department, production department, QC department, manage and finance department, etc. As a fast growing company in supplying sandblasting equipment and mass finishing equipment, we devoted all ourselves to offering solution for any surface finishing problems.


Our products can be divided into two main parts, sandblasting equipment and mass finishing machines.

Sandblasting equipment including: manual sandblasting machine, suction sand blast cabinet, pressure blasting machine, wet abrasive blasting equipment, portable blaster pot, automatic conveyor blast system, tumbler blaster, rotary table blast machine, crawl blast machine.

Mass finishing system including: vibratory polishing & deburring bowl,  vibratory bowl with separator, centrifugal barrel tumbling machine, centrifugal disc finishing system, mass finishing media.
We offer service: Standard Production Models, Customized Design, Before-order Technical Support, Engineer Oversea Installing & Training, Free Sample Testing, 24 hour On-line Consulting, ODM, OEM.
