KF-1212FTA
Kafan
Heavy-duty Blast Cabinet
Availability: | |
---|---|
Quantity: | |

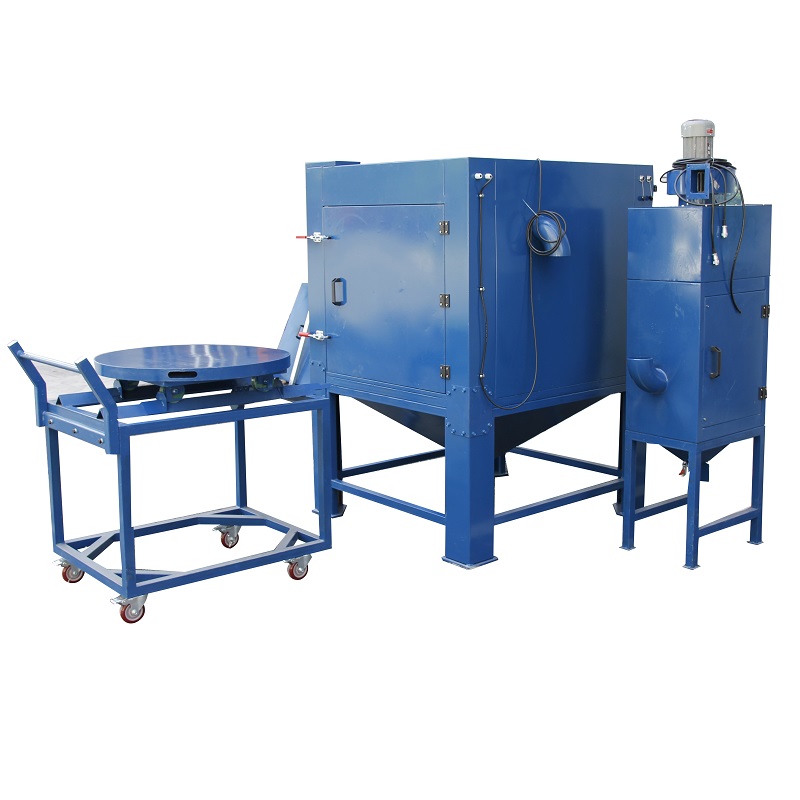

The heavy duty blast cabinet with turntable is specially designed for blast and cleaning heavy and large product, like mold, statue, motor, car wheels, etc.
The humanized turntable design provides 360 degree rotating action, which release the difficulty for users to blast heavy product overall, as there is no need of manual movement.
An loading cart can be ideally equipped to push the products from outside to inside of the blasting cabinet at ease.
A dust removing system of the sandblasting machine thoroughly collects dust which creates a clear working view, ensures the recycled abrasive is pure and the air discharged to the atmosphere is dustfree.
Each blast cabinet includes durable aluminum alloy casting blast gun with 100% purity boron carbide nozzle. An air blowing gun to clean remaining dust and abrasive after blasting.
Foot pedal switch to control the work of blasting gun, which reduces the user’s fatigue, facilitates the operation and ensures the safety
The used abrasives is delivered to the bottom funnel, then sucked to the blast gun for continuous utilization, such recycling of abrasive saves cost a lot.
The turntable size can be customized according to the product specification, also designed to be manual or automatic rotating for selection.
Model | KF-1212FTA |
Overall Dimension(mm) | Length1620*Width1250*Height2000mm |
Work Chamber | Length1200*Width1200 x Height800 |
Turntable | Diameter 800mm (Maximum Load 200kgs) |
Door Size | W750xH780 |
Power Supply | 110V/220V/380V/410V450V(50-60Hz) |
Motor Power | 0.75kw |
Main Structure | Working chamber Cartridge filter dust collector Electric controll system Pnuematic control system Rotating Turtable Loading Cart and track ... |
Spare parts | Sandblasting gun with boron carbide nozzle Air blowing gun Blasting hose Sandblasting gloves pressure regulator air moisture separator ... |
Model | Turntable Diameter (mm) | Working Dimension(L*W*Hmm) |
KF-9080FTA | 600 | 900*800*800 |
KF-1010FTA | 700 | 1000*1000*800 |
KF-1212FTA | 800 | 1200*1200*800 |
Our blasting cabinet were made in house by rich experienced production team of Kafan. To pursue best performance, the machine body is steel plate welded with powder coated surface, which is more durable, wear-resistant and lifelong than traditional painting, and the main components are famous imported brand, by all of which we ensure 1 year warranty period for any quality problem.
The heavy duty blast cabinet with turntable is specially designed for blast and cleaning heavy and large product, like mold, statue, motor, car wheels, etc.
The humanized turntable design provides 360 degree rotating action, which release the difficulty for users to blast heavy product overall, as there is no need of manual movement.
An loading cart can be ideally equipped to push the products from outside to inside of the blasting cabinet at ease.
A dust removing system of the sandblasting machine thoroughly collects dust which creates a clear working view, ensures the recycled abrasive is pure and the air discharged to the atmosphere is dustfree.
Each blast cabinet includes durable aluminum alloy casting blast gun with 100% purity boron carbide nozzle. An air blowing gun to clean remaining dust and abrasive after blasting.
Foot pedal switch to control the work of blasting gun, which reduces the user’s fatigue, facilitates the operation and ensures the safety
The used abrasives is delivered to the bottom funnel, then sucked to the blast gun for continuous utilization, such recycling of abrasive saves cost a lot.
The turntable size can be customized according to the product specification, also designed to be manual or automatic rotating for selection.
Model | KF-1212FTA |
Overall Dimension(mm) | Length1620*Width1250*Height2000mm |
Work Chamber | Length1200*Width1200 x Height800 |
Turntable | Diameter 800mm (Maximum Load 200kgs) |
Door Size | W750xH780 |
Power Supply | 110V/220V/380V/410V450V(50-60Hz) |
Motor Power | 0.75kw |
Main Structure | Working chamber Cartridge filter dust collector Electric controll system Pnuematic control system Rotating Turtable Loading Cart and track ... |
Spare parts | Sandblasting gun with boron carbide nozzle Air blowing gun Blasting hose Sandblasting gloves pressure regulator air moisture separator ... |
Model | Turntable Diameter (mm) | Working Dimension(L*W*Hmm) |
KF-9080FTA | 600 | 900*800*800 |
KF-1010FTA | 700 | 1000*1000*800 |
KF-1212FTA | 800 | 1200*1200*800 |
Our blasting cabinet were made in house by rich experienced production team of Kafan. To pursue best performance, the machine body is steel plate welded with powder coated surface, which is more durable, wear-resistant and lifelong than traditional painting, and the main components are famous imported brand, by all of which we ensure 1 year warranty period for any quality problem.
1. Pretreatment of electroplating, paint spraying, coating, etc. to completely clean the surface and improve the adhesion and anti-corrosion ability.
2. Cleaning the mill scale/residues/dirt of casting/pressing /welding/heat treatment work piece, cleaning the surface of non-metal items, cleaning the black spots on the ceramic embryo surface, restoring paint grain pattern, etc.
3. Refurnishing sports part of car, motorcycle, electromechanical device, etc., eliminating fatigue stress and extending working life.
4. Removing surface marks of metal/non-metal items, dumb face and fog treatment processing to enhance the product grade.
5. Dumb face and fog treatment of mould, text composition, mould cleaning without damage to the mould.
6. Removing the tiny burrs of mechanical parts and injection plastic parts.
7. Removing unqualified covering,color and printing of products.
8. Enhancing the surface hardness of metal work piece and eliminating stress, such as processing plane vane, spring, machining knife, weapons etc.
9. Carving patterns/words and slip resistance treatment on the surface of metal and non-metal items, such as marble, handle anti-skid, stamping, stele lettering, etc.
10. Sandblasting/white mark/cat’s whisker effect treatment of jeans wear.
1. Pretreatment of electroplating, paint spraying, coating, etc. to completely clean the surface and improve the adhesion and anti-corrosion ability.
2. Cleaning the mill scale/residues/dirt of casting/pressing /welding/heat treatment work piece, cleaning the surface of non-metal items, cleaning the black spots on the ceramic embryo surface, restoring paint grain pattern, etc.
3. Refurnishing sports part of car, motorcycle, electromechanical device, etc., eliminating fatigue stress and extending working life.
4. Removing surface marks of metal/non-metal items, dumb face and fog treatment processing to enhance the product grade.
5. Dumb face and fog treatment of mould, text composition, mould cleaning without damage to the mould.
6. Removing the tiny burrs of mechanical parts and injection plastic parts.
7. Removing unqualified covering,color and printing of products.
8. Enhancing the surface hardness of metal work piece and eliminating stress, such as processing plane vane, spring, machining knife, weapons etc.
9. Carving patterns/words and slip resistance treatment on the surface of metal and non-metal items, such as marble, handle anti-skid, stamping, stele lettering, etc.
10. Sandblasting/white mark/cat’s whisker effect treatment of jeans wear.
