Automatic Multi-turntable Sandblasting Cabinet with Bucket Elevator

This automated sandblasting cabinet is configured with a large indexing turntable and fitted with multiple small turntables loaded with workparts. The indexing turntable continuously rotates to present the multi turntables in accurate position in front of the automatic blast guns, while each small turntable fitted workparts rotates itself ensure all the surfaces and corners to be covered with abrasive flow.

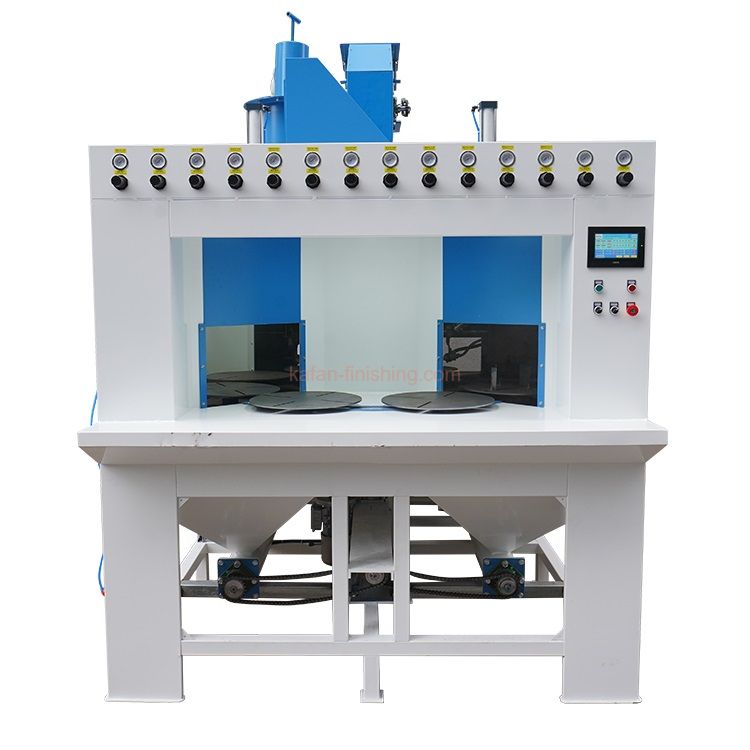

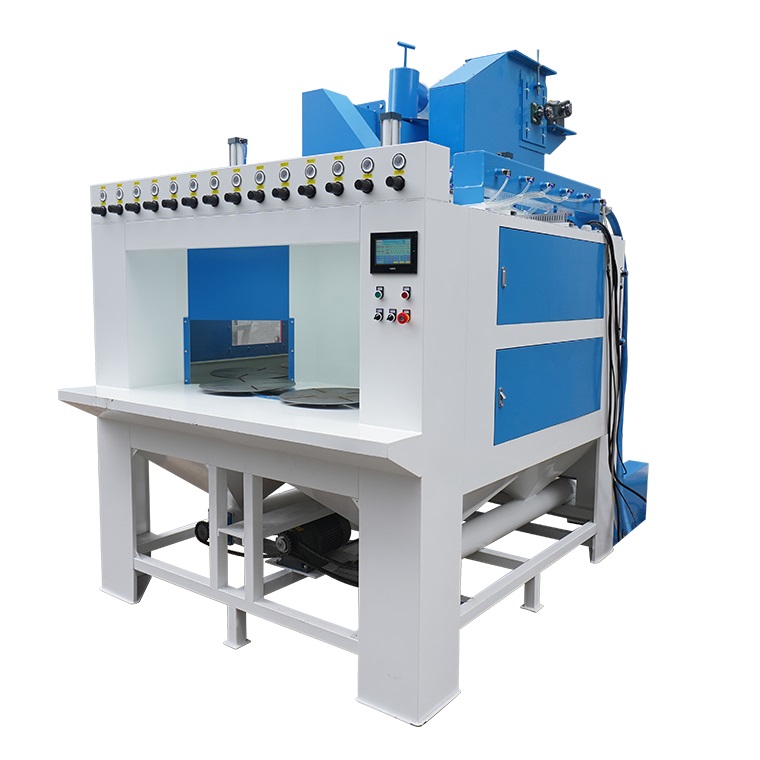

Automatic Multi-turntable Sandblasting Cabinet Automatic Sandblasting Machine

Automatic Multi-turntable Sandblasting Cabinet with Elevator

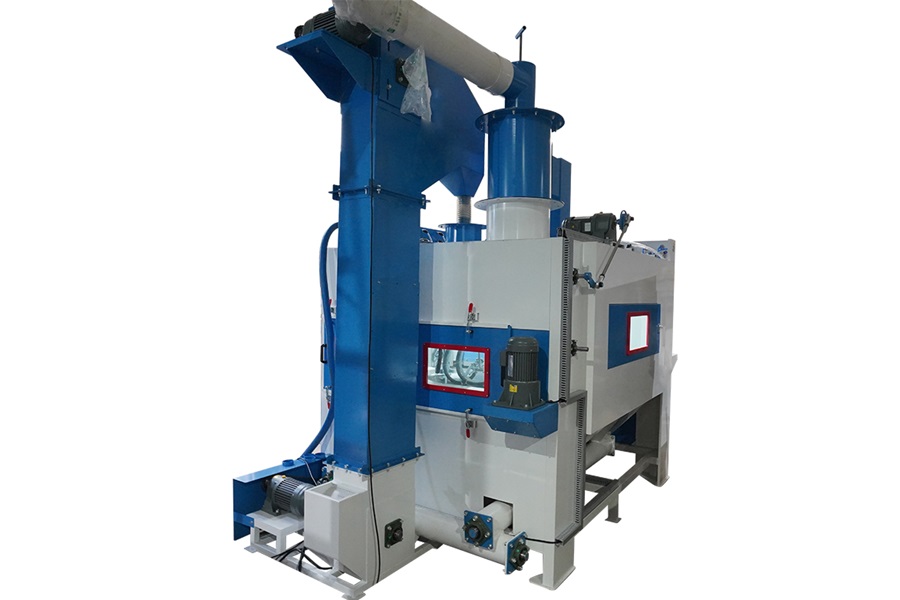

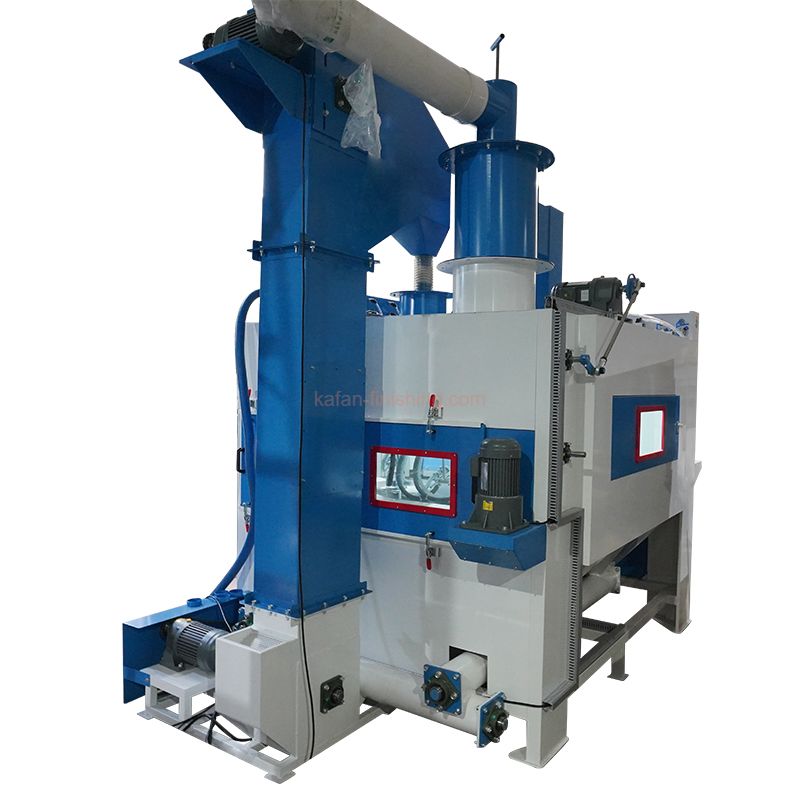

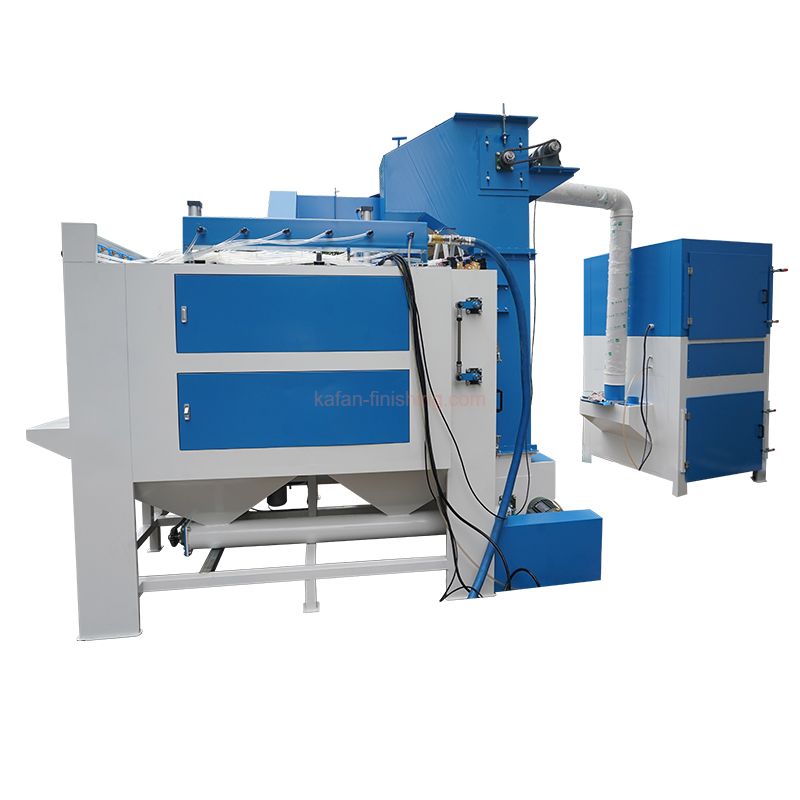

Sandblasting Machine Bucket Elevator

Our sandblasting machine can be configured with bucket elevators if your abrasive grit is a bit heavier, such as steel shot or grit.

The bucket elevator could efficiently transport the abrasive materials from the blasting chamber to the cyclone separator for efficient recycling.

The vertical design of the bucket elevator allows for continuous and rapid movement of materials, reducing downtime and increasing overall productivity.

Automatic Multi-turntable Sandblasting Cabinets Configurations

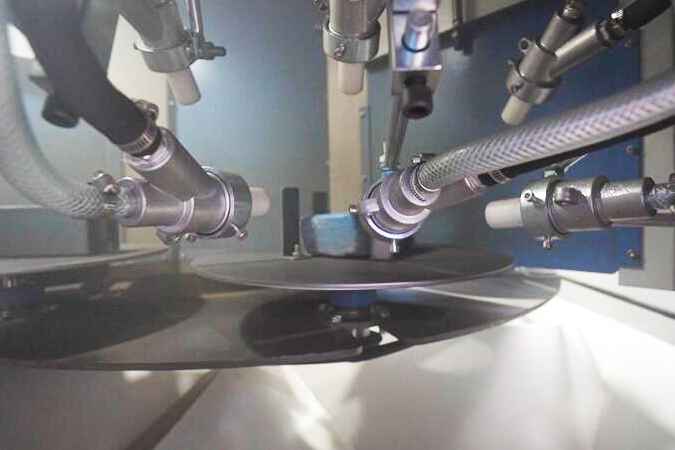

Automatic Blast Guns

Workparts are rotated to the blasting area where they are processed by a group of automatic guns.

Each blast gun is individually controlled for working by demands. Depending on the parts shapes and dimensions, the blast guns can be set for fixed blasting or oscillating blasting with adjustable angles.

Multiple Working Platforms - Small Turntables

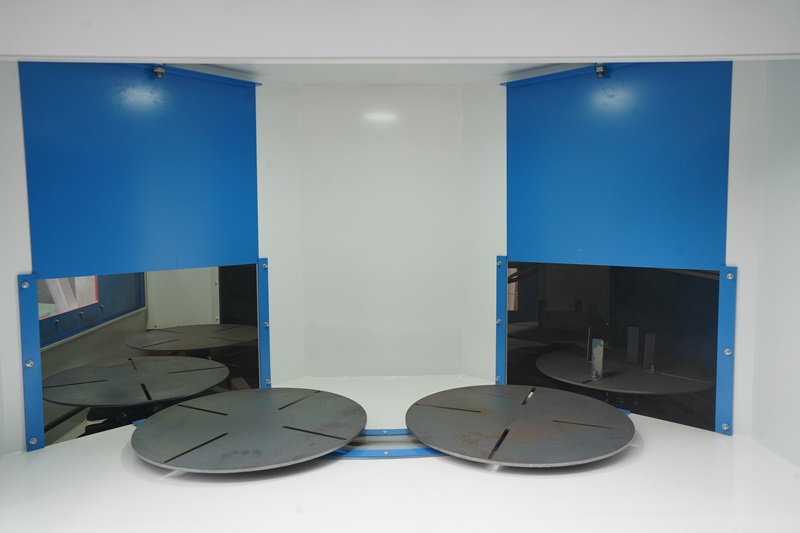

Multiple small working turntables loading workparts are evenly spaced on the big index table.

The system continuously presents small turntables into blasting station in front of blast guns for automatic processing.

Adaptable fixture for Different Workparts

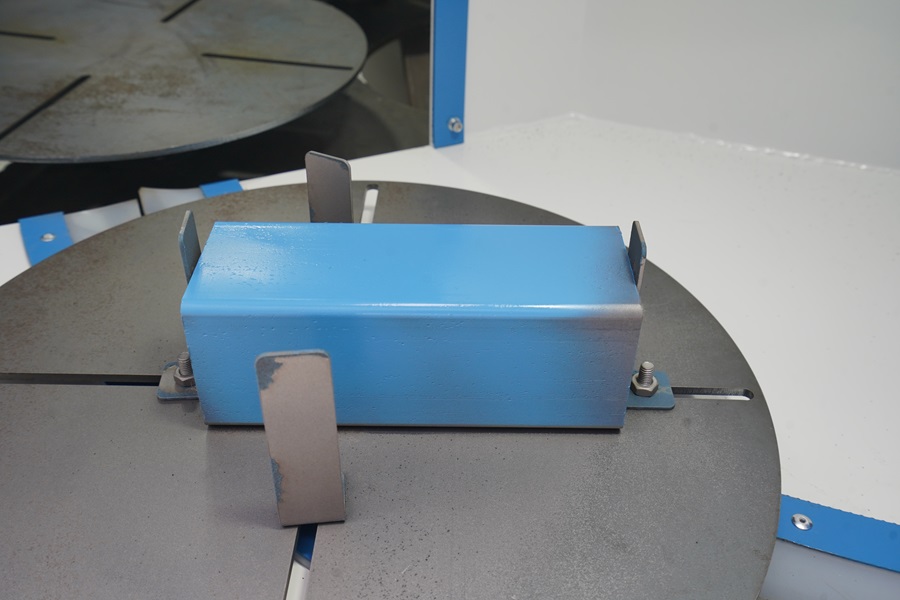

Adaptable fixture at each turntable is configured to suit your workparts and processing requirements. Special fixture can be tailored for your special products.

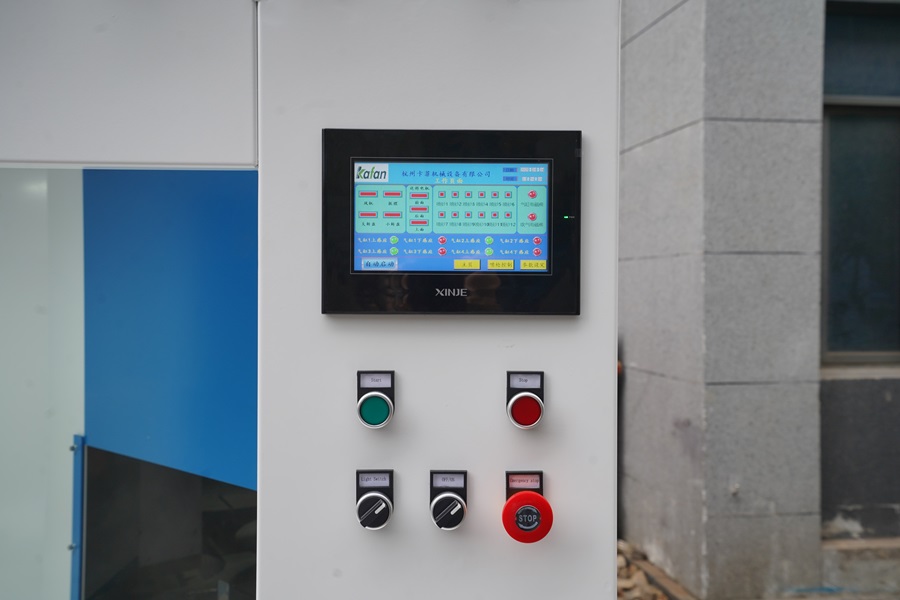

PLC Control with Touching Screen

High automation and accuracy task controlled by PLC system, guarantee the balanced uniform blasting effect, as well as safe production.

The touching screen offers user-friendly interface to manage the blast working, such as adjust the rotating speed, set blast time, control each blast gun and set the dust collector.

Dust Removing & Media Recycling

Designed with cyclone separator for effectively separation of abrasives from dusts.

Along with an independent cartridge filter dust removal system with excellent effect of dust extraction and ventilation.

Recycled blast media will return to the storage hopper for further use.

How the Multi-turntable Automated Sandblasting System Works

The highly efficient automated sandblasting machine designed with two stations, an opening one for operators loading and unloading workparts and a closed one for blast processing simultaneously, which provides optimum blast coverage and reduces task times. Higher volumes, increased productivity and a drive to safe automated systems demands makes the system a rapid, repeatable and reliable equipment.

Multi-turntable Automated Sandblasting Cabinet Specifications

Model:	KF-1719-12A
Main Dimension	L1700W1900H2200mm
Open door Size:	W450*H450mm
Large Turntable Size	Dia 1400mm
Drive Motor Power for Large Turntable	0.37kw
Qty of Small Turntables	12 sets
Drive Motor Power of Each Small Turntable	0.75kw
Dust Collector	9pcs of filter cartridges
Drive Motor Power of Dust Collector	7.5kw
Qty of Blast Guns	12 pcs with Durable Boron Carbide Nozzle
Power Supply	3phase 220V-480V 50/60Hz
Air flow	0.8-1.2 m3/min (Single gun)
Compressed Air Source	8 bar (kg / cm2)

Multi-turntable Automated Sandblasting System Applications

It is suitable for mass production of discs, cylinders and polygonal shape parts, such as: rice cookers, non-stick pan, heating plates, baking pan (furnace), air cylinders castings, lampshade, wash pots, wine bottles, glass bottles, resin handicrafts, aluminum corridors, handicrafts, decorations and other products. Based on actual production needs, the automated sand blaster can be customized with specially turntables, different gun quantities, etc.

automatic sandblasting application (1)

1. After we buy this automatic sandblaster, just giving power and loading the sand will be enough for using this machine?

Yeah, the offer includes all parts. Ready to use. After connecting with air source and power source. It can begin to work after loading the sand.

2. In this picture, the machine has a square cabinet which stands behind or beside it. what is it?

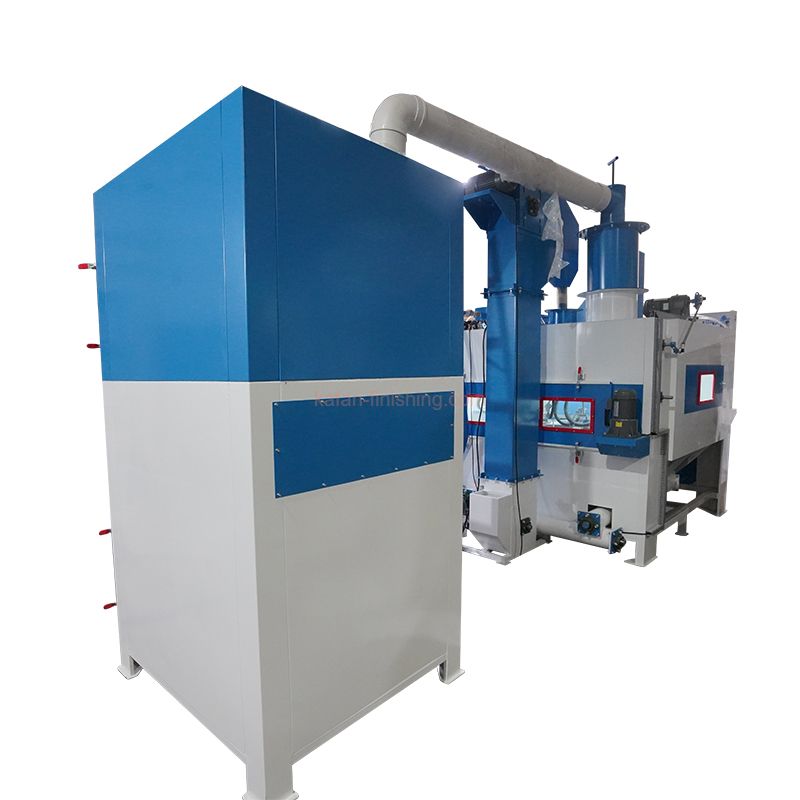

For the one standing behind or beside the machine, it is the catridge filter dust collector. The filter unit keeps the environment clean and dustless.

3. Which type of sand could be used in this machine?

The machine can work with various sands, size from mesh 16 to mesh 320, like glass beads, aluminum oxide, garnet, steel grit, corundum, etc.

4. Is this rotary indexing machine blasting just cover the cap or it sanding outer and inner side at the same time?

The machine can blast both outer and inner side of the pan at the same time, actually cover all surfaces of objects.. The Oscillating nozzles can be adjusted on a vertical or horizontal axis.

5. As we know it consumes sand. How much sand consuming in this process? How often should we change the whole sand?

The sand consumption is about 200kgs for 8 blasting guns each week if continuous work for 6-8 hours each day. The quantity changes as per the working time and different sand. There is no need to change the sand, just add some more when find out it is less.

6.Could we send you samples to sandblast in this automatic machine? We want to see the results.

It is good idea to send us a sample for testing in our automatic sandblasting machine. Please also send good sample for reference so that we can know what surface condition you required. If any possibility, welcome to visit our factory.
