Heavy-duty Manual Sandblasting Cabinet with Turntable & Cart

- It is a widely-used manual type sandblasting cabinet which is effective and economical by using dry abrasives.
- Achieving cleaning, deburring, descaling, rust-removing, refurbishing to get required surface effect.
- Operating Dimension: Length1200 * Width1200 * Height800mm
- Other sizes or special designs pls contact us.
  • KF-1212FTA

  • Kafan

Availability:

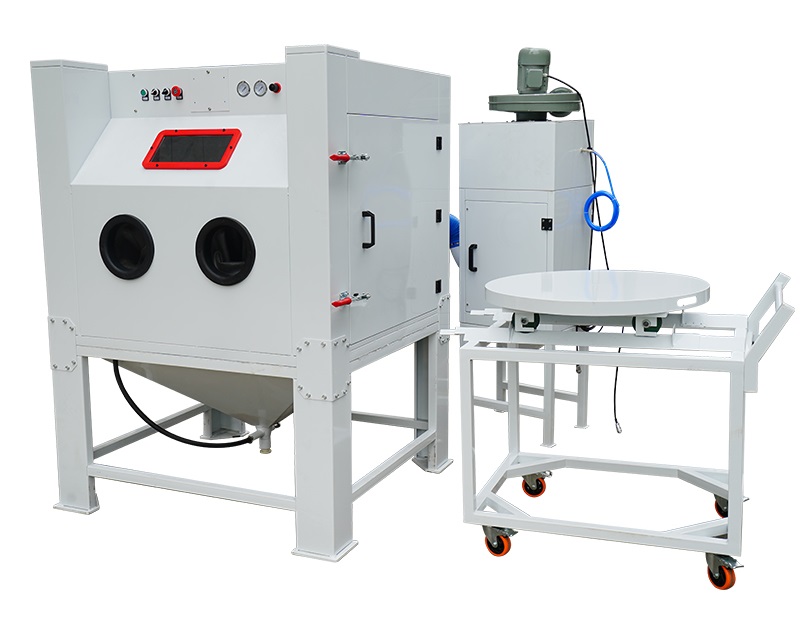

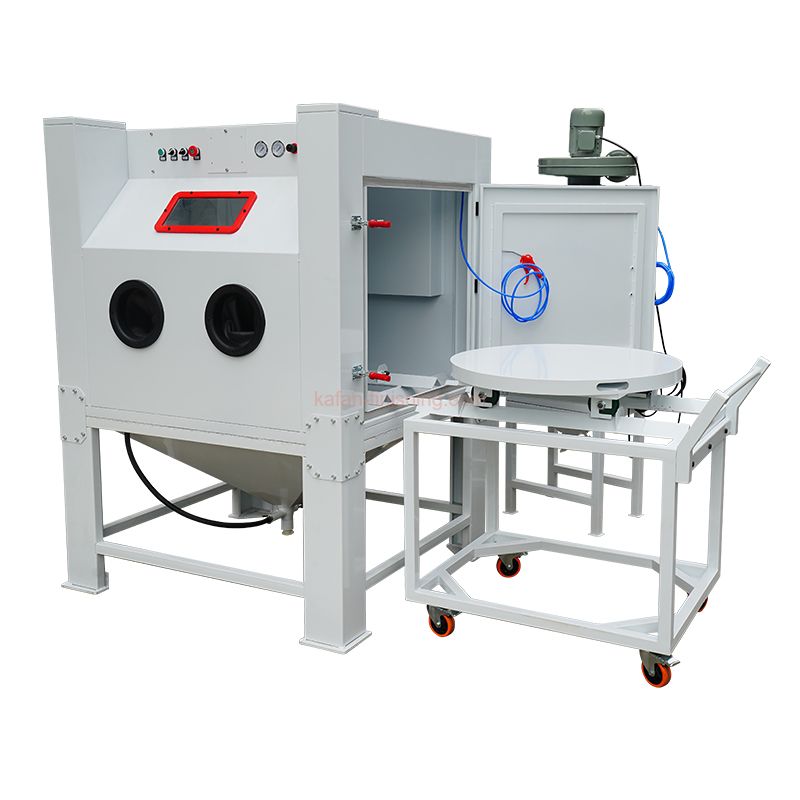

Heavy-duty Manual Sandblasting Cabinet with Turntable & Cart

In the manual sandblasting cabinet, users handle the workparts through a suction blast gun controlled via foot switch. Our innovative blast cabinet designed with turntable and cart makes it easy and efficient for surface treatment of big, heavy, and irregular-shaped objects, like mold, statue, motor, car wheels, etc,

For those objects, users easily rotate the turntable which ensures all surfaces and corners can be precisely cleaned. The turntable loading the workparts is convenient to move inside and outside through the cart and track assembly.


manual sandblasting cabinet           sand blasting cabinet


KF-1212FTA Manual Suction Sandblasting Cabinet Configurations & Features

Our innovative dusfree sand blast cabinet are welded from 2mm coated steel plate. featuring durable, anti-rust, an independent cartridge filter dust collector effectively remove dust from the working chamber.

Durable & study structure, Long lifespan, Simple to operate, Low maintenance .

sandblasting cabinet

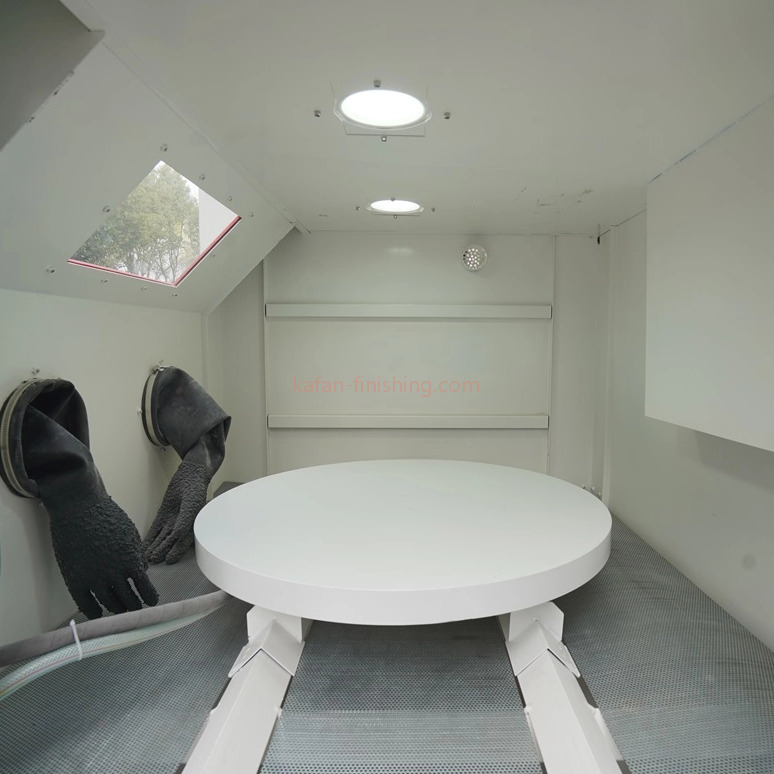

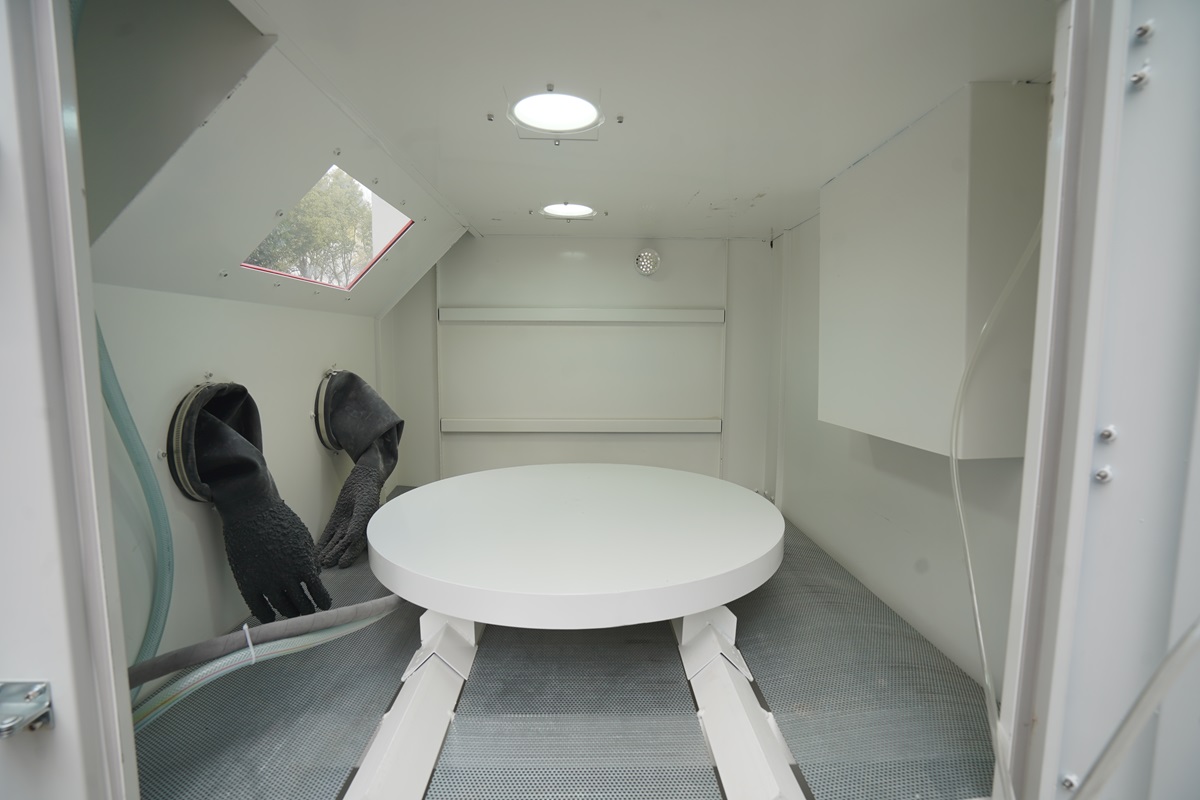

Enclosed Blast Cabinet with LED Lights

Well-sealed enclosed cabinet without dust leakage or abrasive leakage, always keep the environment clean.

Incorporate a turntable on a track extension and a cart used to move the objects in and out with minimal force.

sandblasting cabinet dust collector

Filter Cartridge Dust Collector

The dust collector removes the dust away from the operator's window for increased visibility, and ensure pure abrasives are recycled,

Can be optionally configured with cyclone which is used to separate utra-fine abasives from dusts.


sandblasting gun

Sand Blasting Guns

Consists of alloy holder with durable boron carbide nozzle

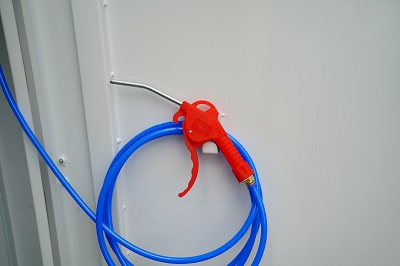

Air Blowing Gun

Using after blasting process - removal of surplus dust and blasting media.

Foot Pedal Switch

Control the work of blasting gun, which reduces the user's fatigue,


KF-1212FTA Manual Sandblasting Cabinet Specifications

Model

KF-1212FTA

Overall Dimension

Length1200 * Width1680 * Height1840 (mm)

Work Chamber

Length1200 * Width1200 * Height800 (mm)

Turntable Diameter 800mm
Loading Max. 200kgs

Door Size

W830xH770mm

Power Supply

110V/220V, 50-60Hz (customized)

Motor Power 0.75kw
Lighting

18w Fluorescent

Blasting Gun

1 piece with boron carbide nozzle

Compressed Air 5-8 bar(kg/cm2)
Flow

0.5-1.2m3/min


Manual Suction Sandblasting Cabinet Applications

The suction blast cabinet uses negative pressure caused by compressed air flow, the blast gun sucks the abrasive and delivers to the nozzle, then blasted to the tagert surfaces, attaining the purpose of cleaning, removing rust, burrs and contaminants. Kafan suction blast cabinets is a versatile tool used across many industries for surface preparation, finishing, and cleaning.

Application Category Specific Uses & Processes  Typical Industries
Cleaning & Stripping Removing rust, mill scale, old paintings & powder coating, carbon deposits, and anodizing from metal parts. Automotive, Aerospace, Industrial Manufacturing, Construction
Deburring & Deflashing Smoothing sharp edges, removing parting lines and flashings from castings or injection-molded parts Automotive, General Manufacturing, Foundries
Surface Finishing Creating a uniform matte finish on metals, texturing stainless steel, finishing surgical instruments preparing cookware/bakeware surfaces for coating  Medical Devices, Aerospace, Consumer Goods, Dairy Equipment
Surface Preparation Creating a surface profile to enhance coating adhesion for processes like powder coating or anodizing. Industrial Manufacturing, Aerospace, Automotive
Specialty & Etching Etching glass, stone, and metal for artwork/labeling. Also used for cleaning tire, shoe, and plastic molds. Art/Decorative, Automotive, General Manufacturing

Note: For removing heavy coatings or achieving very fast production rates, a pressure blast cabinet might be more suitable. For brighter, cleaner finishings on very delicate parts, you can try kafan wet blast cabinet. For seeking batch processing with consistent quality, you can select Kafan innovative automatic blast systems.


kafan blasting equipment

Located in Hangzhou, China, we we own a manufacturing base of 3600 square meter, around 100 employees and 24 sets production equipment, dividing into technical department, sales department, after-sale department, production department, QC department, manage and finance department, etc. As a fast growing company in supplying sandblasting equipment and mass finishing equipment, we devoted all ourselves to offering solution for any surface finishing problems.

Our products can be divided into two main parts, sandblasting equipment and mass finishing machines.

Sandblasting equipment including: manual sandblasting machine, suction sand blast cabinet, pressure blasting machine, wet abrasive blasting equipment, portable blaster pot, automatic conveyor blast system, tumbler blaster, rotary table blast machine, crawl blast machine.

Mass finishing system including: vibratory polishing & deburring bowl,  vibratory bowl with separator, centrifugal barrel tumbling machine, centrifugal disc finishing system, mass finishing media.
We offer service: Standard Production Models, Customized Design, Before-order Technical Support, Engineer Oversea Installing & Training, Free Sample Testing, 24 hour On-line Consulting, ODM, OEM.


Kafan - Professional Manufacturer of Sandblasting Equipment

All sandblasting machines are made in house by rich experienced production team of Kafan, we can directly control the cost and quality. To pursue best performance, each machine body is steel plate welded with powder coated surface, durable, wear-resistant and long lifespan, and the main components are imported, by all of which we ensure 1 year warranty period for any quality problem. For sea shipping, we will strictly packed in film and foam first, with wooden case outside to make sure it is safe and intact to your country.
