KF-2010-2
Kafan

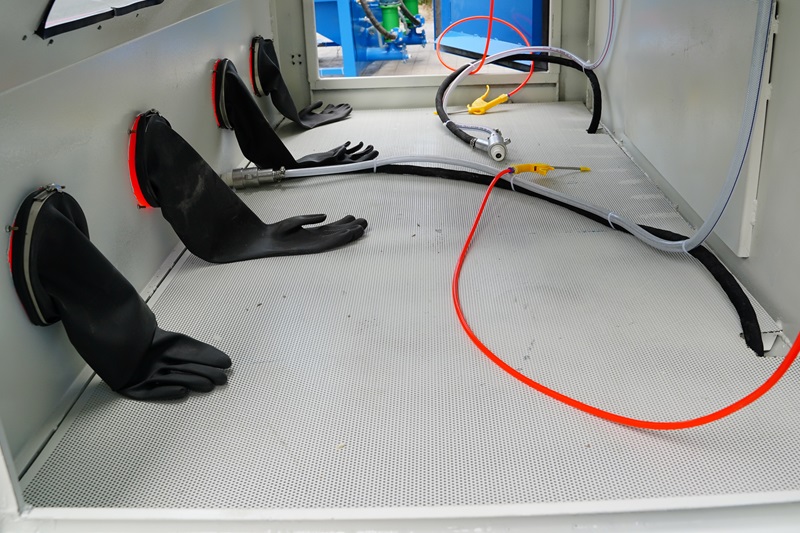

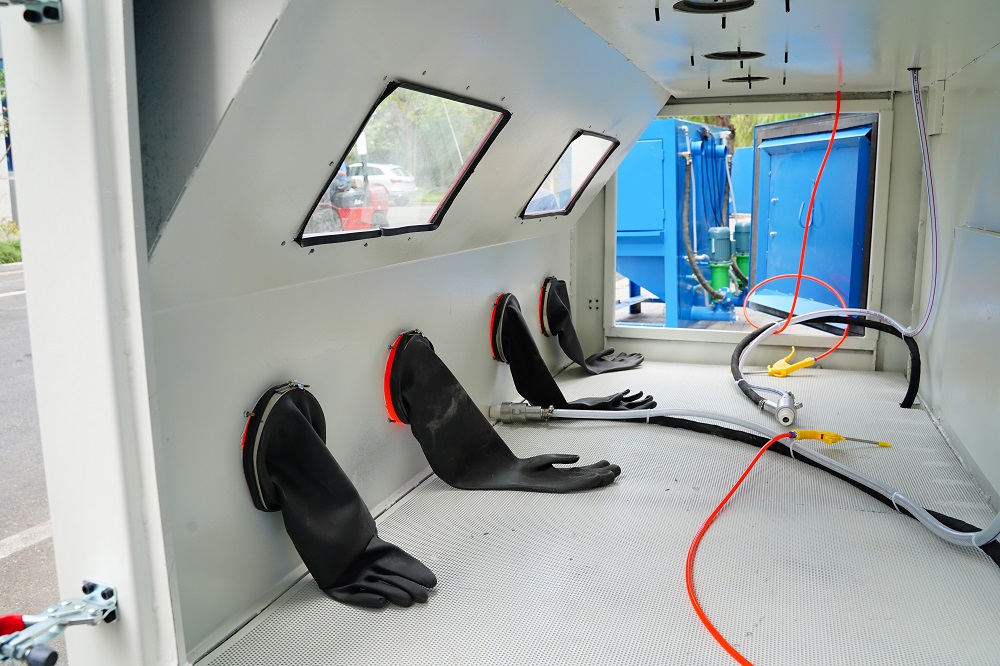

These sand blast cabinets are designed with 2 working stations allow one or two users to operate together for oversized workpieces, while the big internal space offering your great flexbility. The working size of each blast cabinet can be customized based on product specification.
1. Cartridge filter remove system effectively collect dust, and ensures only clean and dustless air discharged to the atmosphere

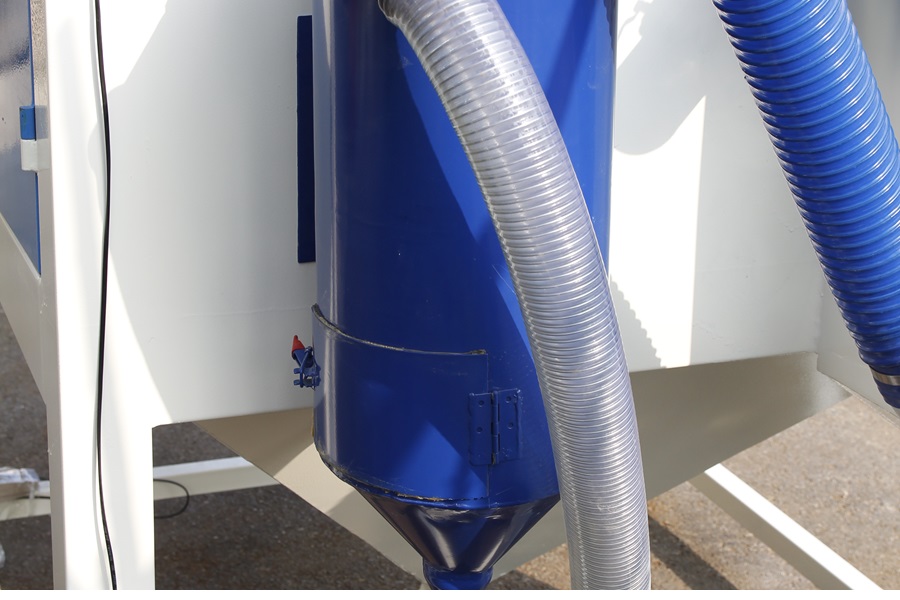

2. A cyclone separating system can be equipped if using ultra fine abrasive, enable the filter only collect the dust, reduce abrasive consumption.
3. Blasting gun is aluminum alloy casting with boron carbide nozzle, durable and reducing fatigue of sandblasting operators.
4. There is an abrasive funnel at the bottom of the blast cabinet, used abrasives can be recycled to save cost.
5. Foot pedal switch to control the work of blasting gun, which reduces the user’s fatigue, facilitates the operation and ensures the safety
cartridge filters
powder recovery hopper
filter cartridge dust collector
pulse-jet filter cleaning device
| Model: | KF-2010-2 |
| Working Dimension | Length2000 * width1000 * Height850mm |
| Overall Dimensions: | Length2100 * width1500 * Height1700mm |
| Power: | 220V/380 50Hz/60Hz (customized) |
| Body plate thickness: | 2mm |
| Cabin lights | 220V 13W anti-riot lights |
| Motor Power | 0.75kw |
| Work piece sandblasting gun: | 2 pieces |
| Compressed air source: | 3-8bar (kg / cm2) |
| Flow | 0.6-1.0 cubic meters / min |
1. Kafan sand blast cabinets are built in-house, directly monitor the quality and control the production cost.
2. Each blast cabinet is tested for well performance before delivery, and strictly and strongly packed
3. Imported main components, 2mm steel plate welded body, anti-rust coated surface, all ensures durability and long lifespan.
2. One year warranty, any quality problems with the parts, we will provide replacement for free. (not including wearing parts)
3 Build wearing parts warehouse to facilitate customers who need replacements, offer customer equipment maintenance knowledge.
4. Free technical consulting services before and after sales, and provide equipment update information.
