You are here: Home » Products » Sandblasting equipment » Suction blast cabinet » Glass Bead Blast Cabinet

Glass Bead Blast Cabinet

Glass bead blast cabinets are economical for finishing jobs as glass beads are in high recycling rate to save production cost.
  • KF-6050
  • kafan

Glass Beads Blast Cabinet

Our blast cabinets are designed to use glass beads for finishing jobs. This beads blast cabinet is a suction type blaster, which works by an air jet sucks the media up to the blast gun and the media is mixed in just before it exits through the nozzle. Suction blasting supports most basic applications while requires less budget and less maintenance.

glass bead blast cabinet

Why Choose Glass Bleads for Blasting?

Glass beads are one of the most used recycle abrasives as the round shape character, they are fairly cheap considering they can often be recycled twenty to thirty times when used properly, not only maintains the integrity of most parts they contact, but improves visibility of working chamber.

Glass Beads Blast Cabinet Features

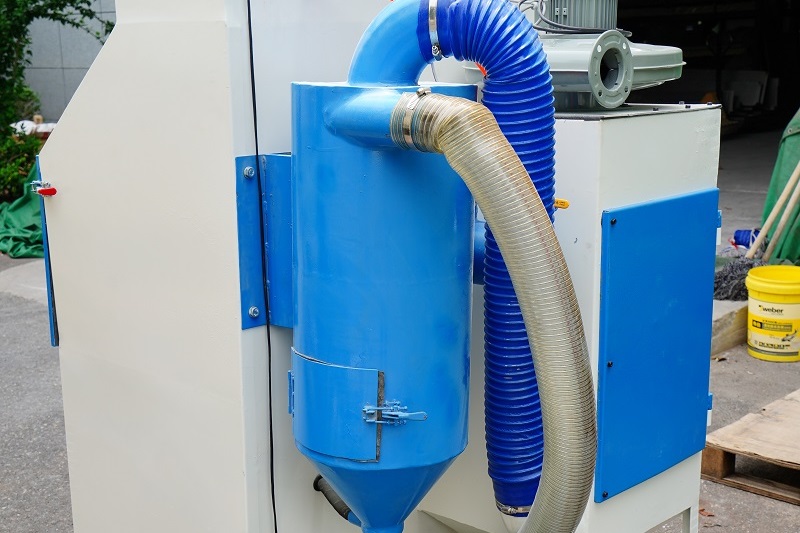

  • The blast cabinet is configured with a cyclone system for specially separating dust and ultra fine abrasives

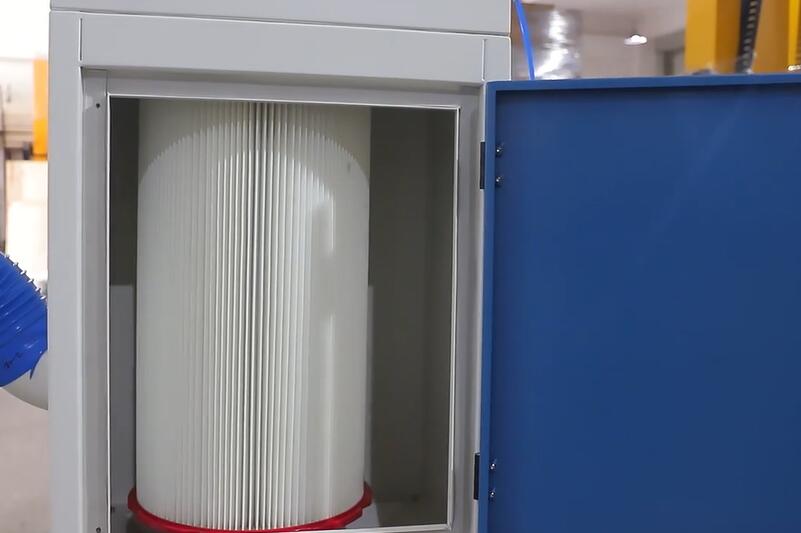

  • The cartridge filter dust collector keeps dust away and improves the visibility inside the blast cabinet.

  • Standardly configured with 1 set of blasting gun with boron carbide nozzle, which is most durable material in the market.

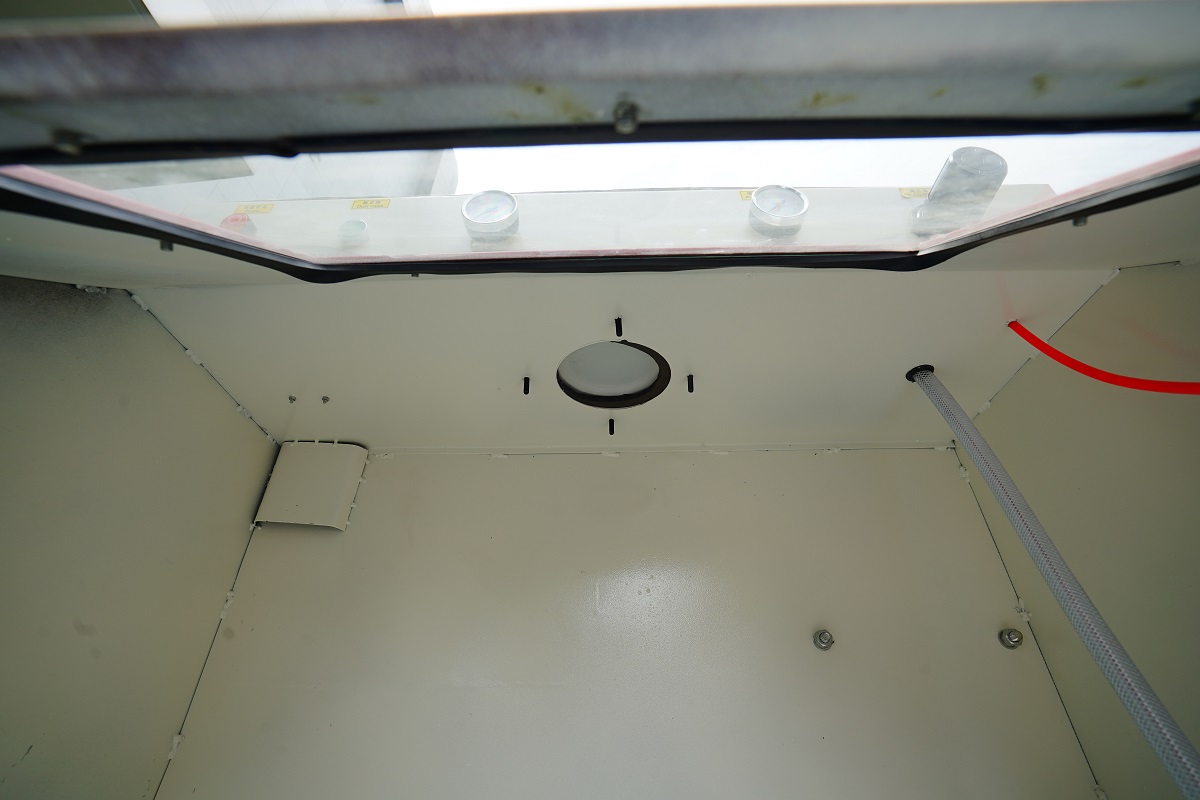

  • Overhead energy-saving light inside the cabinet provides bright sight for operation handle.

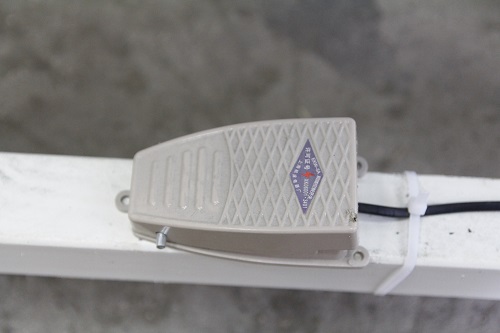

  • Safe and reliable foot pedal switch to control the work of blasting gun, which reduces the user's fatigue and facilitates the operation.



Overhead Light

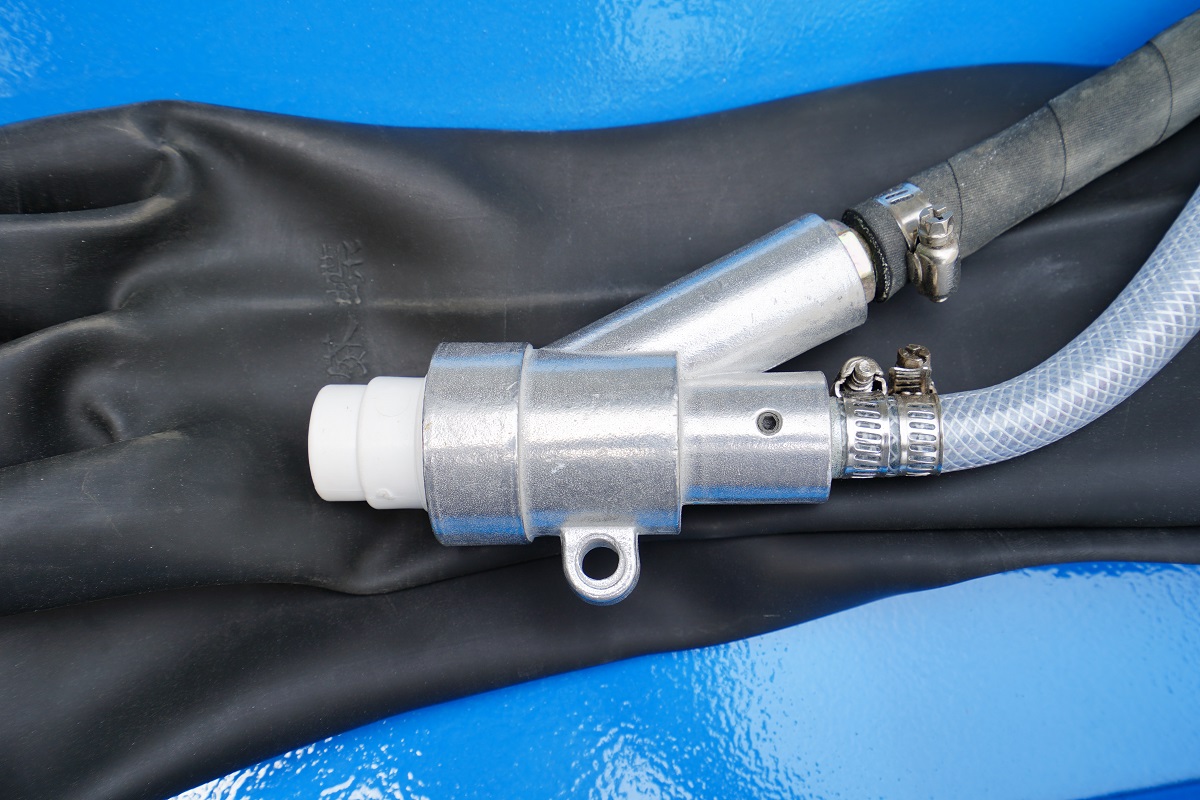

Blast Gun

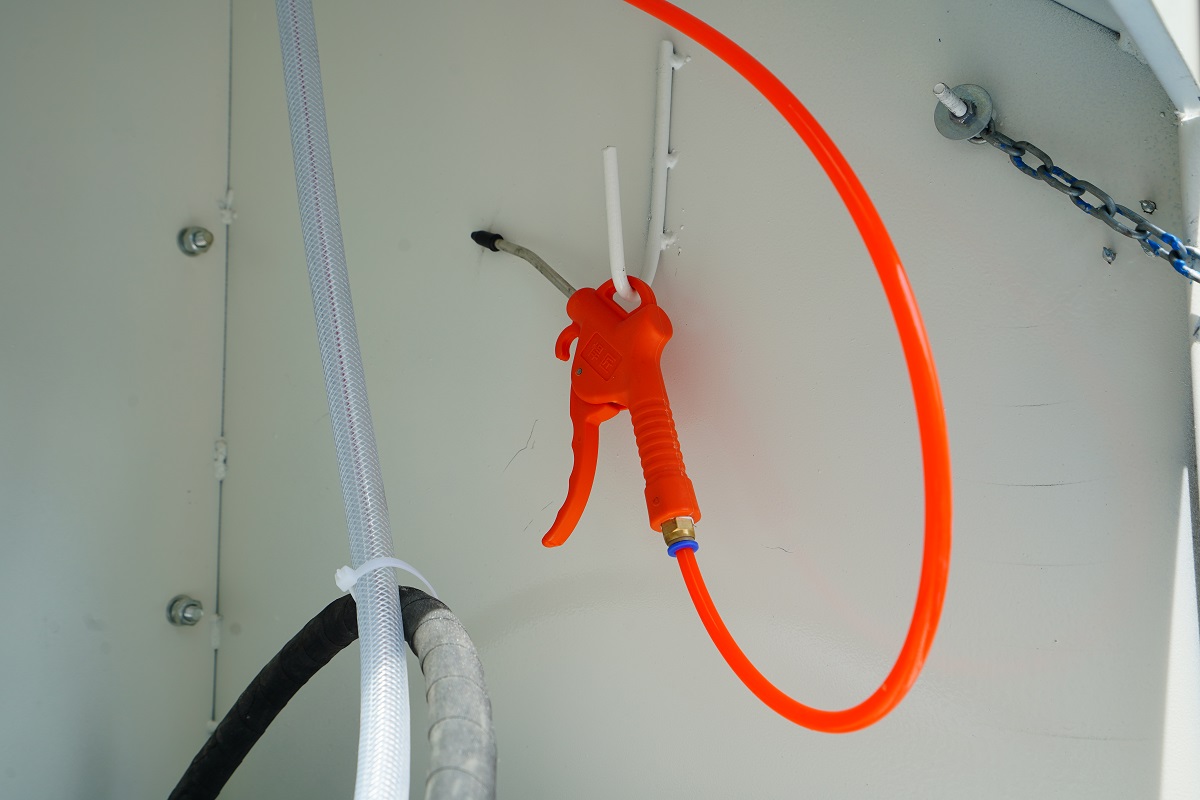

Air Blowing Gun

CL-9060 Glass Beads Blast Cabinet Specifications

Dimension: length1130mm *width700mm*height1650m
Working size: length900mm *width600mm*height650m
Dust collector size 430 mm * 380 mm * 1500 mm
Dust collector power  0.75KW 220V 50HZ
Number of guns:  1 (boron carbide, 8mm nozzle)
Operating opening:  1 pair gloves
Power:  220V / 50HZ / 550W
Working pressure:  2-7bar
Machine lighting:  220V 13W energy saving lamp
Dust removal method:  cartridge filter type
Air source requirements:  pressure 7bar (kg / square meter)
Required Flow:  0.8-1.2 m3 / min
Body material:  2mm cold-rolled plate (powder coated surface, durable and long life)

Glass Beads Blast Cabinet Standard Models for Choice:

Model Outer Dimension(L*W*Hmm) Working Dimension(L*W*Hmm)
CL-6050 830*600*1500 600*500*650
CL-7050 930*700*1500 700*500*650
CL-9060 1030*900*1650 900*600*650
CL-9080 1230*900*1700 900*800*800
CL-1010 1430*1100*1800 1000*1000*800
CL-1212 1620*1300*1800 1200*1200*800
