KF-1212FTA
Kafan
Sandblasting Cabinet
Availability: | |
---|---|
Quantity: | |

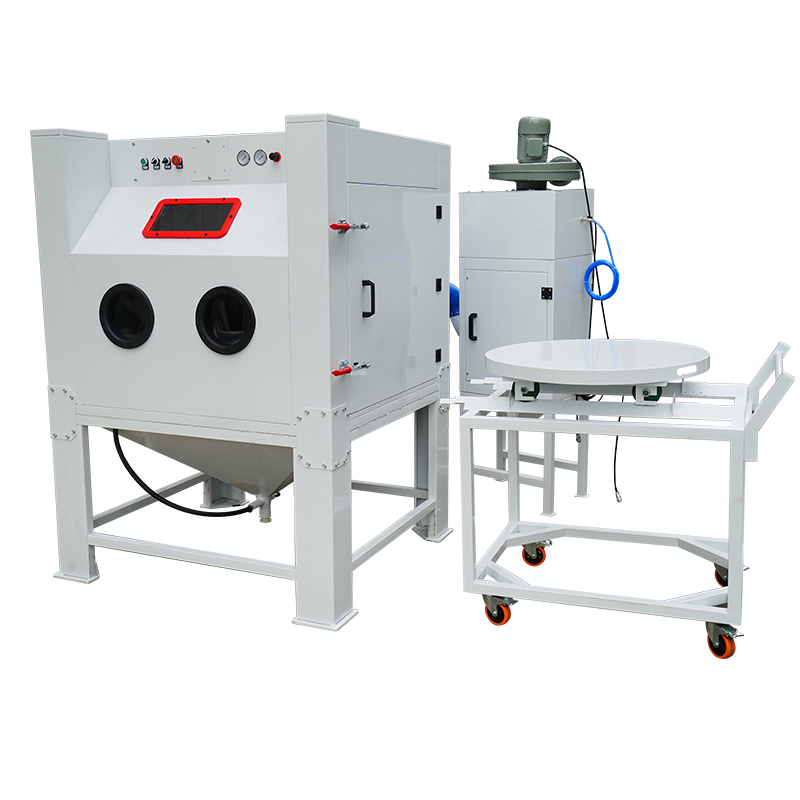

Industrial Sandblasting Cabinet with turntable and cart is specially applicable for surface treatment of cyclinder shape, irregular-shaped or heavy products, like mold, statue, motor, car wheells, etc, which significantly reduce efforts and increase the working efficiency.
In the manual sandblast cabinet, users handle the workparts through a manual blast gun controlled via foot switch, at the same time manually rotate the turntable, thus all sides and corners can be precisely cleaned.
The turntable loading the workparts is easy to move inside and outside through the track assembly, ideal for blast cleaning larger, heavier components. The cart makes the it convenient to transport the tools.
Sandblasting Chamber
Well-sealed enclosed cabinet without dust leakage or abrasive leakage, always keep the environment clean.
Our blast cabinet are welded from 2mm durable steel plate, and powder-coated surfaces, anti-rust and extented life.
Turntable and Cart (optional)
These blast cabinets often incorporate a turntable with cart on a track extension used to roll the tooling in and out with minimal force. The size of turntable can be made as atual needs.

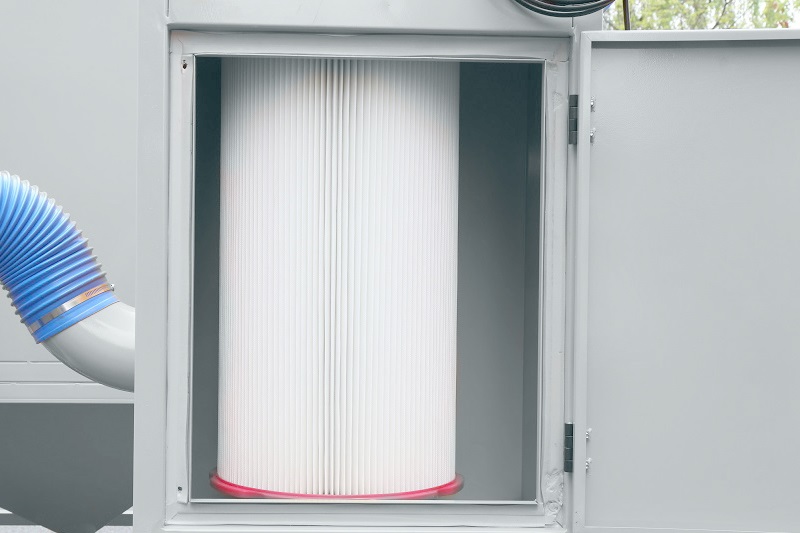

Filter Dust Collector
An independent cartridge filter dust collector effectively remove dust from the working chamber, ensure the pure abrasives are recycled, and it keeps dust away from the operator's window for increased visibility and accuracy when cleaning.
Blasting Gun
Long-life blasting gun is made of alloy holder and durable boron carbide nozzle, which is the most durable material in the market.
Foot Control
Blast gun working is controlled by foot pedal switch, increase safety and reduce operator's fatigue.
Model | KF-1212FTA |
Overall Dimension | Length1200 * Width1680 * Height1840 (mm) |
Work Chamber | Length1200 * Width1200 * Height800 (mm) |
Turntable | Diameter 800mm |
Loading | Max. 200kgs |
Door Size | W830xH770mm |
Power Supply | 110V/220V, 50-60Hz (customized) |
Motor Power | 0.75kw |
Lighting | 18w Fluorescent |
Blasting Gun | 1 piece with boron carbide nozzle |
Compressed Air | 5-8 bar(kg/cm2) |
Flow | 0.5-1.2m3/min |
1. More environmental-friendly than chemical cleaning and cleans more thoroughly than dry ice blasting.
2. Cause no pollution on the workpieces surface and no chemical reaction between workpieces and blasting media
3. Corners or other awkward places can be easily reached and cleaned by sandblasting machine.
4. Processing by sandblasting cabinet can greatly improve the surface cleaning and reduce much manual effort.
5. One machine can obtain various surface treatments, such as removing rust and scales, stripping old coats, matt-finishing, carving, etc
Industrial Sandblasting Cabinet with turntable and cart is specially applicable for surface treatment of cyclinder shape, irregular-shaped or heavy products, like mold, statue, motor, car wheells, etc, which significantly reduce efforts and increase the working efficiency.
In the manual sandblast cabinet, users handle the workparts through a manual blast gun controlled via foot switch, at the same time manually rotate the turntable, thus all sides and corners can be precisely cleaned.
The turntable loading the workparts is easy to move inside and outside through the track assembly, ideal for blast cleaning larger, heavier components. The cart makes the it convenient to transport the tools.
Sandblasting Chamber
Well-sealed enclosed cabinet without dust leakage or abrasive leakage, always keep the environment clean.
Our blast cabinet are welded from 2mm durable steel plate, and powder-coated surfaces, anti-rust and extented life.
Turntable and Cart (optional)
These blast cabinets often incorporate a turntable with cart on a track extension used to roll the tooling in and out with minimal force. The size of turntable can be made as atual needs.
Filter Dust Collector
An independent cartridge filter dust collector effectively remove dust from the working chamber, ensure the pure abrasives are recycled, and it keeps dust away from the operator's window for increased visibility and accuracy when cleaning.
Blasting Gun
Long-life blasting gun is made of alloy holder and durable boron carbide nozzle, which is the most durable material in the market.
Foot Control
Blast gun working is controlled by foot pedal switch, increase safety and reduce operator's fatigue.
Model | KF-1212FTA |
Overall Dimension | Length1200 * Width1680 * Height1840 (mm) |
Work Chamber | Length1200 * Width1200 * Height800 (mm) |
Turntable | Diameter 800mm |
Loading | Max. 200kgs |
Door Size | W830xH770mm |
Power Supply | 110V/220V, 50-60Hz (customized) |
Motor Power | 0.75kw |
Lighting | 18w Fluorescent |
Blasting Gun | 1 piece with boron carbide nozzle |
Compressed Air | 5-8 bar(kg/cm2) |
Flow | 0.5-1.2m3/min |
1. More environmental-friendly than chemical cleaning and cleans more thoroughly than dry ice blasting.
2. Cause no pollution on the workpieces surface and no chemical reaction between workpieces and blasting media
3. Corners or other awkward places can be easily reached and cleaned by sandblasting machine.
4. Processing by sandblasting cabinet can greatly improve the surface cleaning and reduce much manual effort.
5. One machine can obtain various surface treatments, such as removing rust and scales, stripping old coats, matt-finishing, carving, etc
Located in Hangzhou, China, we we own a manufacturing base of 3600 square meter, around 100 employees and 24 sets production equipment, dividing into technical department, sales department, after-sale department, production department, QC department, manage and finance department, etc. As a fast growing company in supplying sandblasting equipment and mass finishing equipment, we devoted all ourselves to offering solution for any surface finishing problems.
Our products can be divided into two main parts, sandblasting equipment and mass finishing machines.
Sandblasting equipment including: manual sandblasting machine, suction sand blast cabinet, pressure blasting machine, wet abrasive blasting equipment, portable blaster pot, automatic conveyor blast system, tumbler blaster, rotary table blast machine, crawl blast machine.
Mass finishing system including: vibratory polishing & deburring bowl, vibratory bowl with separator, centrifugal barrel tumbling machine, centrifugal disc finishing system, mass finishing media.
We offer service: Standard Production Models, Customized Design, Before-order Technical Support, Engineer Oversea Installing & Training, Free Sample Testing, 24 hour On-line Consulting, ODM, OEM.
Kafan - Professional Manufacturer of Sandblasting Equipment
All sandblasting machines are made in house by rich experienced production team of Kafan, we can directly control the cost and quality. To pursue best performance, each machine body is steel plate welded with powder coated surface, durable, wear-resistant and long lifespan, and the main components are imported, by all of which we ensure 1 year warranty period for any quality problem. For sea shipping, we will strictly packed in film and foam first, with wooden case outside to make sure it is safe and intact to your country.
Located in Hangzhou, China, we we own a manufacturing base of 3600 square meter, around 100 employees and 24 sets production equipment, dividing into technical department, sales department, after-sale department, production department, QC department, manage and finance department, etc. As a fast growing company in supplying sandblasting equipment and mass finishing equipment, we devoted all ourselves to offering solution for any surface finishing problems.
Our products can be divided into two main parts, sandblasting equipment and mass finishing machines.
Sandblasting equipment including: manual sandblasting machine, suction sand blast cabinet, pressure blasting machine, wet abrasive blasting equipment, portable blaster pot, automatic conveyor blast system, tumbler blaster, rotary table blast machine, crawl blast machine.
Mass finishing system including: vibratory polishing & deburring bowl, vibratory bowl with separator, centrifugal barrel tumbling machine, centrifugal disc finishing system, mass finishing media.
We offer service: Standard Production Models, Customized Design, Before-order Technical Support, Engineer Oversea Installing & Training, Free Sample Testing, 24 hour On-line Consulting, ODM, OEM.
Kafan - Professional Manufacturer of Sandblasting Equipment
All sandblasting machines are made in house by rich experienced production team of Kafan, we can directly control the cost and quality. To pursue best performance, each machine body is steel plate welded with powder coated surface, durable, wear-resistant and long lifespan, and the main components are imported, by all of which we ensure 1 year warranty period for any quality problem. For sea shipping, we will strictly packed in film and foam first, with wooden case outside to make sure it is safe and intact to your country.
