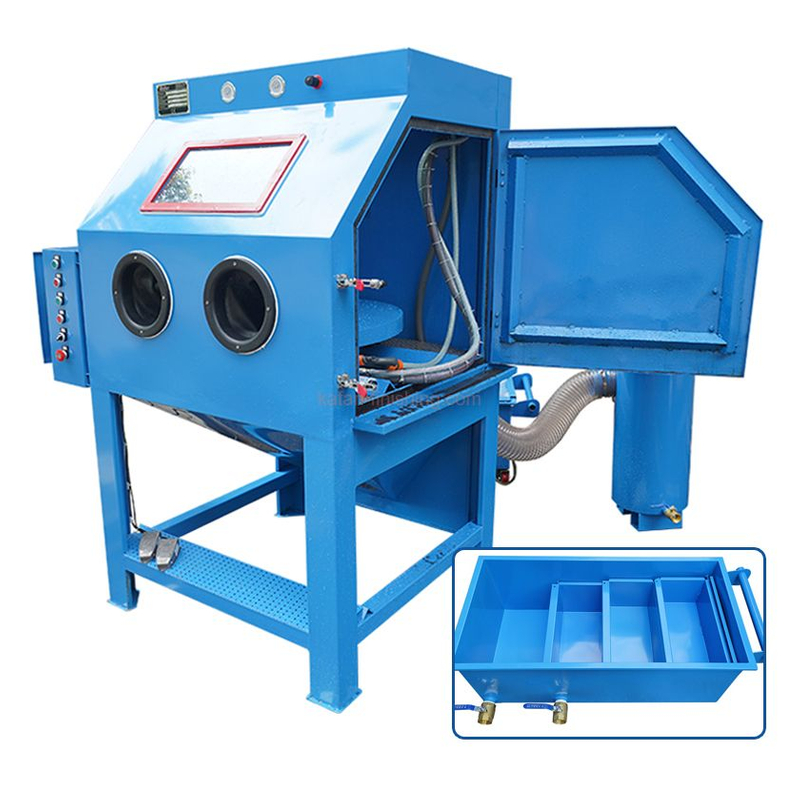

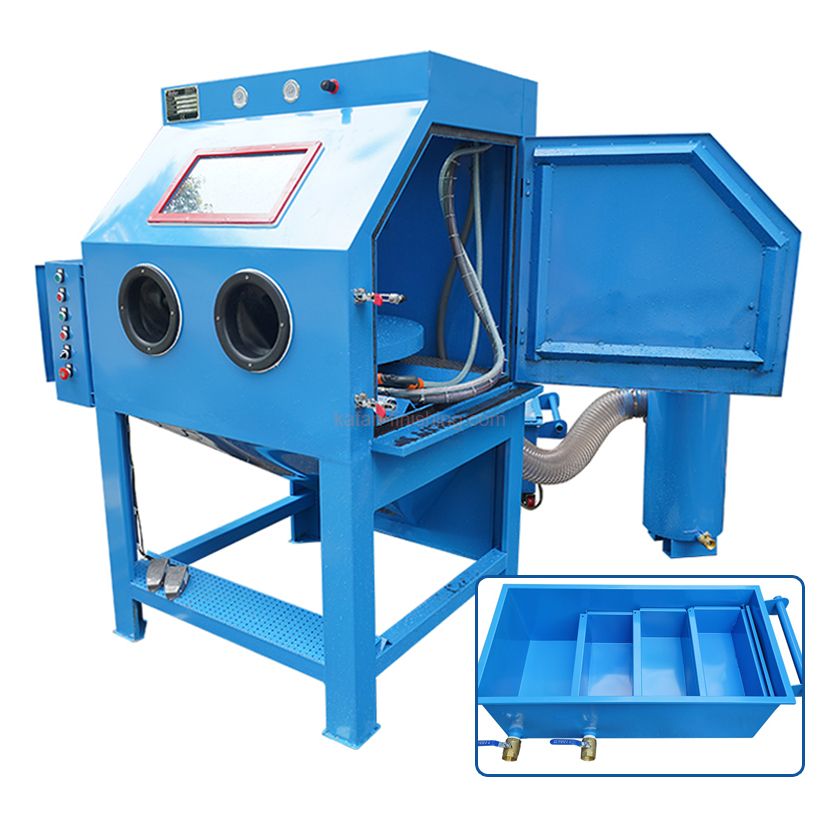

Closed Loop Wet Blast Cabinet with Water Recirculating System
Kafan Wet blasting cabinet works by using a high performance pump that agitates water and media into a slurry mixture and delivers it to the blast nozzle. An excellent water recirculating system, a high-capacity slurry pump and a high-flow wet-blast gun make this model an impressive performer for industrial wet blasting applications.
How A Closed Loop Wet Blast System Works?
The closed loop blast system has a baffled settling tank interconnected to the blast cabinet slurry hopper for water recirculating. Our design ensures more abrasives settled in the slurry hopper re-using and more water can be conveyed to the tank and for recirculating

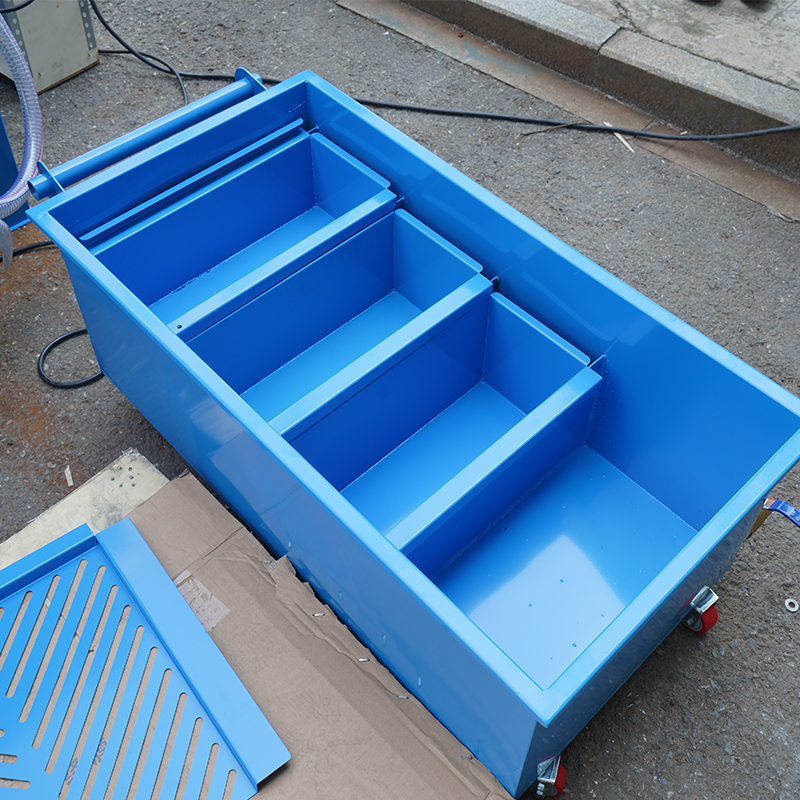

The baffled settling tank is designed to create a weir-like path for the water flow, slowing down to allow the solid particles settling to the bottom.
A closed loop wet blast cabinet does not require running water, which only requires a compressed air supply and a power source to operate.
Kafan Wet Blasting Cabinet Standard Configurations
Made of 3mm thick coated stainless steel, rigid and anti-rust.
Window washer keeping a clear view during the wet blasting
High-flow wet blast gun with 8mm boron carbide nozzles
A water gun to flush the residual dusts and abrasives
An additional demister ensures higher quality working conditions.
Slurry pump delivering highest mixture of abrasive and water.
Kafan Wet Blasting Cabinet Advanced Configurations

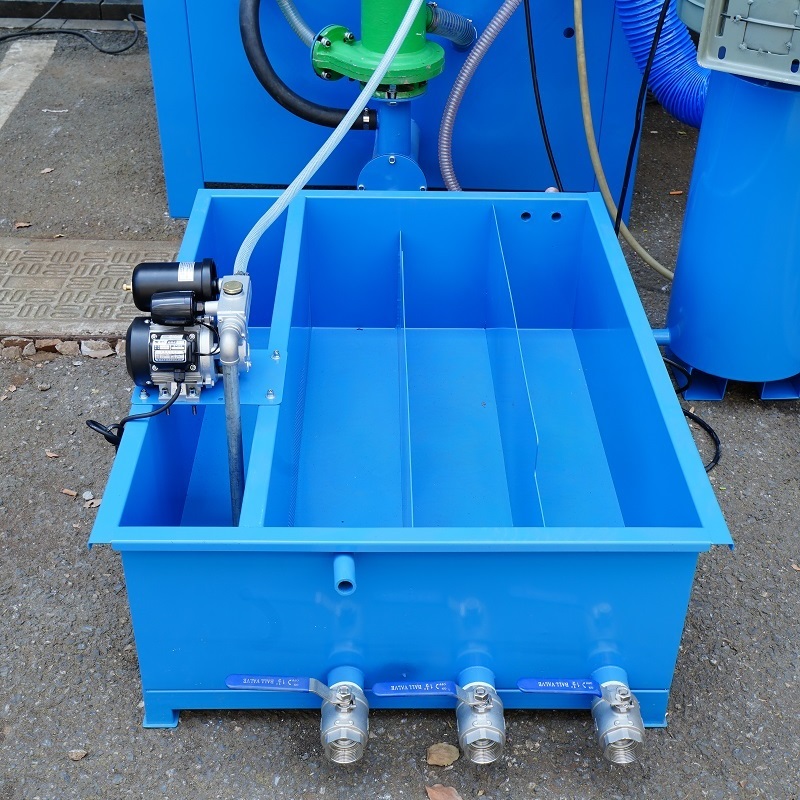

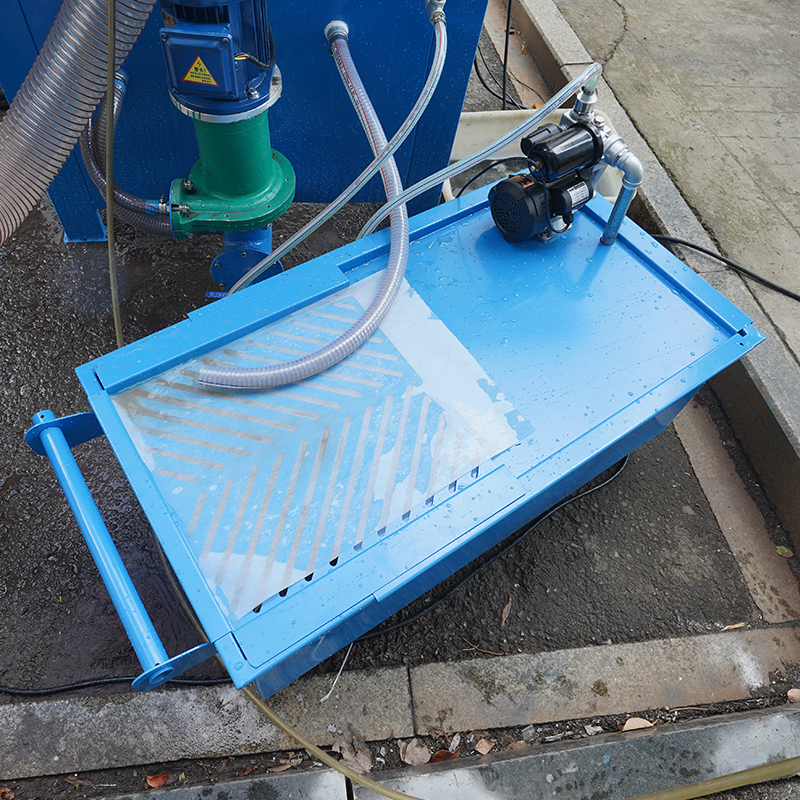

Water Recirculating System (optional)
The water recirculating system for is an optional choice. The blasted slurry mixture will be transferred to the tank for separating of water and abrasive. Once you add abrasive and clean water to the cabinet, you recycle them until you want to change it out.
A skimmer is configured to remove floating oil or grease.
If in your workshop running water is not available there, or worrying about waste water disposal, a closed loop wet blast cabinet is a good choice.
Heavy-duty Turntable (optional)
The wet blasting cabin can be added with a heavy-duty turntable for easily operating larger, heavier, complex components, giving operators an easy access to clean surfaces and corners.
It can be designed for manual or automatic rotating as per your demands
The heavy-duty turntable loading the workparts is easy to move inside and outside across the track assembly, also can be configured with a cart making it convenient to transport the tools.
KF-1212W Closed Loop Wet Blasting Cabinet Specifications
| Model | KF-1212W |
| Outer size | 1300*1600*2000mm |
| Working area | 1200*1200*800mm |
| Motor | 2.2Kw |
| Air requirement | flow 0.5-1.1m^3/min |
| Light | 2*18w saving lamps |
| Blast Gun | 1 pc of wet blast gun with 1 boron cabide nozzle (8mm) |
| Air consumption for 1 gun | 0.4-0.8Mbar |
| Volume of abrasive & water | 25L |
| Suitable abrasive | Glass beads(for aluminum, stainless steel) Brown Aluminum Oxide(stell or other)80#-320# |
| Feed abrasive | 4-6kg |
| Abrasive : Water | 1:3 |
| Voltage | 380V/220V 3 phase (customized)
|
Standard models of Wet Blasting Cabinet for Choice
| Model | KF-1610W(double gun) | KF-1212W | KF-1010W | KF-9080W | KF-7070W |
| Working size | 1600*1000*800mm | 1200*1200*800mm | 1000*1000*800mm | 900*900*800m | 700*700*800mm |
Wet Blasting Cabinet Wide Applications
The wet blasting cabinet is widely used for removing rust, scale, paint, and contaminants from metal parts, injection molds, casting and forging dies, etc. As well as surface finishing & polishing to provides uniform matte, satin, or polished finishes on metals, plastics, ceramic, etc, enhances aesthetic appearance and improves adhesion.
It is the initial choice for restoration of Antique & Automotive Parts: gently cleans and restores vintage car & motorcycle parts and historical artifacts without damage. And precise cleaning of delicate parts in aerospace, electronic, medical industries.
Wet Blasting Advantages
1. Clean Finish. During process, with water washing makes no media impregnation into the parts, You're doing the treatment and cleanup all in one go.
2. Gentle Finish: whether you are cleaning or smooth the surfaces, the introduce of water makes the impact more gentle. Even though the media are strong enough to get the job done, this gentle process makes it possible to preserve your surface better.
3. More Even Finish. Dry blasting machine finishes a surface by hitting it at an angle. While this can be effective, it does risk the result of an uneven surface. However the liquids spreads around the surface which will make more even finishing.
