KF-1610W-2
Kafan
Kafan wet blasting cabinet can be configured with a recirculating rinse tank interconnected to the slurry hopper for a closed loop system. thus running water is not as necessary as possible, and you will not worry about waste water disposal.
This model is specially designed with double working station for operating large products, and allows 2 operators process at the same time to improve efficiency.
Wet blaster works through a high-capacity slurry pump that agitates water and abrasives into mixture, which is delivered to a high-flow wet-blast gun to hit the surfaces for treatment. A closed loop wet blast cabinet only requires a compressed air supply and a power source to operate. Once you add abrasive and water to the cabinet, you recycle the clean water and abrasive slurry until you want to change it out.
Made of 3mm thick stainless steel with powder-coated surface, rigid and anti-rust.
The glass window with water sprayer and wiper, plus high-output fluorescent lighting provide excellent visibility,
Durable wet blast gun with 8mm boron carbide nozzles specially for wet blasting process,
Reliable foot pedal controls the working of blast gun to increase operation safety.
A demister at the back of the machine for better view of blasting process.
Slurry hopper connected with recirculating rinse tank makes water and abrasives recycled to saves cost.
Simple structured wet blast cabinet requires less maintenance.
Electric & Pneumatic Control
Wet Blasting Gun
Foot Pedal Switch
Window Washer
Slurry pump & Demister
Recirculation Rinse Tank The dual-station wet blast cabinet can be used as a large cabinet or added with a divider for two individual working chamber.

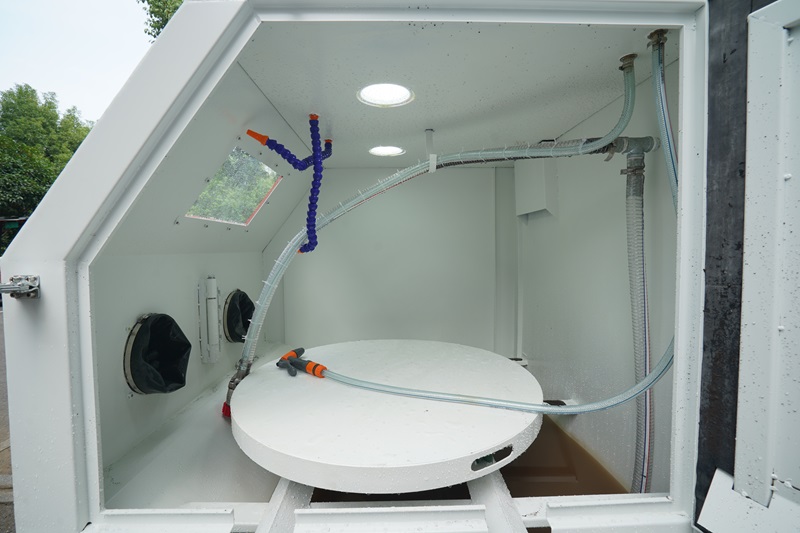

Blasting Chamber
with Turntable The wet blast cabinet is optionally incorporated a turntable with cart, the turntable is fitted on a track extension used to roll the heavy workparts in and out with minimal force. During working, Users handle the parts through a manual blast gun at the same time rotate the turntable, thus all surfaces and corners can be easily cleaned.
| Model: | KF-1610W |
| Dimensions: | 1700*1500*800mm |
| Working cabin size: | 1600*1000*800mm |
| Power: | 220V 50HZ |
| Body plate thickness: | 2mm |
| Cabin lights | 220V 13W Energy-saving Lights |
| Machine weight: | 320Kg |
| Separator motor: | 220V 50HZ 550W |
| Separator power: | 0.55KW |
| Separator air volume: | 4.5m3 / min |
| Work piece sandblasting gun: | 2 pieces |
| Compressed air source: | 3-8bar (kg / cm2) flow 0.6-1.0 cubic meters / min. (User-owned) |
| Model | KF-1610W (double gun) | KF-1212W | KF-1010W | KF-9080W | KF-7070W |
| Working size | 1600*1000*800mm | 1200*1200*800 mm | 1000*1000*800mm | 900*900*800 mm | 700*700*800 mm |
