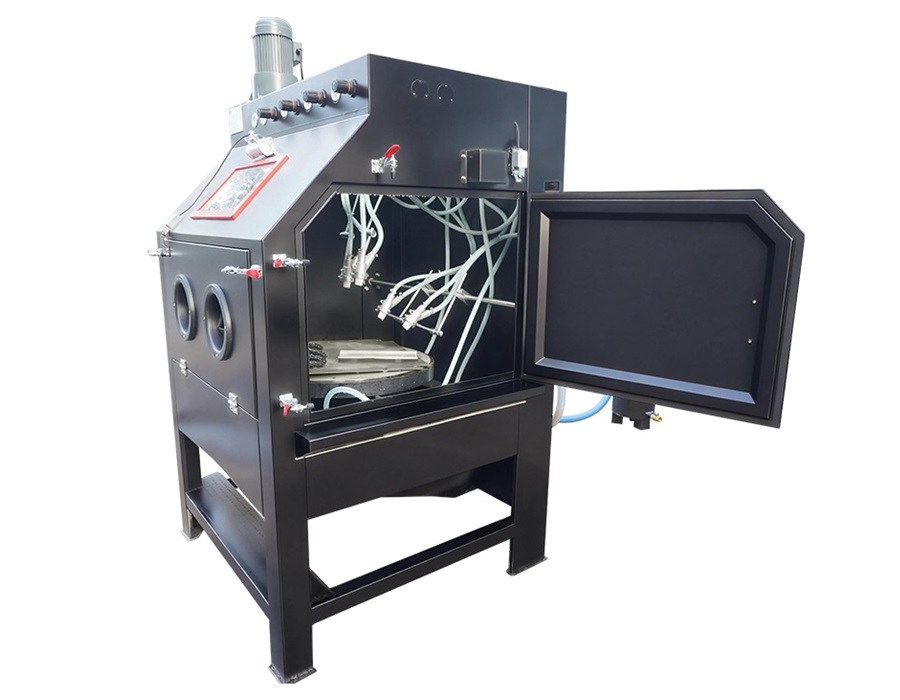

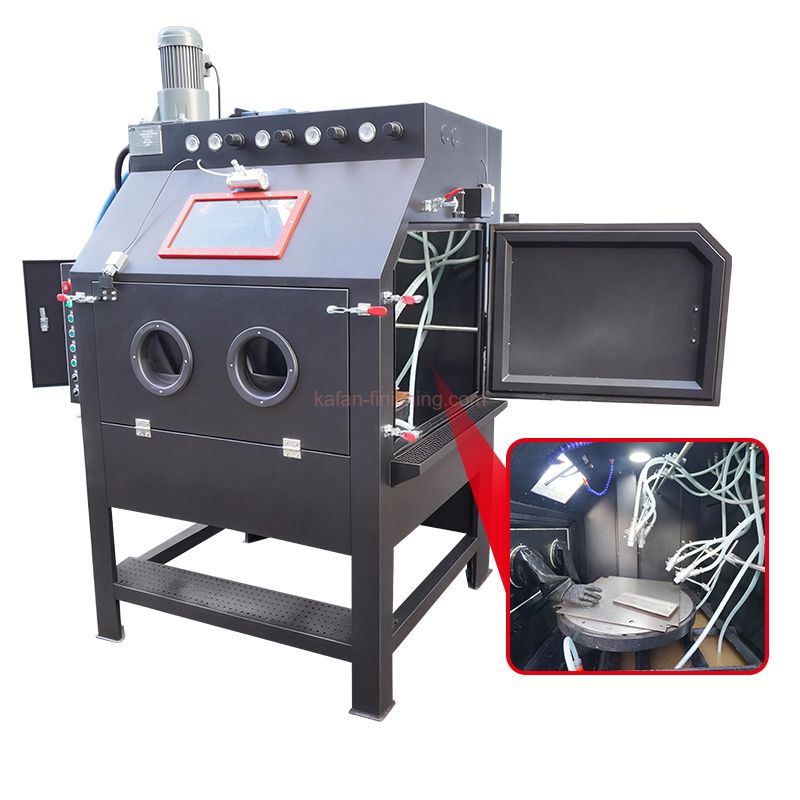

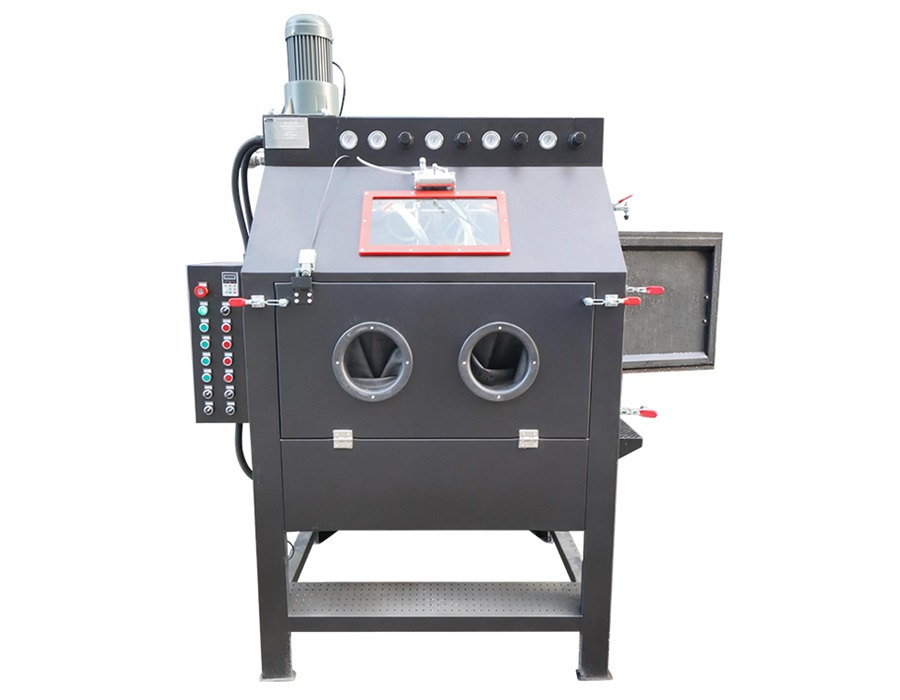

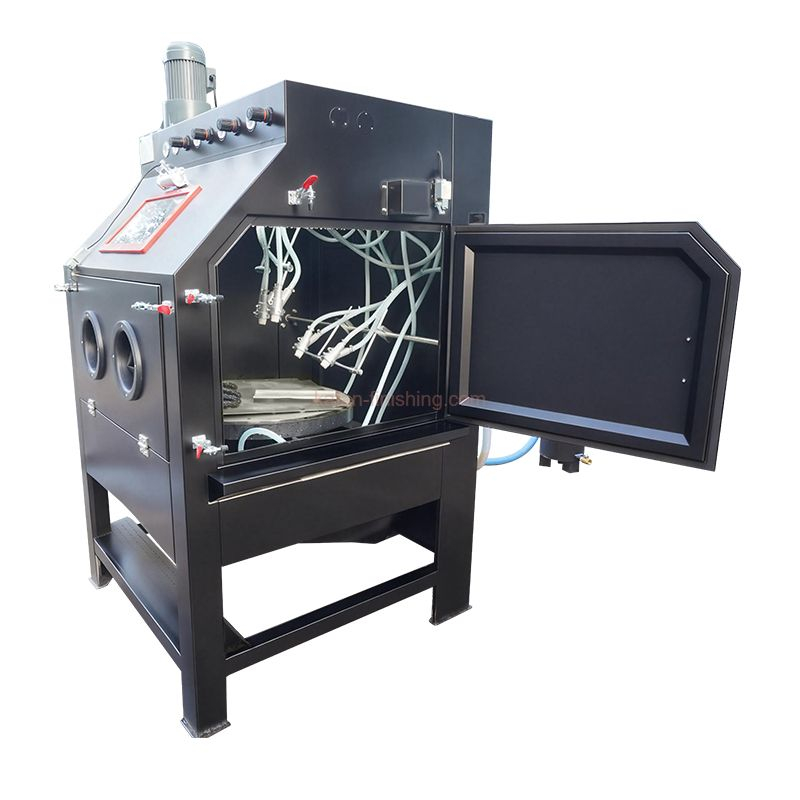

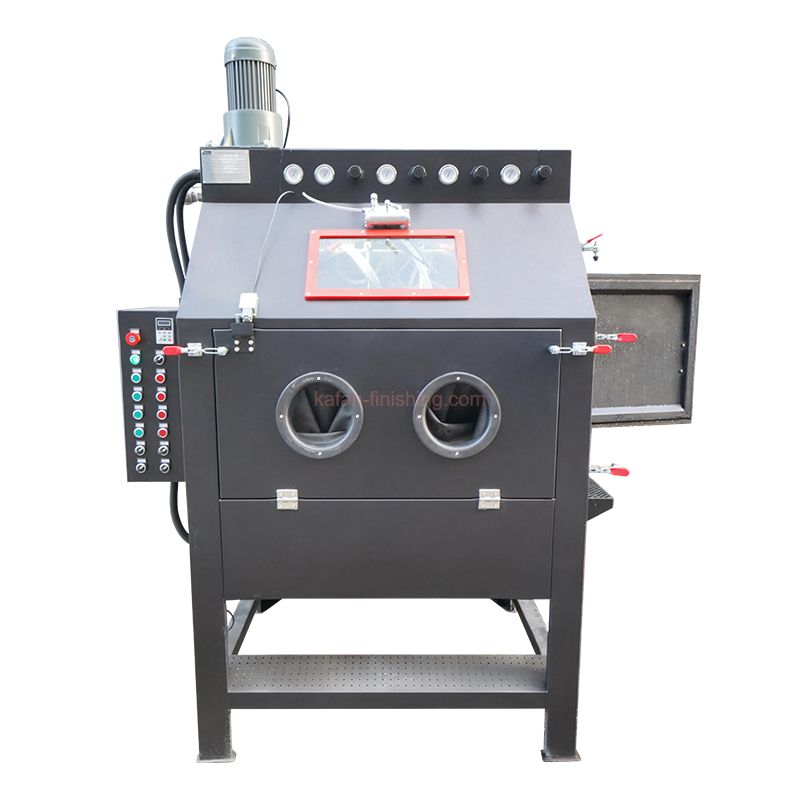

Fully-automatic Wet Blasting Cabinet with Turntable

Fully-automatic Wet Blasting Cabinet with Turntable

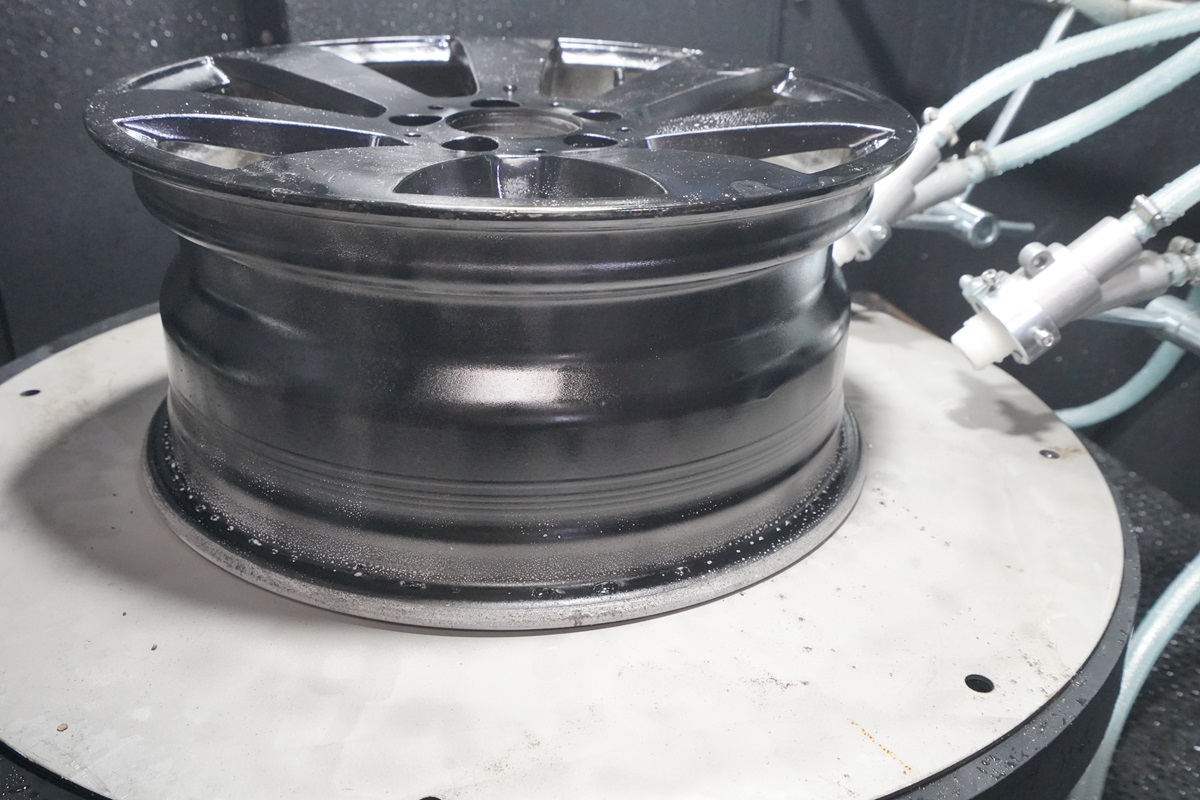

This wet blasting cabinet is specially designed with automatic guns and automatic turntable, achieves fully automatic, unmanned operation. As the guns oscillated blasting, the turnatble continuously rotates, which ensures a full coverage of abrasive flow, especially suitable for complex-shaped, three dimensional objects, such as steel beam, alloy wheels, casting molds, etc.

Automatic Wet Blast Cabinet Excellent Features

It greatly reduce operator's efforts, saves time, and improve finishing consistency by automatic operation.

It is flexible as it configures both automatic guns and a manual gun, turntable can be set for automatic or manual rotating.

If you need to deal with high volumes parts or big complex parts, use it as a automatic blaster for an efficient job,  if you just handle a very small piece, use it as a manual cabinet for a quick job.

Wet blasting creates cleaner, finer finish due to the lubrication and flushing action of the water, which meets your highest surface treatment standard.

Automatic Wet Blasting Cabinet Configurations

Our wet blast cabine is Made of 3mm thick stainless steel with coated surface, rigid and anti-rust, and consistes of high quality components to ensures working peformance.

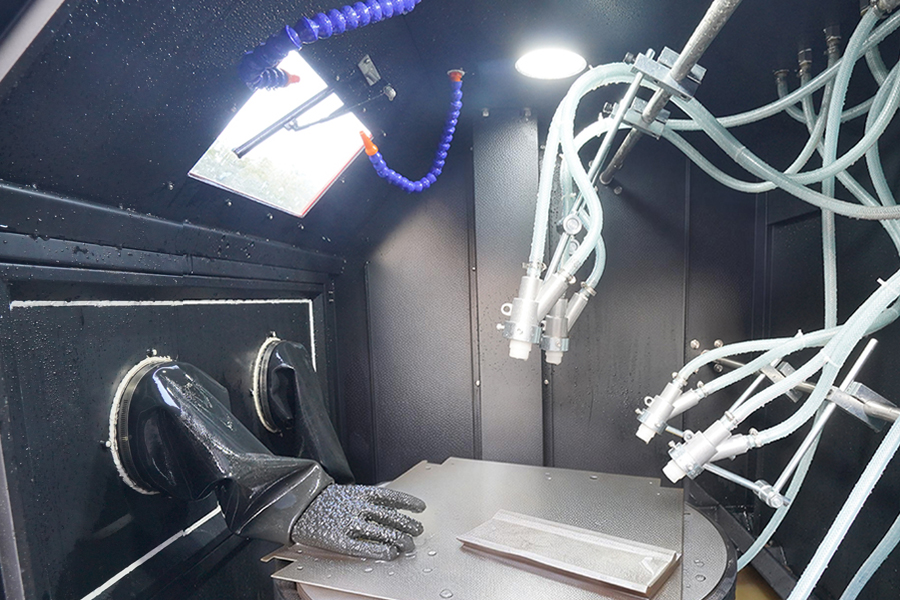

Wet Blast Cabinet

- The glass window with water washer and wiper, plus high-output fluorescent lighting provide excellent visibility and clear inspection.

- Configured with 4 pcs of automatic blast guns and 1 piece of manual gun, the automatic blast guns can be adjusted for fixing blasting or oscillating blasting.

- The blast gun quanity can be customized as production requests.

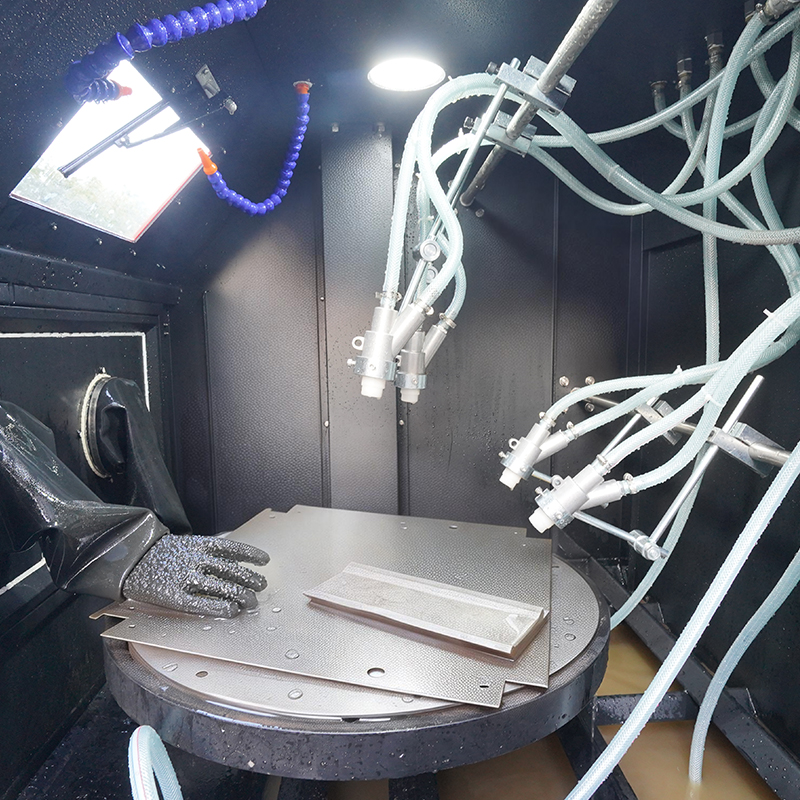

Heavy-duty Turntable

-The heavy-duty turntable is ideal for loading big and irregularly shaped workpieces,

-It can be set for automatic rotating driven via speed-adjustable motor, while set for manual operation for more precise cleaning jobs.

-Custom design can be made to suit your special needs.

Water Recirculating System (optional）

- Can be added with a recirculating tank interconnected to the slurry hopper to form a closed loop system.

- The blasted slurry mixture will be transferred to the tank and filtered for separating of water and abrasive, thus pure water and abrasives will be recycled.

- If in your workshop running water is not available there, or worrying about waste water disposal, this is a good choice.

Wet Blasting Cabinet Working Principle & Advantages

Wet blasting cabinet works through the flow of water borne abrasives, which applies a high performance pump fully agitating abrasive and water into slurry mxiture, then deliver the slurry to target surfaces through nozzle. With advantages of:

• Create dustfree blasting process

• More precise processing as cleans by flow and not impact

• Simultaneously degreases and blasts

• Produces a softer/smoother finish

• Handling without leaving finger marks

• Promotes longer media life

• Avoids media impregnation on softer materials

Kafan Wet Blasting Cabinet Specifications

*Size, Quantity of Blast Guns, Special Configurations All Can be Customized As Per Your Requests.

Why choose Kafan Automatic Sandblasting Cabinet?

1. Full automatic operation reduces labor cost while ensures efficiency and quality consistency, offering great flexiblility.

2. Our popular automatic blast machines are widely needed as we sold for 10+ years to 100+ countries with proved quality and performance.

4. Allows customers posting their samples for testing with our automatic sandblasting machines, we have a variety of standard automatic sandblasters suits for different finishing applications.

5. Each blast system is built in-house at our 4000m^2 production base, for necessary quality-control and cost-control.
