KF-1212W
Kafan
| Availability: | |
|---|---|

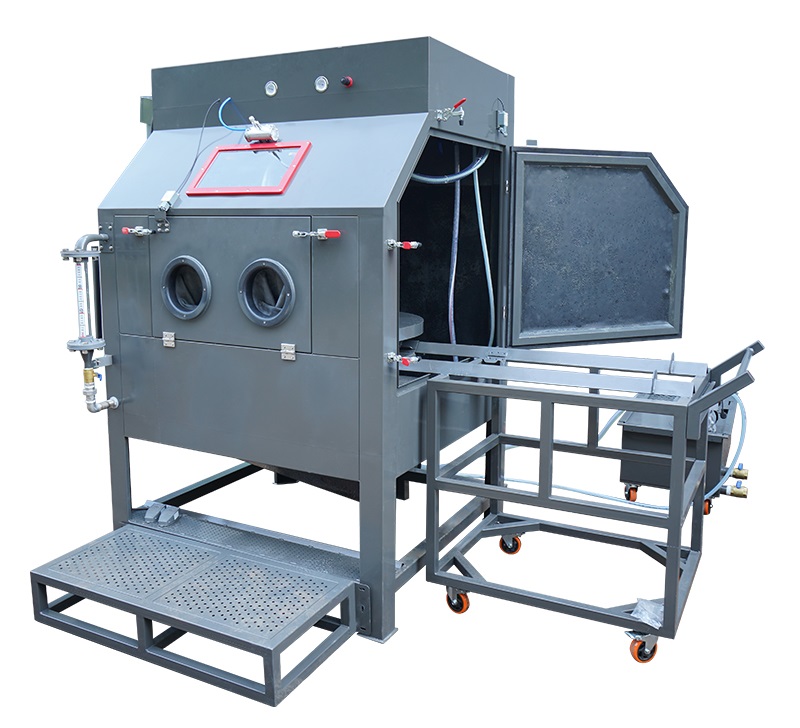

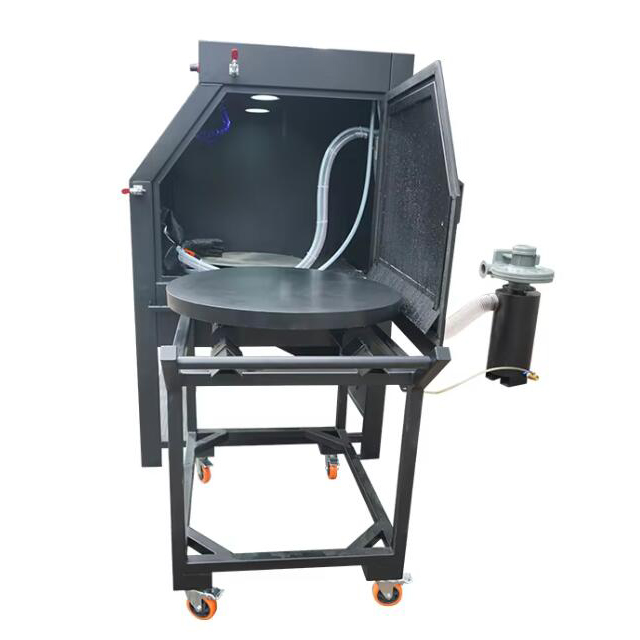

The Kafan wet blasting cabinet with turntable and cart greatly reduces operator's efforts to handling heavy and big being blasted objects, such as alloy wheels, moulds, castings or other industrial parts. Wet blasting creates cleaner, finer finish due to the lubrication and flushing action of the water, which meets your highest standard surface treatment.

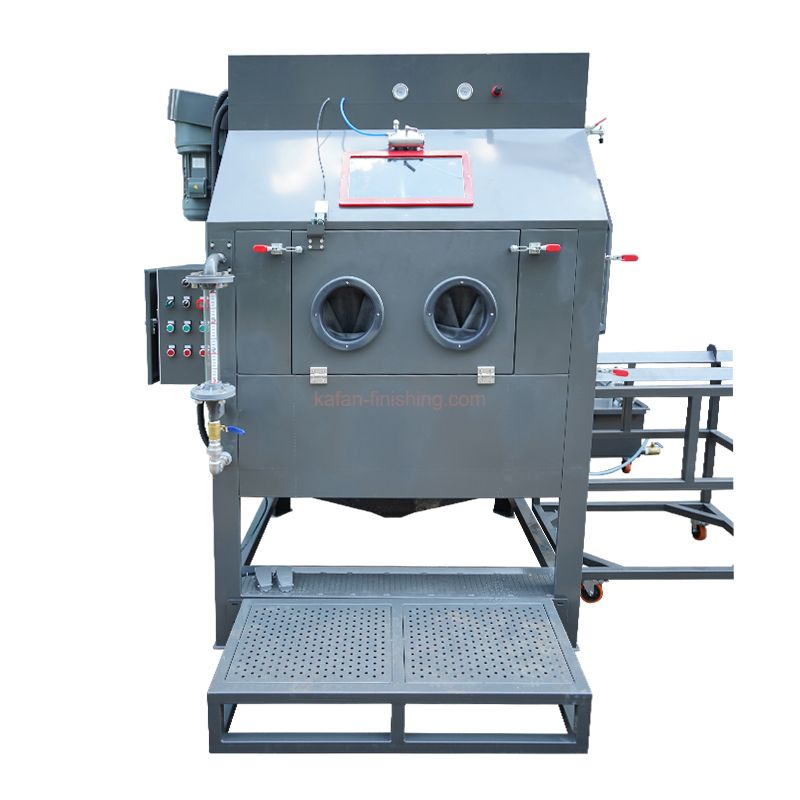

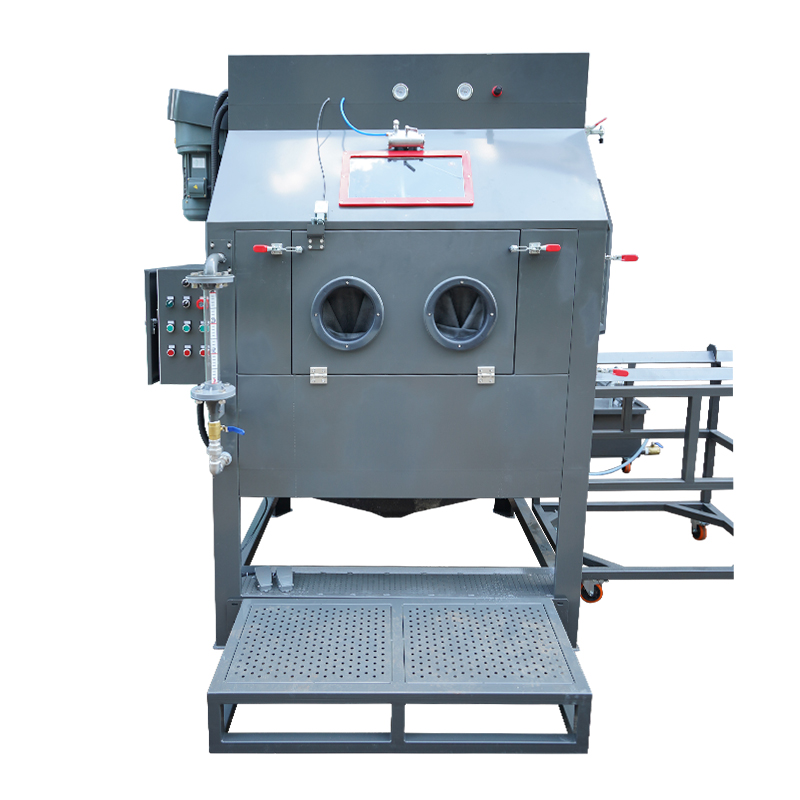

Innovative Wet Blast Cabinet with Advanced Designs
- In the cabinet, there are water flusher on the glass window, plus fluorescent lighting that provide excellent visibility and clear inspection.
- Configured with a piece of high-flow blast gun with 8mm boron carbide nozzles specially for wet blasting process, as well as a water gun for rinsing residual abrasives.
-The wet blast cabinet is specially made of 3mm stainless steel plate to avoids getting rust, the powder coated surface makes it extremely durable and wear-resistent to ensures long life.

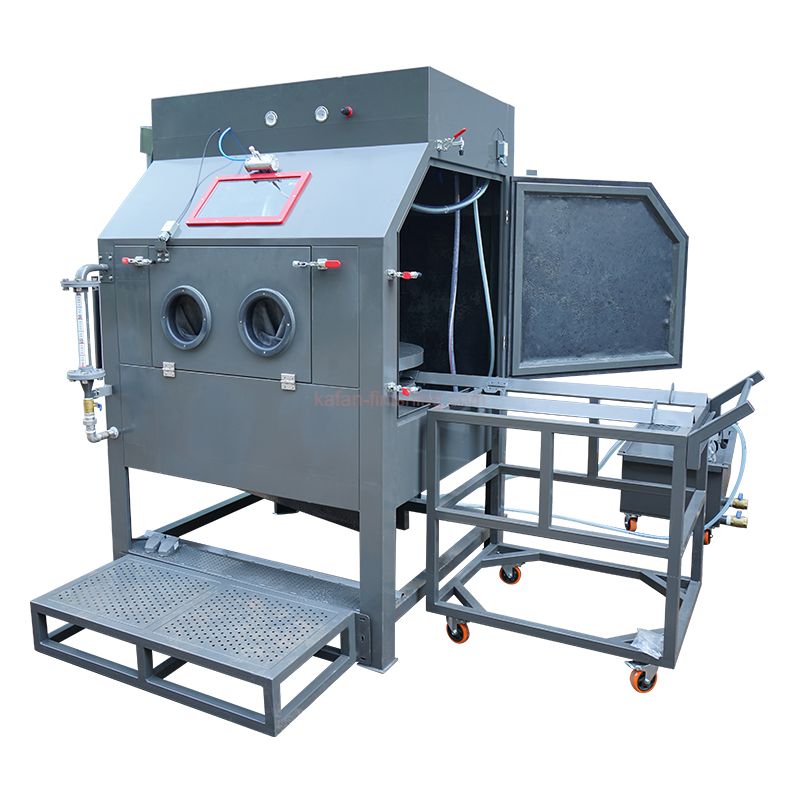

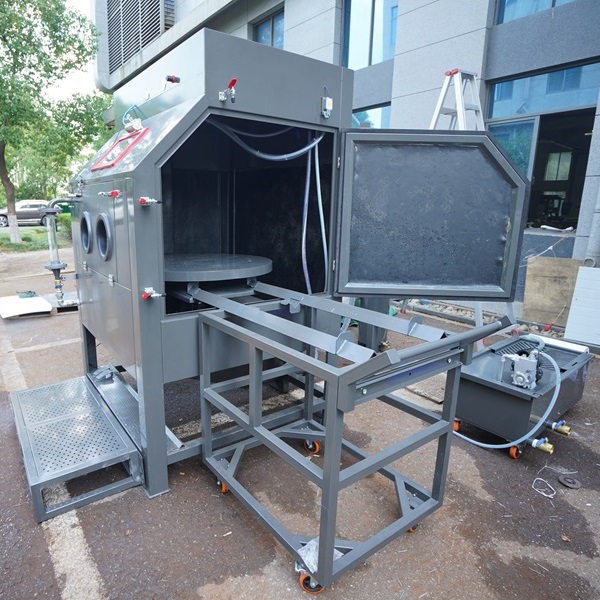

Effortless Wet Blast Cabinet with Turntable & Cart

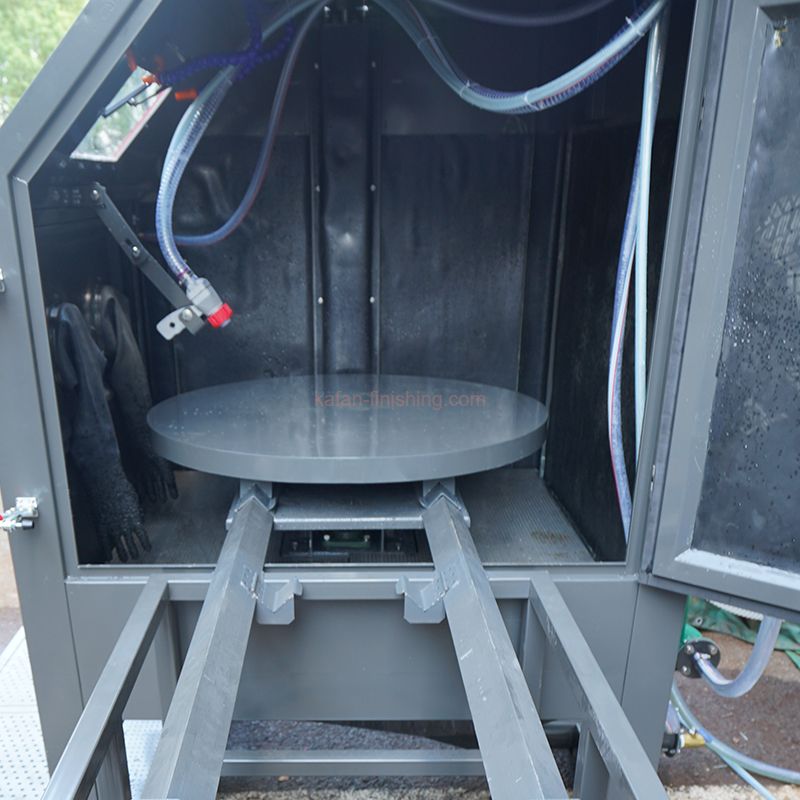

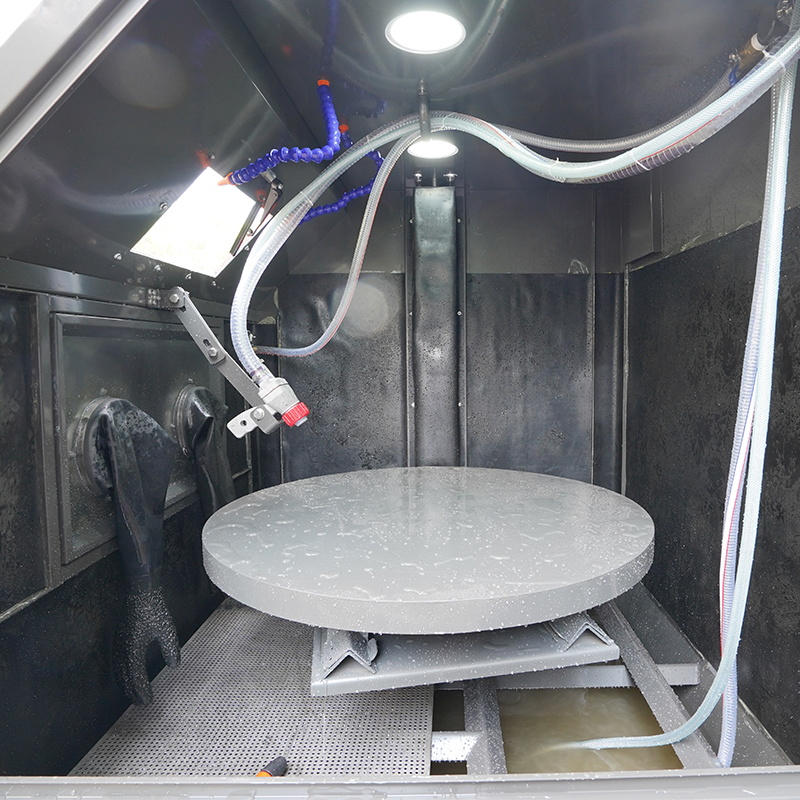

- The heavy-duty turntable is designed for operating larger, heavier, complex objects, giving operators an easy access to clean surfaces and corners.

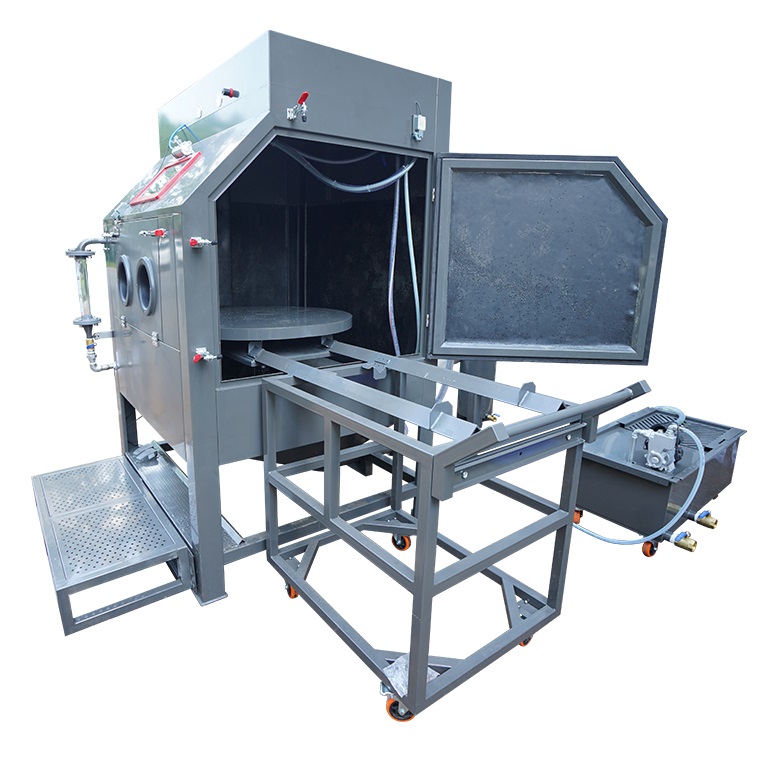

- The cart with track assembly makes it effortless to move the objects inside and outside of the cabinet.
- The turntable can be set for manual or automatic operation, automatic mode is driven via speed-adjsutable motor, whose rotating speed can be adjust to suit your blast process.
Closed loop Wet Blast Cabinet with Water Recirculating System

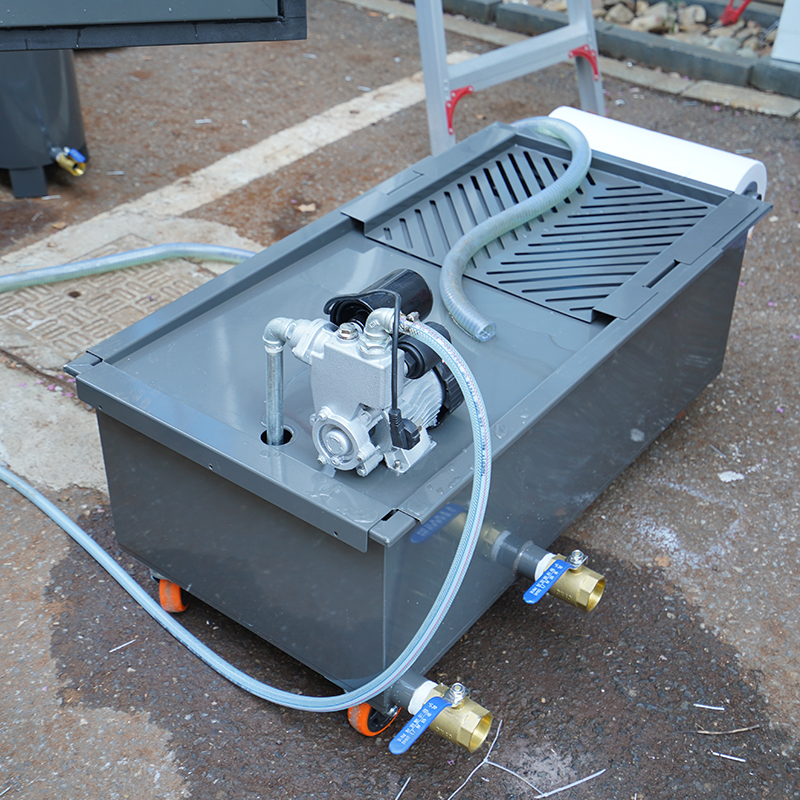

- It is designed with a recirculating tank interconnected to the slurry hopper to form a closed loop system.
- The blasted slurry mixture will be transferred to the tank and filtered for separating of water and abrasive, thus pure water and abrasives will be recycled.
- A skimmer is configured to remove floating oil or grease.
- If in your workshop running water is not available there, or worrying about waste water disposal, a closed loop wet blast cabinet is a good choice.
Wet blasting machine works through the flow of water borne abrasives, which applies a high performance pump fully agitating abrasive and water into slurry mxiture, then deliver the slurry to target surfaces through nozzle. With advantages of:
Create dustfree blasting process
More precise processing as cleans by flow and not impact
Simultaneously degreases and blasts
Produces a softer/smoother finish
Handling without leaving finger marks
Promotes longer media life
Avoids media impregnation on softer materials
| Model | KF-1212W |
| Working area | 1200*1200*800mm |
| Turntable Size | Can be custom made. |
| Motor | 2.2Kw |
| Air requirement | flow 0.5-1.1m^3/min |
| Light | 2*18w saving lamps |
| Blast Gun | 1 pc of wet blast gun with 1 boron cabide nozzle (8mm) |
| Air consumption for 1 gun | 0.4-0.8Mbar |
| Volume of abrasive & water | 25L |
| Suitable abrasive | Glass beads(for aluminum, stainless steel) Brown Aluminum Oxide(stell or other)80#-320# |
| Feed abrasive | 4-6kg |
| Abrasive : Water | 1:3 |
| Voltage | 380V/220V 3 phase (customized) |
Perfect for cleaning and restoring of motors, cylinder heads, sub-sea components, aviation parts, crank cases, wheel hubs, suspension parts, bolts, master cylinders, brake calipers and valuable restoration projects.
Effective for cleaning of dies and moulds, removal of pain, rust, scale, carbon and similar deposits.
Surface preparation prior to bonding, re-painting and powder coating.
Delicate cleaning of PCBs, electrical components and precision components without electrostatic damage.
As the media material can be varied the gentle cleaning action of wet blasting is not limited to metals and cleans exceptionally well with plastics and rubbers.
Wet Blasting will also produce a very uniform satin finish especially on aluminium or stainess steel items returning the material to as new casting appearance.
