KF-7070W Small Wet Blast Cabinet
Wet blasting cabines use a well-sealed slurry pump agitating media and water into a slurry mixture. The pump delivers the mixture to the blast nozzle and compressed air is introduced at the blast nozzle to accelerate the slurry and provide the cleaning effect.
Wet blasting has a variety of advantages over dry blasting:
1. The first and most is dust free. The introduction of water eliminates the dust that leaves a clean working chamber and increase the visibility.
2. With water's washing it creates a cleaner surface without abrasive impregnation to workparts.
3. Eliminate the surface removal of delicate, sensitive work parts, maintain a more precise shape.
4. Lubricating effect reduces the wear and damage to the components of blasting machine and minimize the maintenance.
5. Any ultra-fine abrasive can be used while dry blaster can not achieve, such as light glass beads and silicon carbide grit.
KF-7070W Wet Blast Cabinet Features
Made 3mm thick stainless steel with powder-coated surface, rigid and anti-rust.
Low voltage windscreen wiper and wash facility to maintain visibility throughout
Durable wet blast gun with 8mm boron carbide nozzles specially for wet blasting process,
Reliable foot pedal controls the working of blast gun to increase operation safety.
A demister at the back of the machine for better view of blasting process.
Abrasive can be effectively recycled that causes less consumption.
Simple structured wet blast cabinet requires less maintenance.
Regulators and Gauges

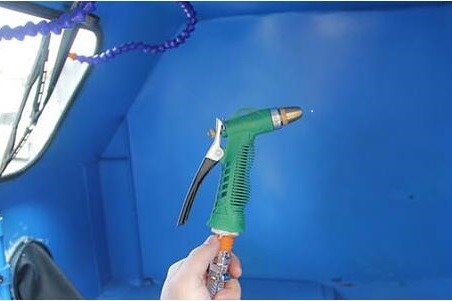

Wet Blast Gun

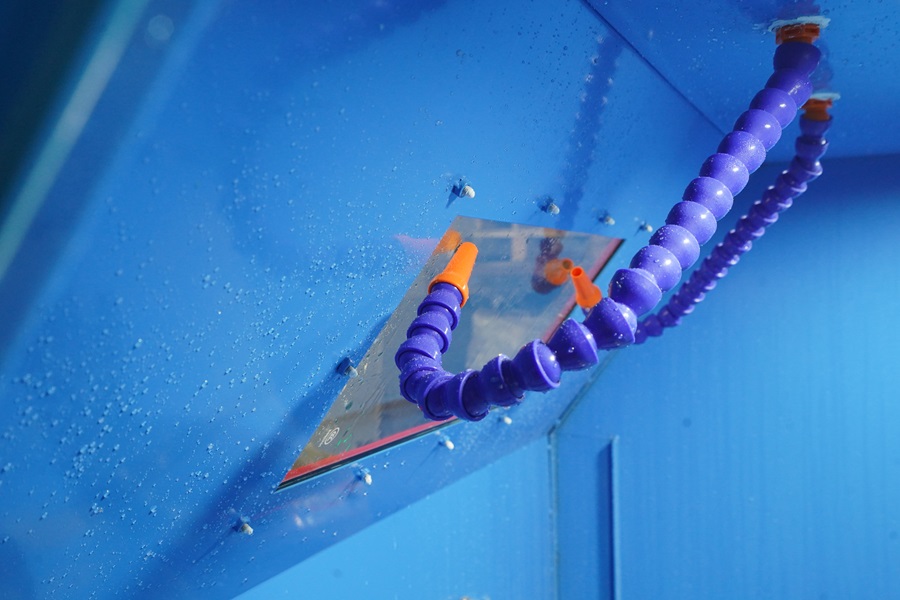

Window Washer
Foot Switch
Standard Components: Working Chamber, Slurry Pump, Perspective Glass Window, Safety Foot Controlled Pedal, Fluorescent Light, Pressure Regulating Valve, Pressure Gauge, High-flow Wet-blast Gun, Blasting Hose, Air Hose, Wiper, Sandblasting Gloves, Rotary Fan, Water Hose, etc。
KF-7070W Wet Sand Blast Cabinet Specifications
| Model | KF-7070W |
| Working area | 700*700*800mm |
| Motor | 220V/380V, 3Phase 50Hz, |
| Air requirement | flow 0.5-1.1m^3/min |
| Light | 1*18w saving lamps |
| Blast Gun | 1 pc of wet blast gun with 1 boron cabide nozzle (4-8mm) |
| Air consumption for 1 gun | 0.4-0.8Mbar |
| Volume of abrasive & water | 25L |
| Suitable abrasive | Glass beads(for aluminum, stainless steel) Brown Aluminum Oxide(stell or other)80#-320# |
| Abrasive Feeding: | 4-6kg |
| Ratio of Abrasive & Water | 1:3 |
Different Sizes of Wet Blast Cabinet
| Model | KF-1212W | KF-1010W | KF-9080W |
| Working size | 1200*1200*800mm | 1000*1000*800mm | 900*900*800mm |
| Weight | 350kgs | 300kgs | 280kgs |
| Loading Capacity | 80-120kgs | 50-80kgs | 30-50kgs |
Wet Blast Cabinet Application
Deburring or deflashing without damage to substrates
Surface preparation for powder coating or wet painting, like wheels, aluminum.
Etch glass for decorative or functional purposes
Remove oxides or rust from surface for a bright, clean appearance, such as vehicle parts.
Clean contaminants of molds, castings, welding parts.
Hole cleaning for printed circuit boards
Why Choose Kafan Sand Blast Cabinets?
Devoted to world market for over 10 years, Kafan offer you factory-direct manufactured sand blasting machine in high quality and competitive price. With professional sales and production team, we provide blasting equipments in a variety of specifications and styles based on customers' requirements. To pursue best performance, each machine body is steel plate welded with powder coated surface, durable, wear-resistant and long lifespan, and the main components are imported, by all of which we ensure 1 year warranty period for any quality problem. For sea shipping, we will strictly packed in film and foam first, with wooden case outside to make sure it is safe and intact to your country.
