Continuous Conveyor Automatic Sandblasting Machine
This conveyor blasting system is suitable for high-volume production of parts varying in shape, size, and complexity, especallly for relatively sheet-form parts – such as panels, profiles, trays.
As the workparts are automatically presented to arrays of pre-positioned guns for automatic surface cleaning or finishing, it ensures high output, quality consistency, and avoids the uneven blasting effect.

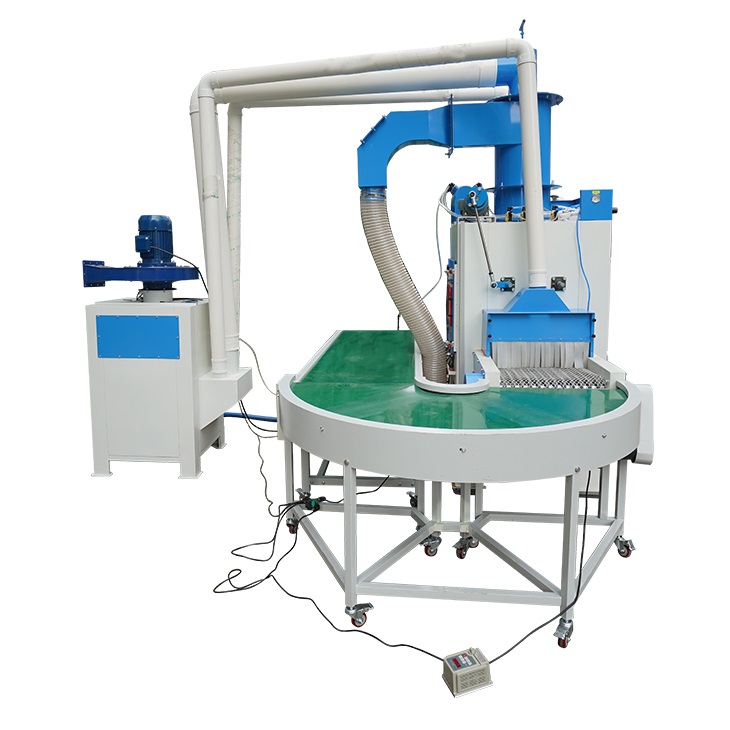

This automatic sandblaster is designed with an external U-shape conveyor belt requires only one operator just load and unload the workparts at same position of the machine.
How conveyor automatic sandblasting machine works?
In the automatic blasting system, workparts are continuously transported to the blasting area where they are processed by automatic guns. they are conveyed in and out of the blast chamber on an adjustable-speed belt. Up to 8 (or more) suction-blast guns are bracketed to sweep parts in linear motion synchronized with continuous movement of the belt.
Continuous Conveyor Automatic Sandblasting Machine Features

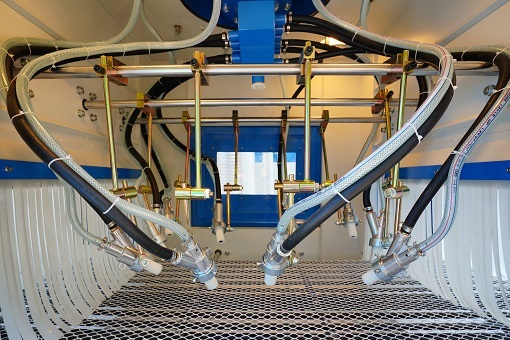

Automatic Blast Guns
Depending on the parts' shapes and dimensions, the blast guns can be set for fixed blasting or oscillating blasting with adjustable angles. Each blast gun is individually controlled for working by demands.
The quantity of blasting guns can be configured 8pcs, 12 pcs, 16 pcs or more, Nozzles in wear-resistant boron carbide material.

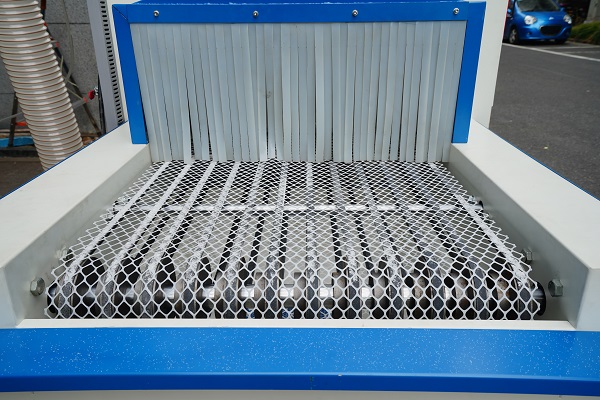

Continuous Conveyor Belt
The conveyor motor is controlled by frequency converter, whose speed can be steplessly regulated by inverter within the range of 0 ~ 2m/min. Several types of conveyor belt are available to move your parts through the blasting area, such as stainless steel belt, rubber belt, or roller conveyor for blasting top and bottom surfaces
PLC Control with Touching Screen
The sandblaster applies advanced PLC electric control system, with a high degree of flexibility and stability. The touching screen offers user-friendly interface to manage the blast working, adjust conveyor speed or start the dust collector. High automation guarantees the balanced uniform blasting effect, as well as safe production
Dust Removing & Media Recycling
Designed with cyclone separator for effectively separation of abrasives from dusts. Along with an independent cartridge filter dust removal system with excellent effect of dust extraction and ventilation, Blast-removed dust particles are exhausted to the dust collector while blast media is collected at the bottom of the cabinet, then returned to the storage hopper for further use.
Continuous Conveyor Automatic Sandblasting Machine Specifications
| Type: | Pass Though Conveyor Type |
| Model： | KF-2706-8A |
| Overall dimensions: | Length2700 * Width1000 * Height2059 mm |
| Working Space dimension: | Length900 * Width1000 * Height922 mm |
| Through Size | Length600 * Width300 mm |
| Dust collector size: | Length1200 * Width700 * Height1900mm |
| Dust fan motor power: | 5.5kw |
| Conveyor motor | 0.75kw, 0-2 m/min speed adjustable |
| Blast gun motor | 0.4kw, frequency adjustable |
| Machine material: | 2.5mm-6mm cold-rolled steel plate welded |
| Perspective window: | 2 frames |
| Abrasive funnel | 3pcs |
| Pressure | 7 bar (kg / cm2) |
| Air compressor | 8 cubic meter/min |
| Total power: | 7KW |
Continuous Conveyor Automatic Sandblasting Machine Applications
Application: ideal for processing flat shaped workpieces such as: aluminum plate, glass plates, ceramic tile, steel plate,, electronics shells, baking trays, etc, effectively for cleaning contaminants, removing rust and old coatings, degreasing, etching and decorating, roughing surface, etc
