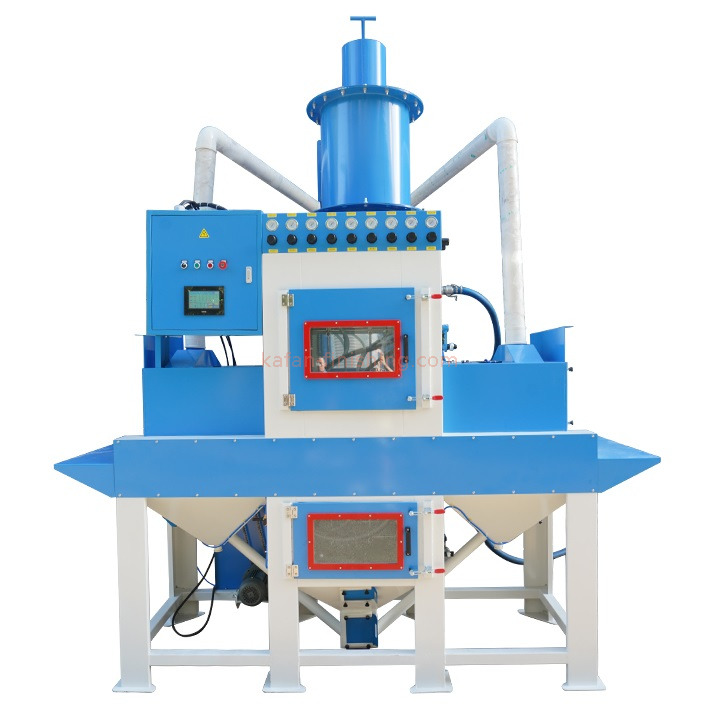

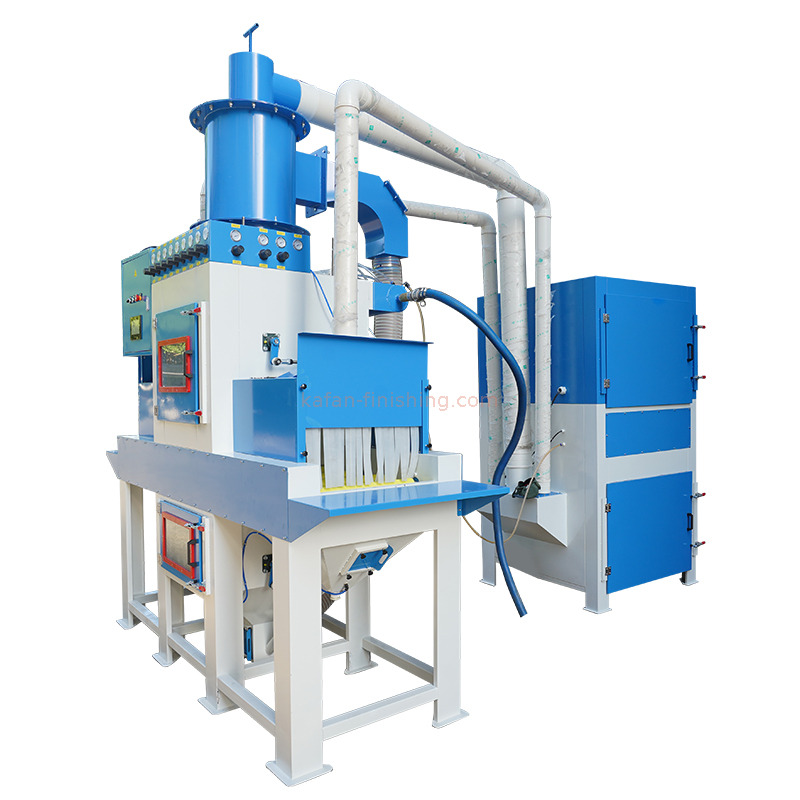

Roller Conveyor Automated Sandblaster with Double Blasting Stations

Roller Conveyor Automated Sandblaster with Double Blasting Stations

The roller comveyor sandblasting machine configured with upper and lower 2 blasting stations, allows the 2 groups of blasting guns cleaning surfaces from upper and bottom directions, which is deal for surface finishing plate shape, tube shape or profile shapes.without turning over the pieces

Brand:
Kafan

Availability:



Inquire Add to Basket

Product Description

Roller Conveyor Automated Sandblaster with Double Blasting Stations

The roller conveyor automatic sandblaster with double working stations allows workparts' double faces or all dimentional surfaces to be cleaned with upper blast gun group and lower blast gun group, thus it reduces manual labor to turn over the workparts and greatly increases processing efficiency.

It is a fully automated sandblaster only requires operator loading and discharging the workparts, also can be conntected with existing production line.

Roller Conveyor Automated Sandblaster Excellent Features

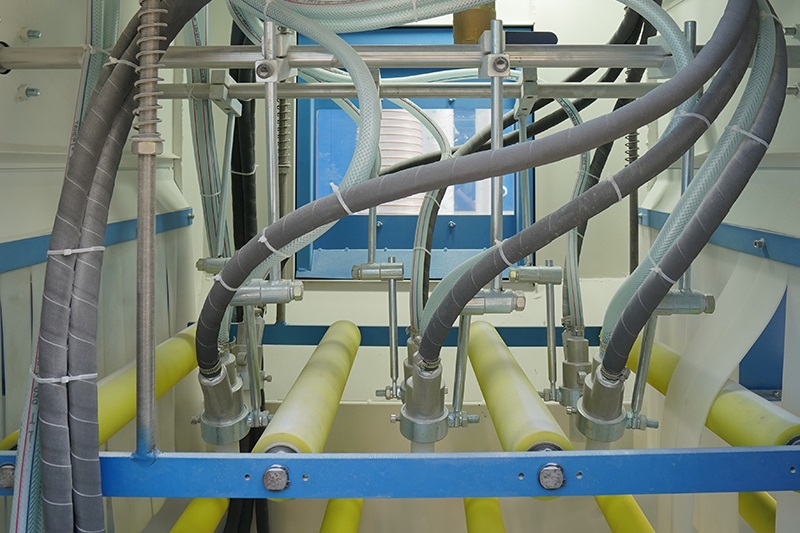

Specially built with upper and lower working station, each station has a group of 6pcs automatic guns, blasting surfaces from upper and bottom directions, designed with observation window, users can observe the entire process and ready to deal with unexpected situations.

upper blast guns

lower blast guns

application

Roller Conveyor Automated Sandblaster Applications

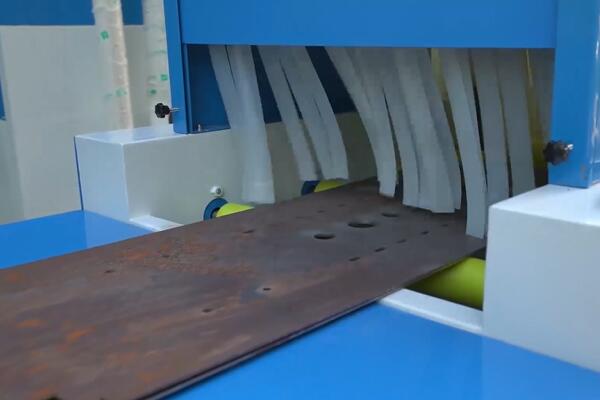

The specially-designed roller conveyor automatic sandblaster is ideal for surface treatment of steel plates, aluminium plates, square tube, round tube, aluminium profiles, etc, which require upper and lower suface to be cleaned, likes removing rust/old paints, repairing scratches or strenthening surface adhesion.

Roller Conveyor Automated Sanblaster Configurations

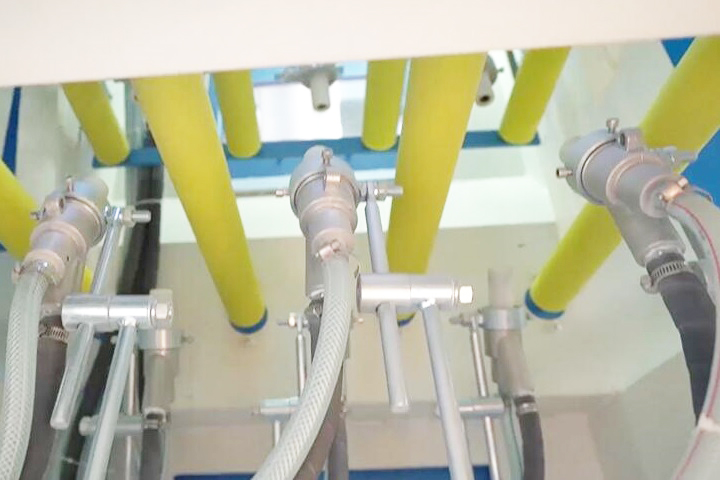

Roller Conveyer

Heavy-duty roller conveyor is made of durable rubber, driven by the motor controlled via frequency converter, and the conveyor speed can be steplessly regulated by the inverter within the range of 1 ~ 5m / min. The actual speed is set depending on process requirements of workpieces.

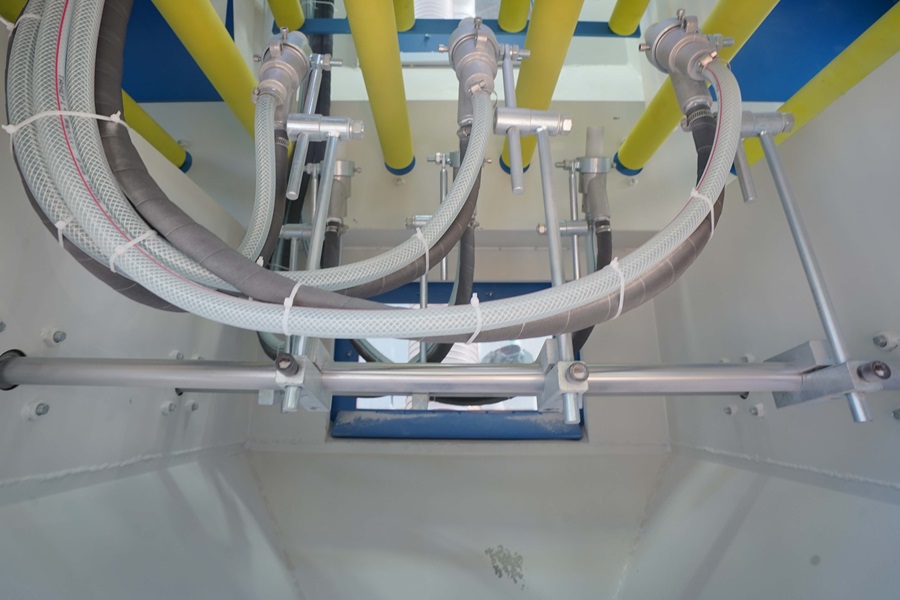

Automatic Blast Guns

The blast gun adopts linkage swinging mechanism, whose moving angle and distance can be adjusted according to the requirements. Each blast gun can be individually controlled via PLC. Aluminum alloy gun holder with durable boron carbide nozzles ensures longer service life.

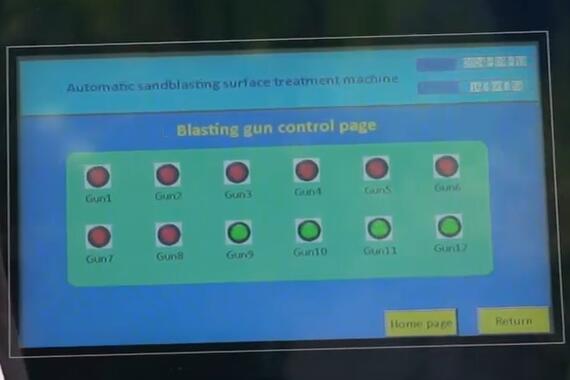

PLC Control System

The automatic sandblaster applies advanced PLC control system achieves high automation and stability, guarantees the balanced uniform blasting effect, as well as safe production. The user-friendly touching screen unterface facilitate the operation.

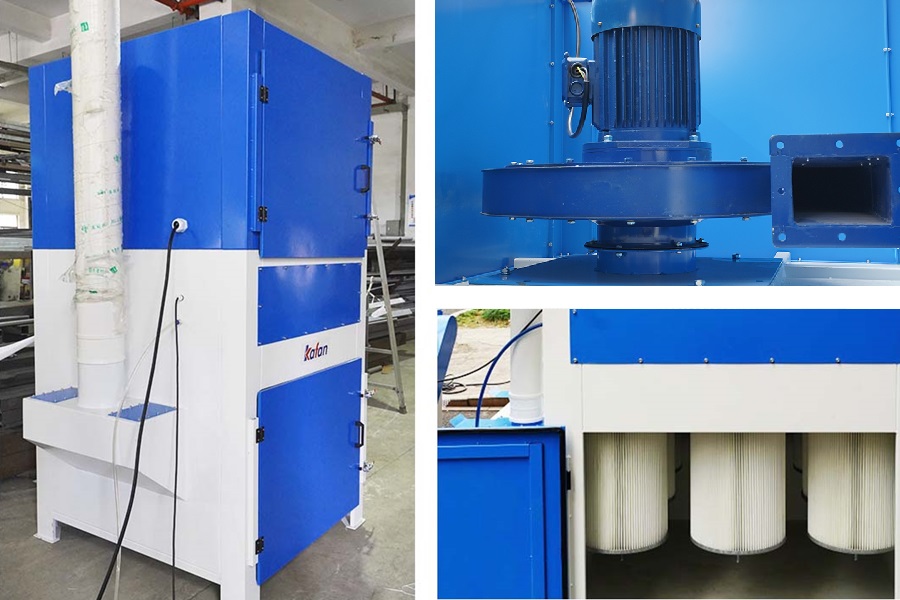

Filter Dust Collector Unit

Dust Collector: Independent dust collector consists of 6 pcs cartridge filter stage and 7.5kw fan motor for effectively dust removing, powerfully remove dust, keeps the working chamber a clear view and increases abrasive recyling rate, as well as ensures only dust-free air vented that causes no pollution for environment.

Roller Conveyor Automated Sandblaster Specifications

Overall size	Length3100mm * Width3692mm * Height3306mm
Dust collector size	100010001750mm
Suitable workpiece	width≤600mm, height≤400mm, no limit to length
Conveyor speed	1～5m/min, stepless speed regulation
Conveyor motor	0.75kw, 2 sets
Blasting gun	12pcs, each side with 6pcs
Gun swinging motor	0.4kw, 2sets
Nozzle material	Boron carbide nozzles.
Cartridge filter	6pcs, 100% polyester
Dust collector motor	5.5kw
Power supply	380V, 50Hz, 3 phase(voltage can be made as local)
Total Power	8kw

Automatic Conveyor Sand Blasting Machine Advantages

Only requires to manually operate the control system, load and unload the workpiece.
Continuous conveying blasting features high working efficiency, increase output.
Allowing batch processing improve quality consistency, avoids the uneven quality problem.
Full-customization available, according to workparts' sizes, shapes and finishing requirements.
suitable for products whose width and height within a certain range, while mo limit with the length.
