80L Vibratory Tumbler Machine for Metal Parts

By using different mass finishing media, the vibratory tumbler can achieve various purpose, such as deburring; polishing brass, aluminum, stainless steel, ceramic; rediusing and chamfering industry parts, removing rust and impurities.

Quantity:
  • CL-80A
  • Kafan

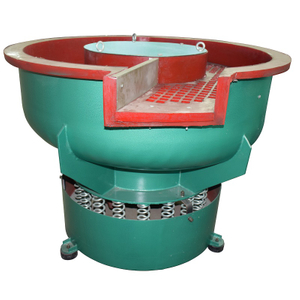

80L Vibratory Tumbler Machine for Metal Parts

The vibratory tumbler machine is particularly suitable for polishing metal to get high brightness or restore a natural color, like glossing brass, stainless steel, or aluminum products, also ideal for deburring precise metal instruments, and cleaning components to remove rust and oxide layers, etc. 80L vibratory tumbler is the best selling model amoung our marketing investigation that meets various scale production.

metal vibratory tumbler


Metal Vibratory Tumbler Features

  • 3 phase high performance vibration motor causes sufficient grinding force on parts and ensures thorough finishing

  • As it is the entire load in the bowl moving as a unit, very fragile and sensitive parts is quite safer during vibratory finishing.

  • Full wear resistant polyurethane lining reduce crash damage to parts as well as extend bowl life

  • The round bowl design allows random inspection of the parts during the deburring and polishing  process.

  • Can be equipped with electric cabinet to achieve variable speed control and amplitude adjustable function to meet different demands


Metal Vibratory Tumbler Advantages

Driven by a vibration motor, the mixture of polishing media and compounds constantly contacts the part's surface, their mutual friction attain the purpose of all kinds of finishings,

1. Cost-effective, most widely used and economical mass finishing machine, accepted by customers over the world.

2. Labor-saving, batch production of parts, replace manpower to enhance working efficiency 6-10 times

3. Uniform result, vibratory tumbler ensures consistent qualitu and gets over the problem of discrepancy results operated by manual

4. Versatile model, this vibratory polishing machine can match with each kinds of metal, plastic or ceramic products.

5. Splendid effect, irregular shape products with corners or concavities of parts can be easilyreached for a thorough finish.


95L Vibratory Deburring Tumbler Specifications

Model CL-80A
Voltage 230V/380V/440V,  50Hz/60Hz, 3 Phase
Motor Power: 1.1kw
Capacity: 95L
Size: 840*640*740L
Speed: 1450 r/min
Estimated weight: 110kgs
Standard Configuration All PU lining
Steel base/stand
Optional Items

Sound Enclosures

Variable Frequency

Time control


Vibratory Tumbler Machine Different Models for Choice

Model Capacity (L) Motor Power Speed Amplitude Rubber Machine Weight
kw (r/min) (mm) lining(mm) kg
CL-40(A) 40 0.55 1450 0.8-3 6-12 50
CL-60(A) 60 0.75-1.1 1450 0.8-3 6-12 100
CL-80(A) 80 1.1 1450 0.8-3 6-12 110
CL-95(A) 95 1.1 1450 0.8-3 6-12 120
CL-150(A) 150 2.2-3.0 1450 0.8-4 6-15 240
CL-250(A) 150 3 1450 0.8-6 6-20 280
CL-350(A) 350 5.5 1450 0.8-6 6-20 450
CL-450(A) 450 5.5 1450 0.8-6 6-20 530
CL-650(A) 650 7.5 1450 0.8-8 6-20 1250


Application of Vibratory Polishing Machine

  • The vibratory tumbler machine can be used for a variety of applications: deburring, descaling, rounding of corners, cleaning, polishing, smoothing, general surface improvement.

  • For mass production of small to medium sized products, the polishing machine supports all kinds of materials: metal, plastic, ceramic, stone, glass, wood and rubber products

  • Mainly used in bicycles parts, aerospace components, heat treated parts, aluminum die casting parts, zinc die casting parts, furniture hardware accessories, clothing hardware accessories, luggage hardware accessories, glasses accessories, watches and clocks accessories, electronic accessories, all kinds of jewelry and decoration products
