350L Vibratory Tumbler Polisher for Sale

Quantity:
  • CL-350AB
  • KAFAN

Vibratory Tumbler Polisher, Industrial Parts Tumbler for Sale


Tumbler polishers use the friction principle through vibration to rub the media against the parts that creates the desired result, as well as employ chemical compound or agent to lubricate, clean and facilitate this process.

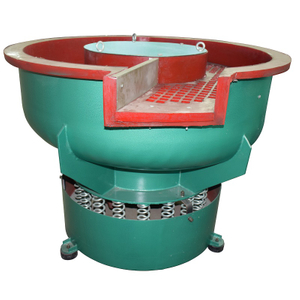

Kafan vibratory tumbler polisher includes a heavy-duty welded steel bowl, three-phase vibration drive system, rugged polyurethane bowl lining and a 100% media-parts separator to serve as a more effective vibratory tumbler.

tumbler polisher


Vibratory Tumbler Advanced Designes

1) Fit an internal parts separation device achieves 100% parts discharging without additional labor efforts.  During processing cycle, media falls back to the container through the holes of the screen separator and the parts automatically discharged from the tumbler. This is an excellent feature especially for large volume tumblers.


2) Custom an electric controller to realize speed and amplitube adjustable of the vibratory motor,  in order to get precise finish for different finishing purpose, thus each kinds of workparts will obtain optimal results.


350L-Vibratory-Tumbler-Machine (1) MLF00393 - 副本




Vibratory polisher tumbler is widely used in metal or non-metal finishing industry with the superiority to operating small tolerances and high precision parts. As the load in the tumbler moves as a unit, it is safe for fragile parts without any tearing or distorting actions, even better, it gives thorough touch in corners and holes and creates perfect surfaces for irregular objects. Deburring tumblers release manpower and ensure quality consistency as each parts will get equal cutting force



CL-350AB Vibratory Tumbler Polisher Specifications

Model CL-350AB
Voltage 230V/380V/440V,  50Hz/60Hz, 3 Phase
Motor Power: 5.5kw
Capacity: 350L
Size: 1450*1350*1050L
PU Lining Thickness 5.5mm
Speed: 1450 r/min
Estimated weight: 480kgs
Standard Configuration All PU lining

Steel base/stand

Media Separator

Optional Items

Sound Enclosures

Variable Frequency

Time control


Different Models of Industrial Tumbler Polisher

Model Capacity Motor Power Speed Amplitude Rubber Machine Weight Size
kw (r/min) (mm) lining(mm) kg L*W*H(mm)
CL-40 40 0.55 1450 0.8-3 6-12 50 600*500*600
CL-60 60 0.75-1.1 1450 0.8-3 6-12 100 700*640*700
CL-80 80 1.1 1450 0.8-3 6-12 110 840*640*740
CL-95 95 1.1 1450 0.8-3 6-12 120 860*800*750
CL-150 150 2.2-3.0 1450 0.8-4 6-15 240 1150*1050*900
CL-250 150 3 1450 0.8-6 6-20 280 1150*1100*900
CL-350 350 5.5 1450 0.8-6 6-20 450 1450*1350*1050
CL-450 450 5.5 1450 0.8-6 6-20 530 1550*1430*1050
CL-650 650 7.5 1450 0.8-8 6-20 1250 1900*1850*1300


Industrial Vibratory Tumbler Application

  • The vibratory parts tumbler can be used for a variety of applications: deburring, descaling, rounding of corners, cleaning, polishing, smoothing, general surface improvement.

  • For mass production of small to medium sized products, the deburring machine supports all kinds of materials: metal, plastic, ceramic, stone, glass, wood and rubber products

  • Mainly used in machinery parts, bicycles parts, aerospace components, heat treated parts, aluminum die casting parts, zinc die casting parts, furniture hardware accessories, clothing hardware accessories, luggage hardware accessories, glasses accessories, watches and clocks accessories, electronic accessories, all kinds of jewelry and decoration products

kafan blasting equipment

Located in Hangzhou, China, we we own a manufacturing base of 3600 square meter, around 100 employees and 24 sets production equipment, dividing into technical department, sales department, after-sale department, production department, QC department, manage and finance department, etc. As a fast growing company in supplying sandblasting equipment and mass finishing equipment, we devoted all ourselves to offering solution for any surface finishing problems.


Our products can be divided into two main parts, sandblasting equipment and mass finishing machines.


Sandblasting equipment including: manual sandblasting machine, suction sand blast cabinet, pressure blasting machine, wet abrasive blasting equipment, portable blaster pot, automatic conveyor blast system, tumbler blaster, rotary table blast machine, crawl blast machine.

Mass finishing system including: vibratory polishing & deburring bowl,  vibratory bowl with separatorcentrifugal barrel tumbling machinecentrifugal disc finishing systemmass finishing media.
We offer service: Standard Production Models, Customized Design, Before-order Technical Support, Engineer Oversea Installing & Training, Free Sample Testing, 24 hour On-line Consulting, ODM, OEM.


Welcome contact us for surface finishing solution!
