KF-250A
KAFAN
Availability: | |
---|---|
Kafan Vibratory polishing tumblers use the friction principle through vibration to rub the media against the parts that creates the desired result, as well as employ chemical compound or agent to lubricate, clean and facilitate this process. Due to the actions of entire load, the vibratory tumbler can operate sensitive and fragile parts without any damages.
Full PU lining inner chamber, minimize the destroy to parts and media, also extends bowl life.
Heavy-duty bowl base, iron casting body with coated surface, sturdy and durable
Round open bowl design allows random inspection during polishing and deburring process.
Hot-selling 250L capacity meets most productivity, mass finishing to small to medium sized parts.
3 Phase vibration motor provides sufficient grinding force, makes entire and thorough finish.
Comes with a discharging chute allows complete emptying of medias easily.

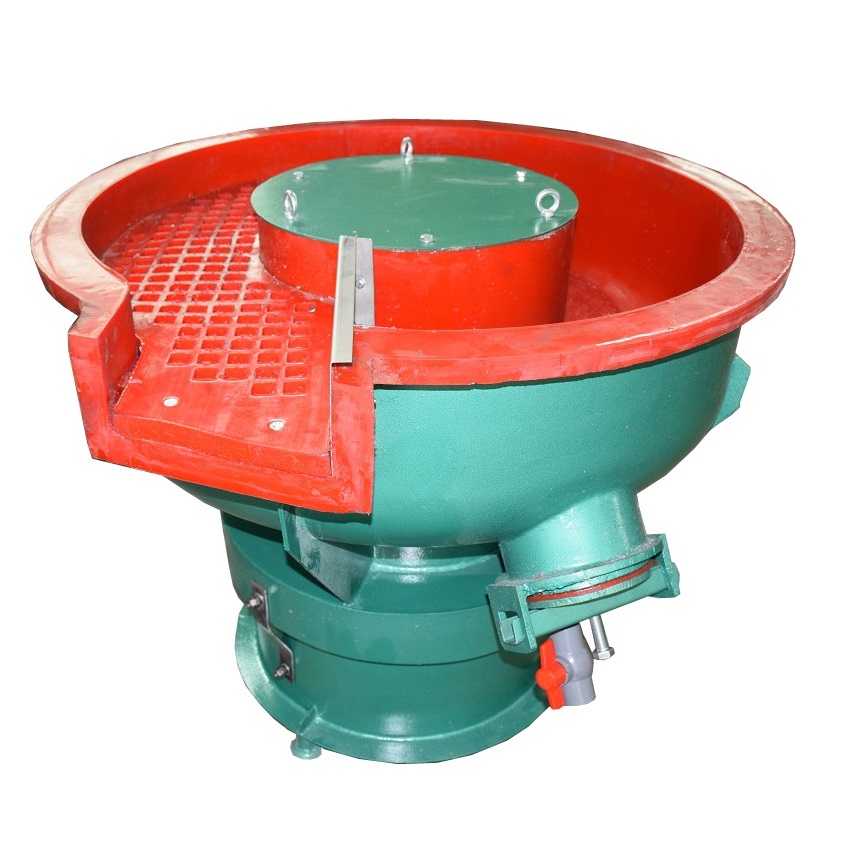

Can be designed with screen section allows automatical separation of media and workparts after finishing. The media will drop through the screen hole leaving the workparts discharged automatically.

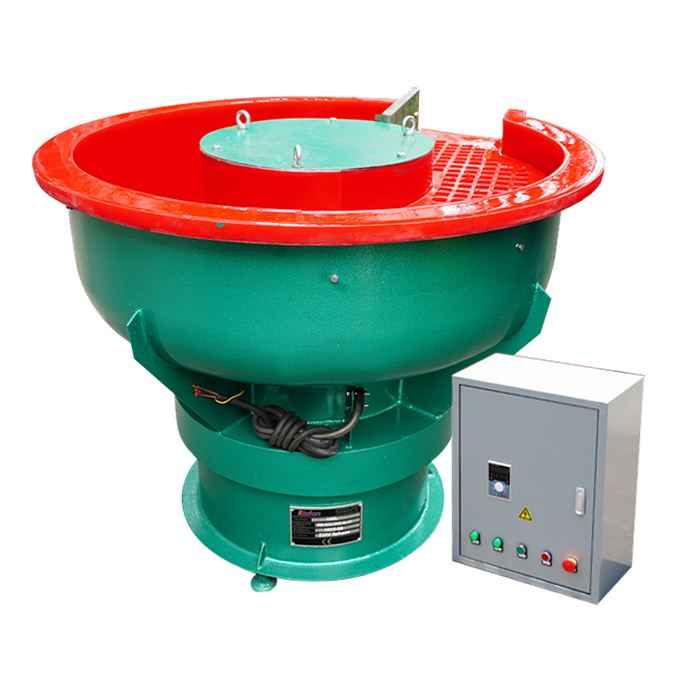

Can be added with an independent frequency control cabinet offers the flexbility to adjust vibration speed and amplitube to meets different finishing requirements. The lid is electrically controlled.

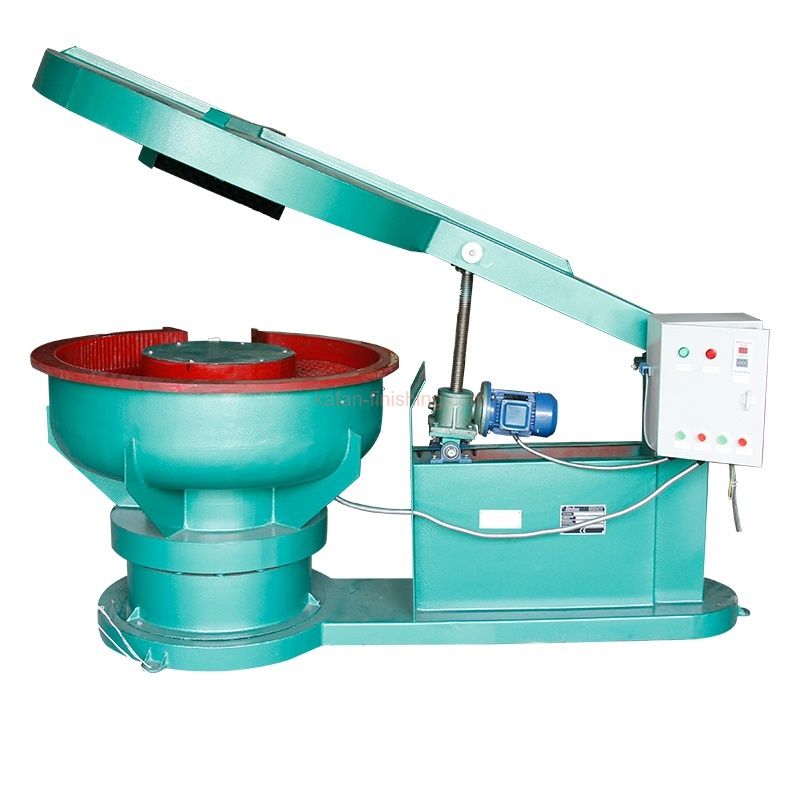

Can be specially designed with a lid cover which can isolate the sound and prevent splash of compouds or medias, which protect the operator with safety and quietness.
The vibratory tumbler is particularly suitable for operating big quantities of small sized parts, whether for polishing or deburring purpose, all can achieves by using different finishing media.
As the load in the tumbler moves as a unit, it is safe for fragile parts without any tearing or distorting actions, Moreover, any corners or concavities of parts can be reached for a thorough finish while barrel finisher or centrifugal finisher can not do it.
Vibratory tumblers release manpower and ensure quality consistency as each parts will get equal cutting force, workparts are in unifrom and even surface because of machine finishing.
Model | KF-250A |
Voltage: | 230V/380V/440V, 50Hz/60Hz, 3 Phase |
Motor Power: | 3kw |
Capacity: | 250L |
Size: | 860*800*750L |
Speed: | 1450 r/min |
Estimated weight: | 280kgs |
Standard Configuration | All PU lining Steel base/stand |
Optional Items | Media Separator Sound Enclosures Variable Frequency Time control |
Model | Capacity | Motor Power | Speed | Amplitude | Rubber Lining | Weight |
L | kw | r/min | mm | mm | kg | |
KF-40A | 40 | 0.55 | 1450 | 0.8-3 | 6-12 | 50 |
KF-60A | 60 | 0.75-1.1 | 1450 | 0.8-3 | 6-12 | 100 |
KF-80A | 80 | 1.1 | 1450 | 0.8-3 | 6-12 | 110 |
KF-95A | 95 | 1.1 | 1450 | 0.8-3 | 6-12 | 120 |
KF-150A | 150 | 2.2-3.0 | 1450 | 0.8-4 | 6-15 | 240 |
KF-250A | 250 | 3.0 | 1450 | 0.8-6 | 6-20 | 280 |
KF-350A | 350 | 5.5 | 1450 | 0.8-6 | 6-20 | 450 |
KF-450A | 450 | 5.5 | 1450 | 0.8-6 | 6-20 | 530 |
KF-650A | 650 | 7.5 | 1450 | 0.8-6 | 6-20 | 1250 |
The vibratory tumbler machine can be used for a variety of applications: deburring, descaling, rounding of corners, cleaning, polishing, smoothing, general surface improvement.
For mass production of small to medium sized products, the polishing machine supports all kinds of materials: metal, plastic, ceramic, stone, glass, wood and rubber products
Mainly used in bicycles parts, aerospace components, heat treated parts, aluminum die casting parts, zinc die casting parts, furniture hardware accessories, clothing hardware accessories, luggage hardware accessories, glasses accessories, watches and clocks accessories, electronic accessories, all kinds of jewelry and decoration products
