KF-450A
Kafan

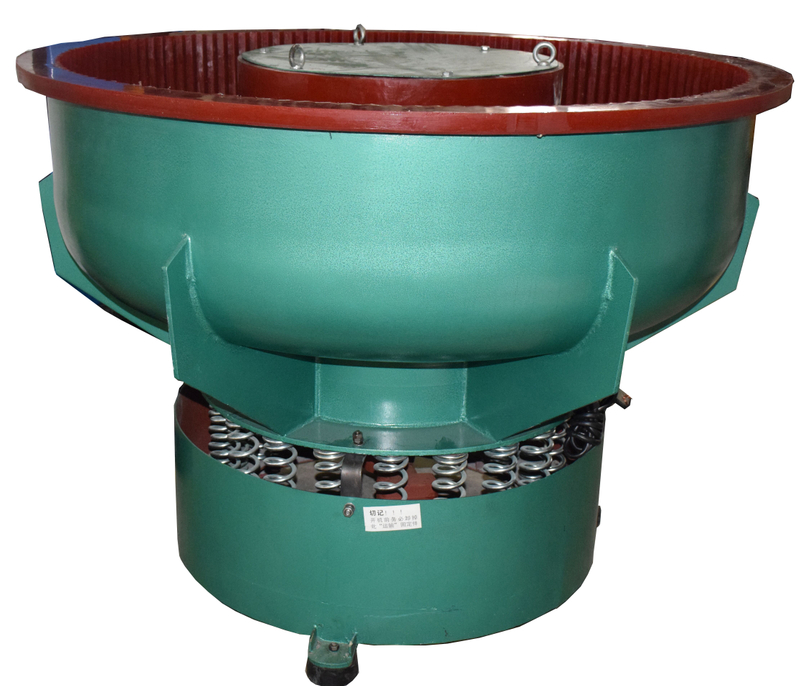

Vibratory finisher
The 450L capacity large vibratory tumbler polisher is ideal for big batch processing of small to medium sized workpiece in surface polishing, chamfering, deburring and cleaning treatment. Such treatments will not destroy the original shape and accuracy but improve a smooth, shiny and precise surface.
1. Get thorough processing thanks to the 3 phase high-performance vibration motor.
2. Round bowl design allows random inspection at any time during vibrating tumbling process.
3. Thick polyurethane lining of the inner wall reduces the wear caused by collision between parts and media.
4. Comes with an unloading chute for easy discharging of medias after finishing process.
5. Heavy-duty and durable bowl base supported by heavy-loaded springs.
media-parts separator
heavy-loaded spring support
media discharging chute
1) Fit an internal parts separation device achieves 100% parts discharging without additional labor efforts. During processing cycle, media falls back to the container through the holes of the screen separator and the parts automatically discharged from the tumbler. This is an excellent feature especially for large volume tumblers.
2) Custom an electric controller to realize speed and amplitube adjustable of the vibratory motor, in order to get precise finish for different finishing purpose. As well as realize time control.
3) Cover a lid for the round bowl, which can isolate the sound caused by vibratory, also prevent any splash of compouds or medias. It is an humanized design to ensure safety and health.
| Model | KF450A |
| Voltage: | 230V/380V/440V, 50Hz/60Hz, 3 Phase |
| Motor Power: | 5.5kw |
| Capacity: | 450L |
| Size: | 1550*1430*1050 (mm) |
| Speed: | 1450 r/min |
| Estimated weight: | 530kgs |
| PU Lining thickness | 6-20mm |
| Standard Configuration | All PU lining Steel base/stand |
| Optional Items | Media Separator Sound Enclosures Variable Frequency Time control |
Vibratory tumbler polisher applies the friction principle through vibration to rub the media against the parts that creates the desired result, as well as employ chemical compound or agent to lubricate, clean and facilitate this process.
Vibratory tumbling tends to produce a smooth finish because the media essentially laps the parts. Since the load is moving as a unit, very fragile parts are quite safe in the vibrator. There is no tearing action or unequal forces that tend to bend and distort parts.
Vibratory tumbling is an economical and simple mass finishing solution with outstanding results The tumbling actions between parts and medias overcome the difficulty to touch awkward corners a overall and even finish.
| Model | Capacity | Motor Power | Speed | Amplitude | Rubber | Machine Weight | Size |
| kw | (r/min) | (mm) | lining(mm) | kg | L*W*H(mm) | ||
| KF-40(A) | 40 | 0.55 | 1450 | 0.8-3 | 6-12 | 50 | 600*500*600 |
| KF-60(A) | 60 | 0.75-1.1 | 1450 | 0.8-3 | 6-12 | 100 | 700*640*700 |
| KF-80(A) | 80 | 1.1 | 1450 | 0.8-3 | 6-12 | 110 | 840*640*740 |
| KF-95(A) | 95 | 1.1 | 1450 | 0.8-3 | 6-12 | 120 | 860*800*750 |
| KF-150(A) | 150 | 2.2-3.0 | 1450 | 0.8-4 | 6-15 | 240 | 1150*1050*900 |
| KF-250(A) | 150 | 3 | 1450 | 0.8-6 | 6-20 | 280 | 1150*1100*900 |
| KF-350(A) | 350 | 5.5 | 1450 | 0.8-6 | 6-20 | 450 | 1450*1350*1050 |
| KF-450(A) | 450 | 5.5 | 1450 | 0.8-6 | 6-20 | 530 | 1550*1430*1050 |
| KF-650(A) | 650 | 7.5 | 1450 | 0.8-8 | 6-20 | 1250 | 1900*1850*1300 |
The vibratory bowl finishing machine can be used for a variety of applications: deburring, descaling, rounding of corners, cleaning, polishing, smoothing, general surface improvement.
For mass production of small to medium sized products, the polishing machine supports all kinds of materials: metal, plastic, ceramic, stone, glass, wood and rubber products
Mainly used in bicycles parts, aerospace components, heat treated parts, aluminum die casting parts, zinc die casting parts, furniture hardware accessories, clothing hardware accessories, luggage hardware accessories, glasses accessories, watches and clocks accessories, electronic accessories, all kinds of jewelry and decoration products
