KF-95A
KAFAN

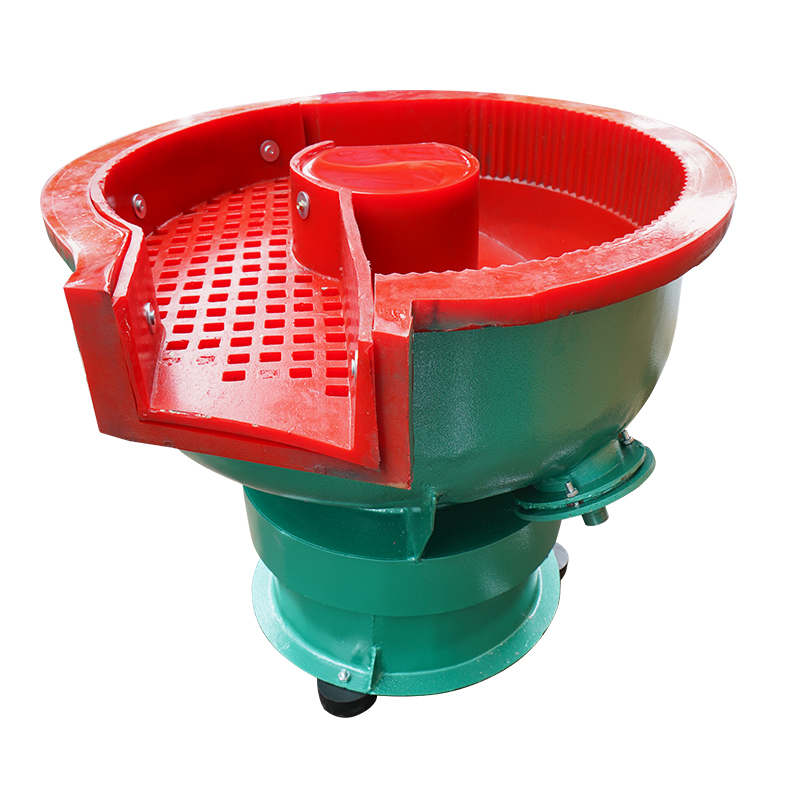

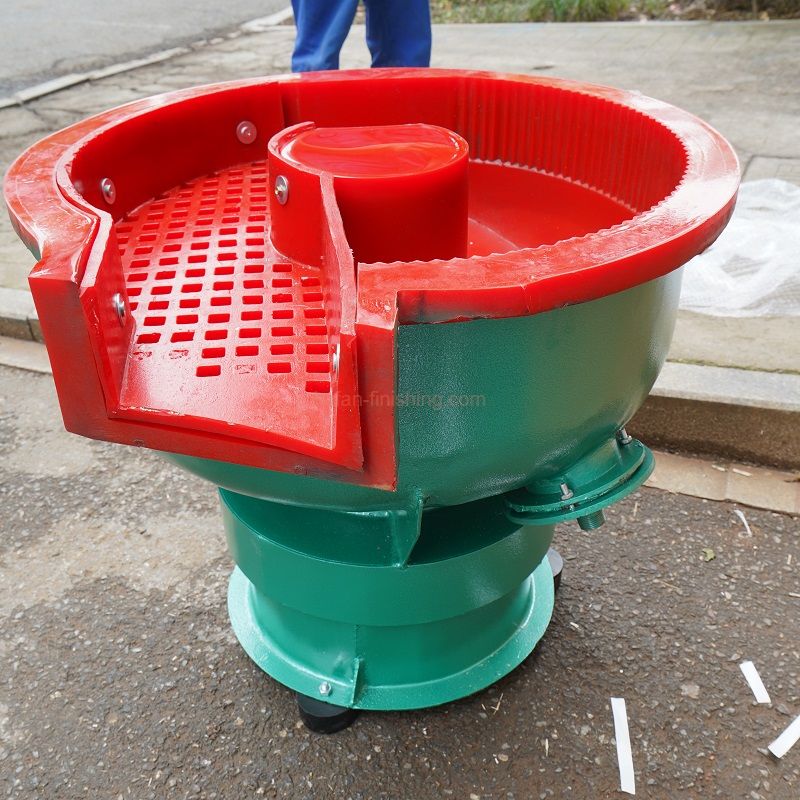

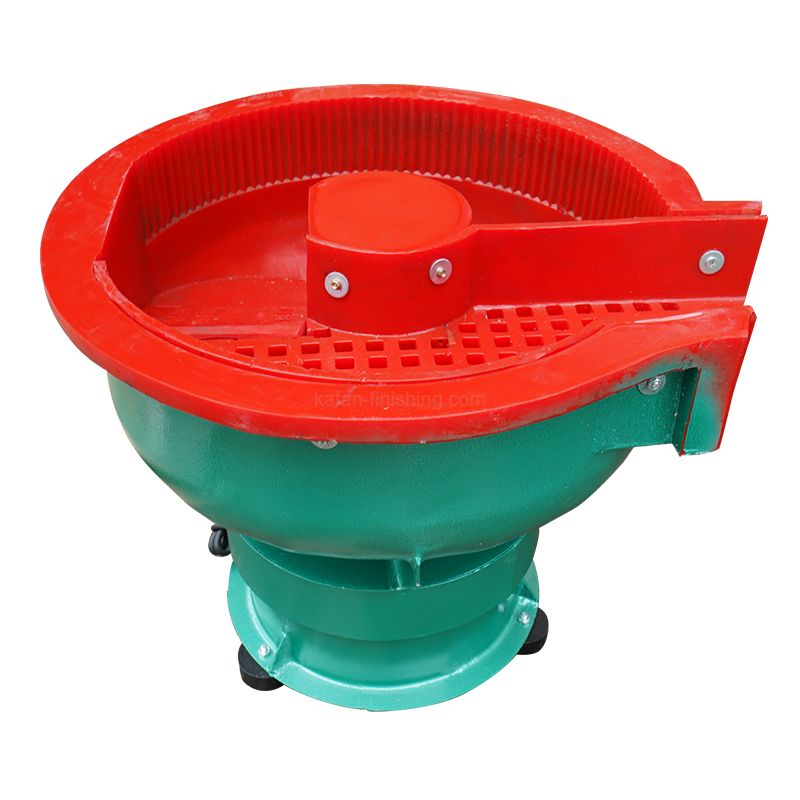

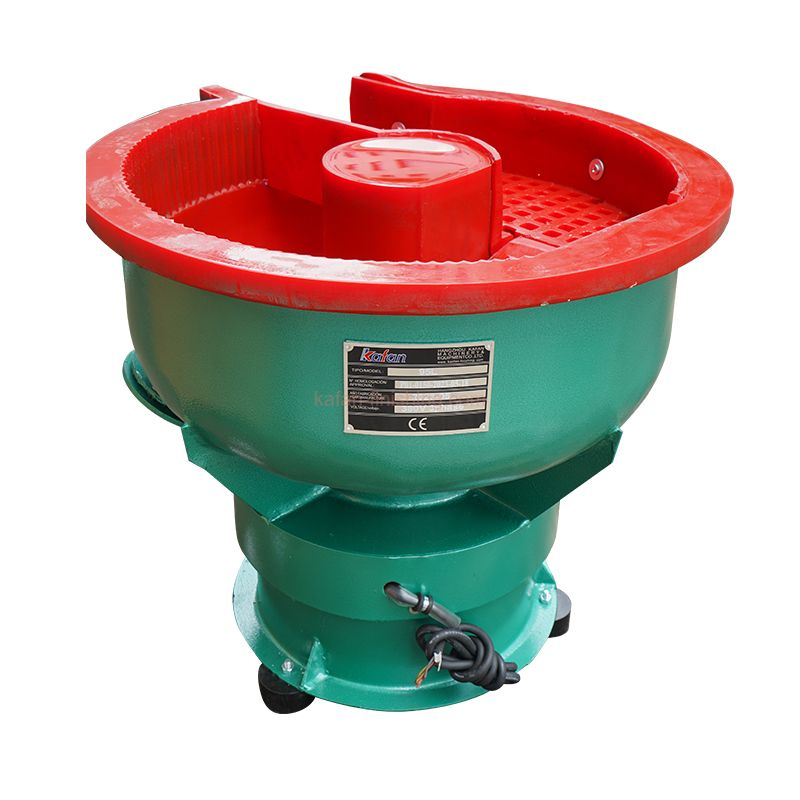

Driven by a vibration motor, the media and parts periodically contact and leave with each other, their mutual friction reaching the purpose of removing edges and burrs, cleaning rust and dirt, or polishing to get bright surface, all finishes can be achieved with using different media.
Vibratory deburring tumbler benefits: as the load in the tumbler moves as a unit, it is safe for fragile parts without any tearing or distorting actions, even better, it gives thorough touch in corners and holes and creates perfect surfaces for irregular objects. Deburring tumblers release manpower and ensure quality consistency as each parts will get equal cutting force

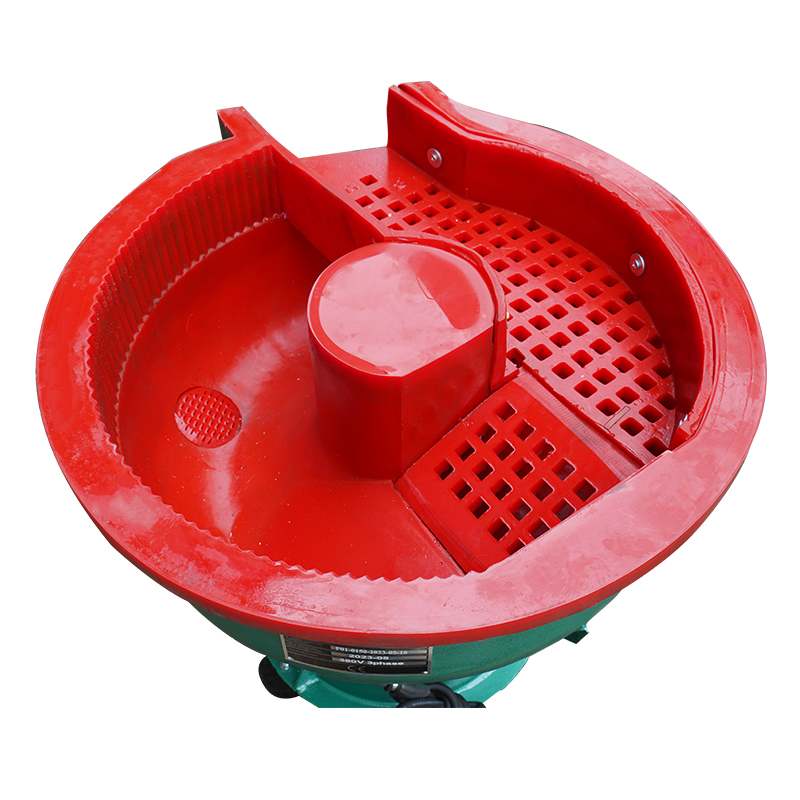

Full PU lining chamber, minimize the impact to parts and media, also extends bowl life.
Heavy-duty bowl base, iron casting body with coated surface, sturdy and durable
Round open bowl design allows random inspection during polishing and deburring machine,
3 Phase vibration motor provides sufficient grinding force, makes entire and thorough finish.
Hot-selling 95L capacity meets most productivity, mass finishing to small to medium sized parts.

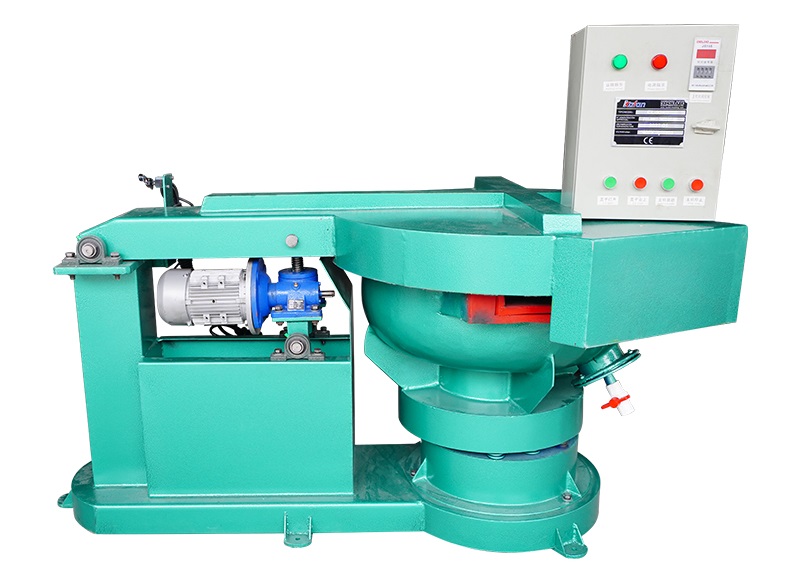

A special designed parts-media separator achieves high degree of automation that allows finished parts automatcally separated from medias which increased efficiency.
1) Customize a lid (cover) which can isolate the sound caused by vibratory, also prevent any splash of compouds or medias. It is an humanized and reliable design to ensure safety and health. The lid can be set with automatic operation
2) Customize an electric controller to realize speed and amplitube adjustable of the vibratory motor, in order to get precise finish for different finishing purpose, thus each type of workparts will obtain optimal results.
| Model | KF-95A |
| Voltage | 230V/380V/440V, 50Hz/60Hz, 3 Phase |
| Motor Power: | 1.1kw |
| Capacity: | 95L |
| Size: | 860*800*750L |
| Speed: | 1450 r/min |
| Estimated weight: | 120kgs |
| Standard Configuration | All PU lining Steel base/stand |
| Optional Items | Media Separator Sound Enclosures Variable Frequency Time control |
| Model | Capacity | Motor Power | Speed | Amplitude | Rubber Lining | Weight |
| L | kw | r/min | mm | mm | kg | |
| KF-40A | 40 | 0.55 | 1450 | 0.8-3 | 6-12 | 50 |
| KF-60A | 60 | 0.75-1.1 | 1450 | 0.8-3 | 6-12 | 100 |
| KF-80A | 80 | 1.1 | 1450 | 0.8-3 | 6-12 | 110 |
| KF-95A | 95 | 1.1 | 1450 | 0.8-3 | 6-12 | 120 |
| KF-150A | 150 | 2.2-3.0 | 1450 | 0.8-4 | 6-15 | 240 |
| KF-250A | 250 | 3.0 | 1450 | 0.8-6 | 6-20 | 280 |
| KF-350A | 350 | 5.5 | 1450 | 0.8-6 | 6-20 | 450 |
| KF-450A | 450 | 5.5 | 1450 | 0.8-6 | 6-20 | 530 |
| KF-650A | 650 | 7.5 | 1450 | 0.8-6 | 6-20 | 1250 |
The vibrarory tumbler can be used for a variety of applications: deburring, descaling, rounding of corners, cleaning, polishing, smoothing, general surface improvement.
For mass production of small to medium sized products, the deburring machine supports all kinds of materials: metal, plastic, ceramic, stone, glass, wood and rubber products
Mainly used in machinery parts, bicycles parts, aerospace components, heat treated parts, aluminum die casting parts, zinc die casting parts, furniture hardware accessories, clothing hardware accessories, luggage hardware accessories, glasses accessories, watches and clocks accessories, electronic accessories, all kinds of jewelry and decoration products.
