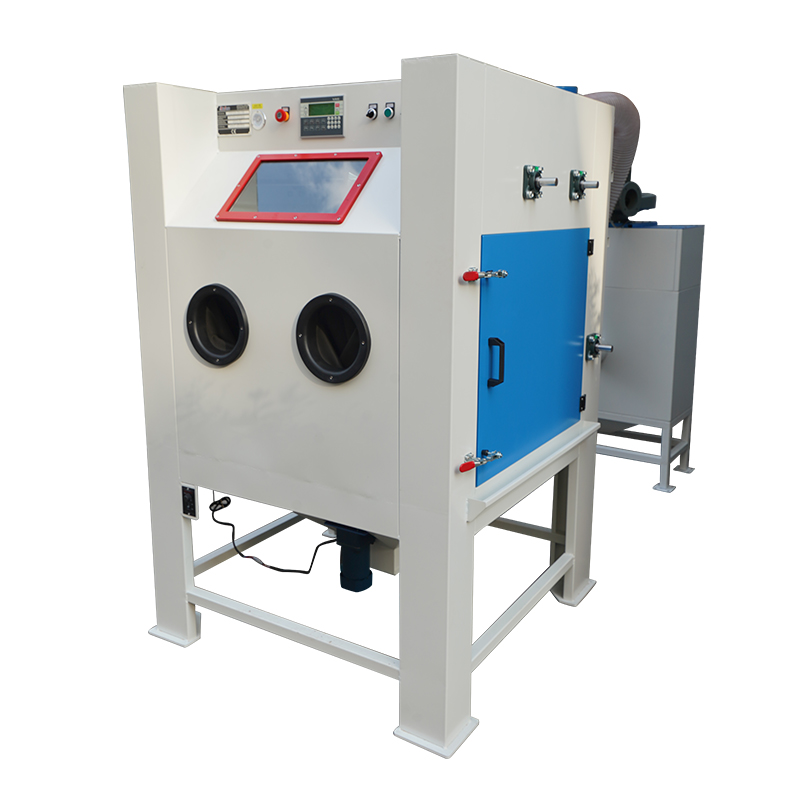

Product: Automatic turntable sandblasting cabinet
Application: sandblasting alloy wheels

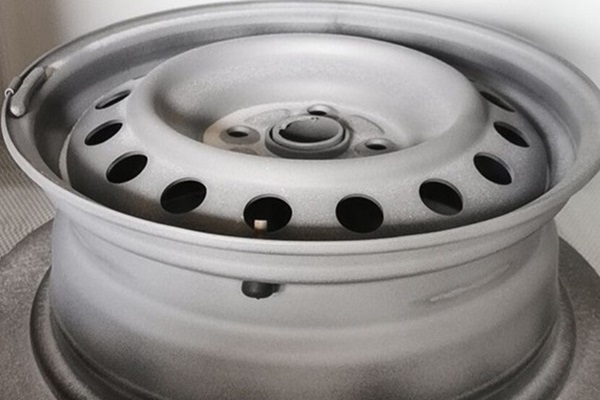

This automatic wheel sand blasting cabinet is popular among worldwide market, especially for wheel refurbishment workshop for rust-cleaning, paint-removing, oxide layer stripping, pretreatment finishing, then re-coating with new colors. It is designed with an automatic turntable and multiple automatic blast guns that achieves high processing efficiency.
If you are seeking for efficient solution with less time use and less manual efforts, thus we recommended this automatic turntable sandblasting cabinet
How the automatic sandblasting cabinet works for finishing wheel?
- Put the wheel or rim on the turntable, set all parameters, then start the machine. Once time arrive, the machine will stop automatically.

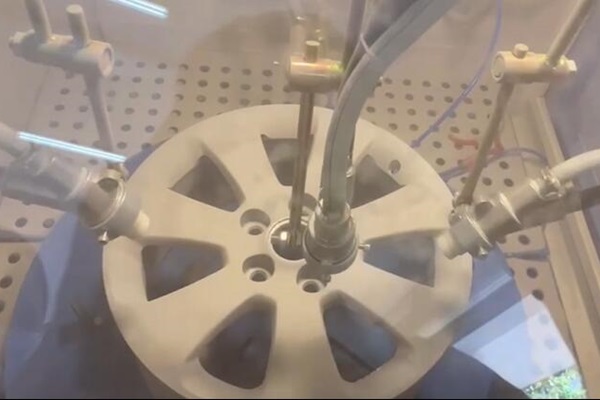

- As automatic guns oscillately blasting, the turntable rotates automatically at the same time, thus all surfaces and corners of the object can be cleaned. One wheel finishing blasting only requires about 10 minutes, time changes as per the wheel size.
- The fully-automatic process greatly saves the labor force from holding the blasting gun all the time, so it is very popular with clients for round or cylinder parts.
Automatic Sandblasting Cabinet Features - Flexible, Precise, Efficient
- Configured with 4 pcs of automatic blast guns which can be adjusted for fixing blasting or oscillating blasting, The work of each blast gun is individually controlled.
- Along with a 1 piece of manual gun for after-checking.
- The heavy-duty turntable is ideal for loading big and irregularly shaped workpieces, can be fitted with fixture for handling small and light workparts.
- The turntable can be set for automatic rotating as well as manual rotating as you needs.
- Through the PLC advanced system, you can easily control the work of each blasting gun, blasting time, turntable rotating, dust collector working to achieve a fully automatic, highly flexible process.

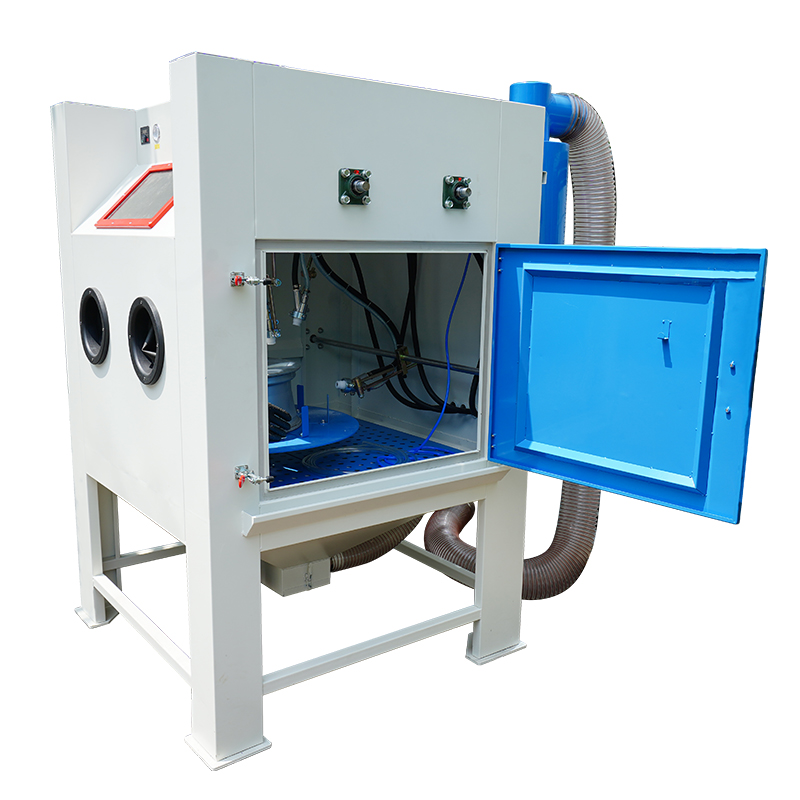

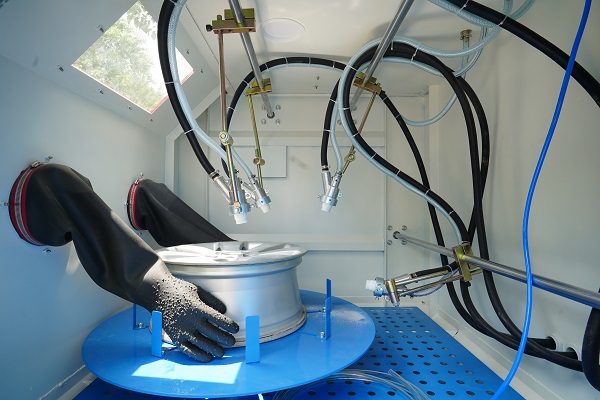

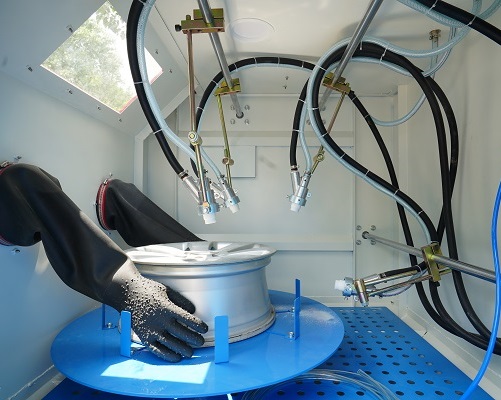

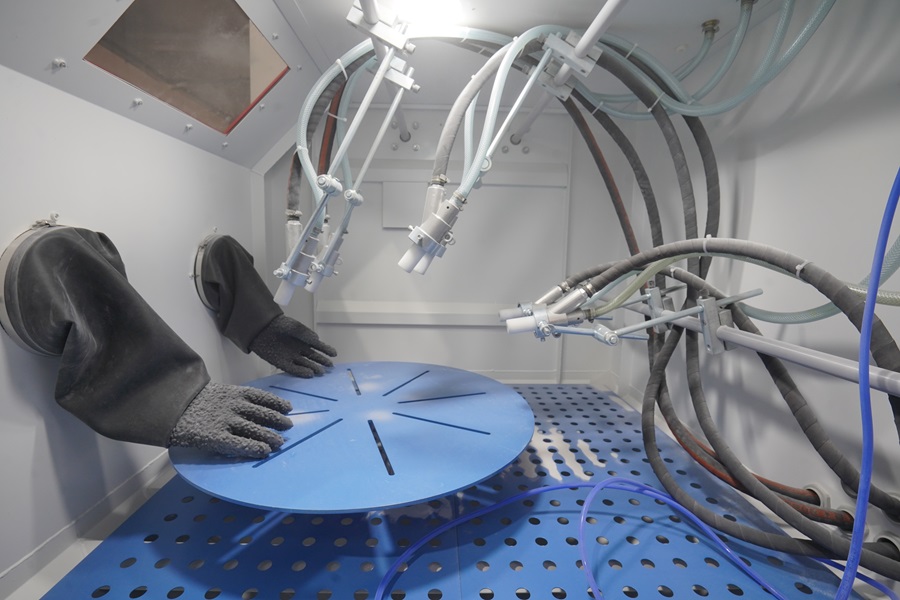

Working Cabinet

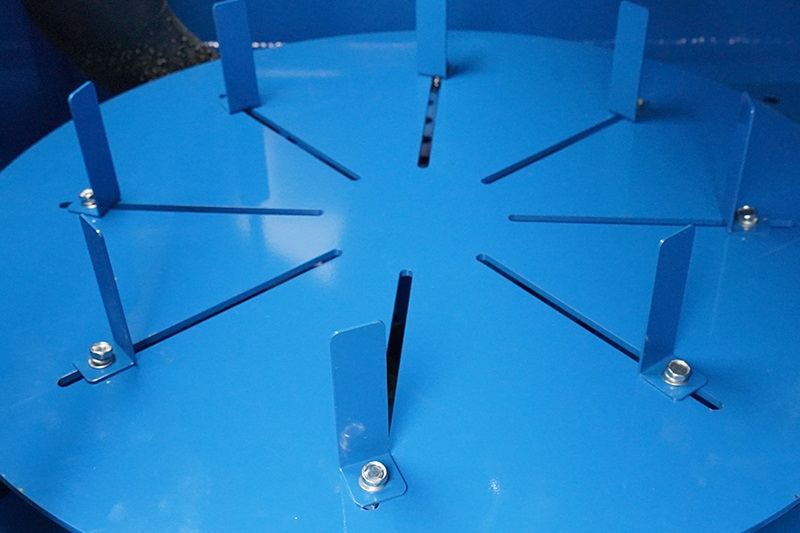

Turntable with Fixture

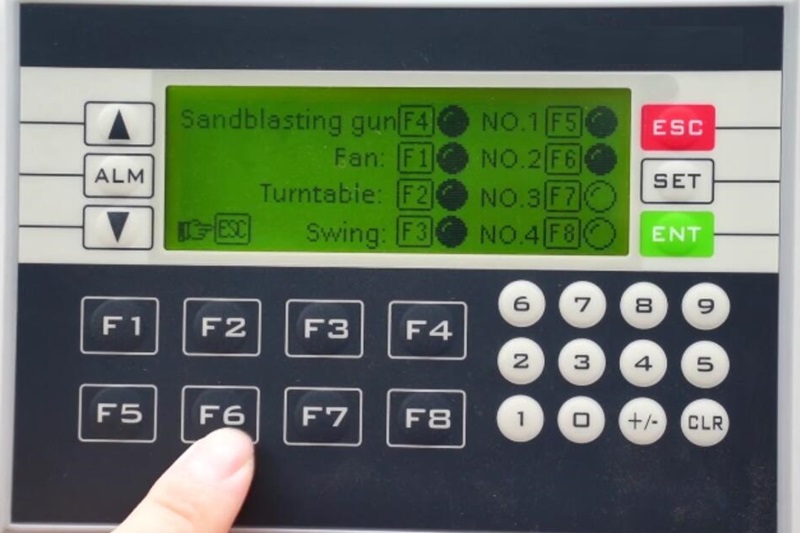

PLC Control
Specifications of Automatic Wheel Sandblasting Machine
Model: | KF-1212-4A |
Working chamber dimension(L*W*H): | 1200mm*1200mm*850mm |
Power supply： | 220V, 50HZ (voltage can be customized as local) |
Machine light power： | 220V, LED* 2 |
Compressed air source： | 5-7bar(kg/㎡) |
Air flow： | 0.8-3m3/min dry and clean compressed air |
Separator air volume： | 8.5m3/min |
Dust removal method | Cartridge Filter Type |
Blasting Gun Qty | 4 pcs |
Blasting Nozzle | Boron Carbide |
