Automatic Sandblasting Machine for Removing Coatings of Photovoltaic Glass

Product: Automatic conveyor belt sandblasting machine

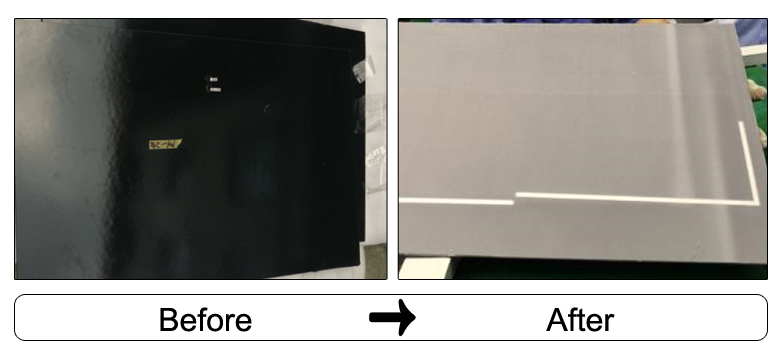

Application: removing coating of photovoltaic glass plates

The continuous belt type automatic sandblasting machine is designed for one of our clients processing their photovoltaic glass plates, for the purpose of removing the coating on the surface.

How Automatic Conveyor Belt Sandblasting Machine Works

In the automated blasting system, components are continuously presented to an array of pre-positioned guns as the parts are conveyed in and out of the blast chamber on an adjustable-speed belt.  Up to 8 (or more) suction-blast guns are bracketed to sweep parts in linear motion synchronized with continuous movement of the belt.

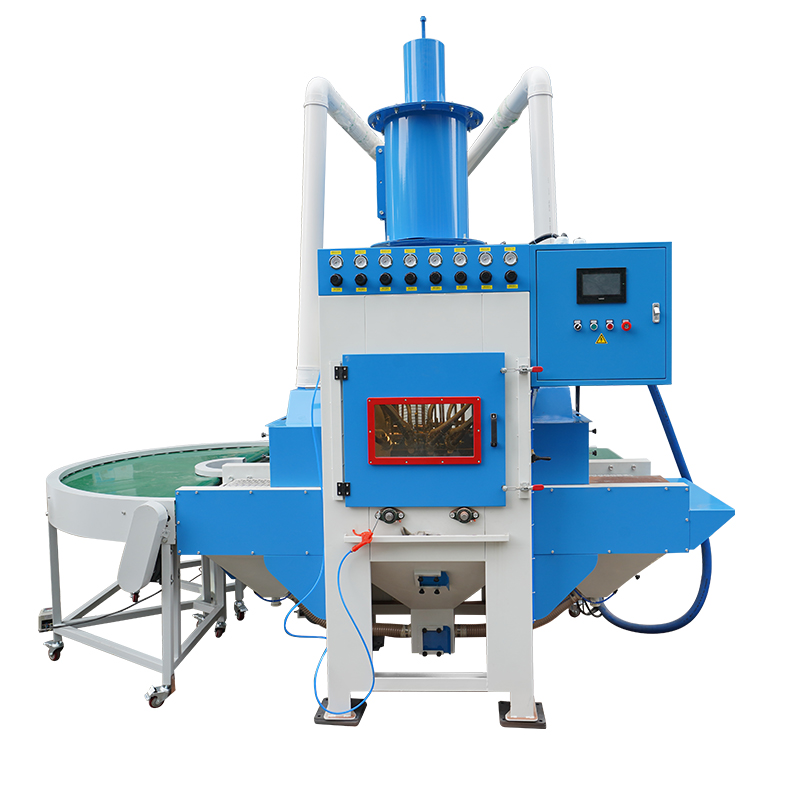

Automatic Conveyor Sandblasting Machine with U-shape Belt

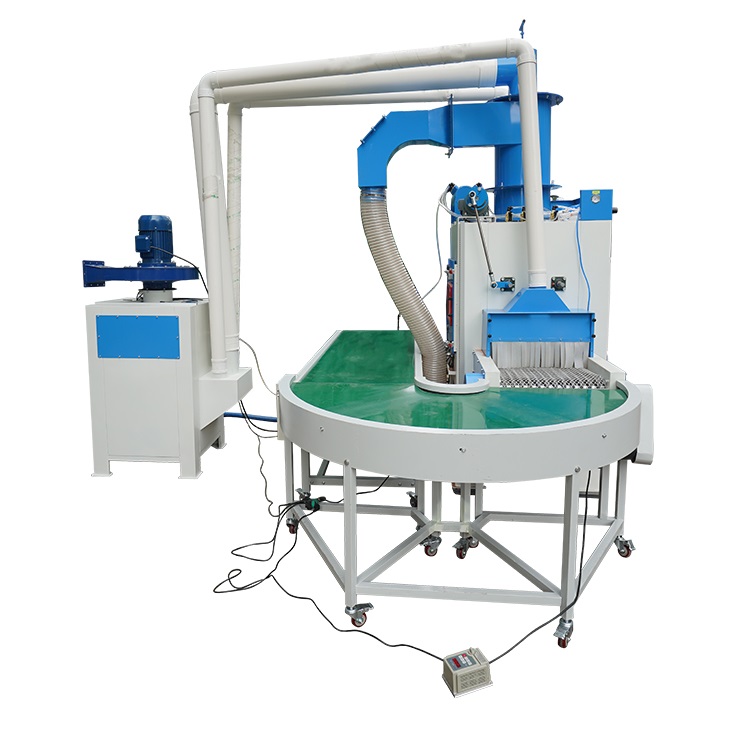

This automatic conveyor sandblasting machine is specially configured with an external U-shape conveyor belt, which connects with the exit of the sandblastig machine,  the U-type conveyor will automatically transport the finished workpieces back to the loading area so that one worker can carry out the loading and unloading at the same time.

Automatic Conveyor Belt Sandblasting Machine Features

• Individual control of each blasting gun, can be set for fixed blasting or swinging blasting,

• Belt conveying speed is controllable with variable frequency 0-2m/min.

• PLC control system with touch screen provides flexibility, accuracy, reliability, which can be connected to the phone or computer for romote control.

• Equip with safety operation interlock system by solenoid valve between suction system and blasting system to control air supply.

• Adjustable curtain at entrance and exit to prevent the dust from escaping.

• Thoroughly dust collect system leaves a clear working view and ensures the recycling of pure abrasive and the free dust air discharged to the atmosphere.

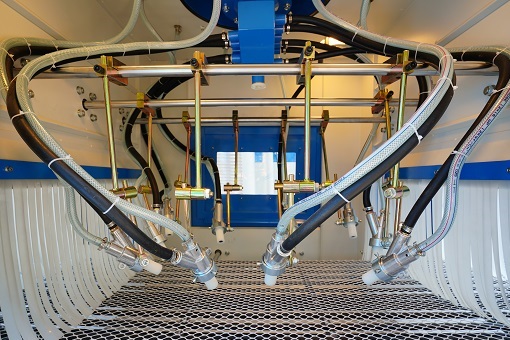

Automatic Blasting Guns

PLC Control

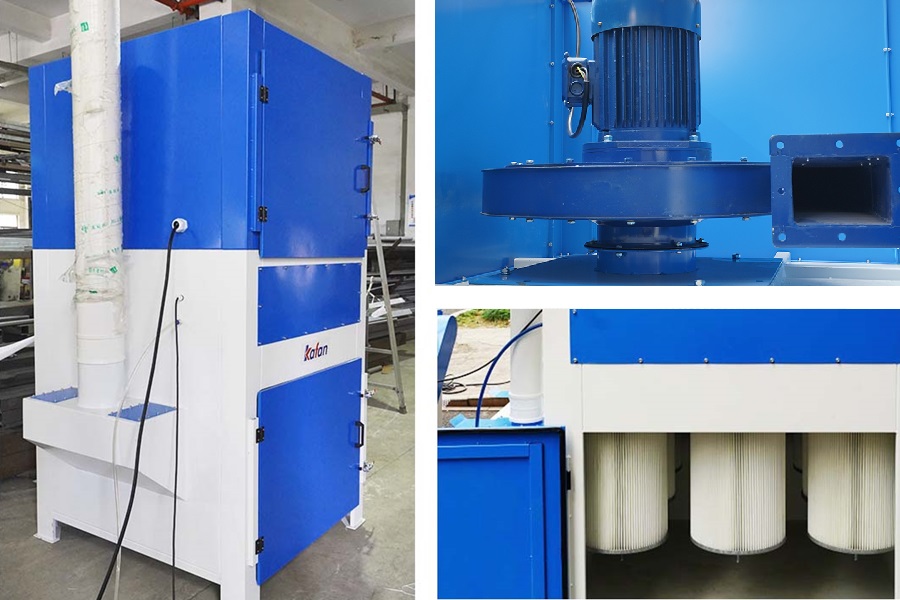

Dust Collector

Automatic Conveyor Belt Sandblasting Machine Specifications
