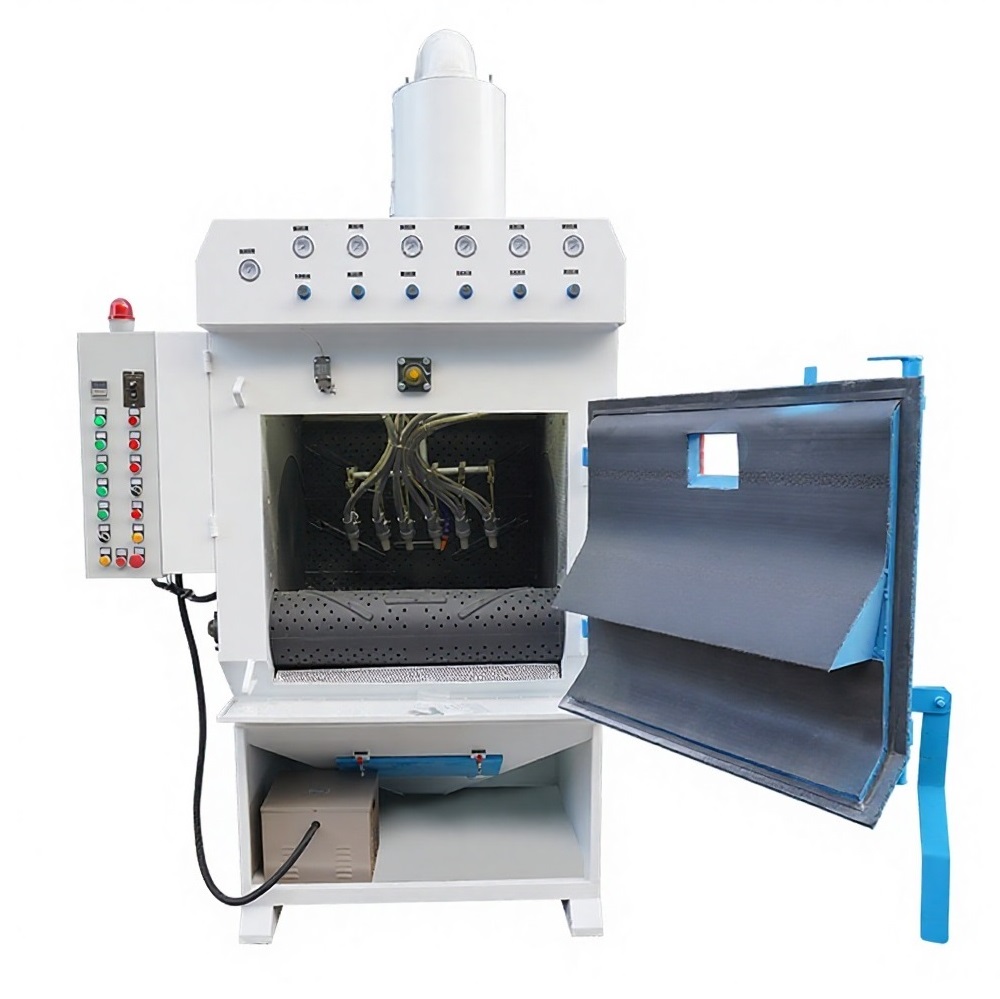

Product: Tumble Belt Sand Blasting Machine
Application: cleaning and finishing of batch small parts(with simple or complex shape)
Tumble belt type sandblasting machine allows batch of parts tumbling on a heavy-duty rubber belt, at same time a group of guns uniformly blast medias to all exposed surfaces for surface cleaning or finishing, which is ideal for processing big quantity of small or medium sized pieces.
Why Choose Tumble Belt Sandblasting Machine for Batch Processing?
Comparing with the tumble barrel blaster, this machine involves more blast guns(4-6pcs) that covers more surface areas and deliver more consistent finish, suited for relatively bigger, heavier, complex-shaped objects.
Comparing with tumble shot blaster, this machine creates more gentle blasting force that will not cause any curves, broken or deformed effects, more suitable for appearance parts, thin-walled parts, aluminum parts, and zinc alloy parts
Tumble Belt Sand Blasting Machine Features
Thick, perforated rubber belt with a big loading capacity of 200kgs
Automatic process, simply load parts on the rubber belt and set the timer, then return later to unload, you will get perfectly cleaned or finished parts.
Oscillating blast guns ensures maximum coverage of all parts. the oscillating speed and amplitude can be adjusted for optimal results and productivity.
Closed abrasive recycling system, lower cost and eco-frienedly. Clean abrasives are effectively seperated by cyclone and recycled to blaster while dusts are collected by filter dust collector.
Small footprint and integrated unit (cleaning chamber + cyclone separatpr + dust removal), making it suitable for small and medium-sized workshop.
Tumble Belt Sand Blasting Machine Specifications
Model:
| KF-A100
|
Working cabinet: | L900*W600*H600 (mm) |
Cabinet outsize: | L1160*W1000*H2800 (mm) |
Dust collector dimensions: | L1200*W900*H2140 (mm) |
Productivity:
| 0.5-1.0 T/H |
Load capacity: | ≤200KGS |
Rolling motor power:
| 1.5KW |
Dust collection motor power:
| 3.0KW |
Automatic blasting gun: | 6pcs Aluminium alloy blasting guns, with 4pcs boron carbide nozzles, dia 8mm. |
Voltage: | 380V 50HZ (can be custom-made) |
