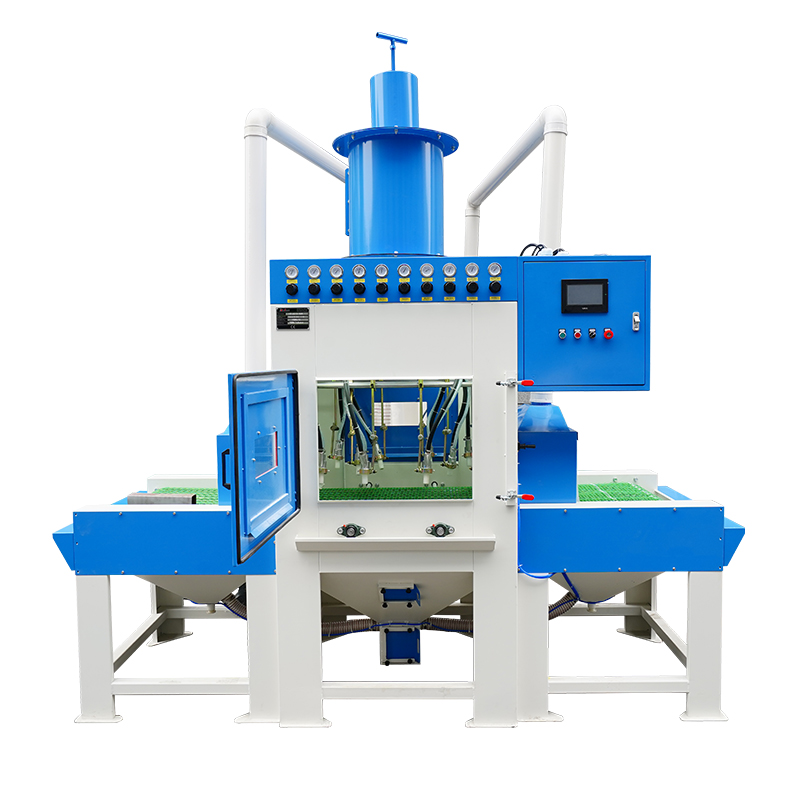

Product: Automatic Conveyor Sandblasting Machine
Application: Cleaning Molds

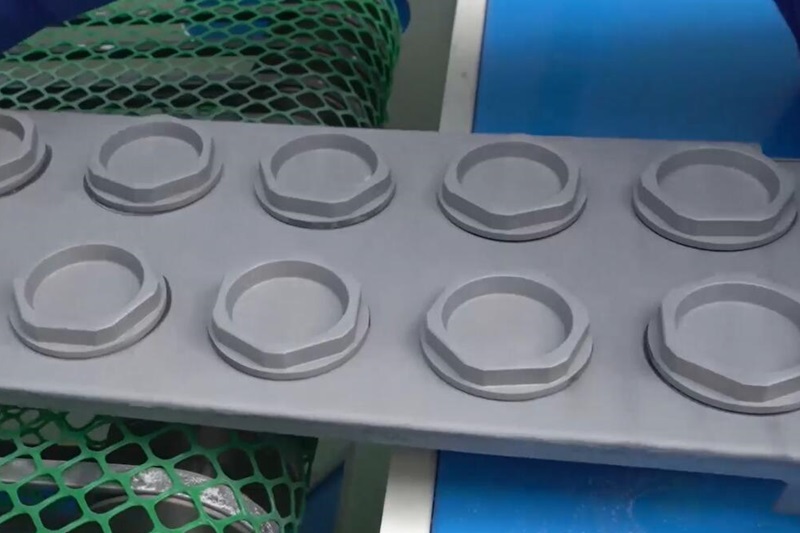

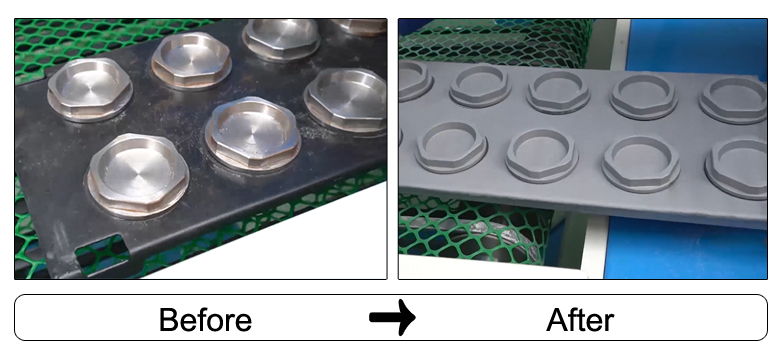

This conveyor type automatic sandblasting machine is specially designed for cleaning of flat shape molds with high efficiency of removing rust and dirt.
Belt conveyor sandblasting machine allows long length workparts continuously pass thru the processing chamber for automatic media blasting, which ahieves high production and unifom processing quality.

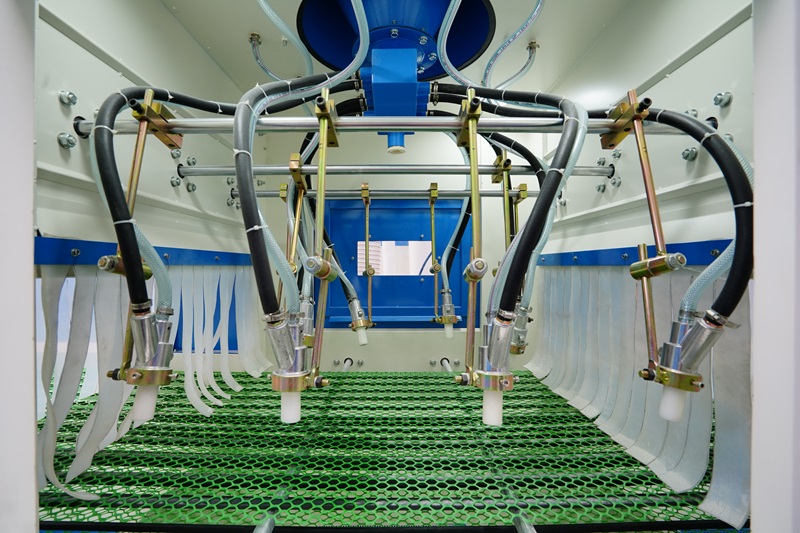

The operators put the molds on the conveyor belt, which are continuously transported into the sandblasting area, while the a group of guns automatically oscillating and blasting, ensures each corner of workpart is entirely cleaned.
Workparts are conveyed to the sandblasting area where they are processed by a group of automatic guns. Each blast gun is individually controlled for working by demands. Depending on the parts' shapes and dimensions.
The frequency adjustable conveyor motor can be steplessly regulated by inverter within the range of 0 ~ 2m/min

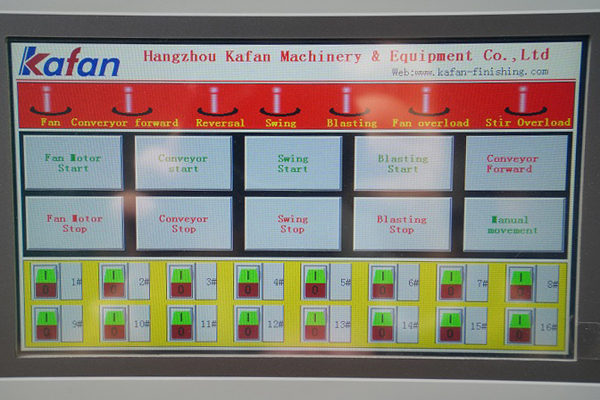

The automatic sandblaster applies advanced PLC electric control system with touching screen offers user-friendly interface to manage the blast working, adjust conveyor speed or start the dust collector.

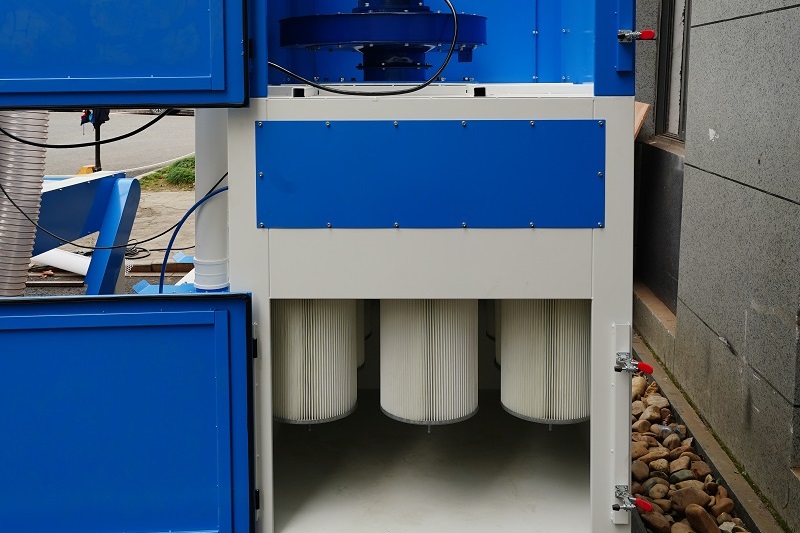

Media recycling and dust collecting are performed by cyclone separator and cartridge filter dust removal system.
| Model | KF-3208-10A |
| Working Size | 1100*1200*1000mm |
| Pass Thru Size | 800 X 300mm |
| Overall Size | 3200*1200*2139mm |
| Dust Collector Size | 1200*1300*2400mm |
| Total Power | 7.8kw |
| Dust Collector Fan Motor | 7.5kw |
| Conveyor Speed | 0-5m/min, adjustable |
| Drive of Conveyor | 0.4kw speed adjustable |
| Gun Clamp | Automatic swing, |
| Gun QTY | 10pcs |
| Compressed air Requirements | 35CFM/Per Gun 3-8bar(kg/cm2) |
| Body Material | Cold rolled steel plate |
