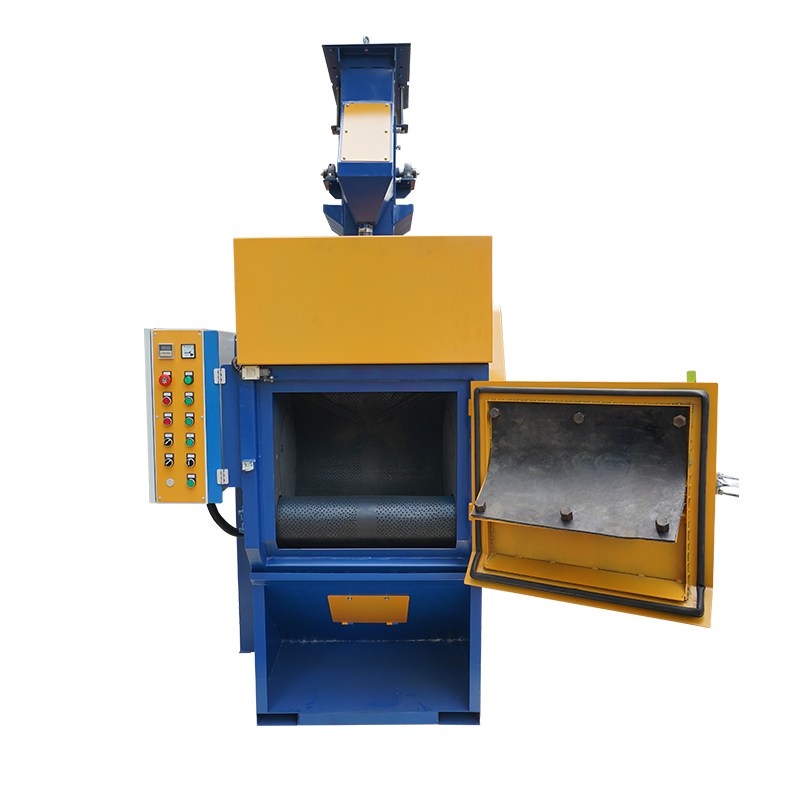

Tumble Shot Blasting Machine for Small Parts Quick-cleaning

Product: Tumble Belt Shot Blasting Machine

Application: cleaning and rust-removing of small machinery parts in high volume

The tumble belt shot blasting machine is suited for surface treatment of small parts in extremely high effciency. The endless belt keeps parts gently tumbling as they are exposed to shot streams on all surfaces, results in uniform and overall cleaning.

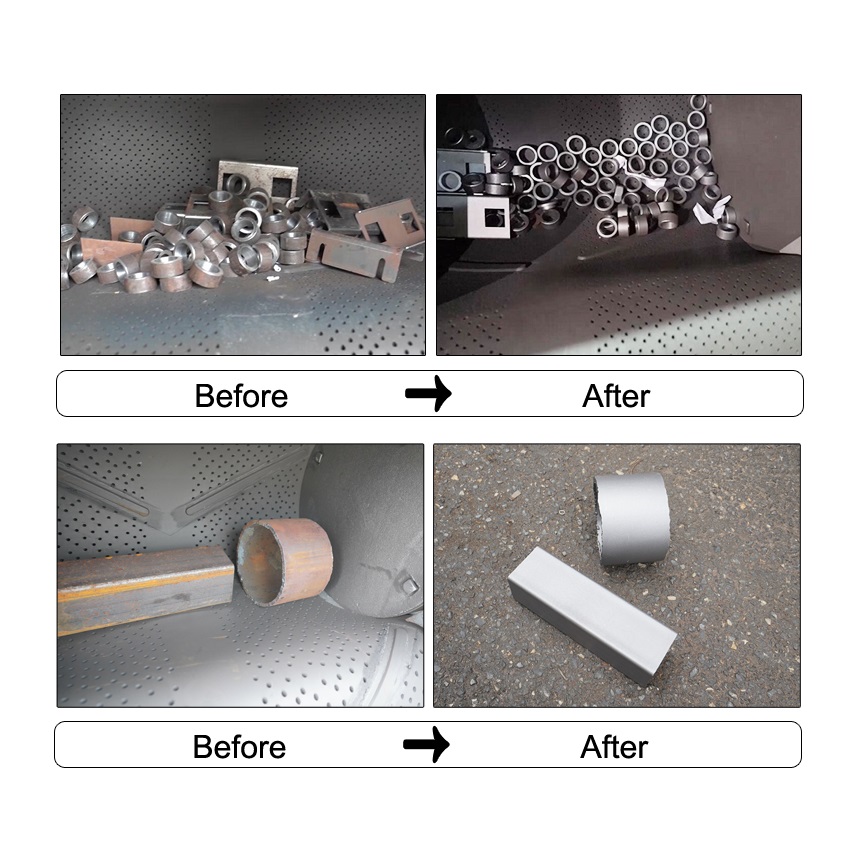

It is widely used for small castings, forgings, stampings, bushings, sleeves, springs, standard screws, die-cast aluminum parts, and other mechanical accessories that are not afraid of minor impacts.

How automatic sandblasting machine works to refurbish bakeware?

Big volume small parts are loaded into the wear-resistant perforated rubber belt. The belt rotates forward to continuously tumble parts evenly. A high-speed centrifugal blast wheel throws out steel shots at 80–110m/s to effectively remove rust, scale, old paints, and strengthen metal surface by compressive stress. Shot media fall through belt holes, transported by screw conveyor and bucket elevator to air separator for recycling.

Automatic Conveyor Belt Blasting Machine Features

• Big batch processing with superior efficiency, just cost 3–8 mins to finish a batch

• Tumbling in  360° without any blind spots or missed areas, resulting in high surface uniformity.

• Dual fucntion: Cleaning & Surface Strengthening:1) Remove rust, scale, casting sand, and burrs resulting in a uniform surface roughness.  2)Generate surface stress and improve fatigue strength that reduces cracking and scrap rates.

• Closed shot recycling system, low abrasive consumption and eco-frienedly. Clean shots recycled to blaster while dust & waste are filtered by dust collector.

• Small footprint and integrated unit (cleaning chamber + elevator + dust removal), making it suitable for small and medium-sized workshop.

Tumble Shot Blasting Machine Specifications
